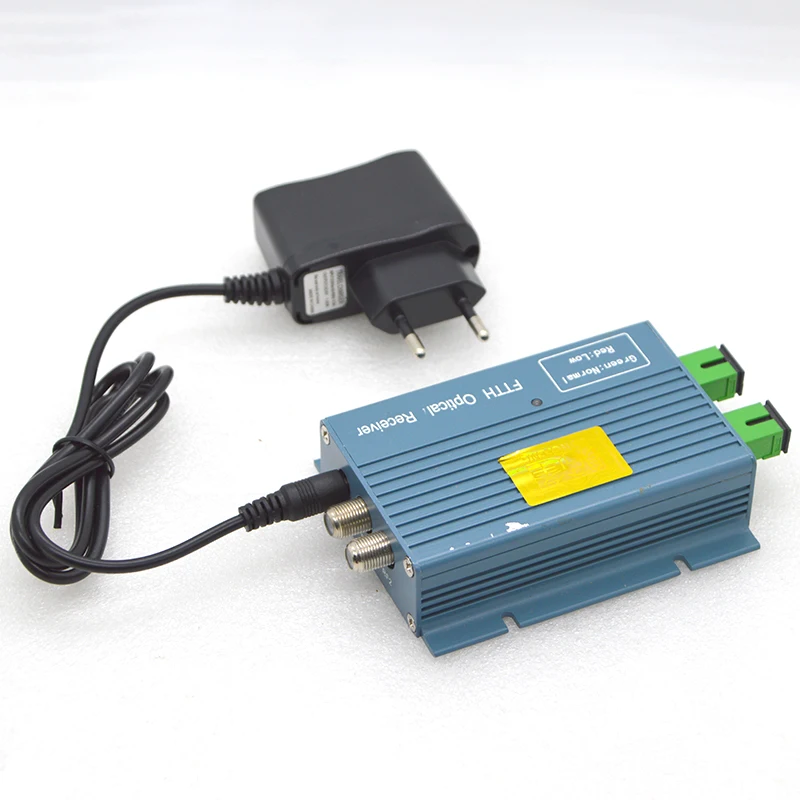

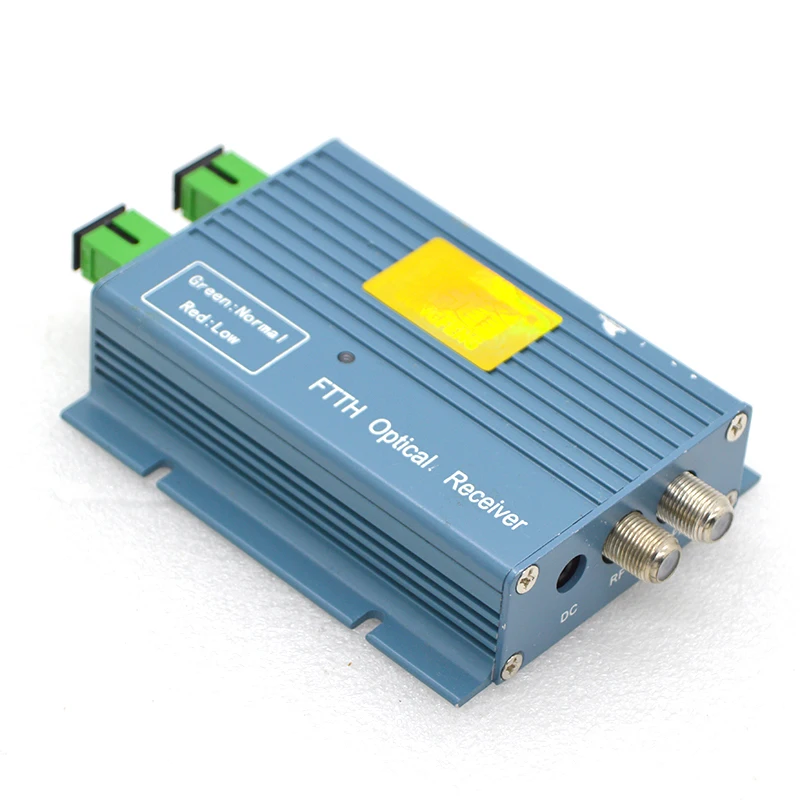

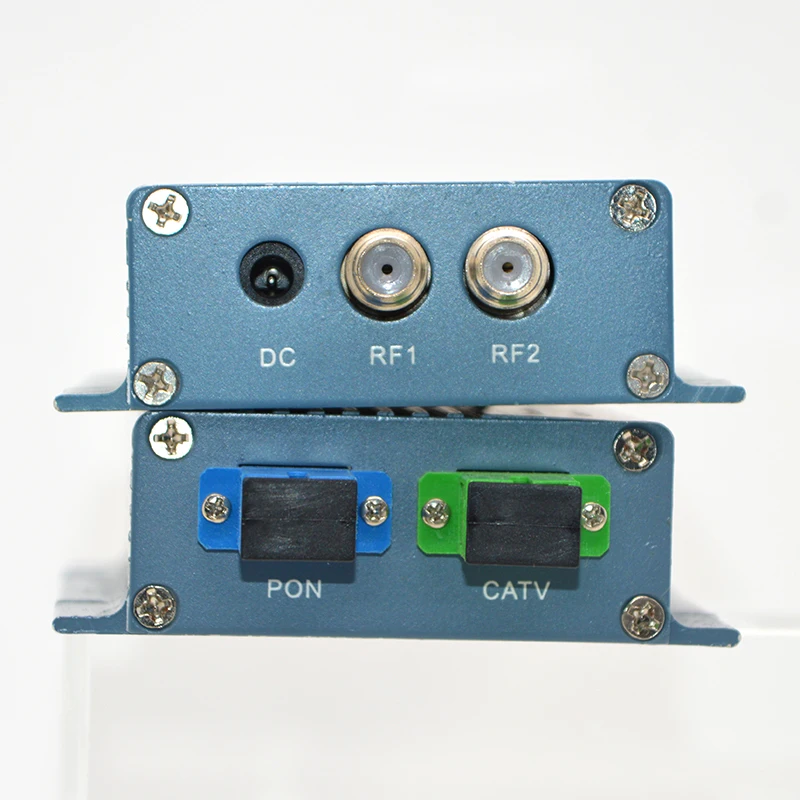

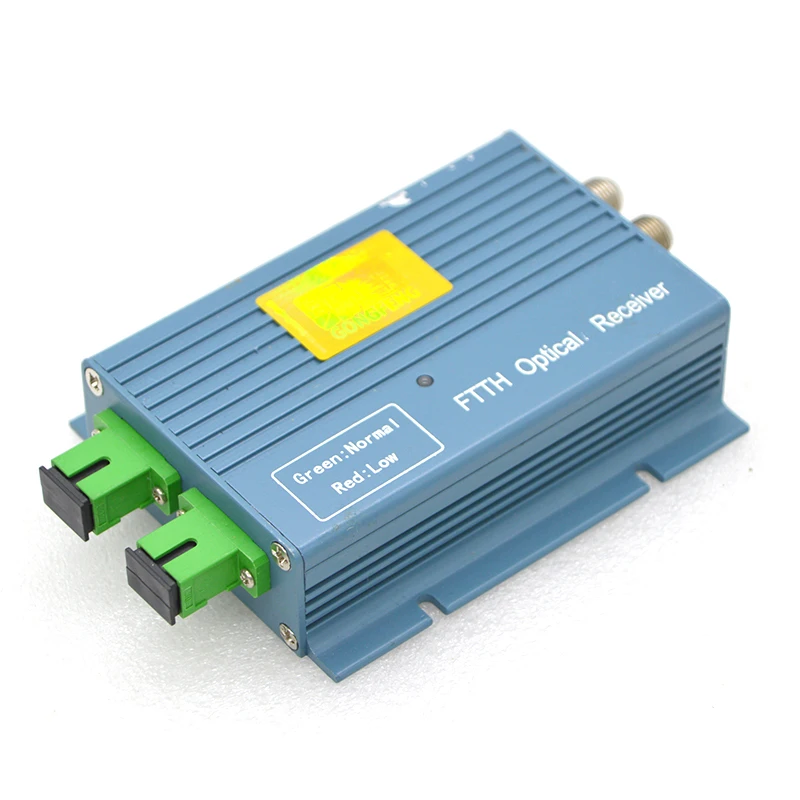

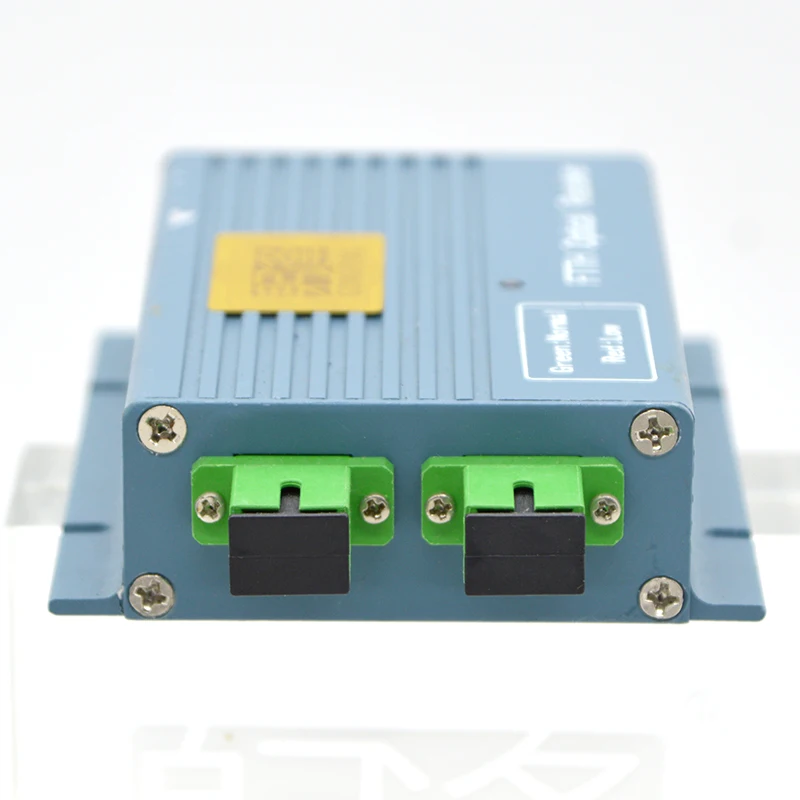

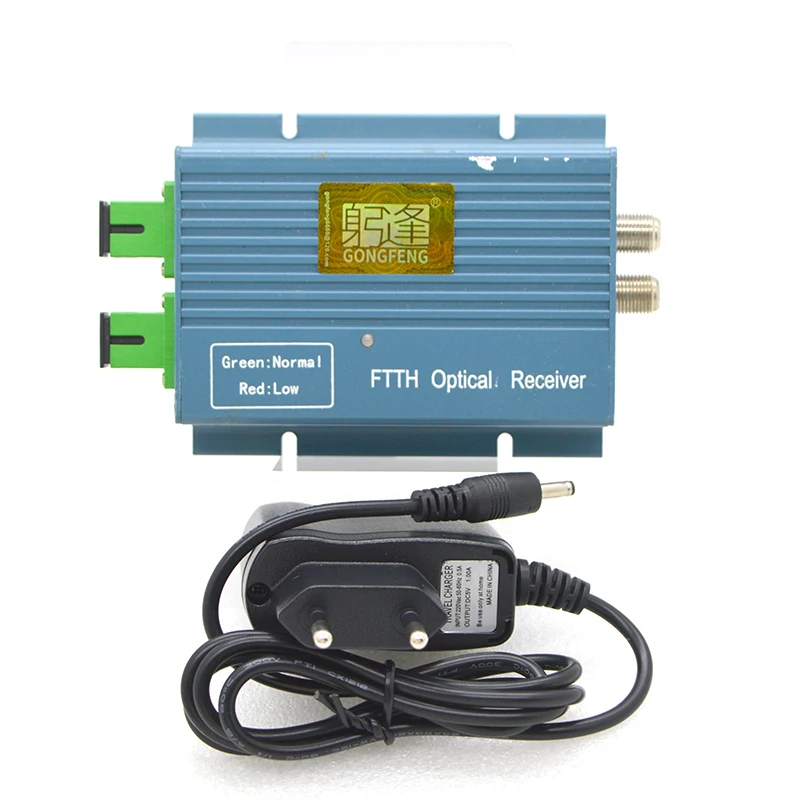

New FTTH CATV Node PON Optical Receiver WDM 1550/1490 /1310nm Fiber Optic Equipment Factory Price Wholesale
Model: GF-WDM
Receiver output level: 82 (dbmv)
Wavelength: 1100-1600 (nm)
Input optical power: - 18 ~ + 2 (DBM)
RF output impedance : 75（Ω）
Output reflection loss : 45（dB）
Power consumption: 0.5 (W)
Weight: 400 (g)
Ftth-1000m optically controlled receiver
Input: - 15dBm ~ + 2dbm
2RF Output: 65 ~ 82dBμV(±1dB μ V)
Applicable to: GEPON Network
Red: ＜ - 9dbm;
Green: ＞ - 9dbm
Orange: ＞ + 2dbm
performance parameter
AGC control range: - 10 ~ 0 dBm
Optical emission loss: ＞ 45dB
Light receiving wavelength: 1100 ~ 1600nm
Optical connector type : SC/APC,SC/PC
Carrier noise ratio (C / N): ≥ 50dB
Carrier combined third-order beat ratio (C / CTB): ≥ 65dB
Carrier combined second-order beat ratio (C / CSO): ≥ 63dB
Frequency range: 45 ~ 100MHz
In band Flatness: ± 0.5 (45 ~ 550MHz); ±0.75(550~750/862/1000MHz)
Output level: 65 ~ 82db μ V（±1dB μ V）
WDM wavelength: 1550 / 1490 / 1310nm
