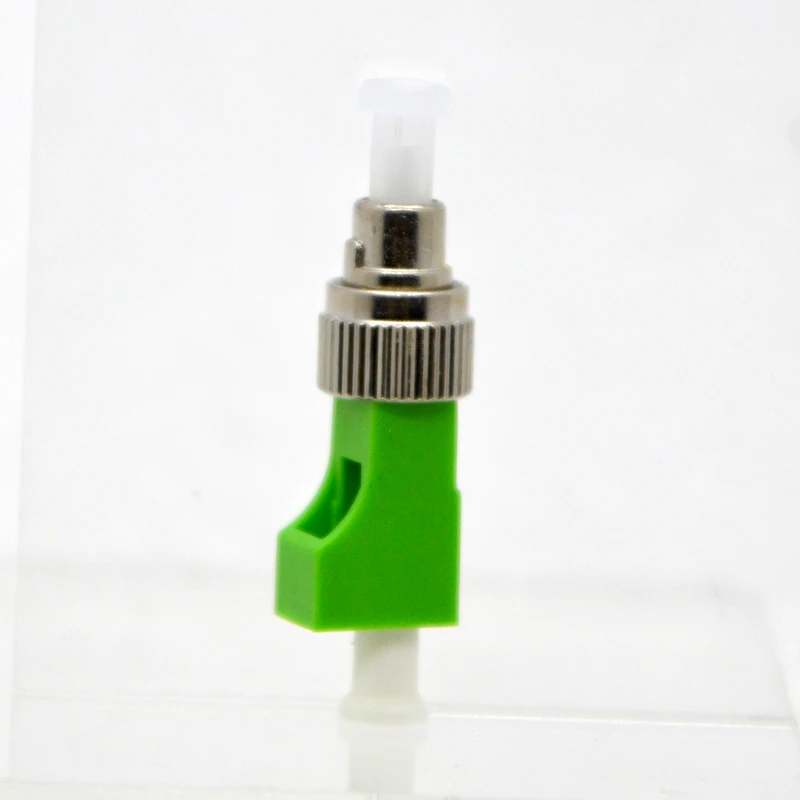

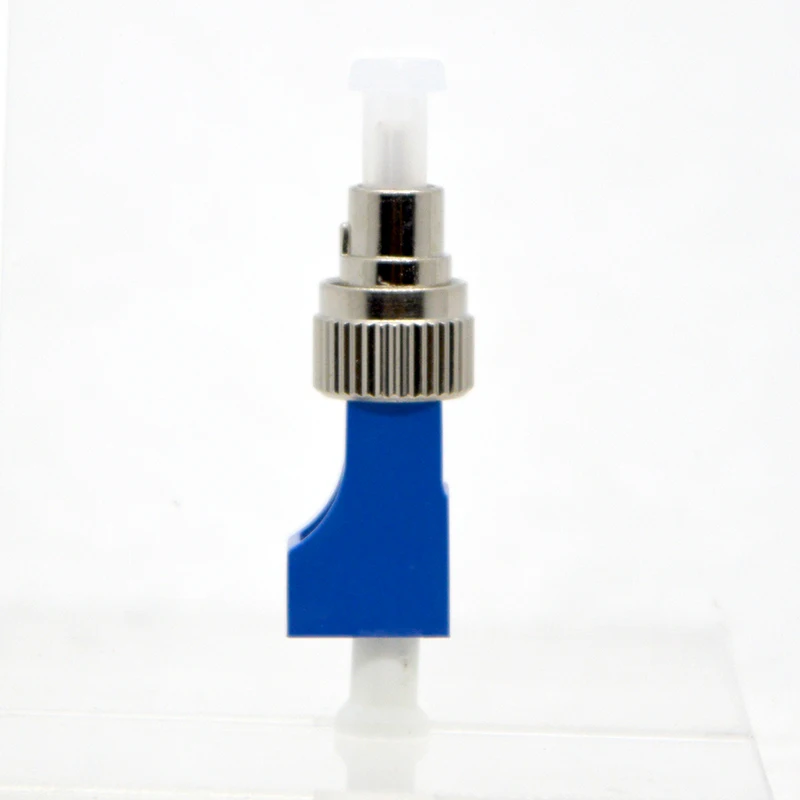

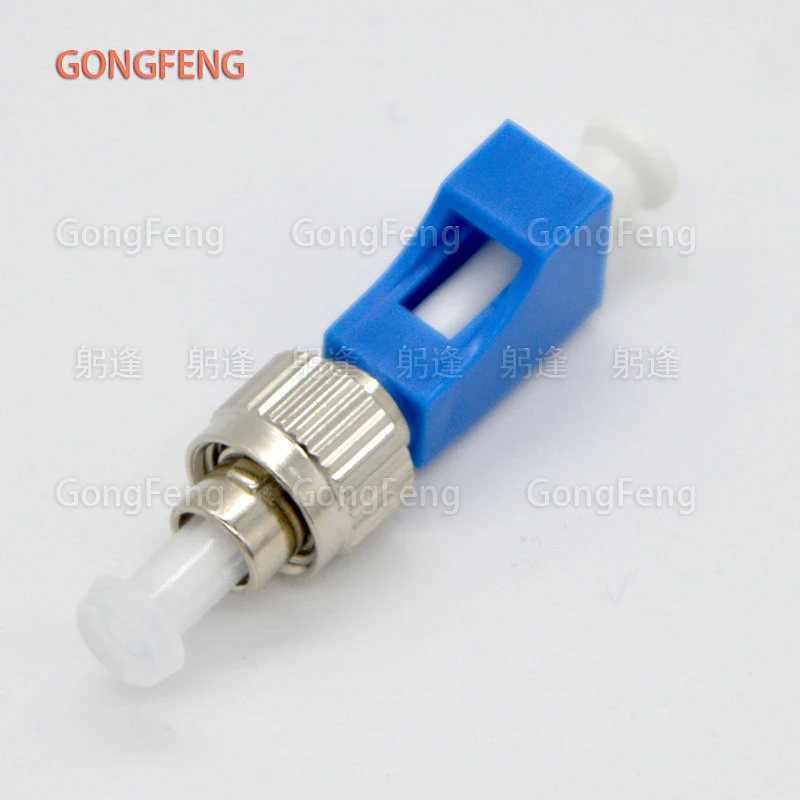

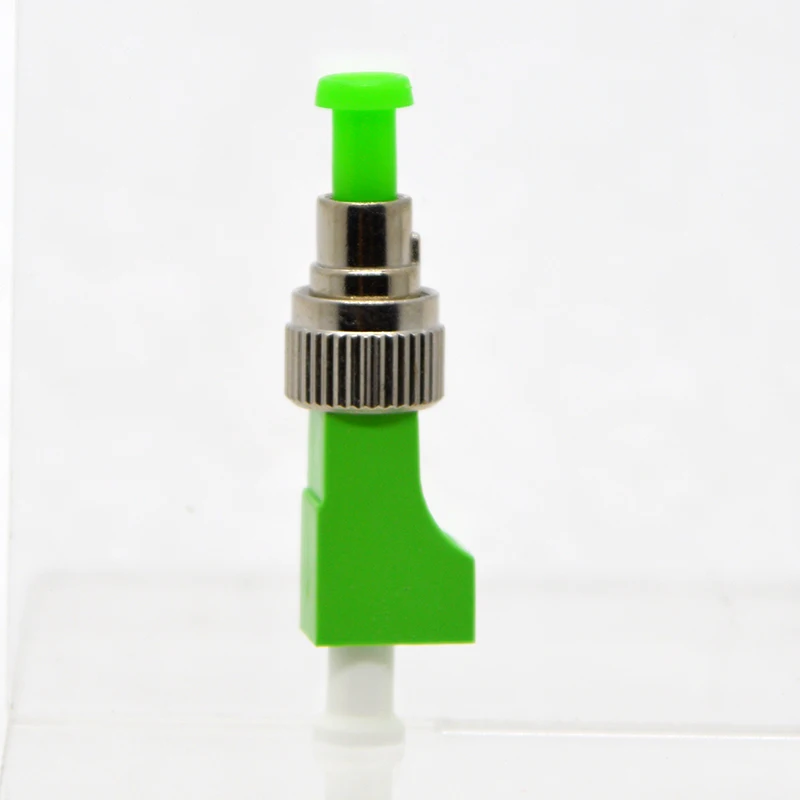

New LC/Female-FC/Male Round to Square Fiber Optic Adapter Connector Flange Coupler Optic Equipment Factory Discount Wholesale
Special adapter for red light pen light power meter (LC to FC)
LC female to FC male adapter
The embedded optical fiber, the combination of inserting core and sleeve adaptation technology are adopted,
It can convert LC optical fiber connector (male) to FC (male),
Or convert FC fiber connector interface (female) to LC fiber connector interface,
When two or more different optical fiber transmission connectors are connected for users,
Provide a simple and reliable solution,
Users can choose 9 / 125, 50 / 125, 62.5/125 and other fiber core modes and corresponding connector types.
Insertion loss: ≤ 0.3dB
Return loss: PC ≥ 45dB, UPC ≥ 50dB, APC ≥ 60dB
Repeatability: ≥ 1000 times
Working temperature: - 25 ℃ ~ + 85 ℃
The adapter is different from the ordinary adapter. It is mainly used to connect the optical fiber connectors with different types at both ends and different sizes of the outer diameter of the insert core. This adapter adopts the large-diameter to small-diameter sleeve butt joint.
The adapter of big and small adapter sleeve is mainly composed of:
LC-FC, LC-SC, LC-ST, LC-DIN, MU-SC, MU-FC, etc.
Characteristic:
The casing is used for precise connection.
Single mode and multi-mode connectors can be used interchangeably.
Low insertion loss and high return loss.
Good interchangeability and reliability.
Meet the requirements of IEC and ROHS standards
High mechanical dimension accuracy.
Superior optical performance and mechanical stability
Advanced lapping equipment ensures that the center of the optical fiber is lapping offset. The zirconia sleeve with high temperature resistance, acid and alkali resistance and ultra-high hardness (high density) is adopted, which has good optical performance and high mechanical stability.
Product use
Optical fiber instrument, optical fiber communication equipment, red light pen and other interface conversion.
Fiber connector conversion.
Optical fiber data test.
Optical data transmission.
Telecommunication access, radio and television engineering, network engineering
