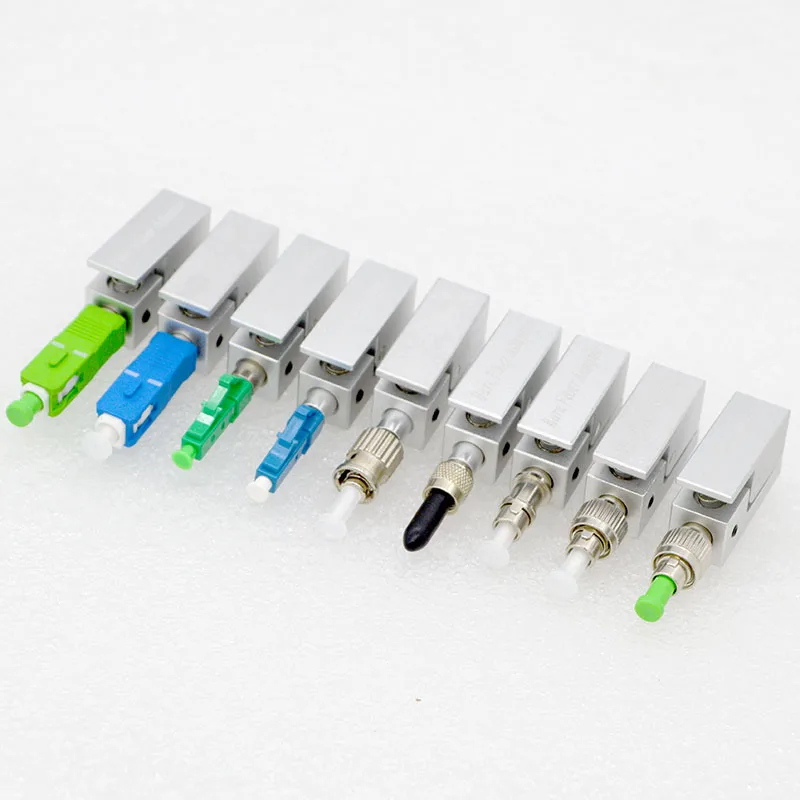

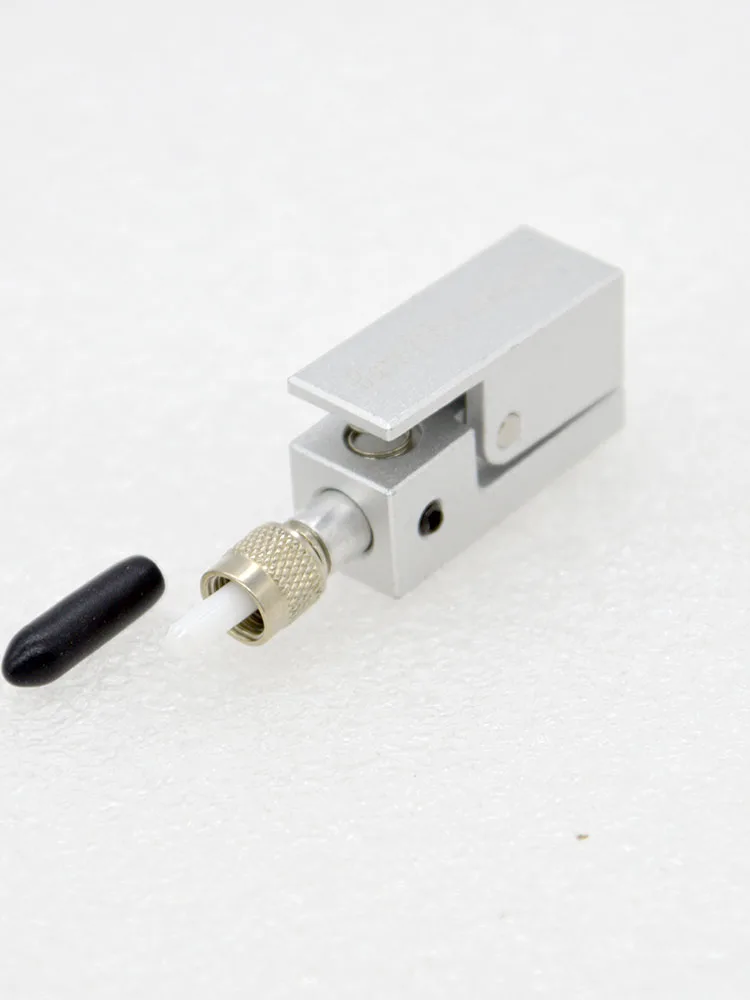

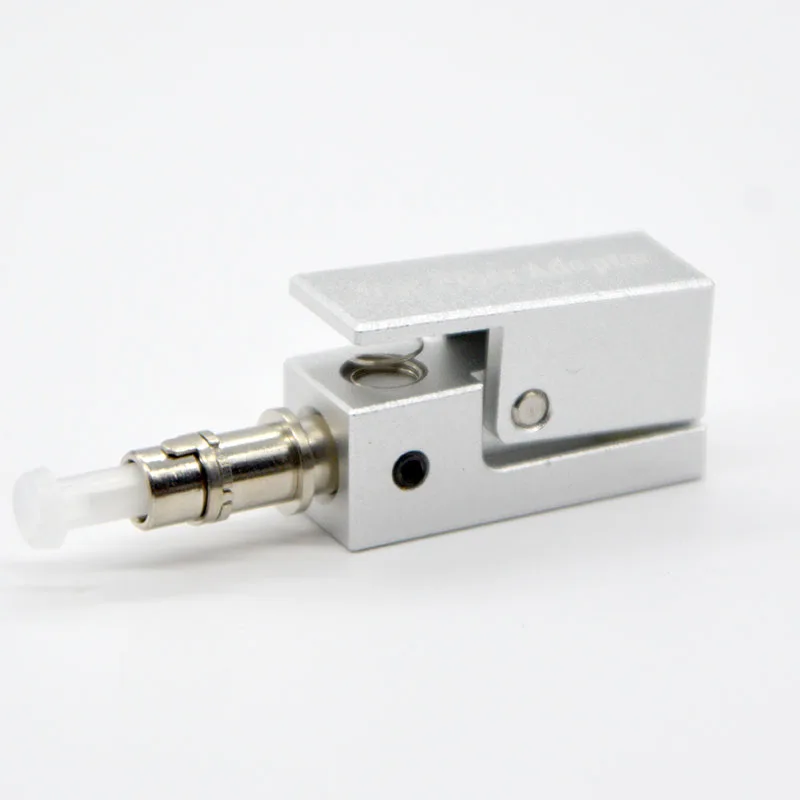

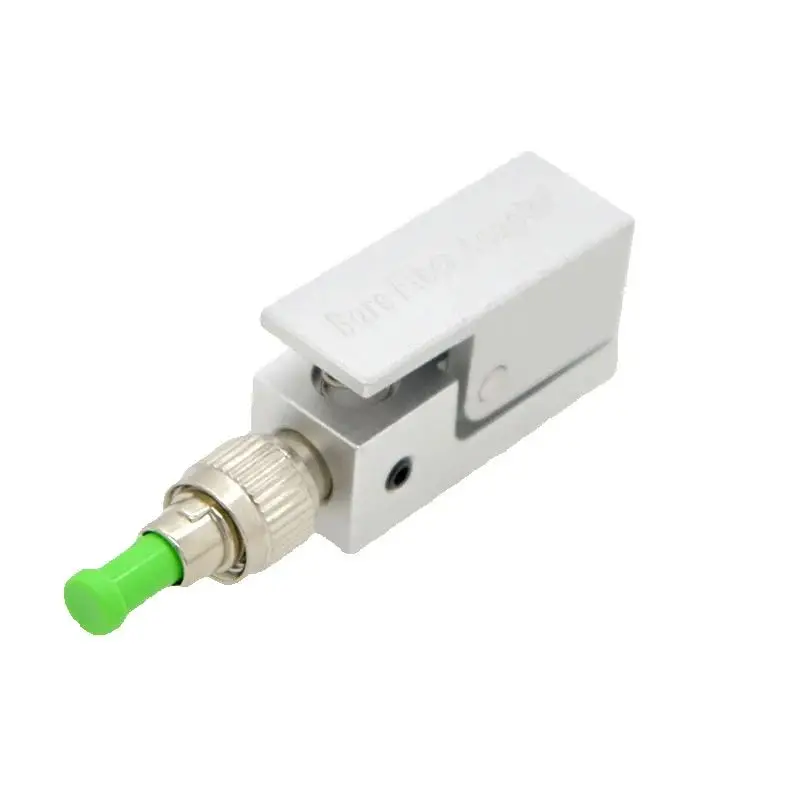

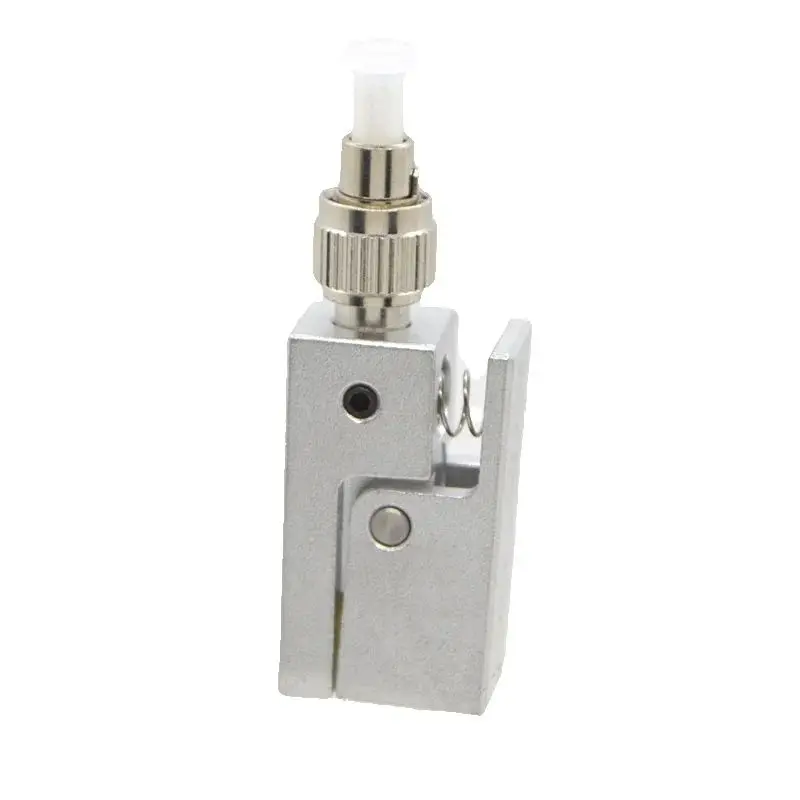

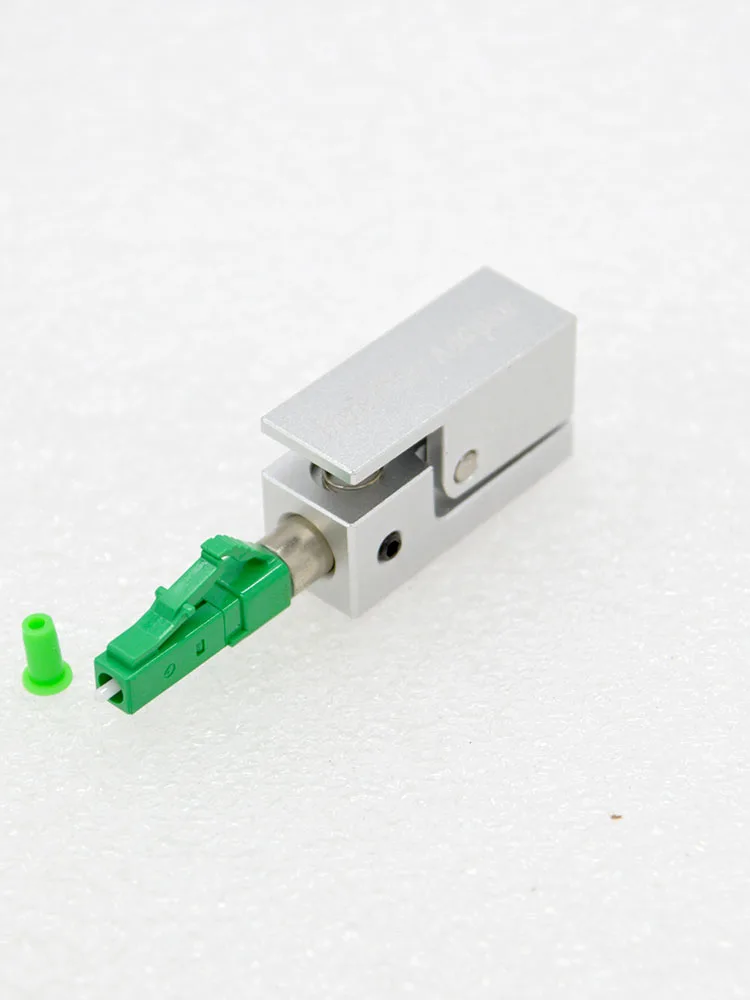

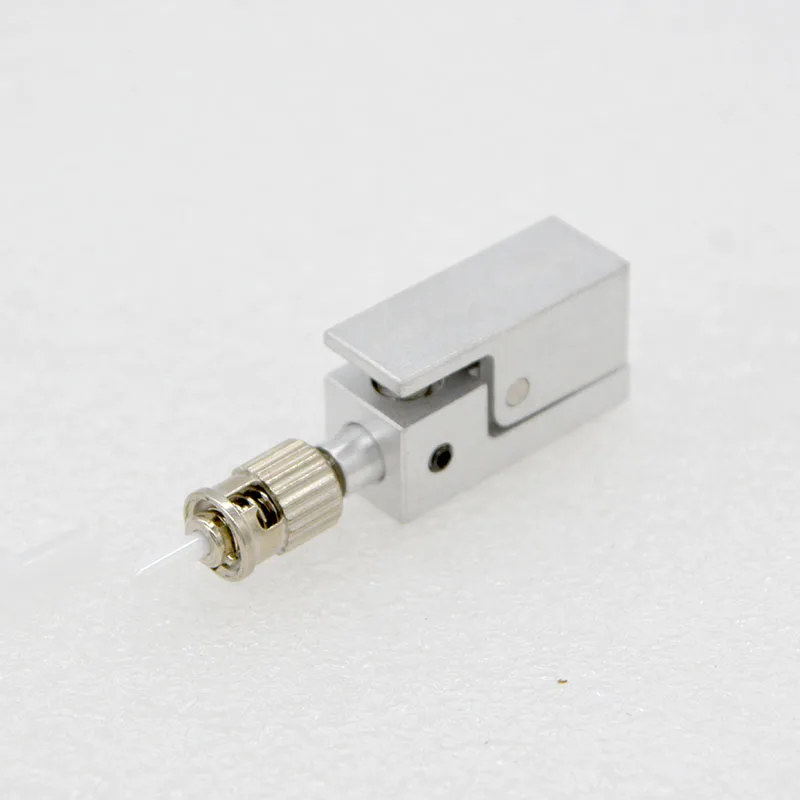

New FC UPC APC Square Bare Optic Fiber Adapter Connector Flange Temporary Succeeded OTDR Test Coupler Optic Equipment Wholesal
Bare fiber adapter is a simple auxiliary tool for the testing of optical
fiber, and is very suitable for the emergency repair of optical fiber
and temporary connection. The insertion core of the bare fiber adapter
and the no epoxy glue in the optical fiber through hole are easy to be
inserted in the bare optical fiber, pull out and repeatedly use, and
have low insertion loss.
Characteristic
Operation is simple and intuitive, can be observed by the naked eye
Single mode and multimode optical fiber can be applied
Unique design, safety, reliability and low insertion loss of optical fiber.
Without any dielectric core and epoxy adhesive and the through hole, easy to insert, bare fiber pull-out and repeated use
Insert
core and connector module can be replaced, insert core aperture size
and connection head can be customized, can be applied to a variety of
changing needs
Application:
Effect on bare fiber, temporary
connection OTDR, optical power meter, light source and other optical
fiber port data and testing instruments and equipment
Temporary connection of optical fiber and optical fiber emergency repair

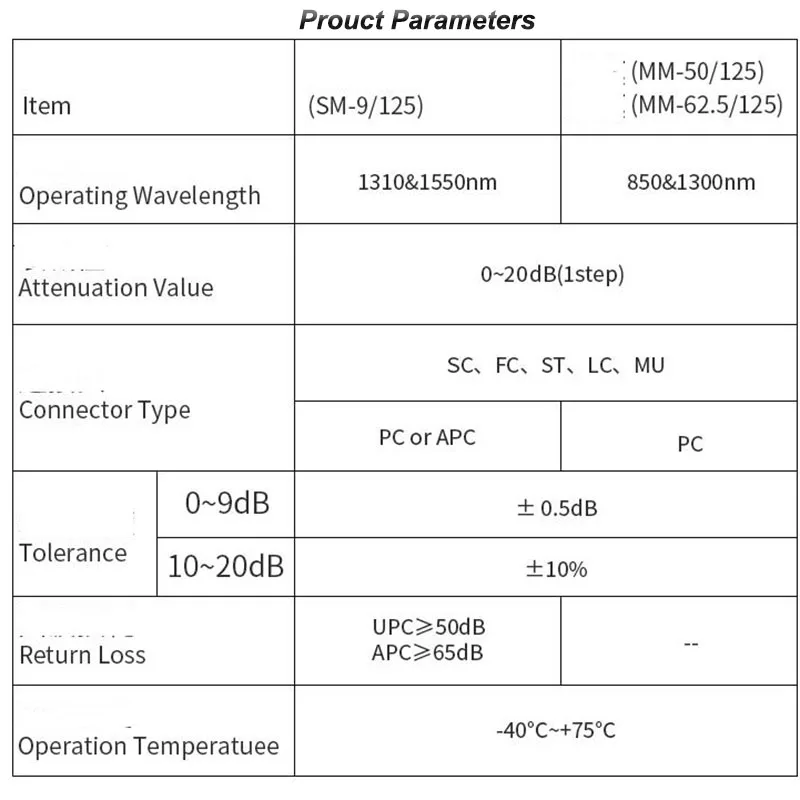

Technical index:
Insert core diameter: 125-127um
Outside diameter: LC-1.249mm FC-2.499mm
Insertion loss: 0.2dB
Repeatability: 0.2dB
Fiber type: SM/MM
Plug times 1000 times
Working temperature: -40 C + 80c

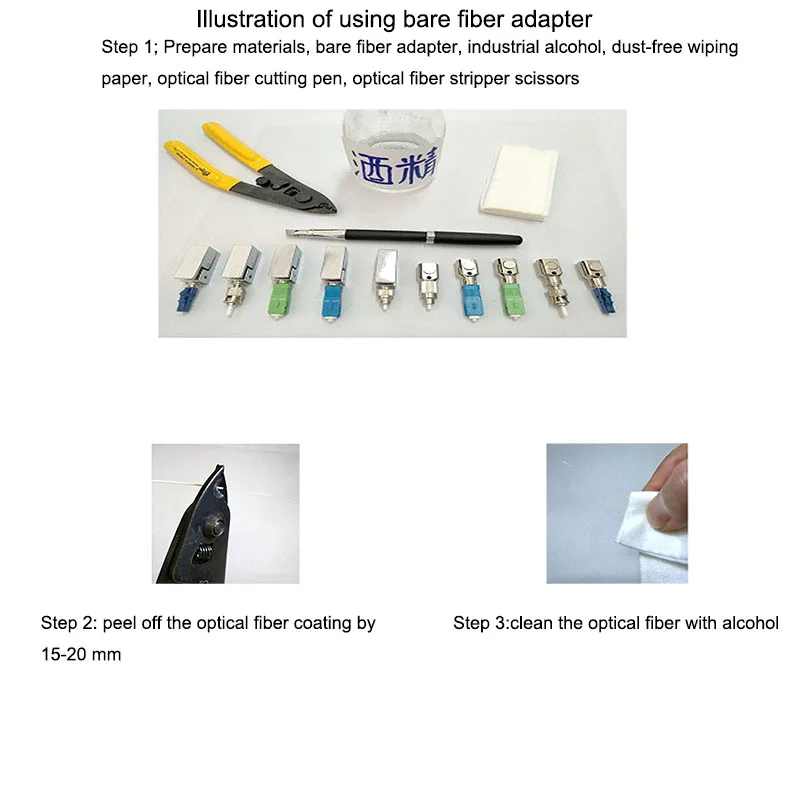

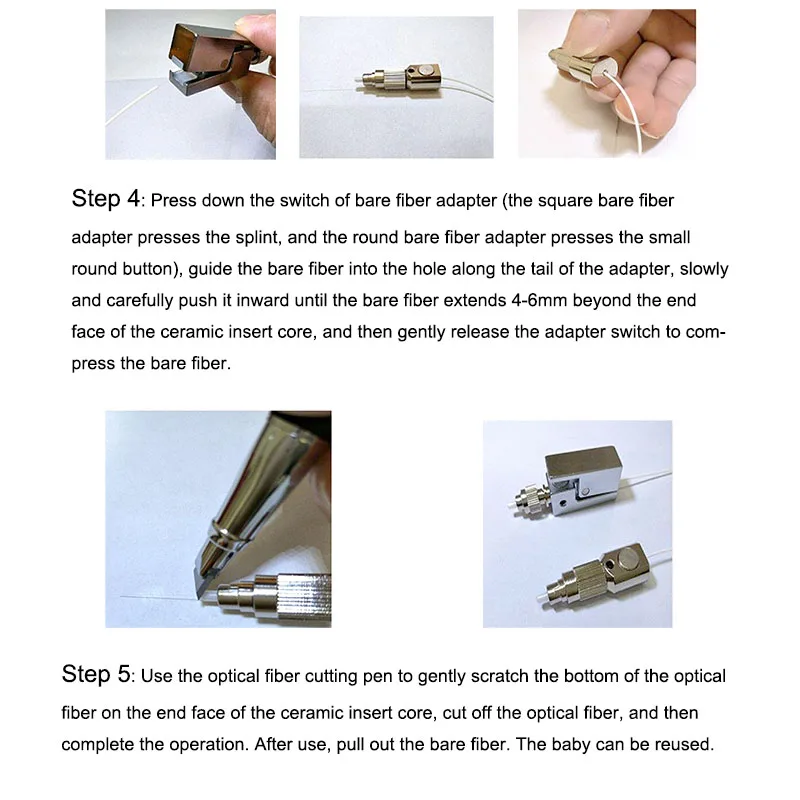

Usage method
1 fiber stripped coating layer is about 15-20mm, and rinse with alcohol wipe and clean the paper;
2
the naked optical fiber adapter switch is pressed down, the optical
fiber is slowly pushed into the through hole through the hole until the
ceramic core is extended to about 3-5mm, and the switch is relaxed;
3.
Zoned fiber pen (Ruby knife or tungsten steel knife edge is 90 degree
vertical for optical fiber) delimit gently exposed part of the fiber at
the bottom of, the fiber is broken, the operation is finished.
