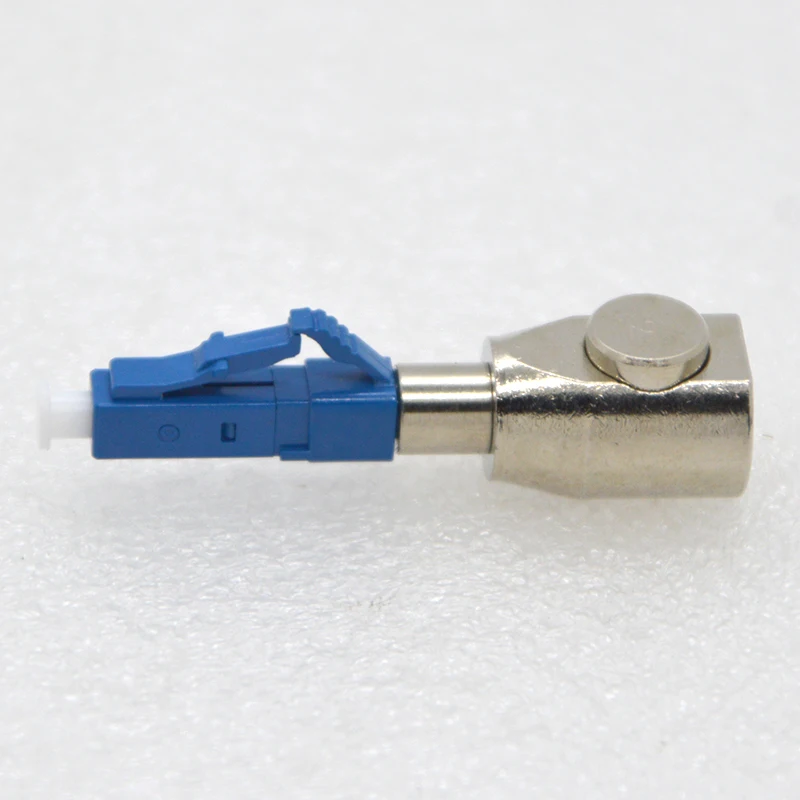

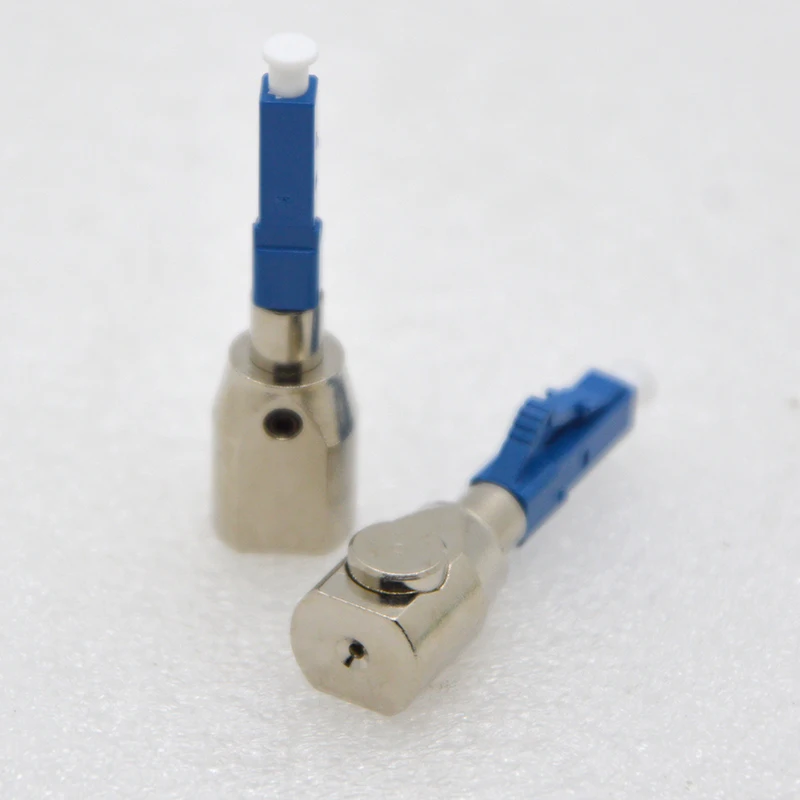

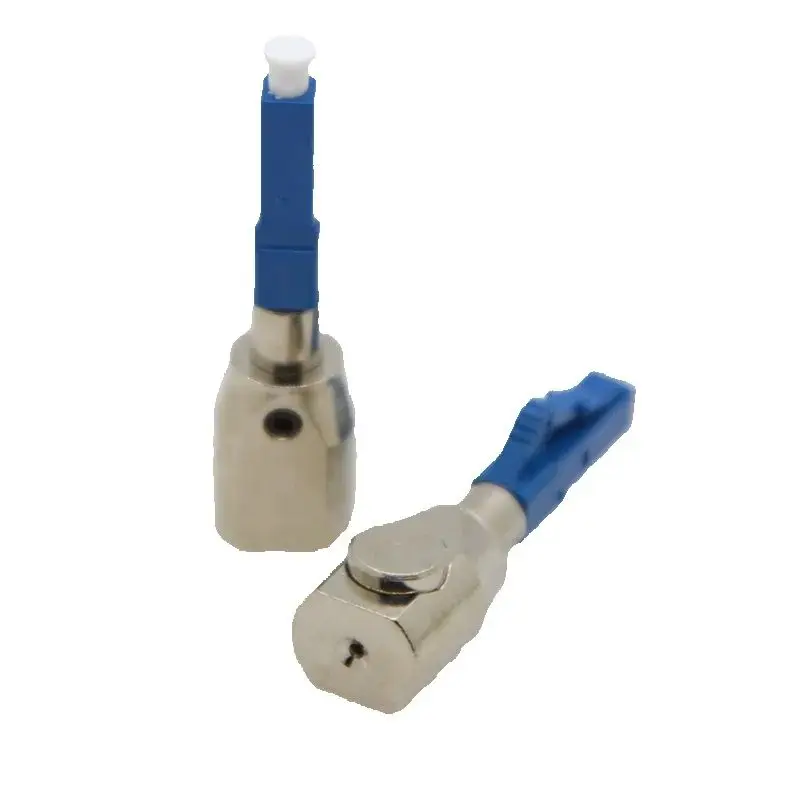

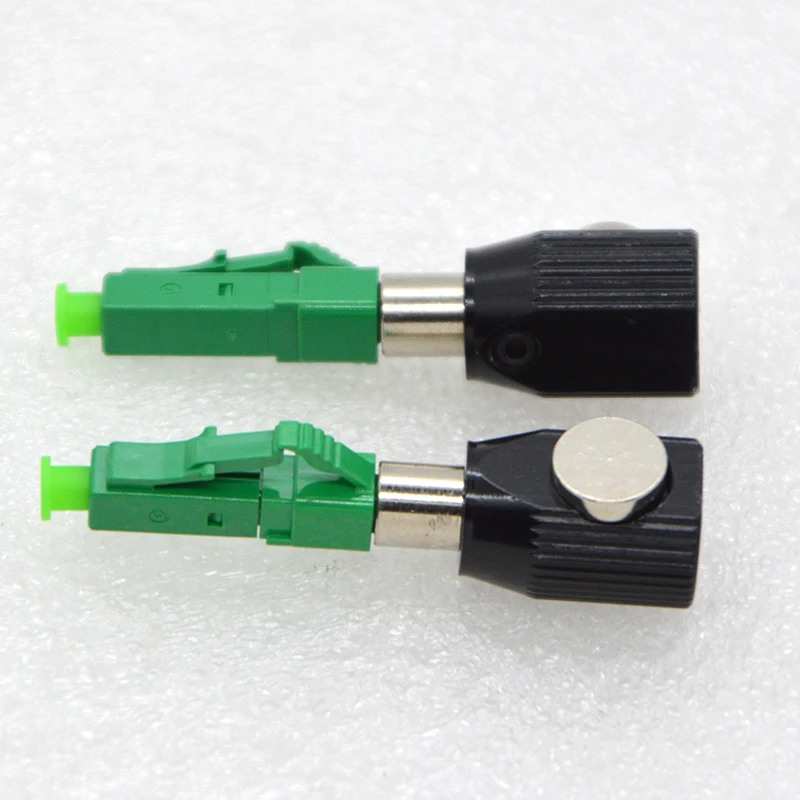

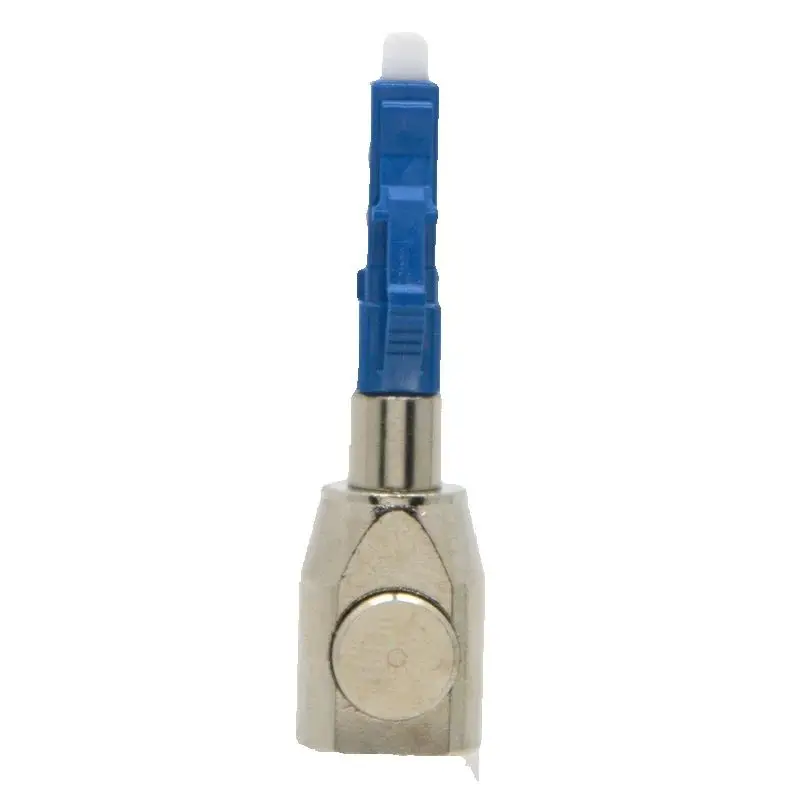

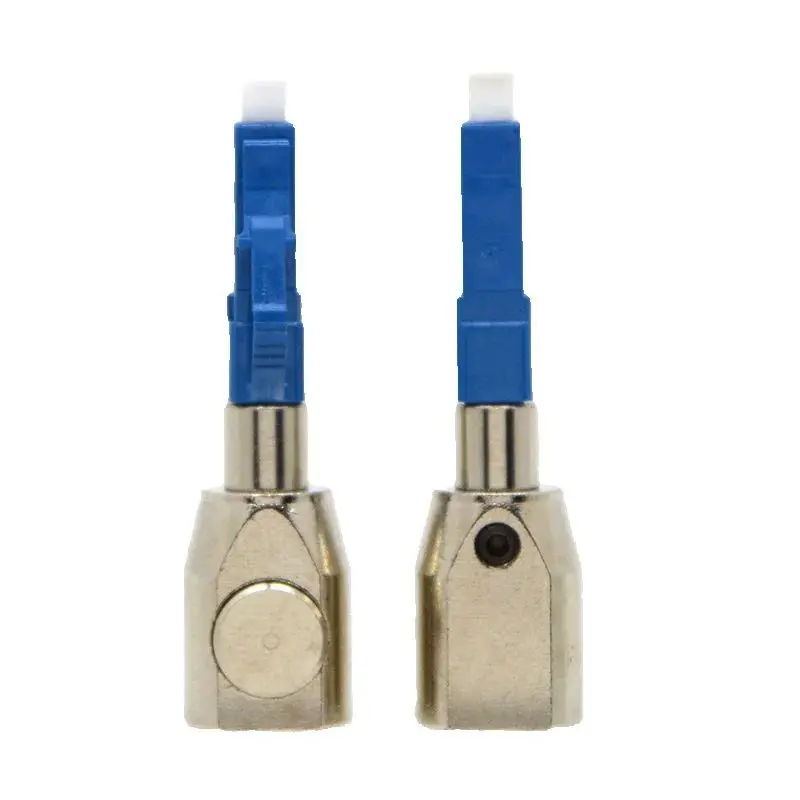

New Bare Fiber Adapter Connector Silver LC APC Circular OTDR Testing Flange Temporary Splicing Bare Fiber Coupler Wholesale
Main features:
Bare fiber adapter is a simple auxiliary tool for optical fiber testing bare fiber adapter core and optical fiber through the hole without epoxy glue and any medium, easy to insert bare fiber
Pull out and repeat for many times, and has low insertion loss, ideal for emergency repair and temporary splicing of optical fiber.
Bare fiber adapter is an auxiliary tool for optical fiber data testing. Because the bare fiber adapter plug hole and bare fiber through the hole without epoxy glue and any medium, The bare fiber is easy to be inserted and pulled out and repeatedly used, and has low insertion loss and easy operation.
Product Name: OTDR testing bare fiber adapter

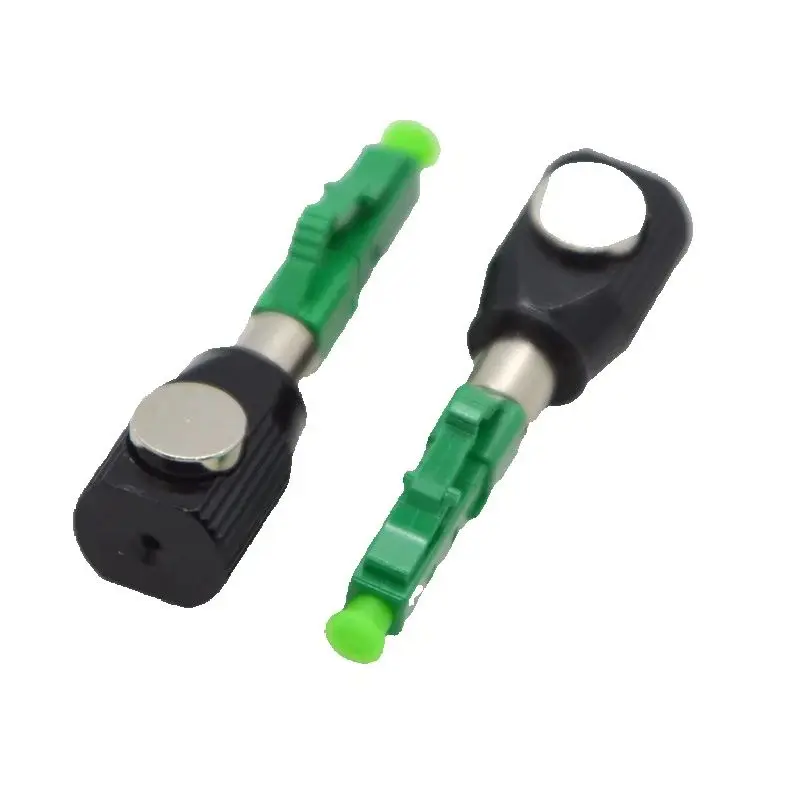

Product Color :Black/Silver
Insert core inner diameter:125μm
Type of connector: LC/SC/FC/ST
Insertion loss: ≤ 0.2dB
Working temperature: -40 ℃~+75 ℃
Consistency: 0.1dB Max
Repeated use times: ≥ 1000 times
Step 1:
Get your materials:
Bare fiber adapter
Dust-free wiping paper (cloth)
Industrial cleaning alcohol
Scriber pen
Fiber strippers, etc
Step 2:

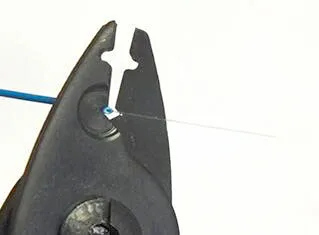

Strip the fiber coating 15-20mm (as shown on the left)
Step 3:

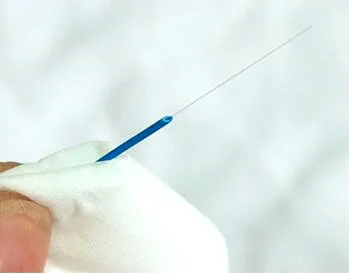

Wipe the fiber clean with industrial alcohol (as shown on the right)
