Nuevo adaptador de conector de fibra óptica LC macho-SC hembra, acoplador de brida, pérdida de inserción≤ 0,3dB, precio bajo al por mayor

1PCS New Optical Fiber Connector LC Male SC Female Optical Fiber Adapter Flange Coupler Insertion loss≤ 0.3dB Free Shipping

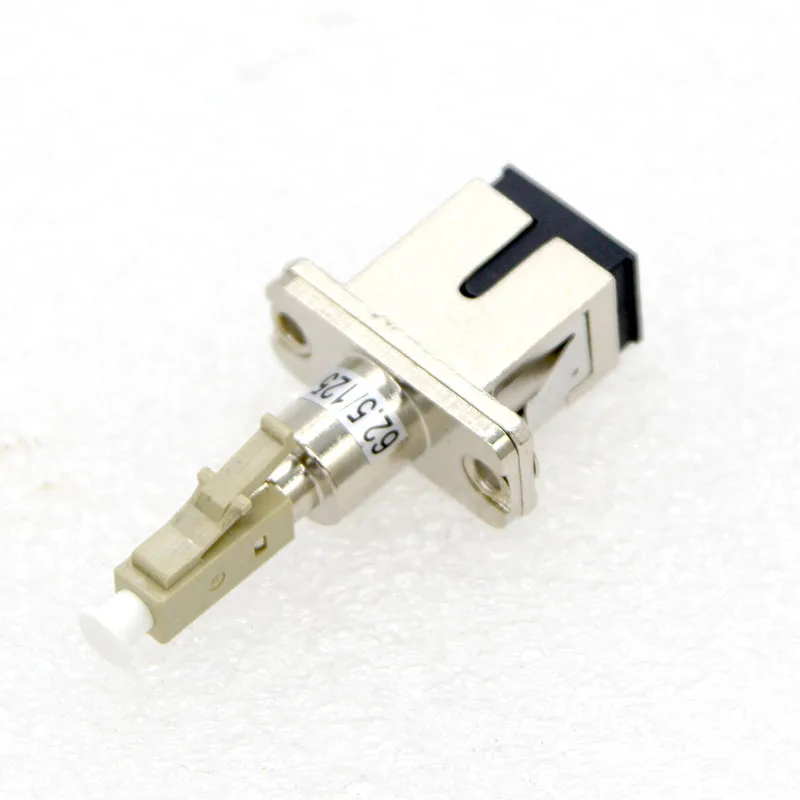

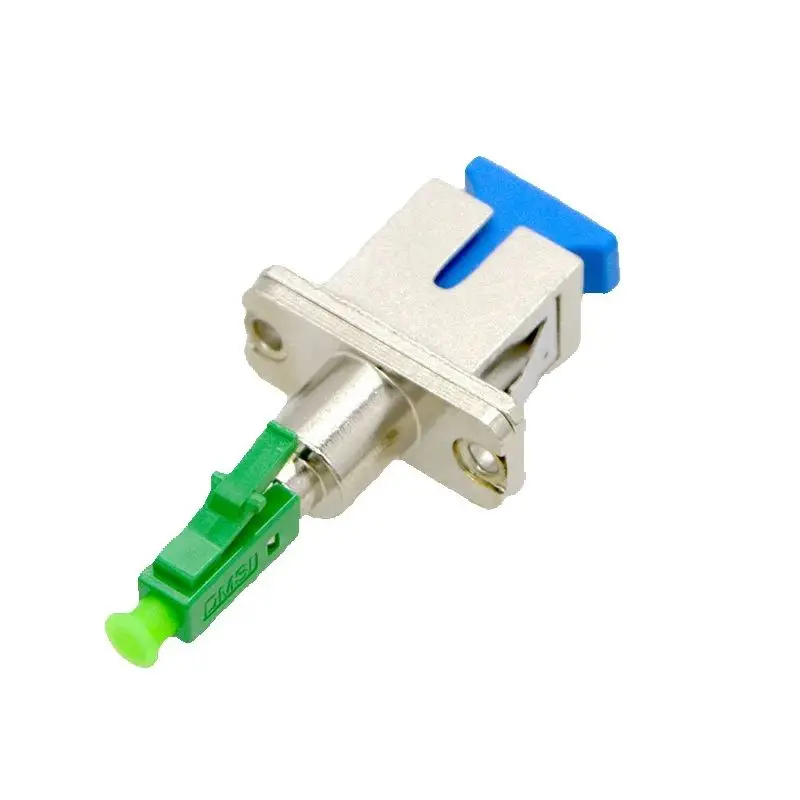

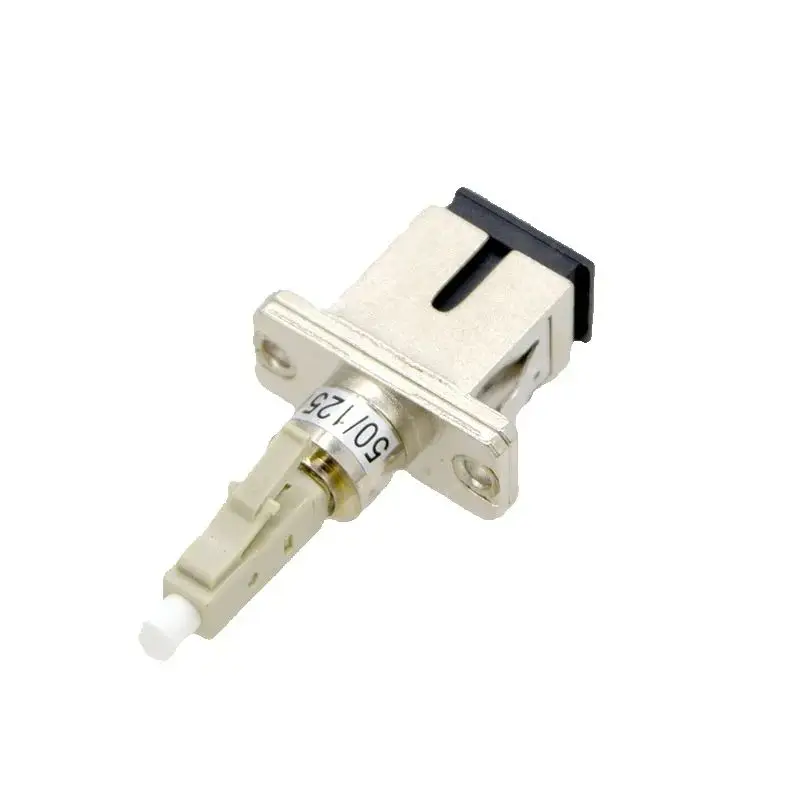

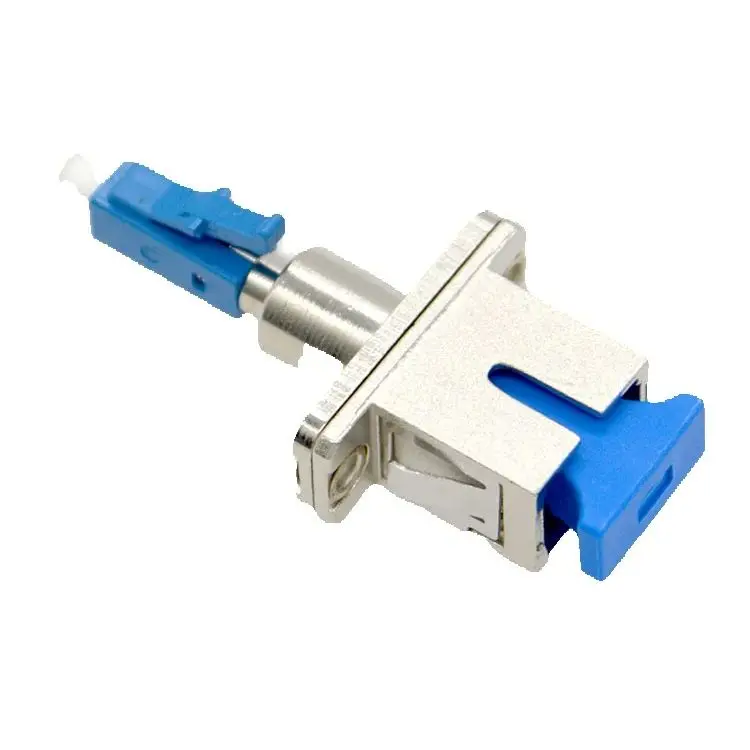

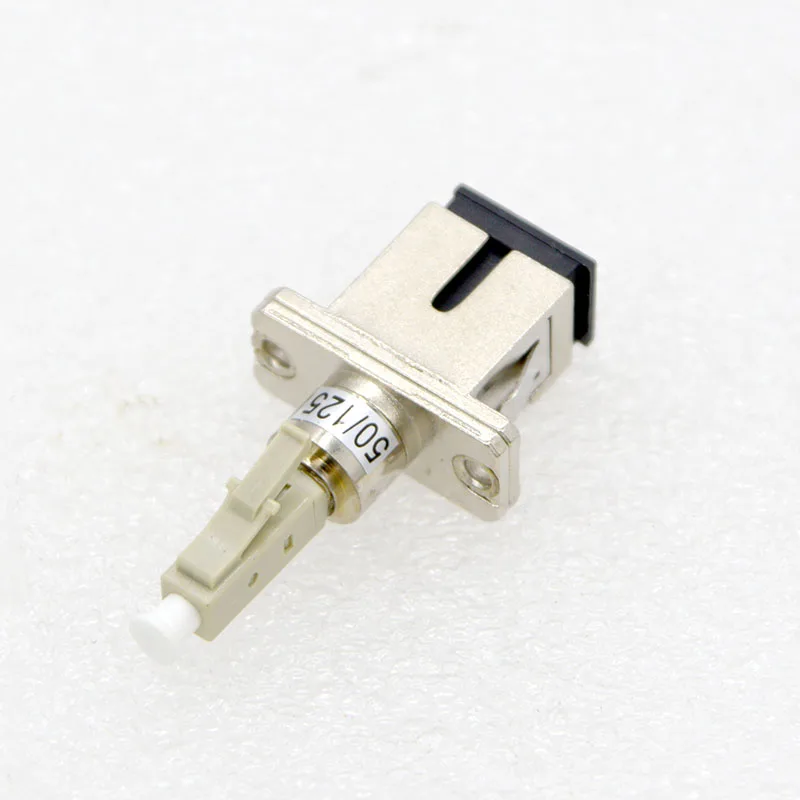

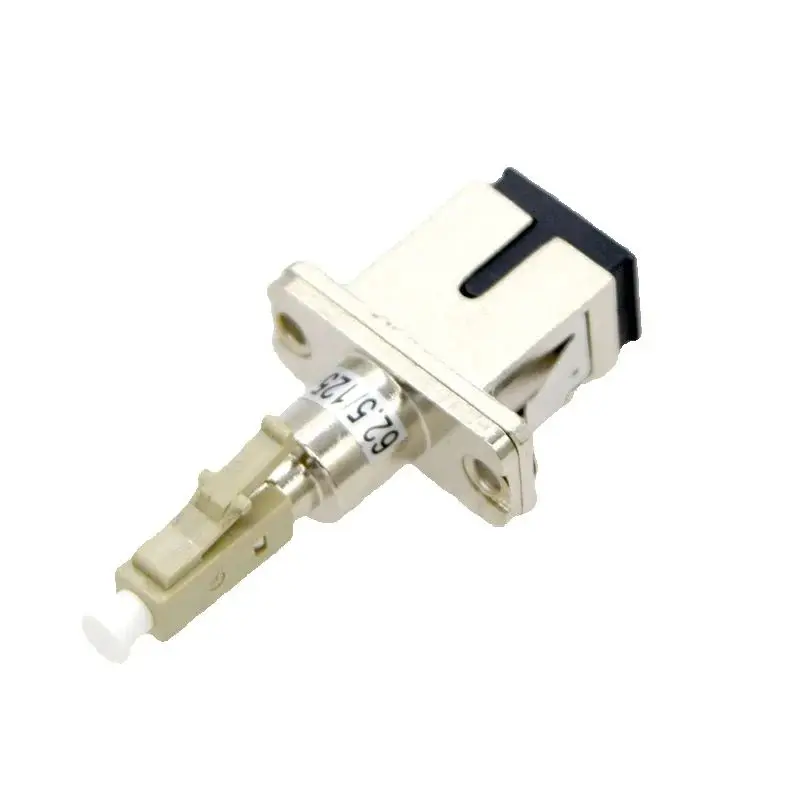

SC (Female ） to LC (Male) Adapter, (Adapter, also known as Flange, Coupler),

Using the appropriate matching technology of embedded optical fiber and connecting the core and sleeve, it can convert the SC optical fiber connector (male) into LC optical fiber connector (male) or the LC optical fiber connector interface (female) into SC optical fiber connector (female), providing a simple and reliable solution for users when connecting two or more different optical fiber transmission connectors, Users can select 9 / 125, 50 / 125, 62.5/125 and other core modes and corresponding connector types as needed.

technical parameter

Insertion loss: single mode ≤ 0.3dB,

Multimode ≤ 0.3dB

Return loss: PC ≥ 45dB, UPC ≥ 45dB, APC ≥ 60dB

Consistency: 0.1dB Max

Operating temperature: - 40 ℃ ~ + 75 ℃

Usage times: ≥ 1000 times

Product features

1. Convert SC type optical fiber connector into LC type optical fiber connector.

2. Convert LC type optical fiber interface to SC type optical fiber interface.

3. The male and female terminals shall comply with their corresponding IEC international standards.

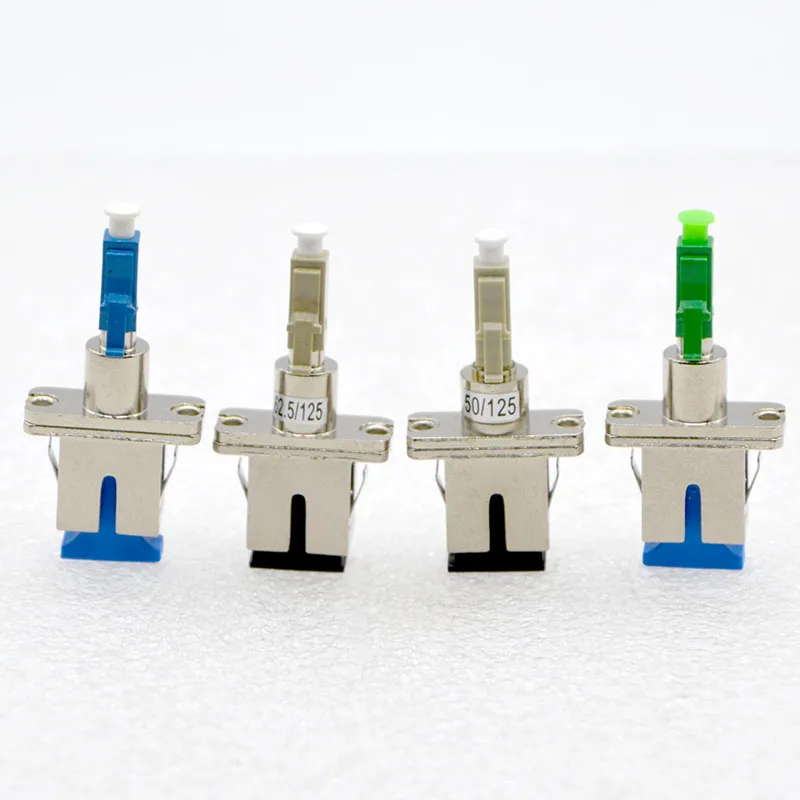

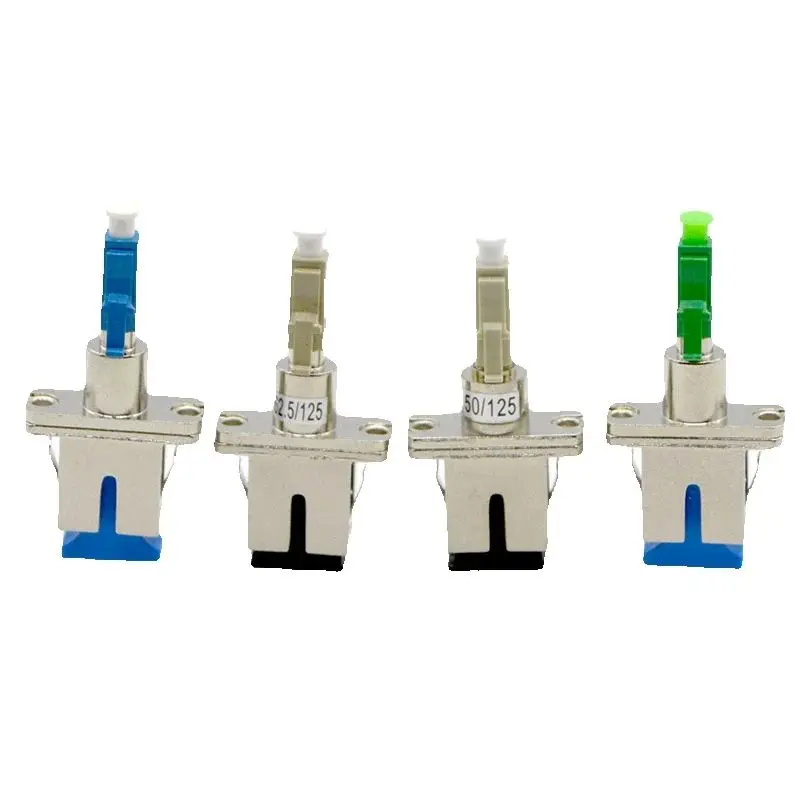

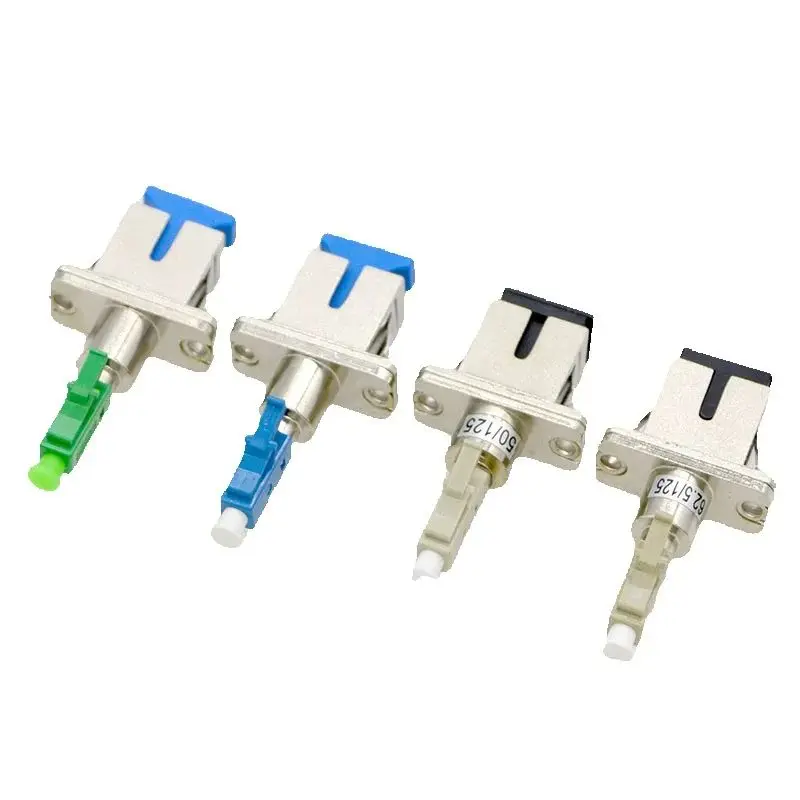

4. Embedded optical fiber types such as 9 / 125, 62.5/125 and 50 / 125 are optional.

5. It can solve two end face butt joint schemes of UPC to APC with different shapes.

6. The adapter structure is convenient for connection and use.

7. Good interchangeability and reliability.

8. Low insertion loss and high return loss.

Product use

1. Interface conversion of optical fiber instrument, optical fiber communication equipment, red light pen, etc.

2. Optical fiber connector conversion.

3. Optical fiber data transmission,

4. Optical fiber data test,

5. Telecommunication access, radio and television engineering, network engineering.
