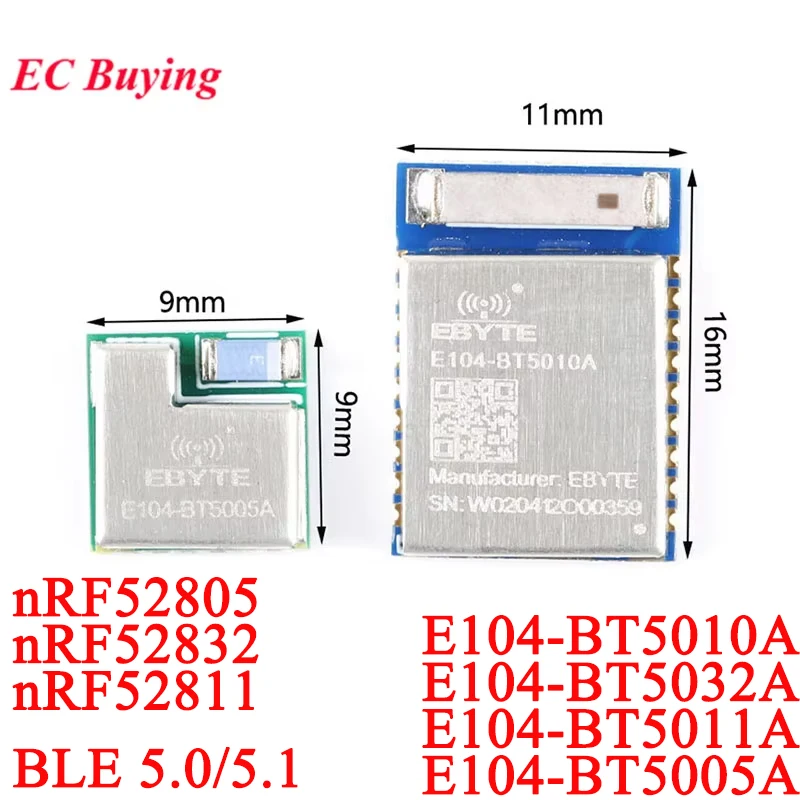

NRF52805 nRF52832 nRF52811 E104-BT5032A BT5010A BT5011A BT5005A 2,4G comunicación de puerto serie BLE5.0 Bluetooth 5,1 módulo IoT

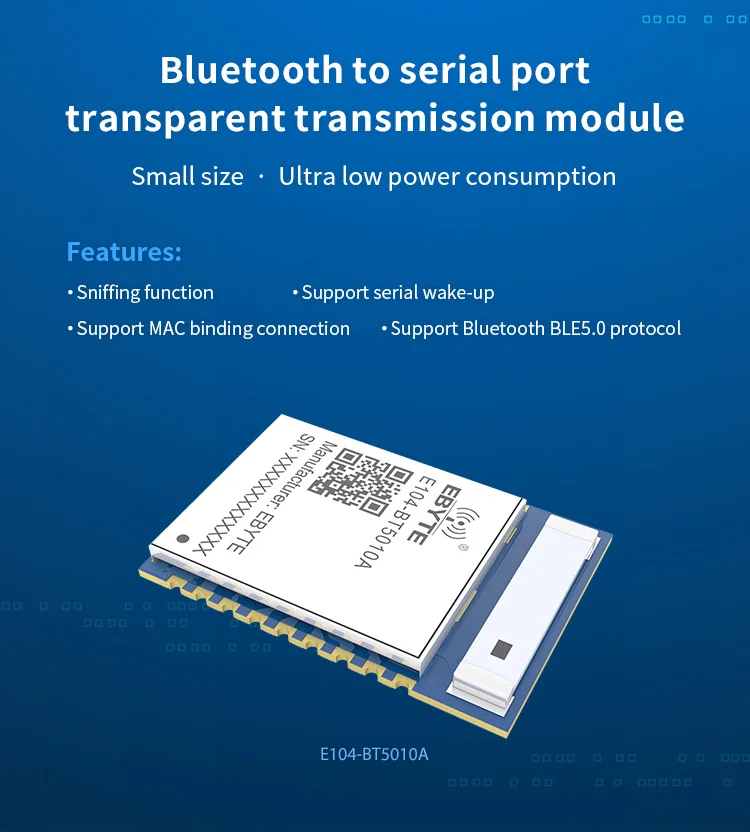

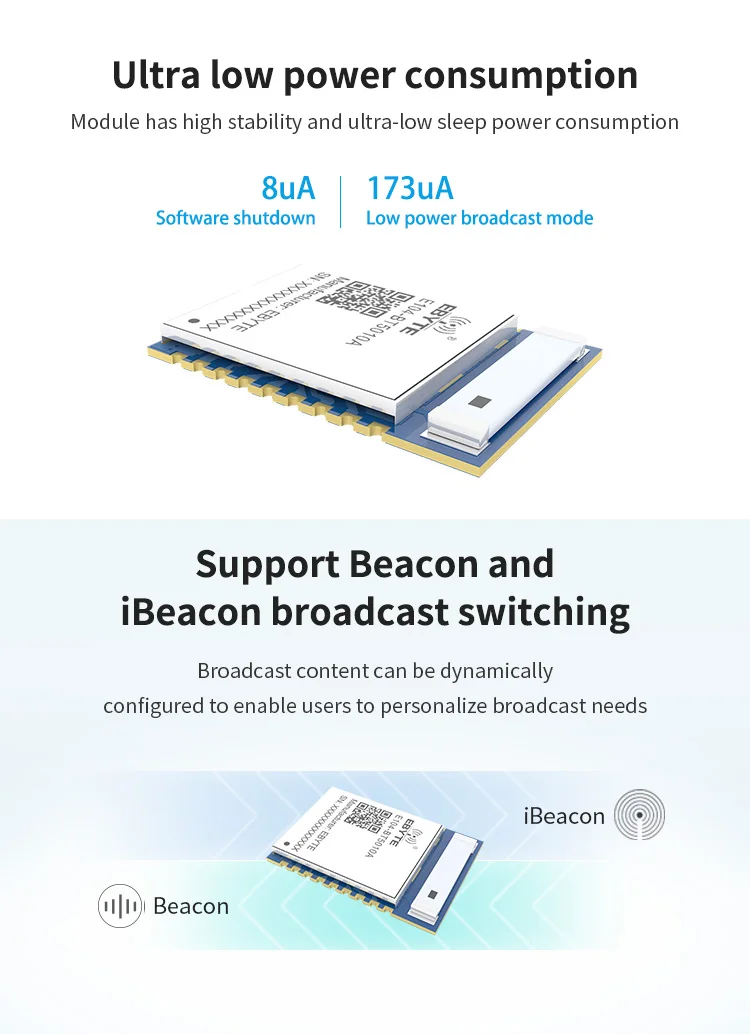

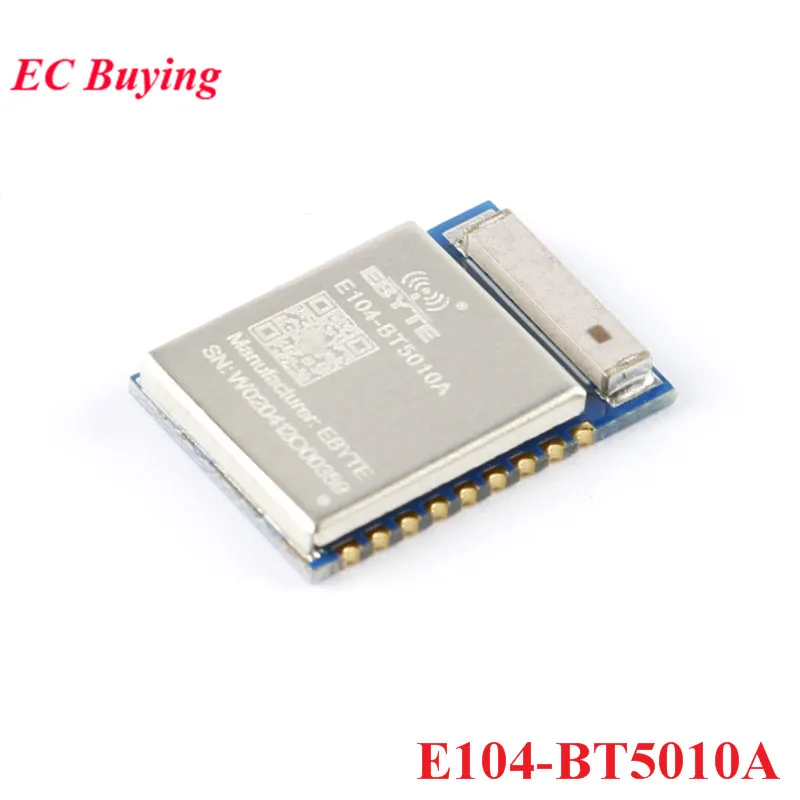

E104-BT5010A nRF52810

RF Parameter

Value

Remarks

Frequency [MHz]

2402~2480 MHz

ISM band

Transmitting power

4 dBm

-

Receiving sensitivity

-96 dBm

Bluetooth-compatible®lowenergymode

Distance

55m

Test condition：clear and open area, antenna gain: 5dBi，@4dBm,antenna height: 2m

Hardware Parameter

Value

Remarks

Size

11.5 * 16 mm

-

Antenna

Ceramic antenna

50Ω Impedance

Communication interface

UART

-

Package

SMD

-

Electronic parameter

Min

Typ

Max

Unit

Remarks

Voltage supply [V]

1.7

3.3

3.6

V

≥3.3 V ensures output power

Communication level [V]

-

3.3

-

V

For 5V TTL, it may be at risk of burning down

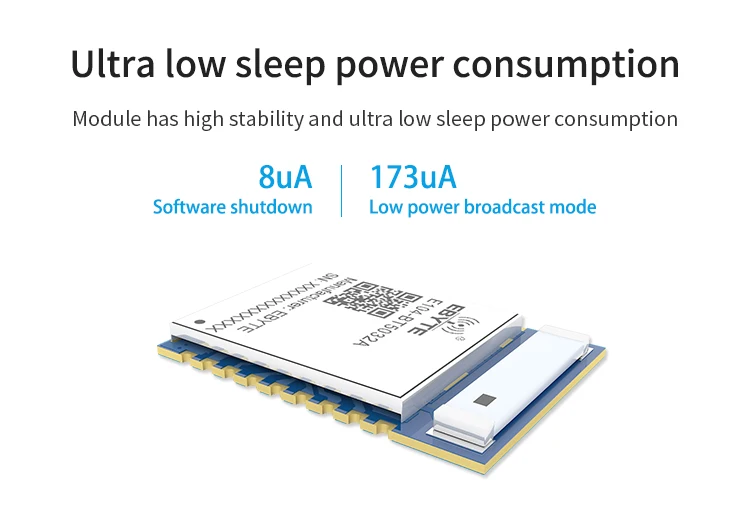

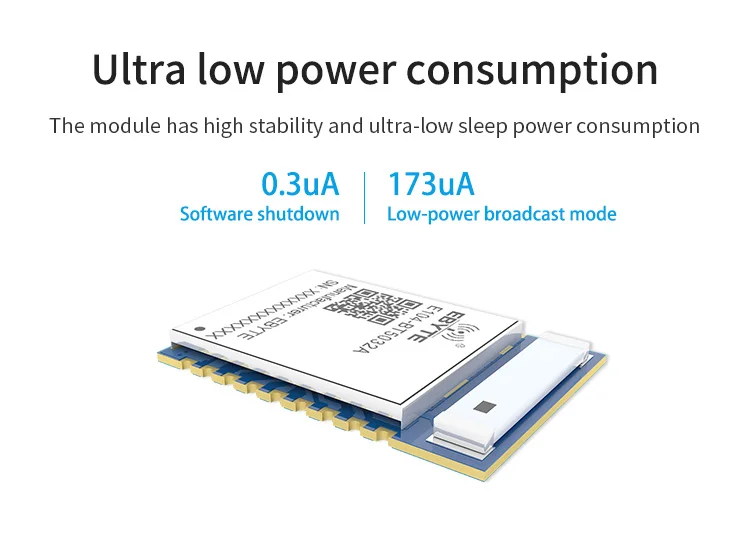

Sleep advertising current(default)

-

173

-

uA

default advertising gap is 1s, default 0dBm

Wake-up advertising current(default)

-

8.70

-

mA

default advertising gap is 1s, default 0dBm

Wake-up no advertisingcurrent(default)

-

8.68

-

mA

default connection gap is 500ms,default 0dBm

wake-up connection current(default)

-

8.78

-

mA

default 0dBm

Operating temperature [℃]

-40

-

+85

℃

-

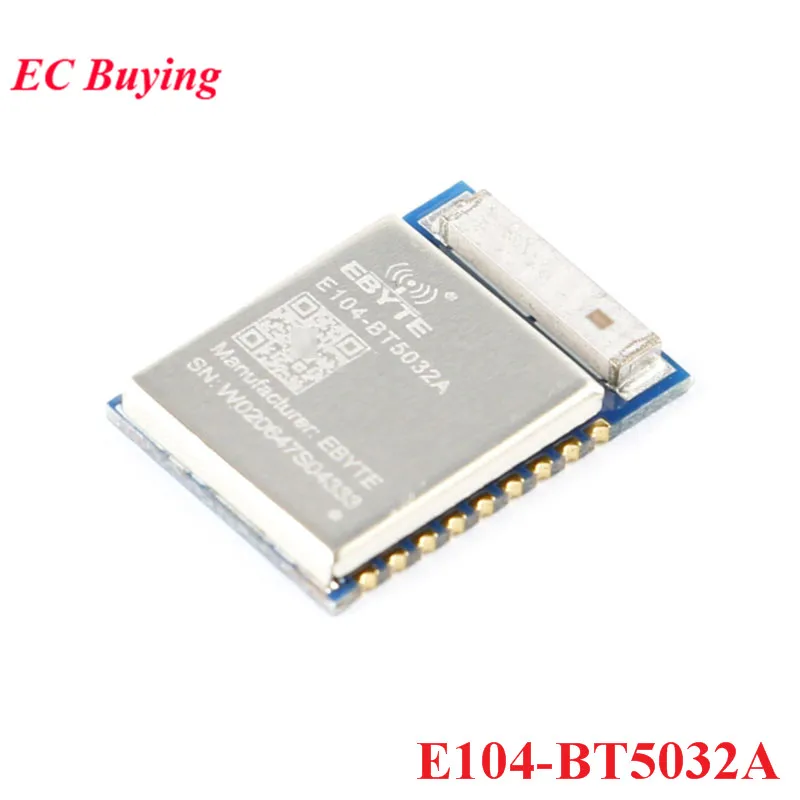

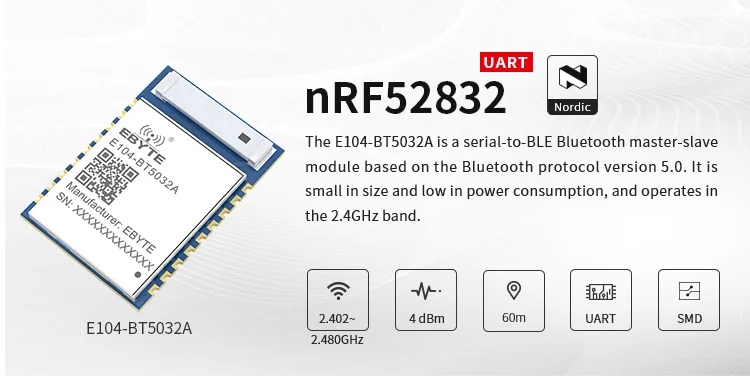

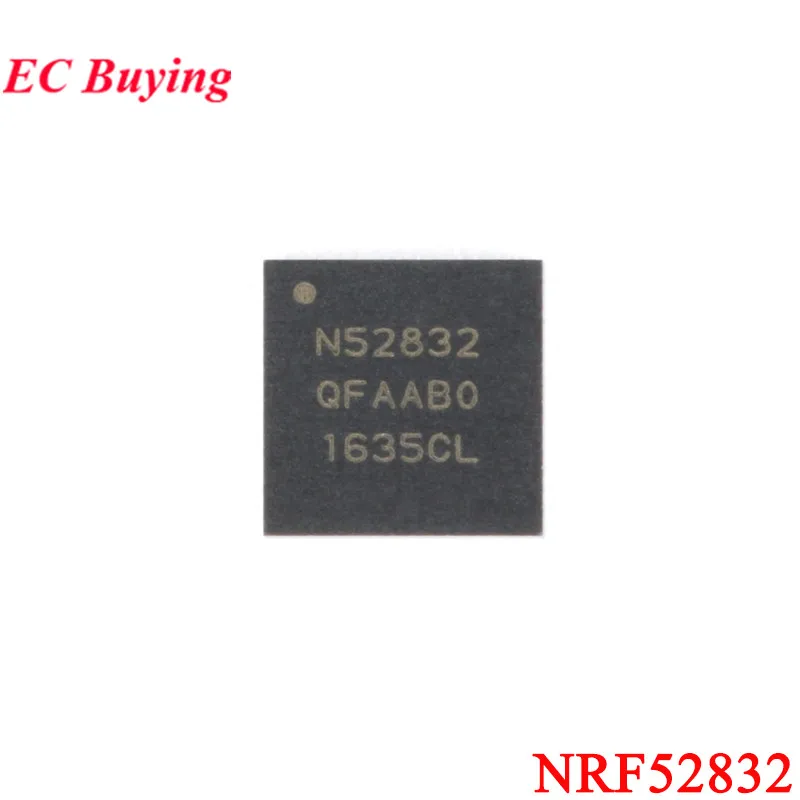

E104-BT5032A nRF52832

RF Parameter

Value

Remark

Frequency [MHz]

2402~2480 MHz

ISM band

Transmitting power

4 dBm

-

Receiving sensitivity [dBm]

-96 dBm

Bluetooth®lowenergymode

Distance

60m

Test condition：clear and open area, antenna gain: 5dBi，@4dBm,antenna height: 2m

Hardware Parameter

Value

Remark

Size

11.6 * 16 mm

-

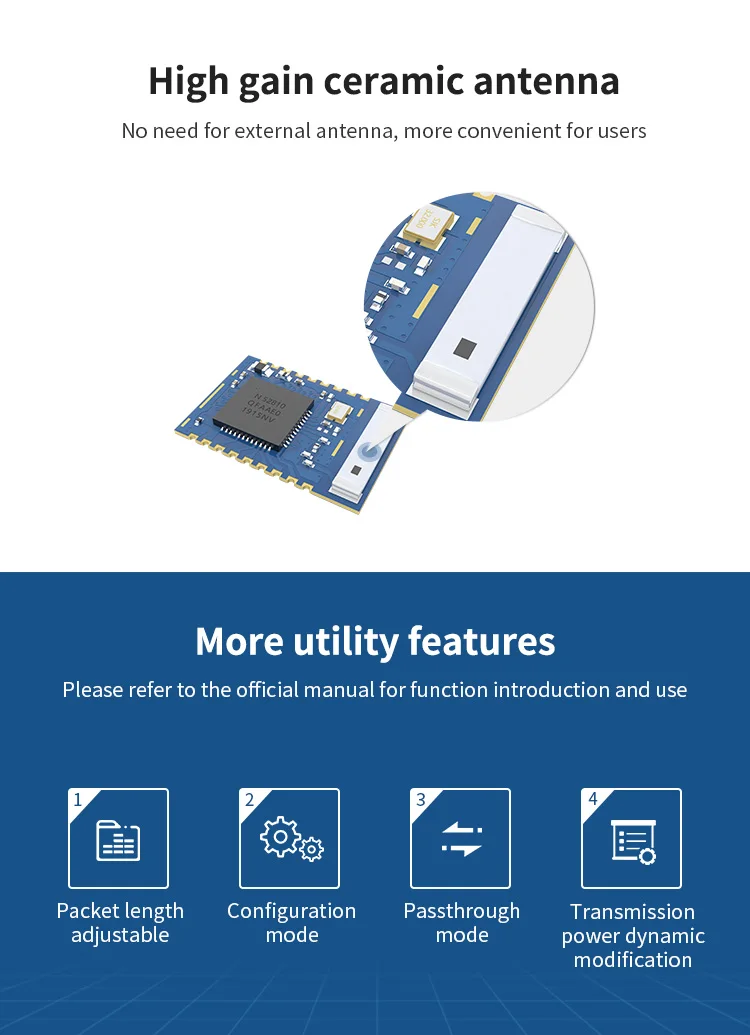

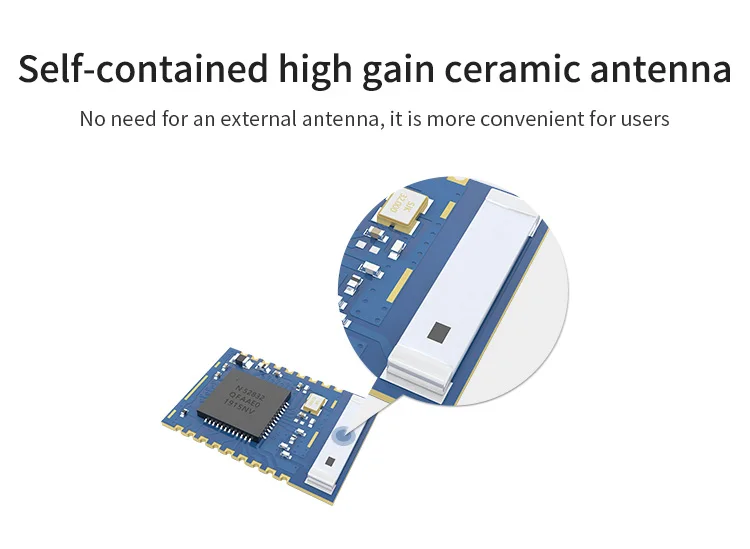

Antenna

Ceramic antenna

50Ω Impedance

Communication interface

UART

-

Package

SMD

-

Electronic parameter

Min

Typ

Max

Unit

Remarks

Voltage supply [V]

1.7

3.3

3.6

V

≥3.3 V ensures output power

Communication level [V]

-

3.3

-

V

For 5V TTL, it may be at risk of burning down

Sleep advertising current(default)

-

173

-

uA

default advertising gap is 1s

Wake-up advertising current(default)

-

8.70

-

mA

default advertising gap is 1s

Wake-up no advertising current(default)

-

8.68

-

mA

default connection gap is 500ms

wake-up connection current(default)

-

8.78

-

mA

-

Operating temperature [℃]

-40

-

+85

℃

-

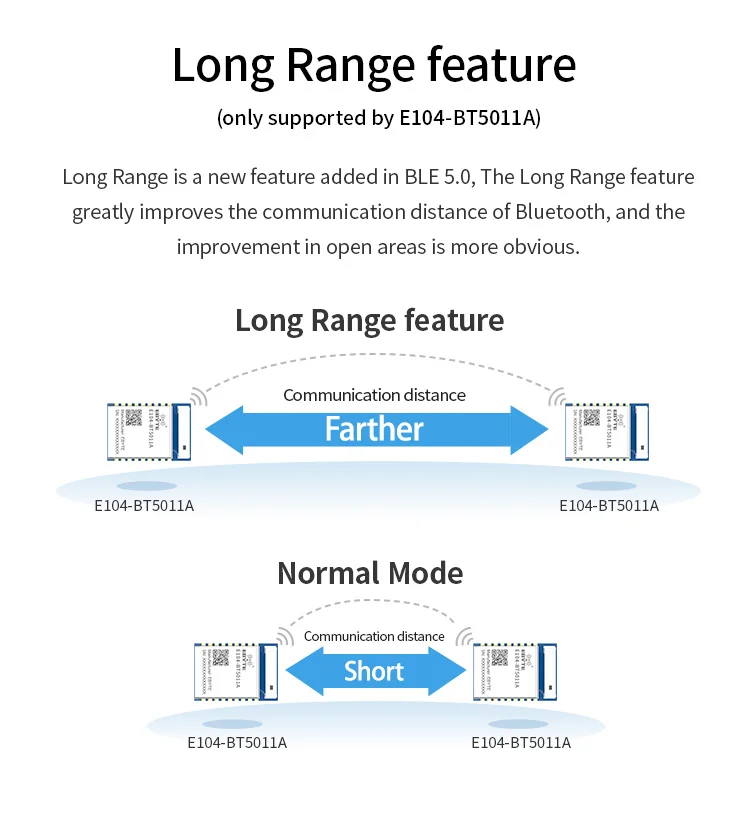

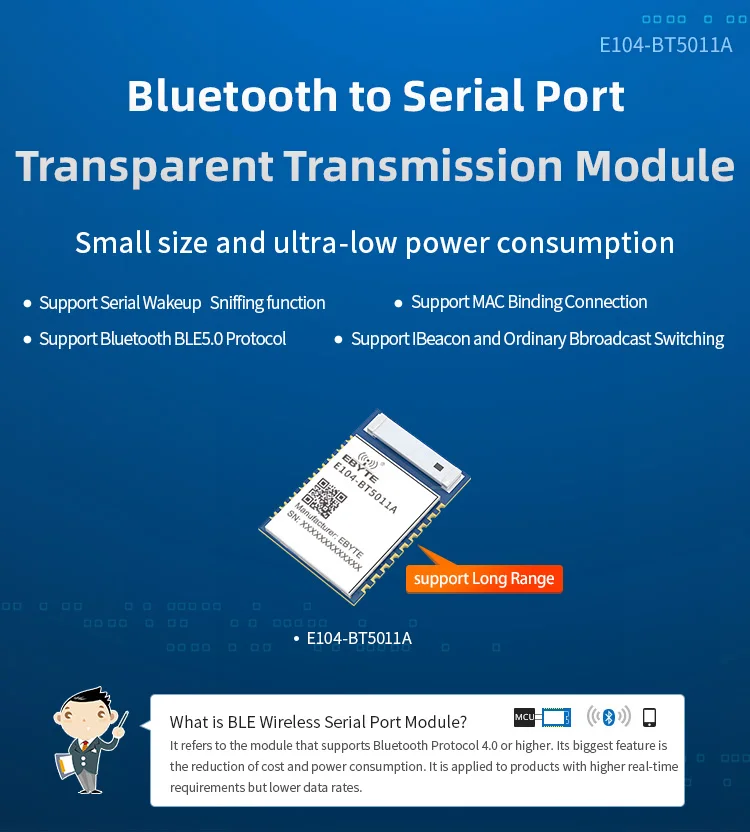

E104-BT5011A nRF52811

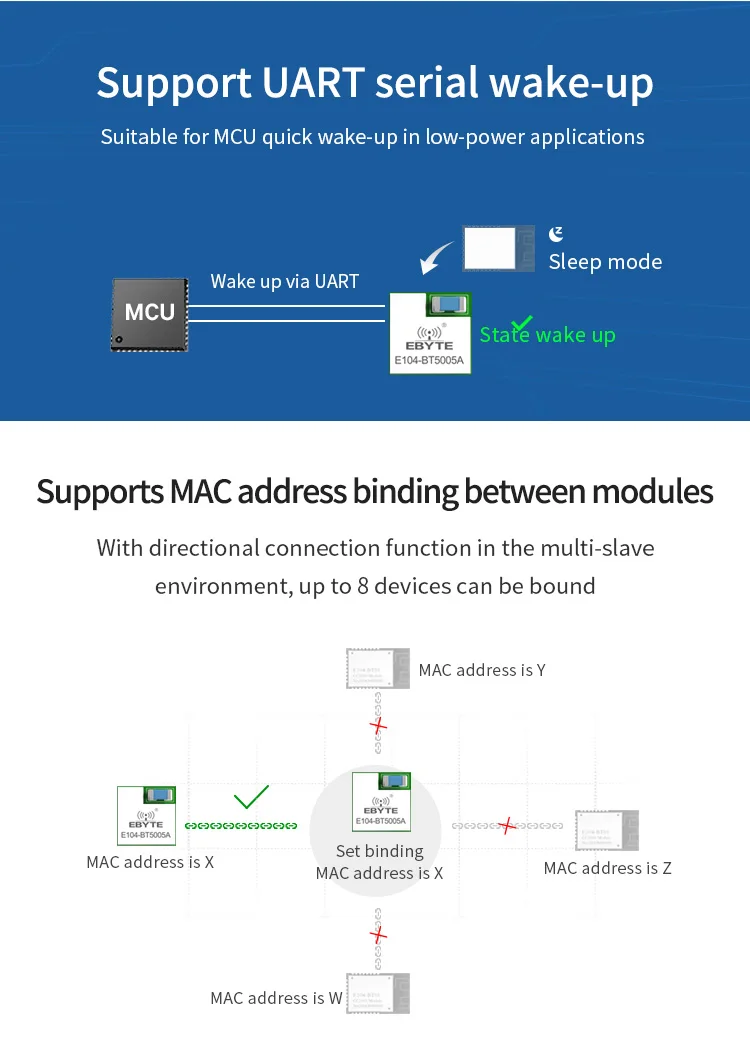

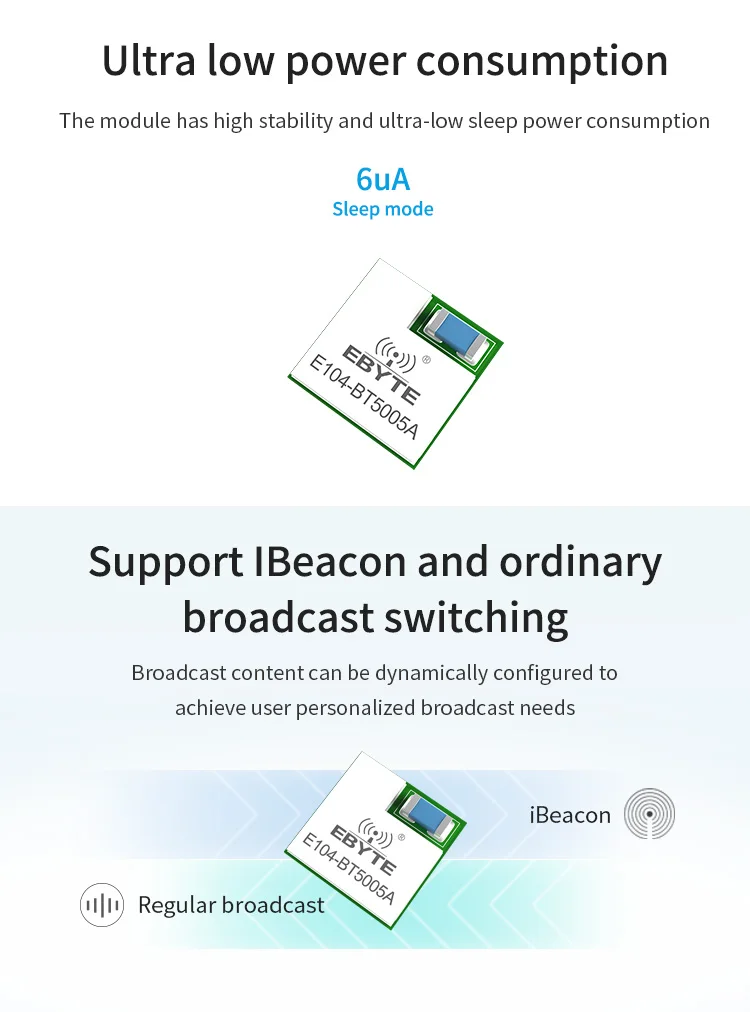

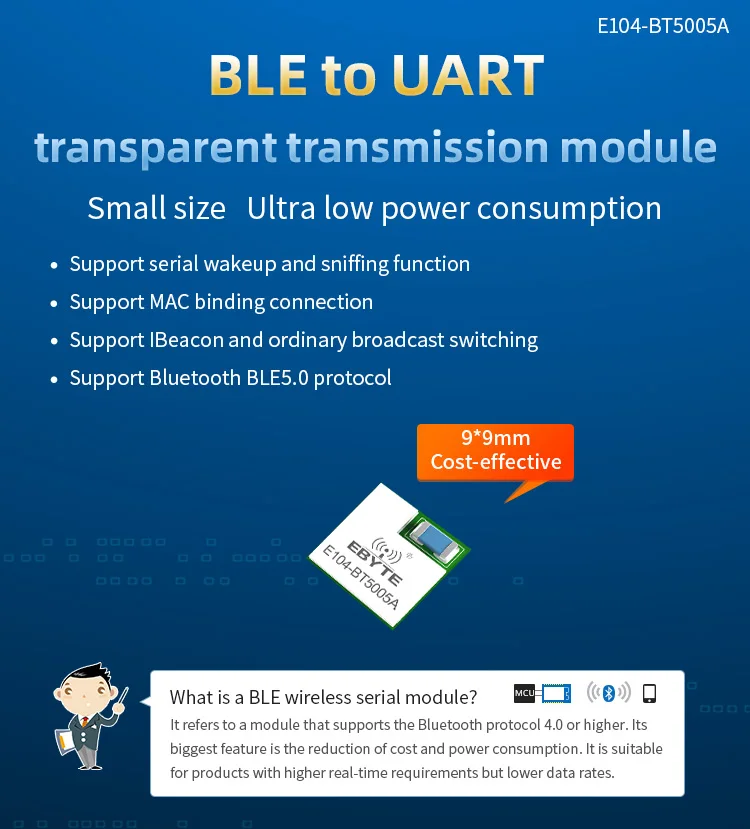

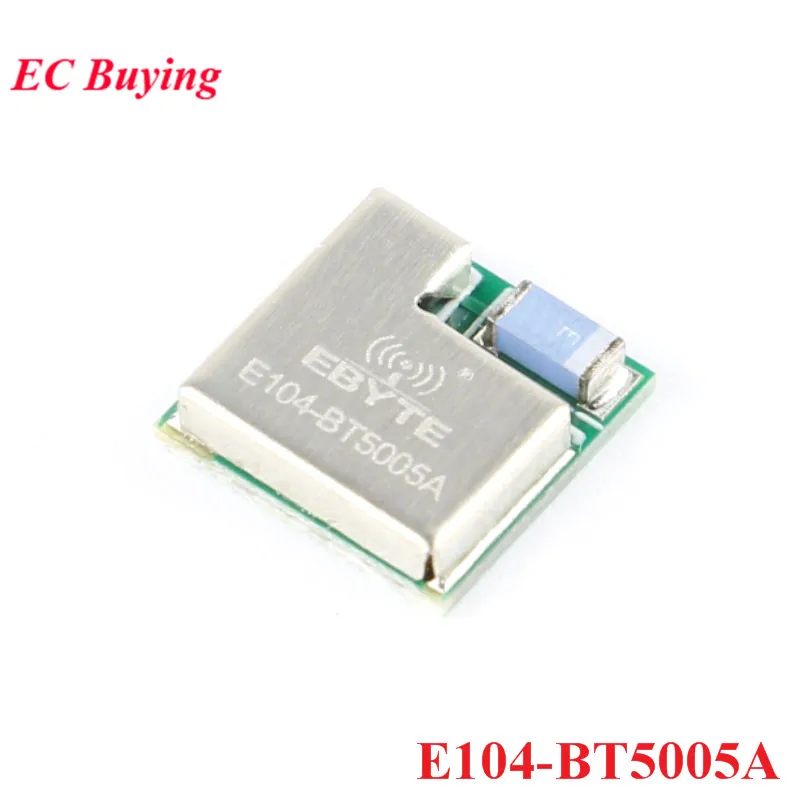

E104-BT5005A nRF52805
