Descripción

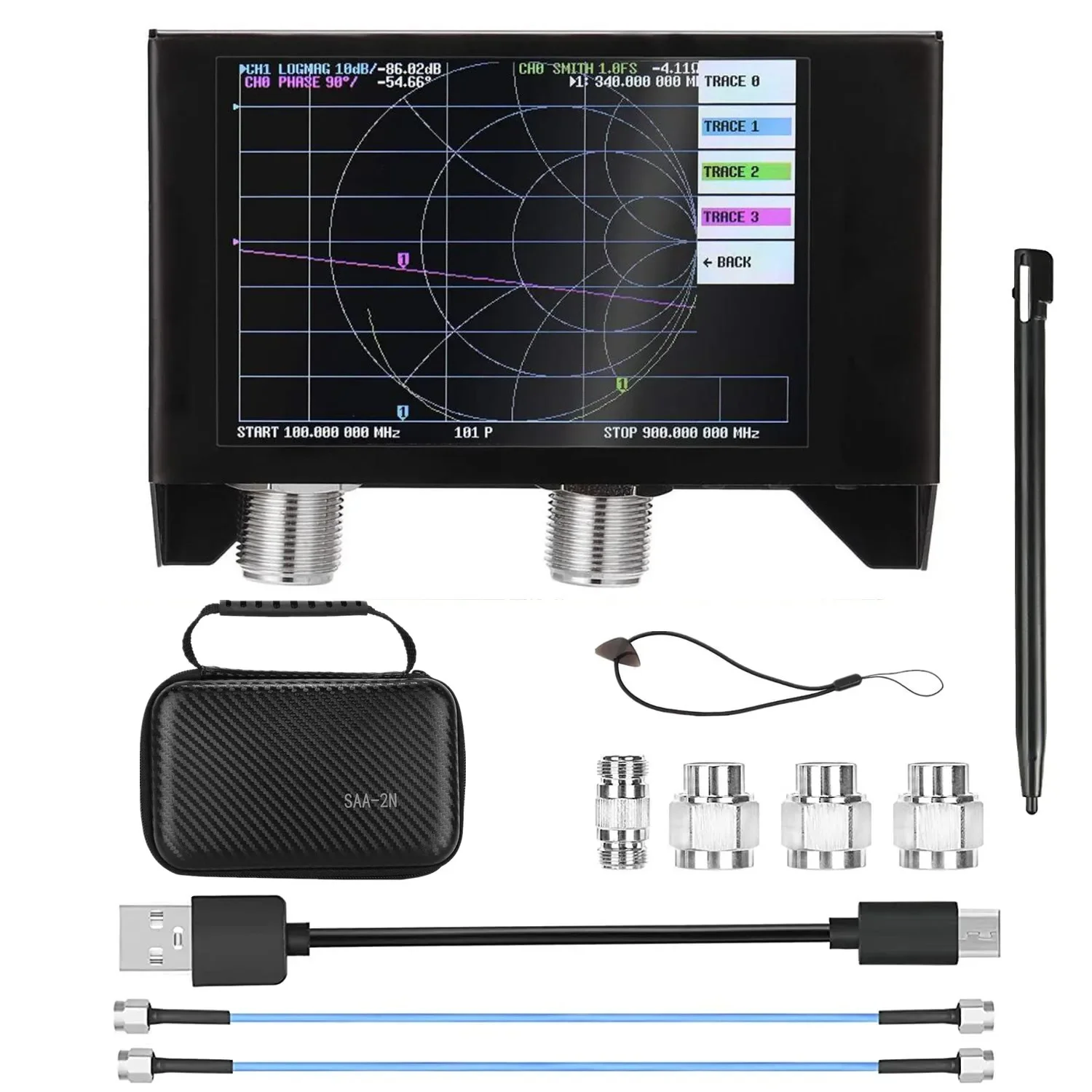

NanoVNA SAA-2N VNA Antenna Analyzer Metal Case 4inch Display 50KHz -3GHz Vector Network Analyzer HF VHF UHF Nano VNA 3000mAh
Features:
Made of fine quality material, practical, has a long service life.
Portable and compact, easy to operate and carry.
4.0 inch TFT LCD touching screen display.
Measurement frequency range is 50KHz~3GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.
EVA storage bag is convenient for storage and carrying.
Note:
Specifications:
Main material: PCB+iron
Color: black

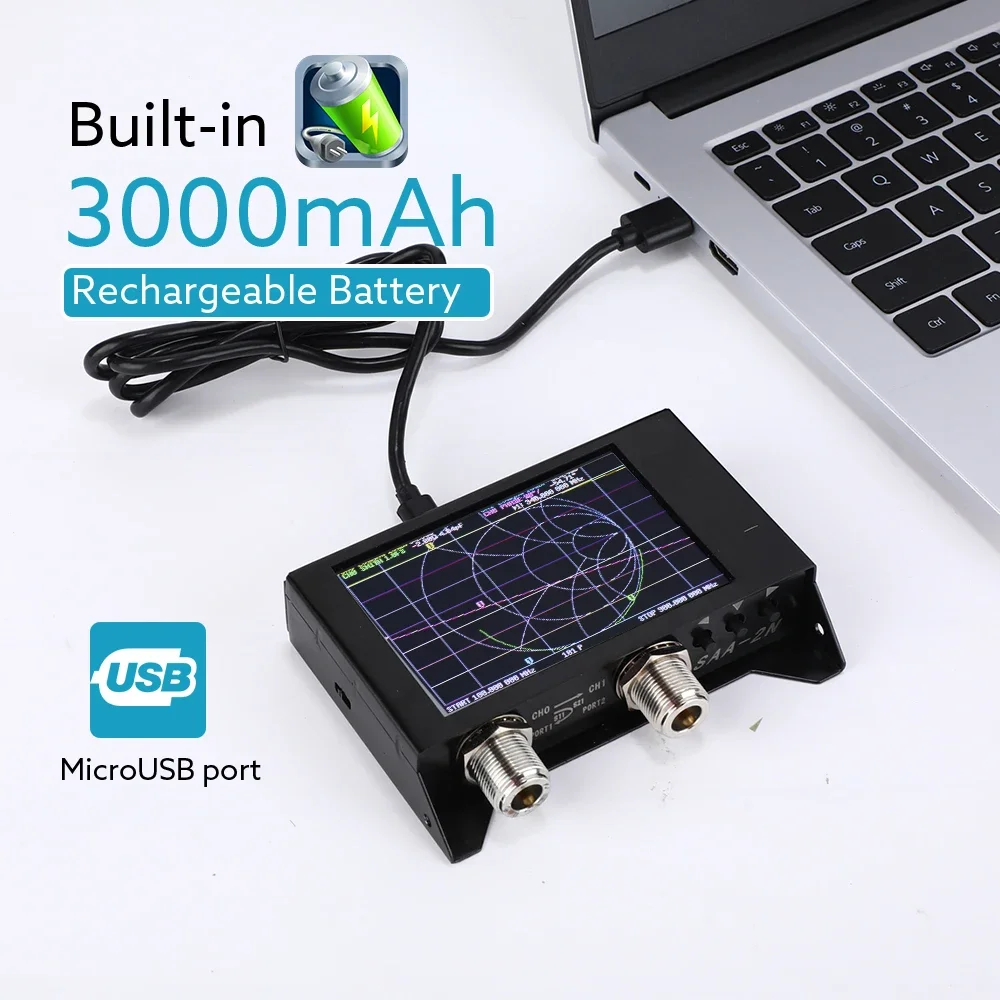

Battery: 1 * lithium battery, 3000mAh (included)
Measurement frequency range: 50KHz-3GHz
Frequency tolerance: ＜2ppm
Frequency stability: ＜0.5ppm
System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Sweep rate: 100 points / second
Display: 4.0 inch, 320 * 480
USB interface: Micro USB
Power supply: USB, maximum charging current 1A
Battery connector: JST-XH 2.54mm
Maximum sweep points (on device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB MIN

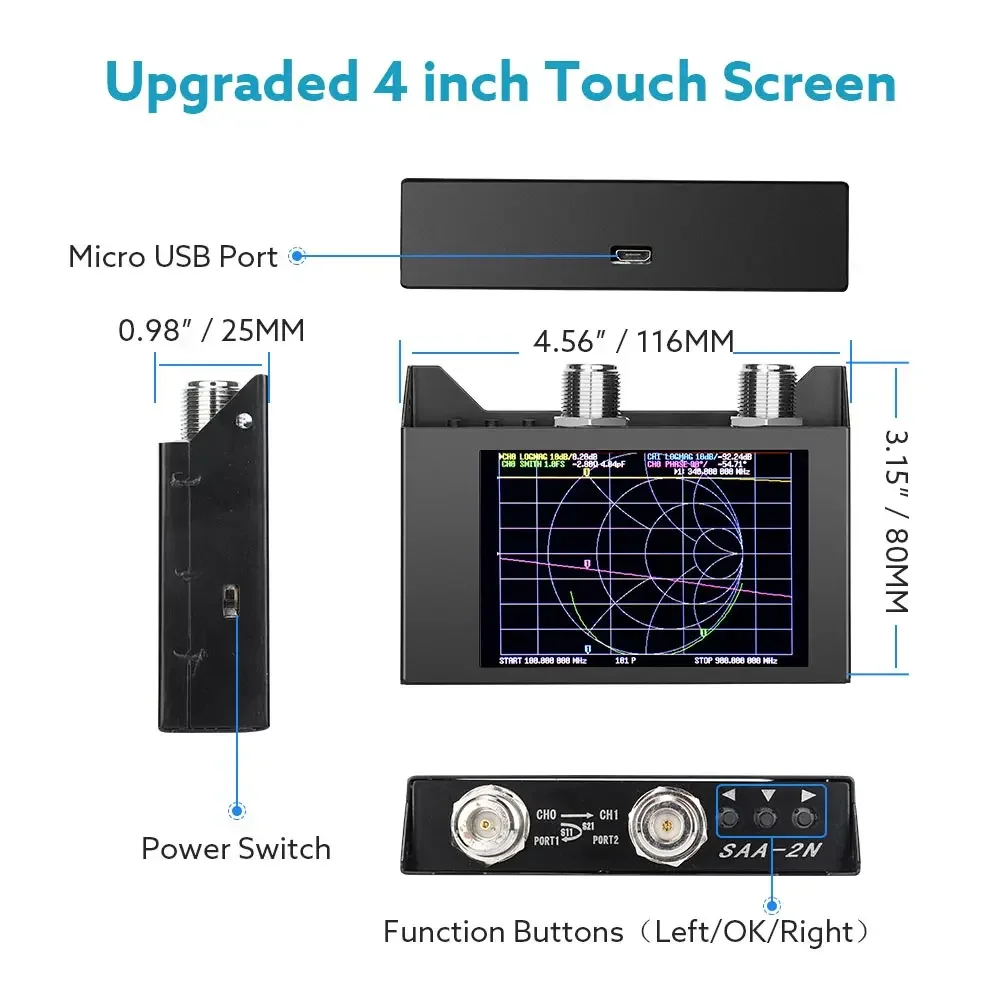

Item size: 117 * 85 * 25mm / 4.6 * 3.3 * 1.0in
Item weight: 368g / 13.0ounce
Package size: 215 * 137 * 85mm / 8.5 * 5.4 * 3.3in
Package weight: 972g / 2.1lb

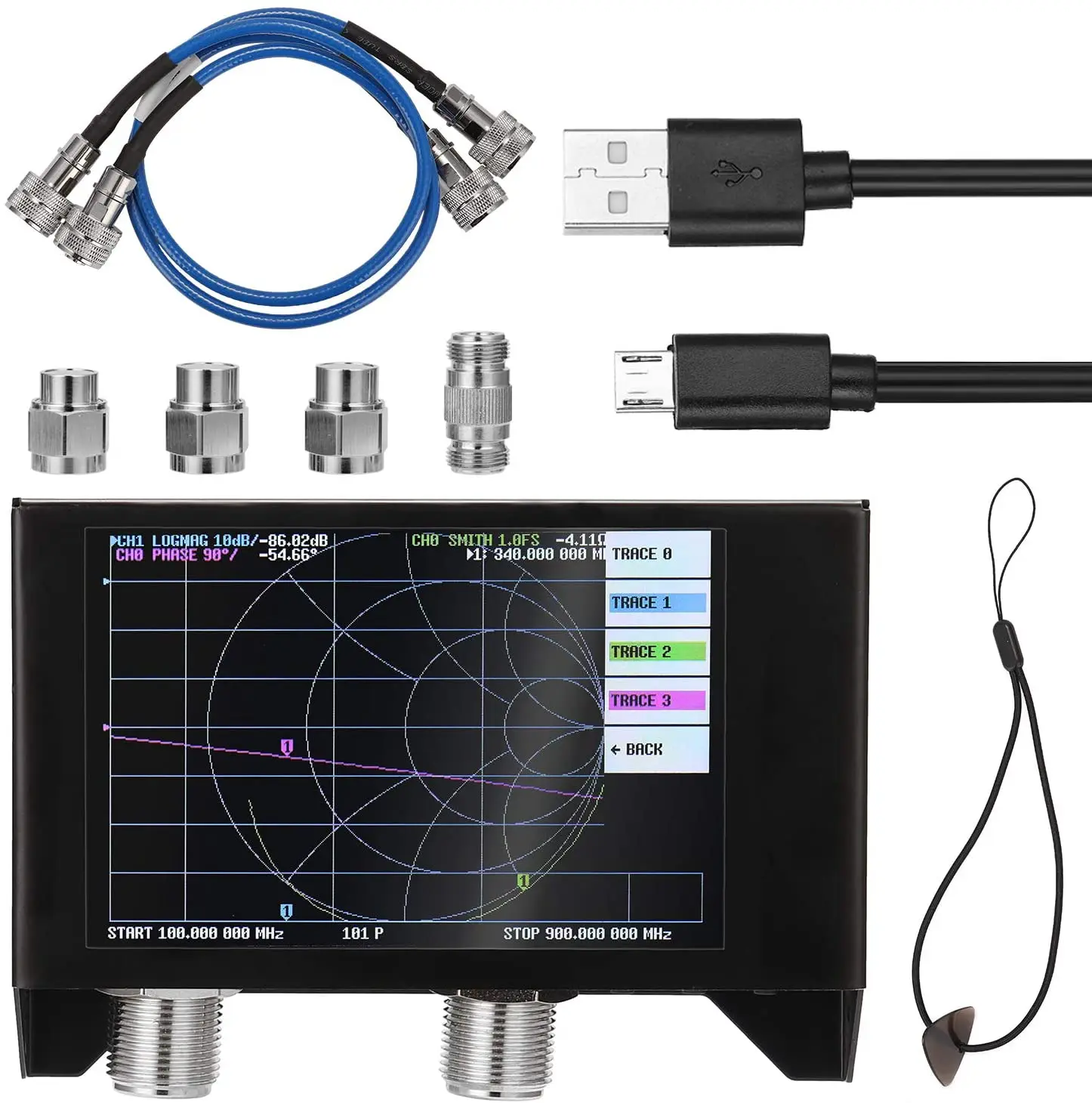

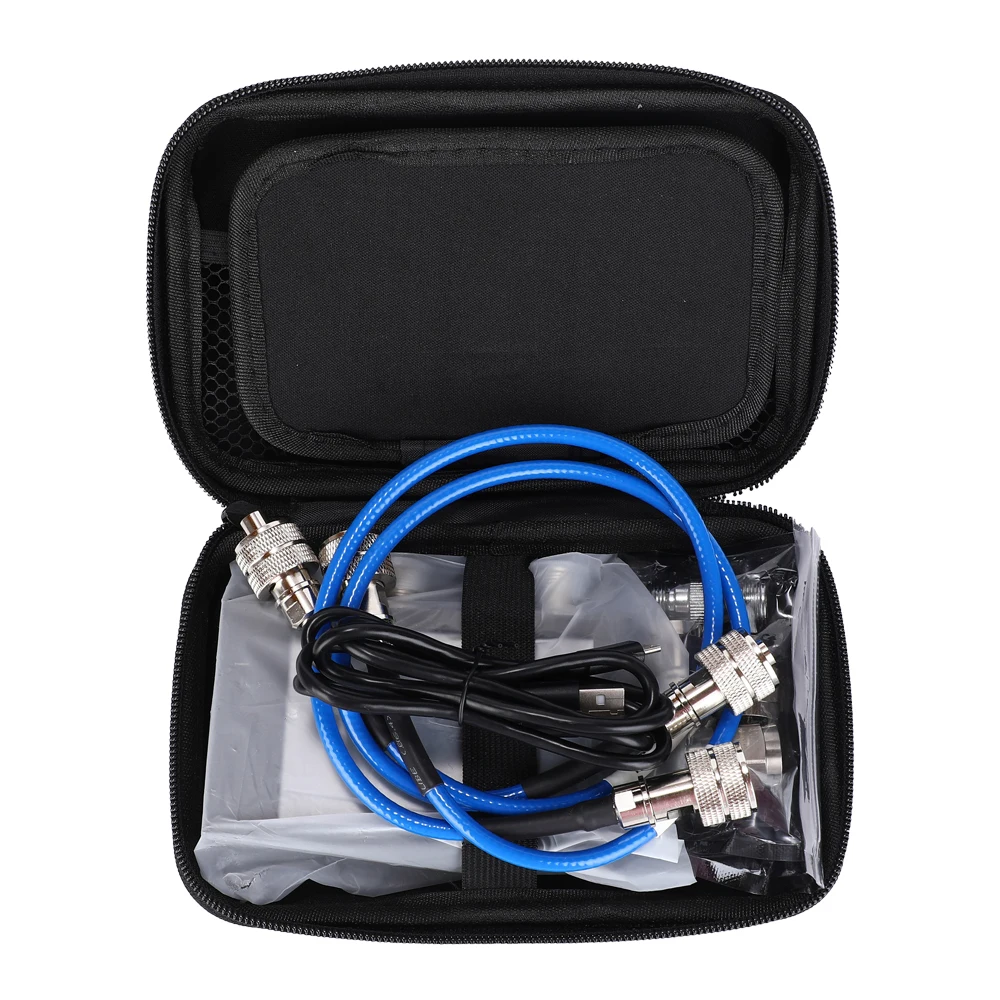

Packing List:
1 * NanoVNA SAA-2N VNA
1 * Micro USB Data Cable

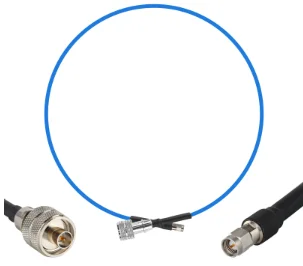

2 * 500mm N-type Male to Male RG142-PUR RF Cable
1 * N-type Male Calibration Kit-OPEN
1 * N-type Male Calibration Kit-SHORT
1 * N-type Male Calibration Kit-LOAD

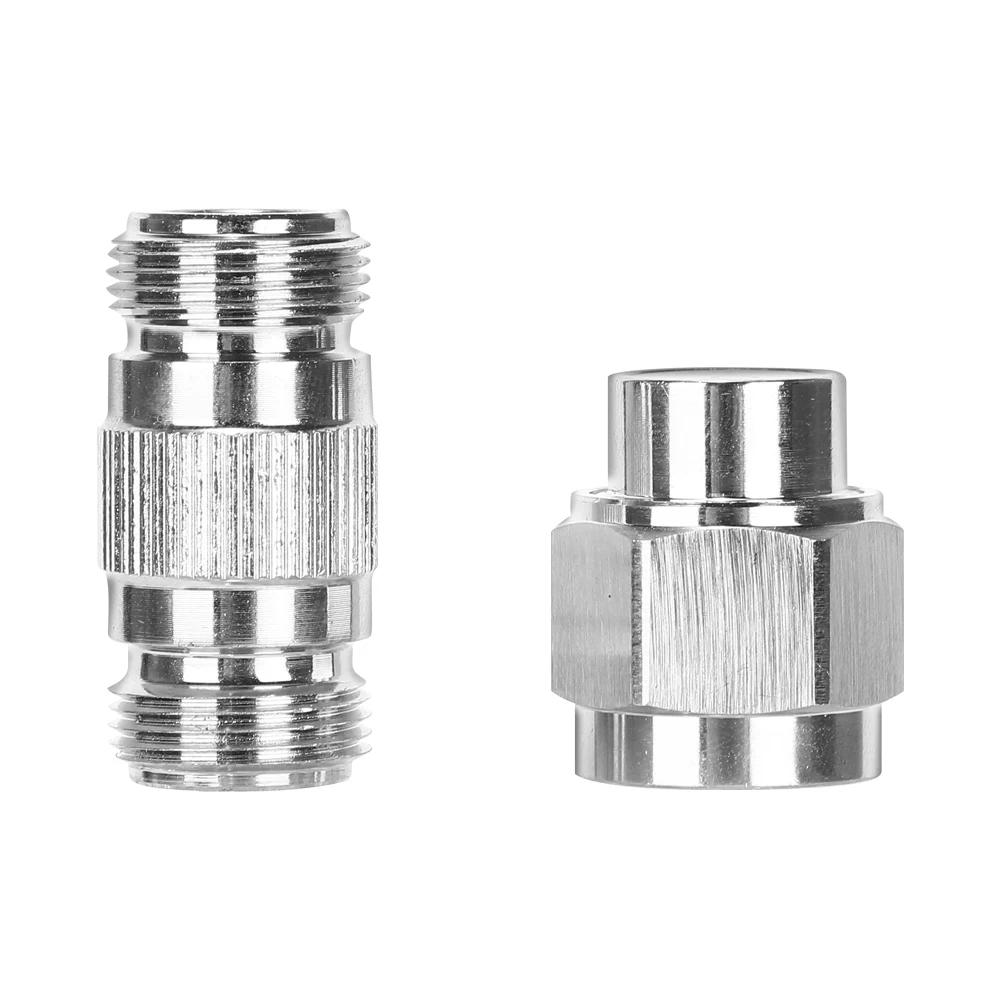

1 * N-type Female to Female Connector
1 * EVA Storage Bag
1 * Touching Screen Pen and Lanyard
1 * Accessories Kit
Features:
Made of fine quality material, practical, has a long service life.
Portable and compact, easy to operate and carry.
4.0 inch TFT LCD touching screen display.
Measurement frequency range is 50KHz~3GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.
EVA storage bag is convenient for storage and carrying.
Note:
Specifications:
Main material: PCB+iron
Color: black
Battery: 1 * lithium battery, 3000mAh (included)
Measurement frequency range: 50KHz-3GHz
Frequency tolerance: ＜2ppm
Frequency stability: ＜0.5ppm
System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Sweep rate: 100 points / second
Display: 4.0 inch, 320 * 480
USB interface: Micro USB
Power supply: USB, maximum charging current 1A
Battery connector: JST-XH 2.54mm
Maximum sweep points (on device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB MIN
Item size: 117 * 85 * 25mm / 4.6 * 3.3 * 1.0in
Item weight: 368g / 13.0ounce
Package size: 215 * 137 * 85mm / 8.5 * 5.4 * 3.3in
Package weight: 972g / 2.1lb
Packing List:
1 * NanoVNA SAA-2N VNA
1 * Micro USB Data Cable
2 * 500mm N-type Male to Male RG142-PUR RF Cable
1 * N-type Male Calibration Kit-OPEN
1 * N-type Male Calibration Kit-SHORT
1 * N-type Male Calibration Kit-LOAD
1 * N-type Female to Female Connector
1 * EVA Storage Bag
1 * Touching Screen Pen and Lanyard
1 * Accessories Kit
Optional:
