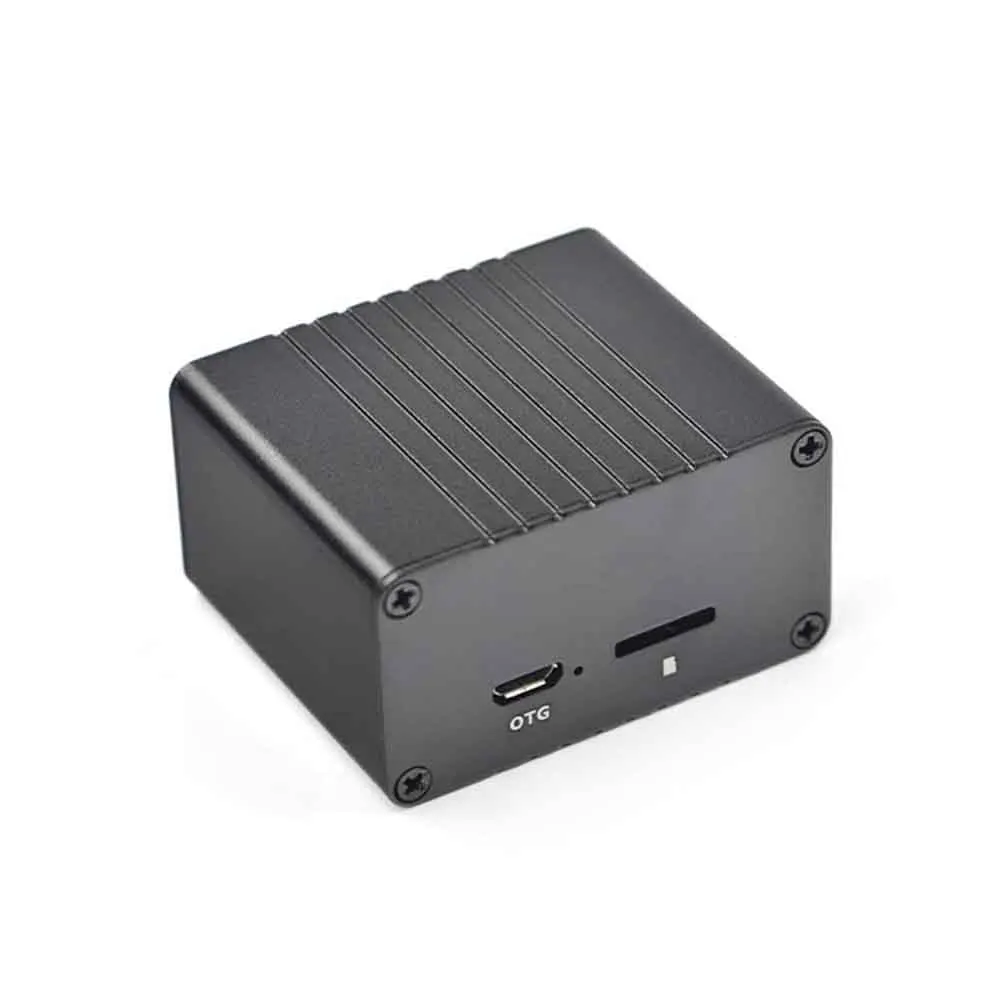

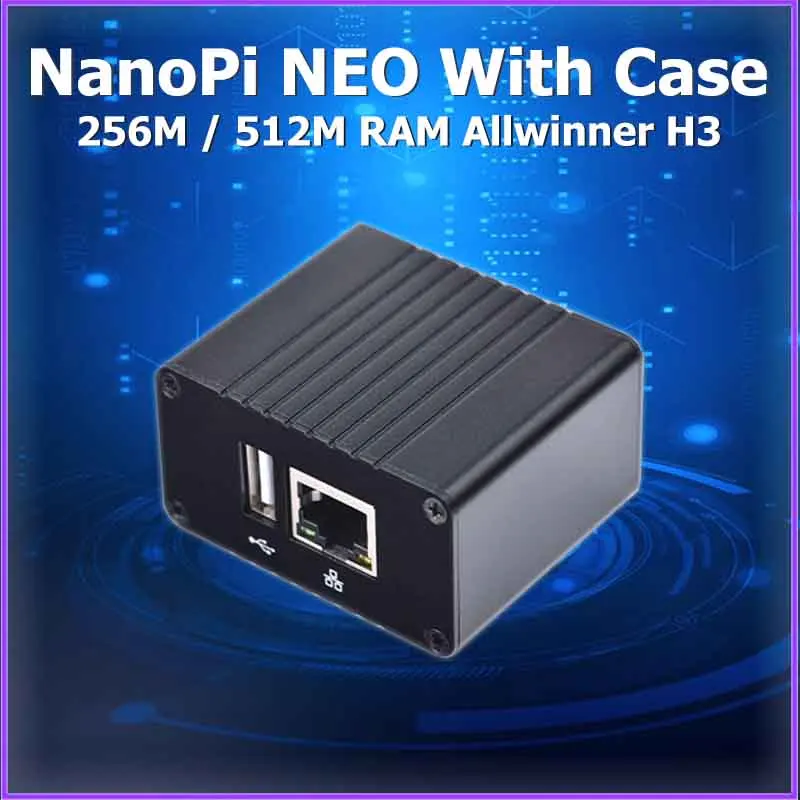

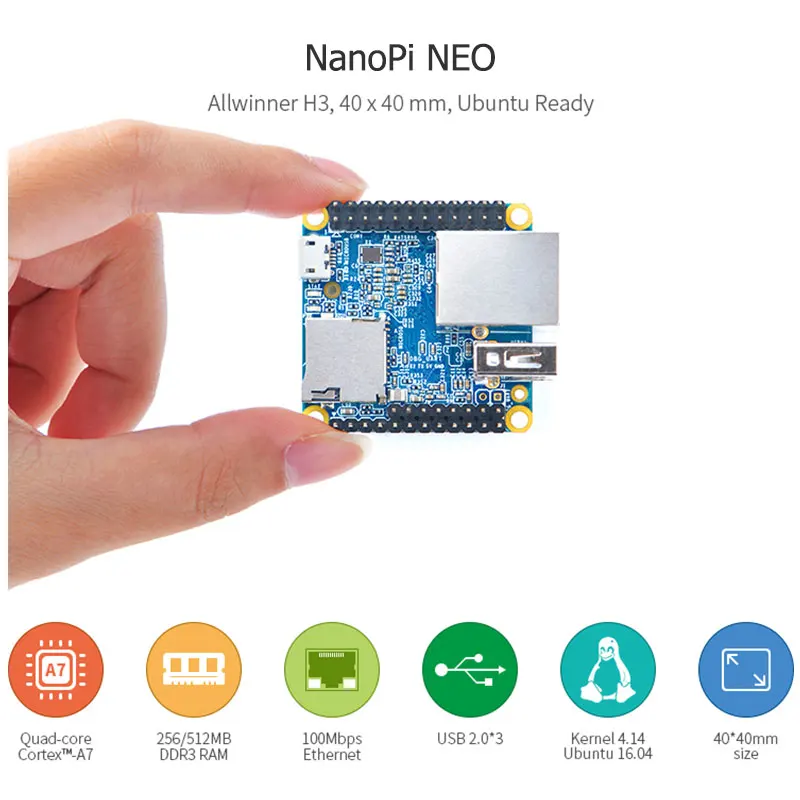

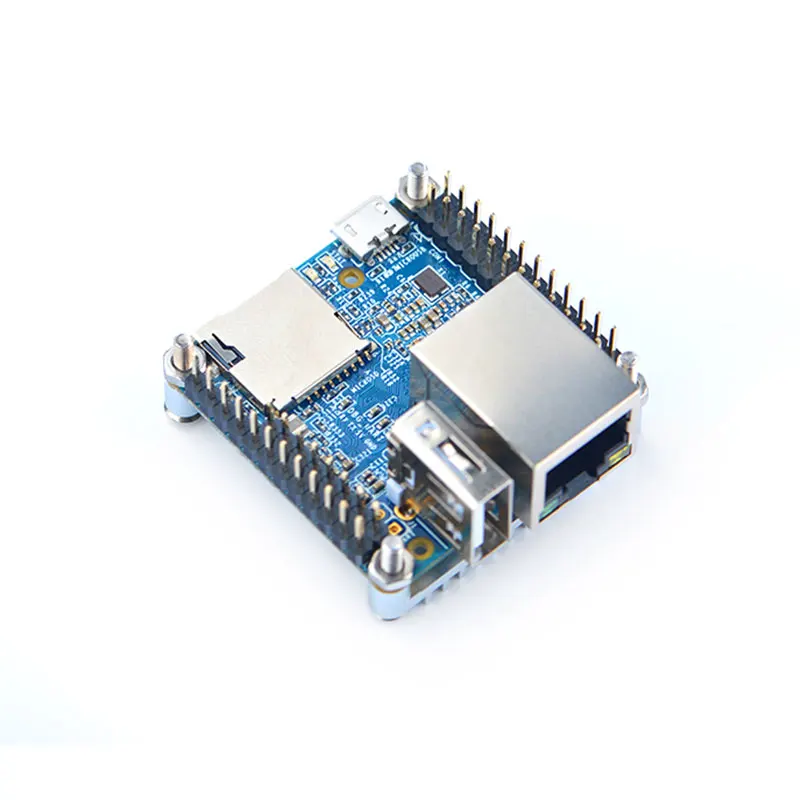

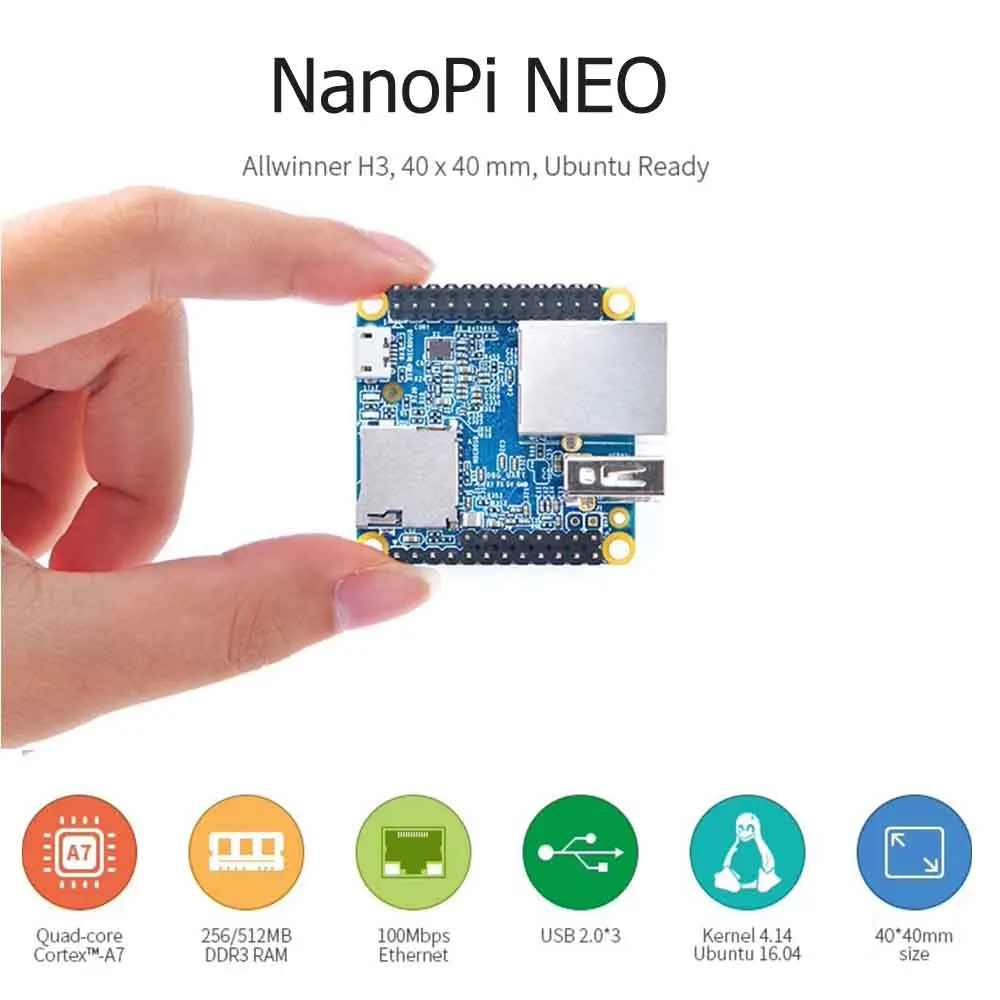

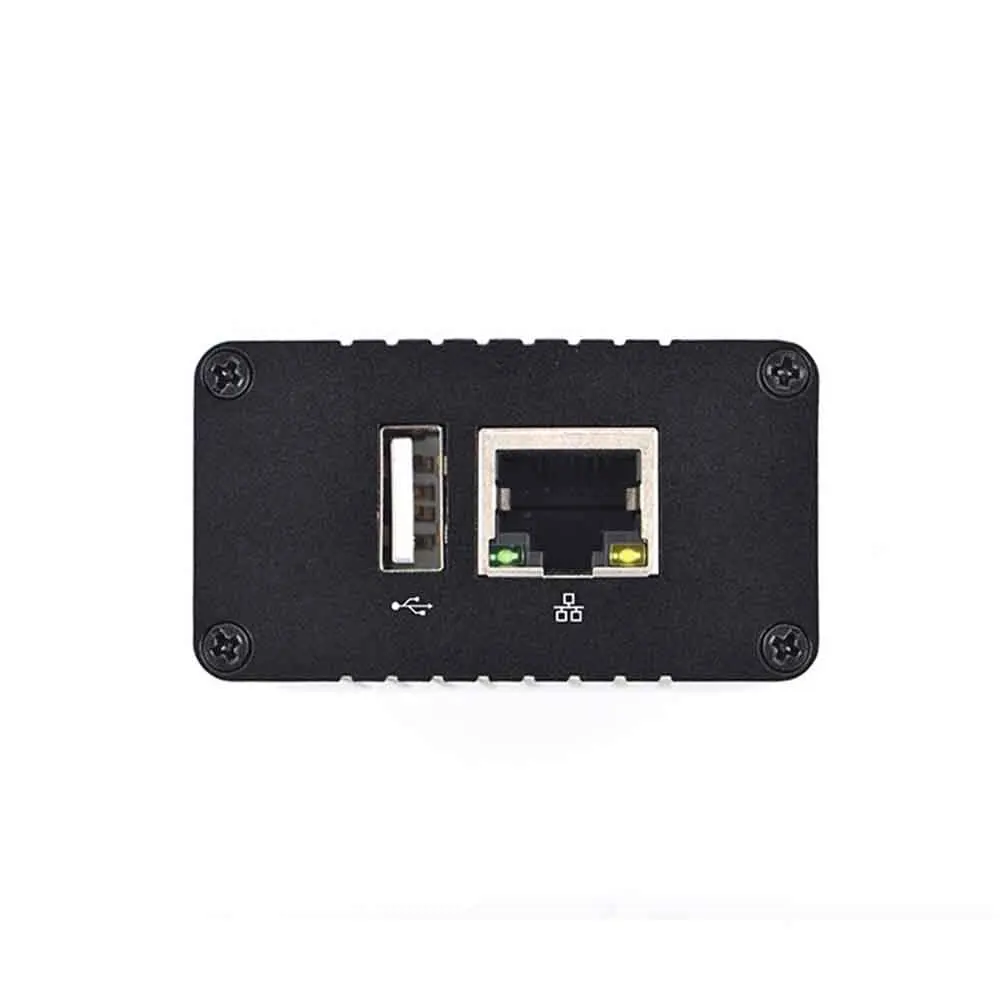

NanoPi NEO LTS with CNC Metal Case Heatsink 256M/512M RAM Allwinner H3 Quad Cortex-A7 1.2GHz,OpenWRT,Ubuntu Linux Armbian DietPi

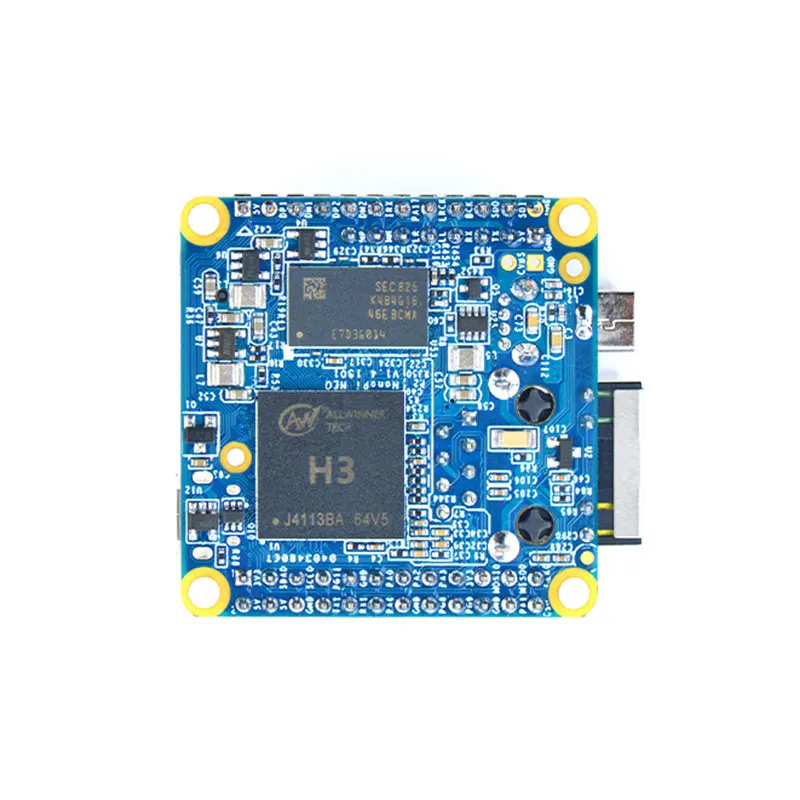

CPU: Allwinner H3, Quad-core Cortex-A7, up to 1.2GHz
DDR3 RAM: 256M / 512MB
Connectivity: 10/100M Ethernet
USB Host: Type-A x 1, USB 2.0
Micro-USB: OTG, for power input
Debug Serial Port: 4Pin, 2.54 mm pitch pin header

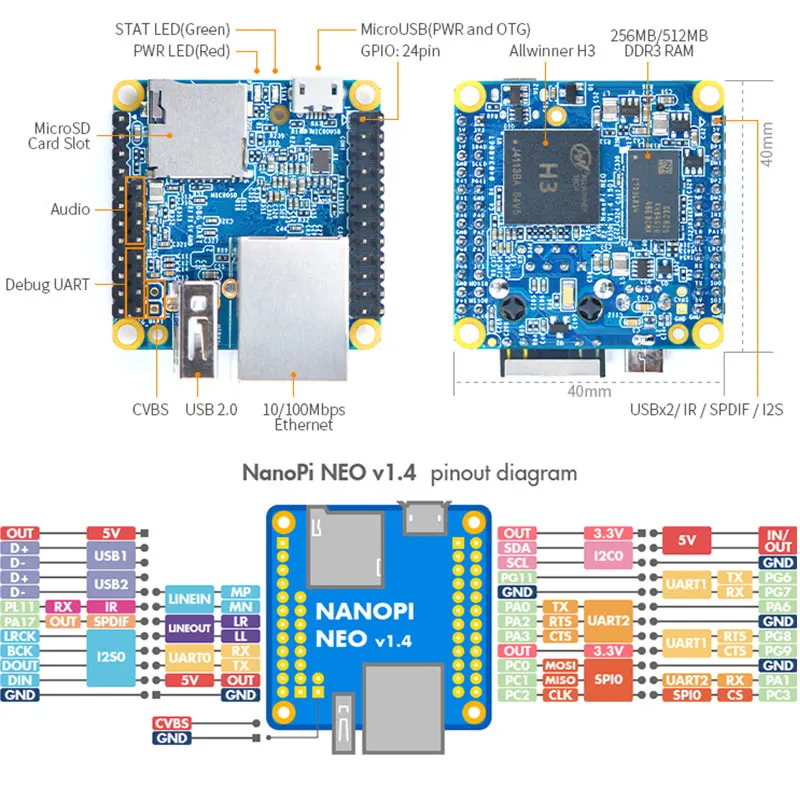

GPIO1: 2.54mm pitch 24pin. It includes UART, SPI, I2C, IO etc
GPIO2: 2.54mm pitch 12pin. It includes USB, IR, SPDIF, and I2S

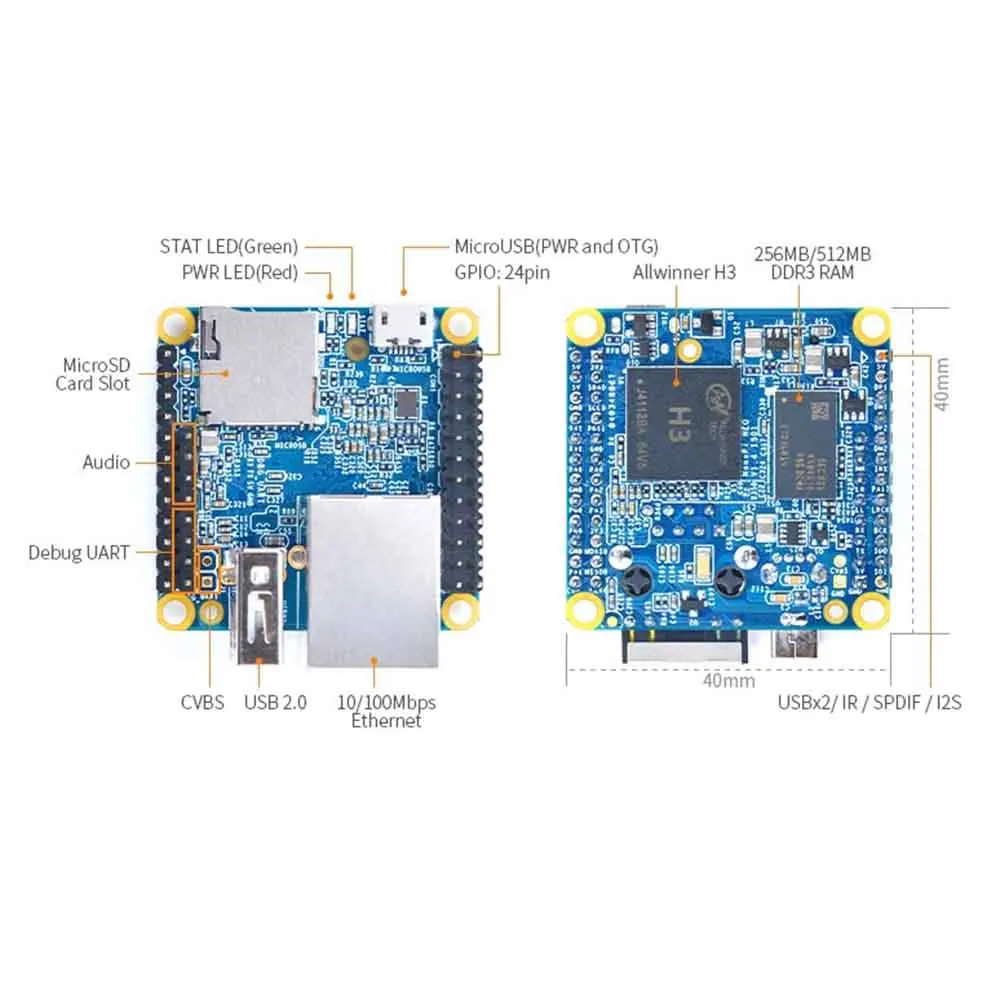

PCB Dimension: 40 x 40 mm
Power Supply: DC 5V/2A
OS/Software: u-boot, Ubuntu-Core-Xenial, Debian-Jessie
colour:blue
Material:plastic

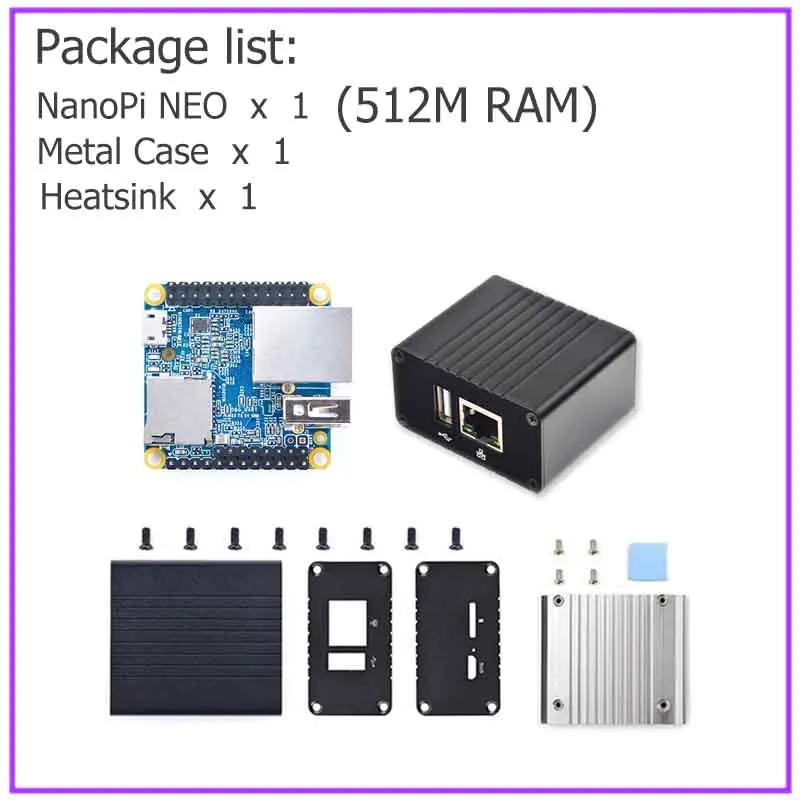

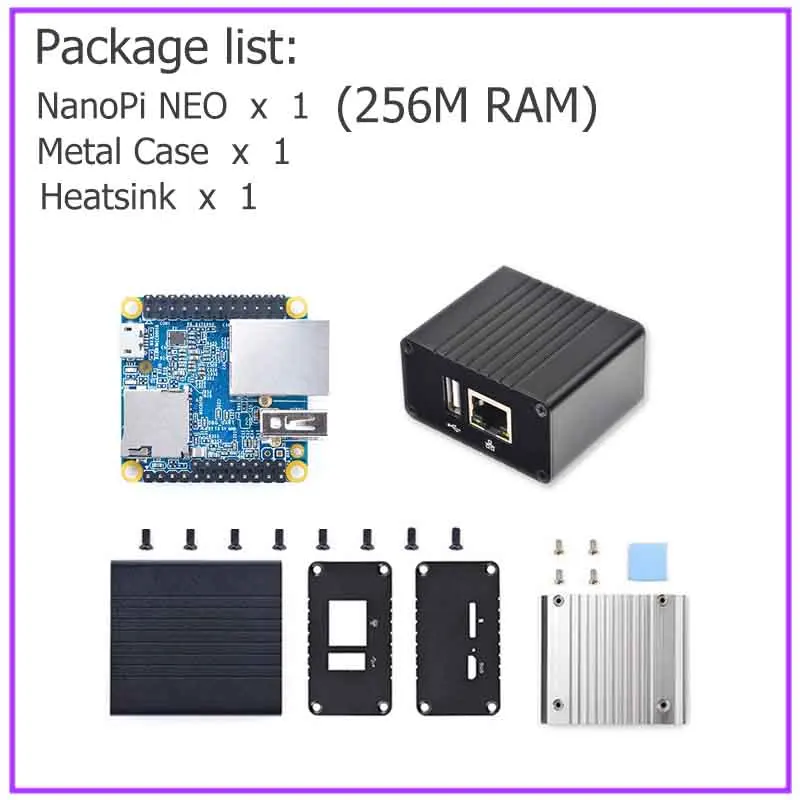

Package Contents:

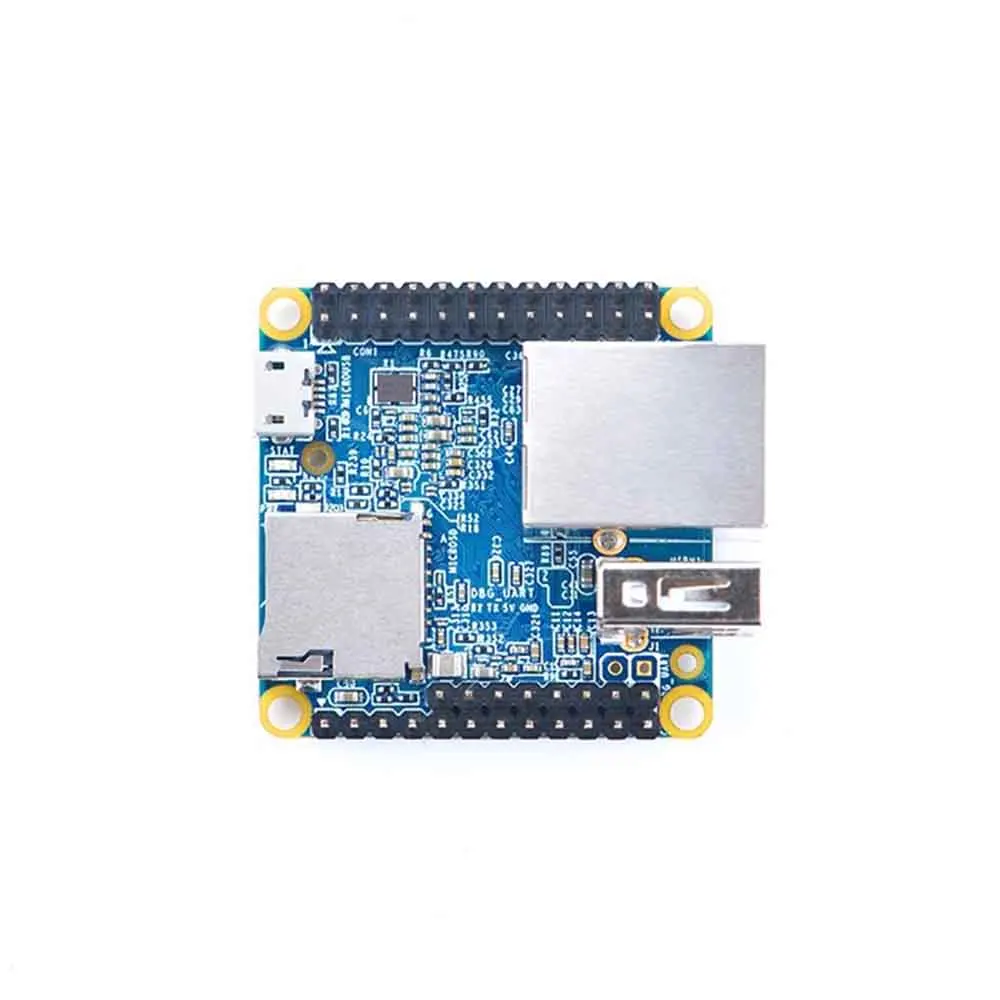

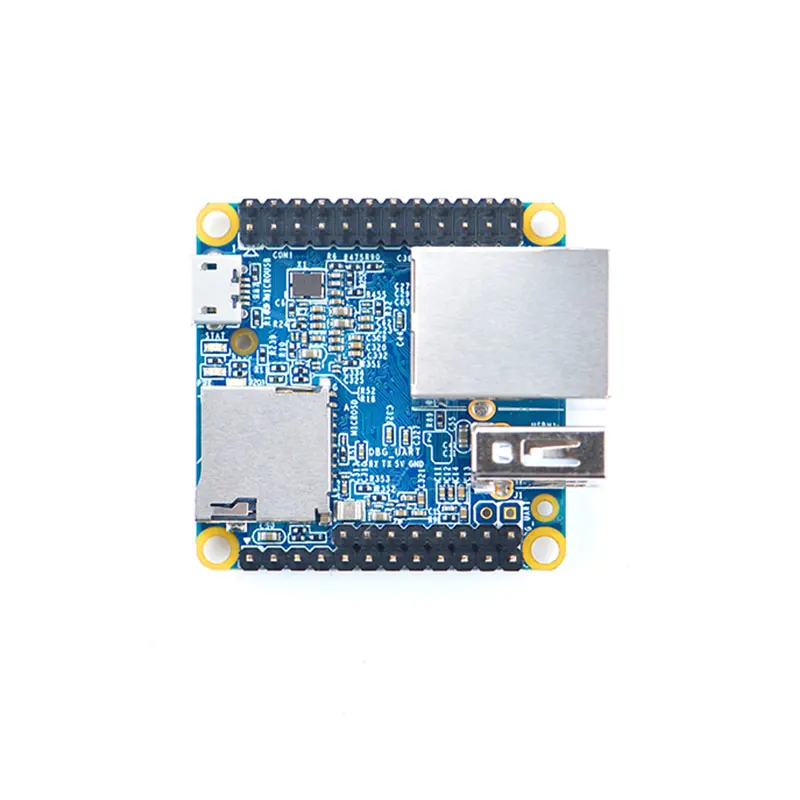

1*NanoPi-NEO H3 Development Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
