Item Introduction:

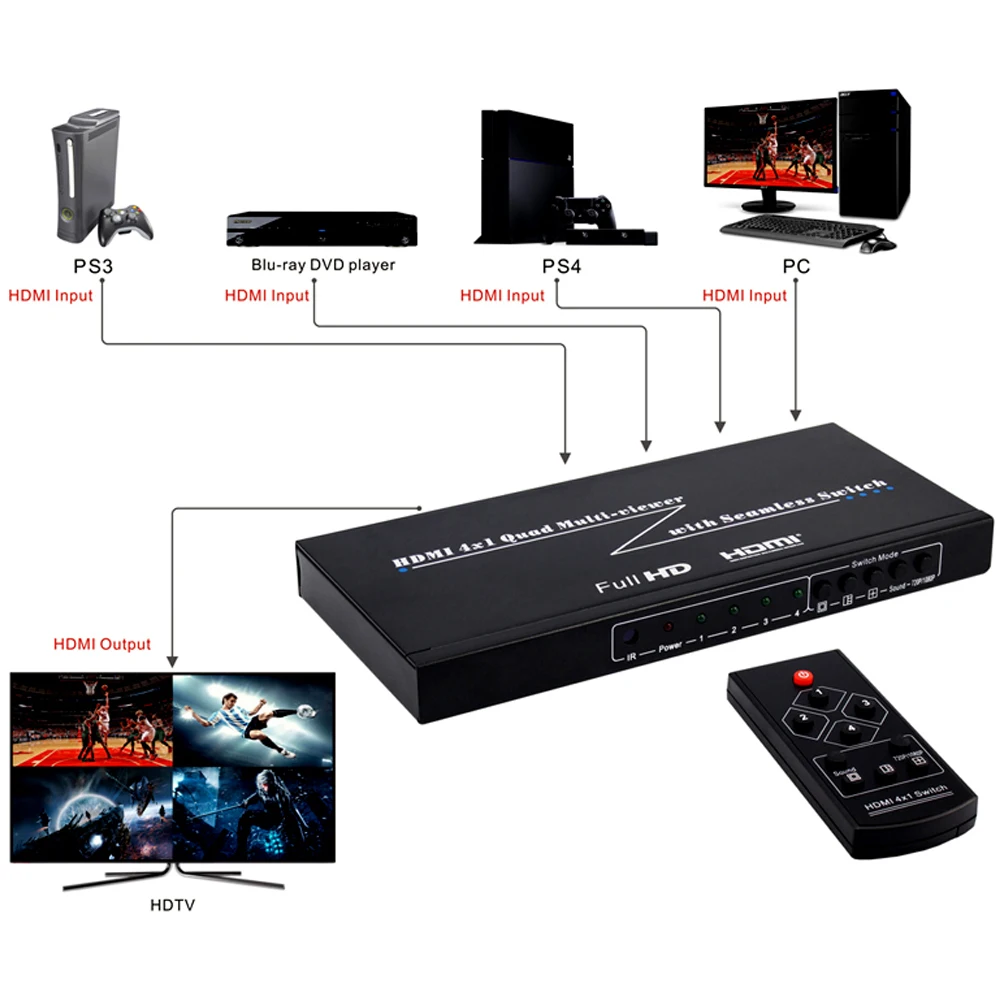

• HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switchingoutput switch. High quality,buy with confidence !

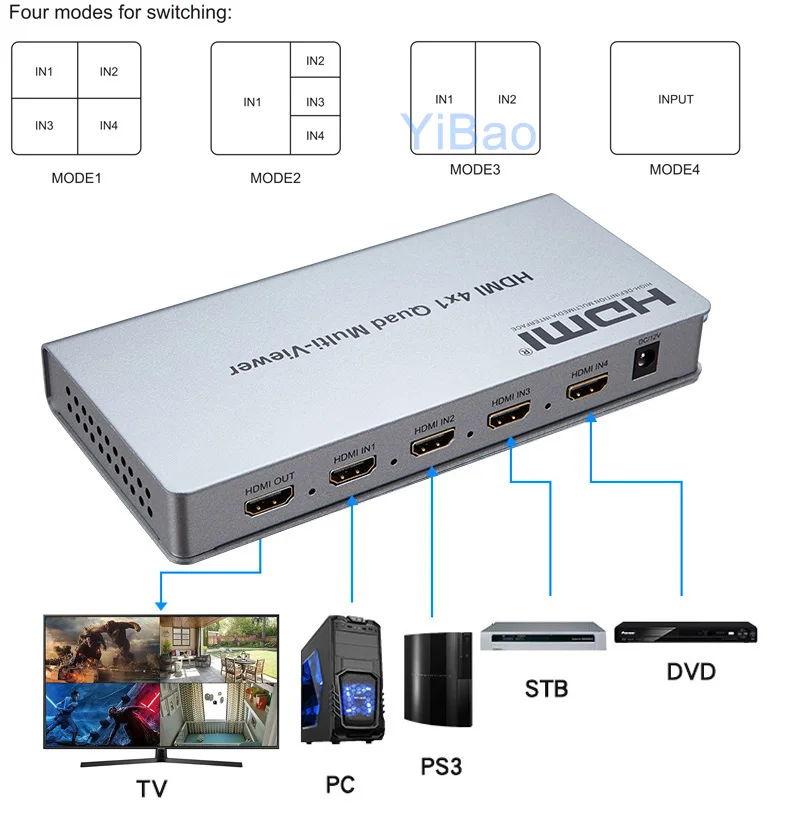

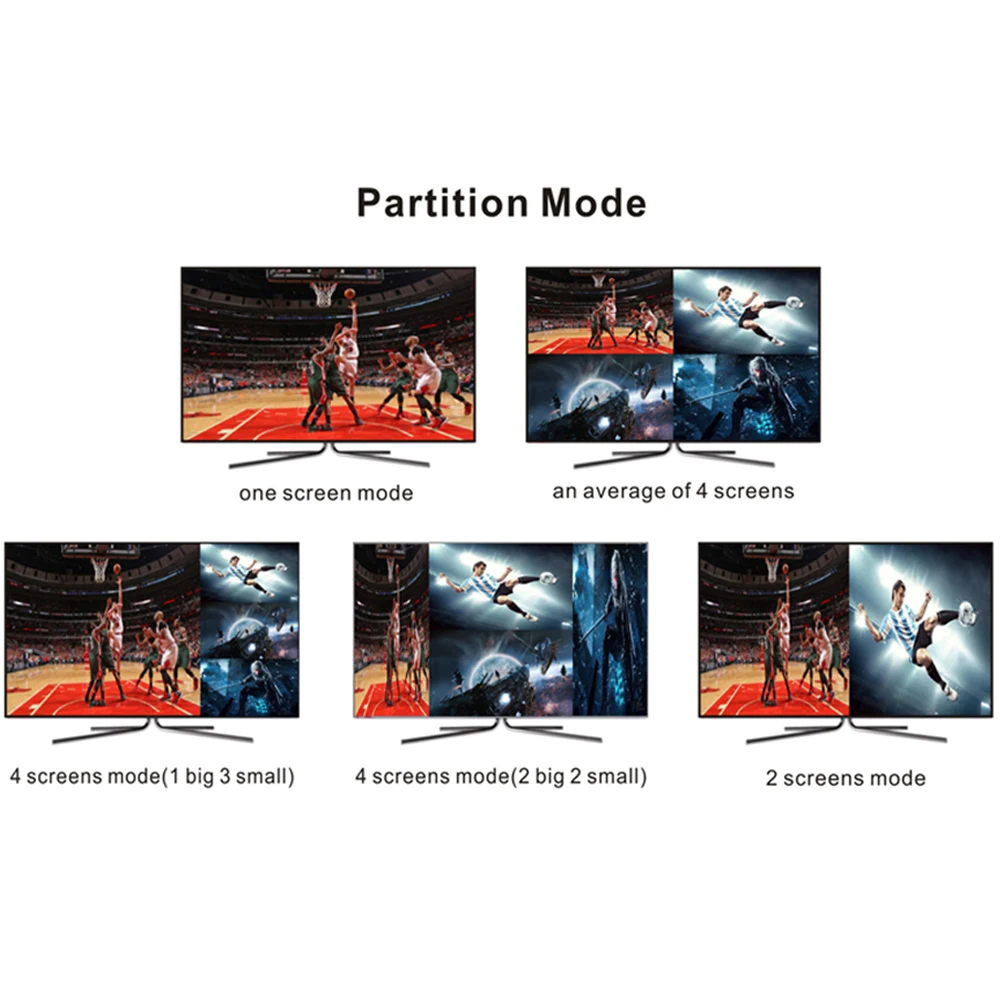

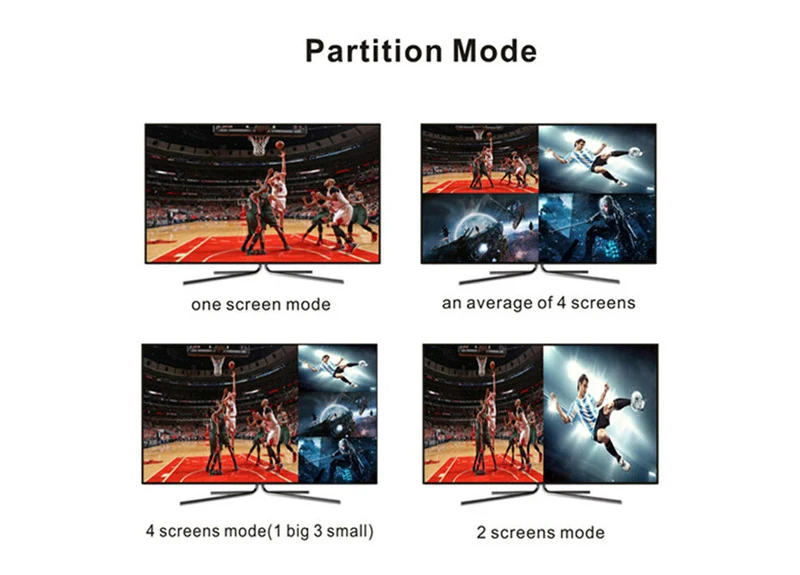

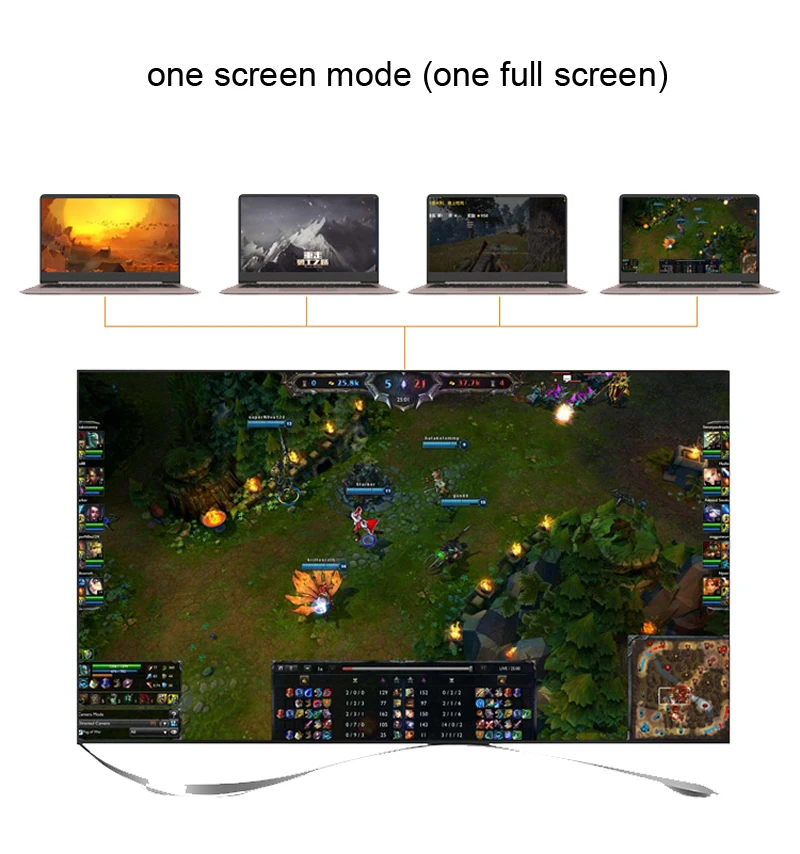

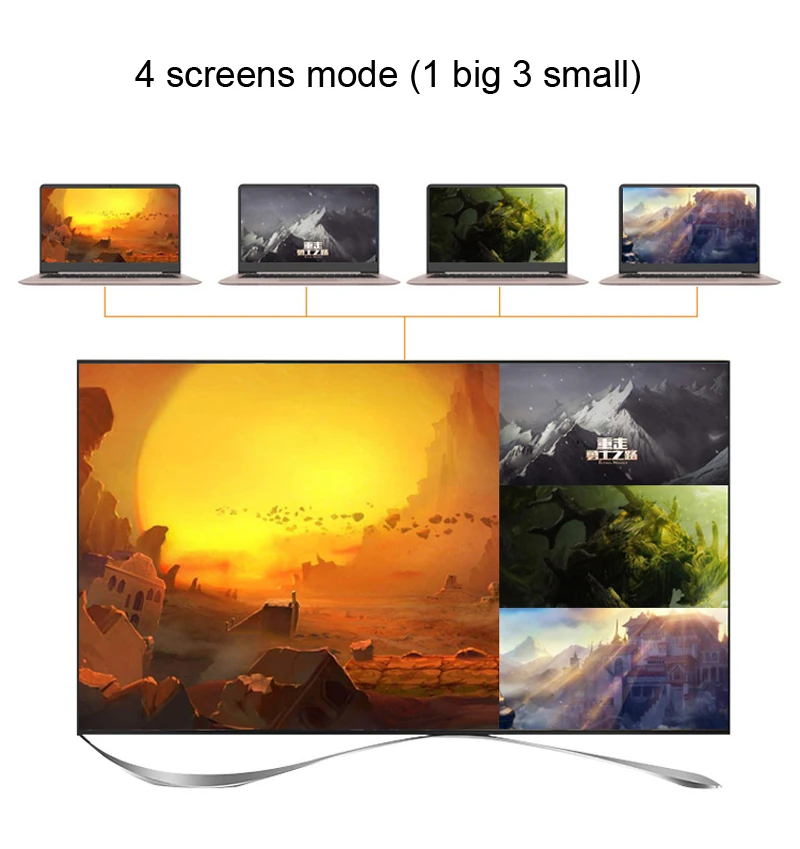

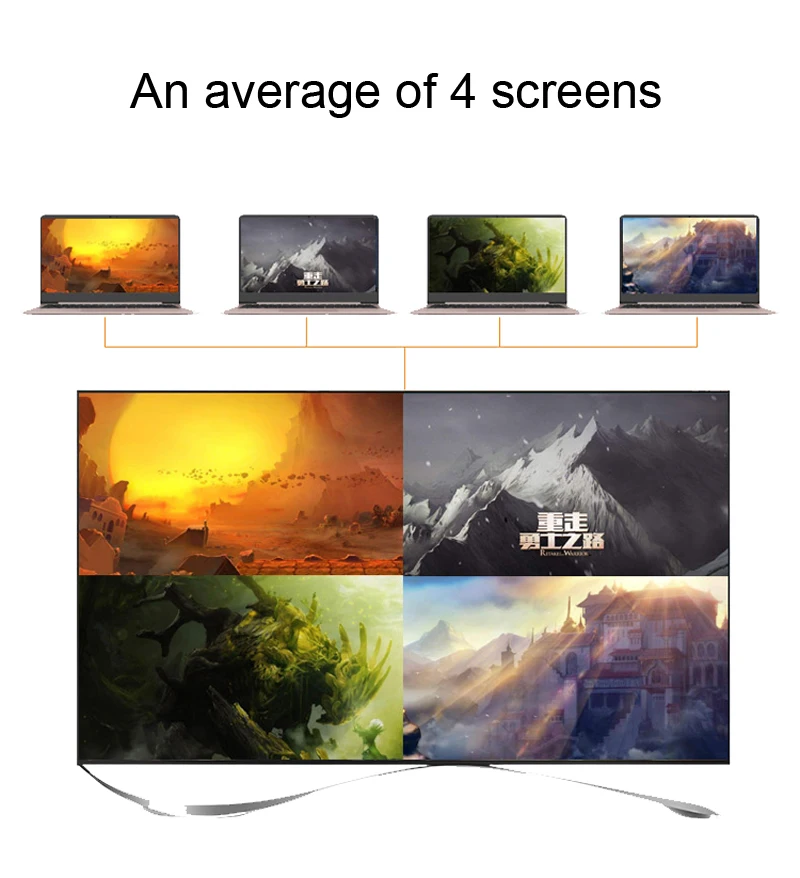

• It can display 4HD digital video signal on the same screen, and has 5 kinds of modes display, seamless switching4 HD input signal synchronously.
• Supports 1080P input up to 15 meters and output up to 20 meters ( Cable standard AWG26)
• Extend the transmission distance and improve transmission signal.

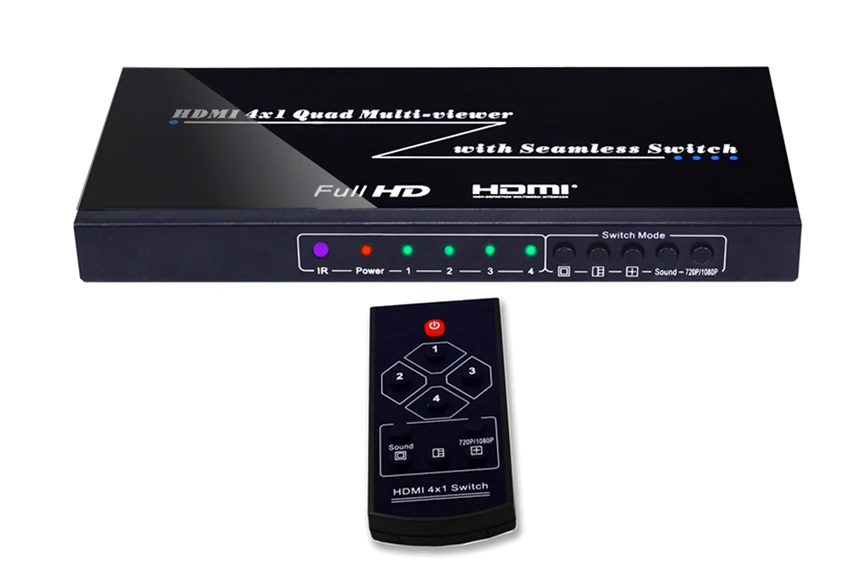

• The control methods of the switch is flexible, it can be switched via button and IR control. It's a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places

Specifications:
Maximum Single Link Range:1080P/60Hz
HDMI version:HDMI 1.3, HDCP 1.2
HDMI input resolution:24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
HDMI output resolution:720p/1080p/60Hz
Supports video color format:24bit/deep color 30bit, 36bit
Vertical Frequency Range:720/1080p@60Hz
Max bandwidth:225MHz
Max bandrate:6.7Gbps
Input/Output TMDS signal:0. 5~ 1. 5Volts p- p( TTL)
Input/Output DDC signal:5Volts p- p ( TTL)
1080P Input cable distance:15m AWG26 HDMI standard cable
1080P Output cable distance:≤20m AWG26 HDMI standard cable
Max working current:1A
Operating Temperaturer:(-15 to +55℃)
Operating Humidity range:5 to 90%RH (No Condensation)

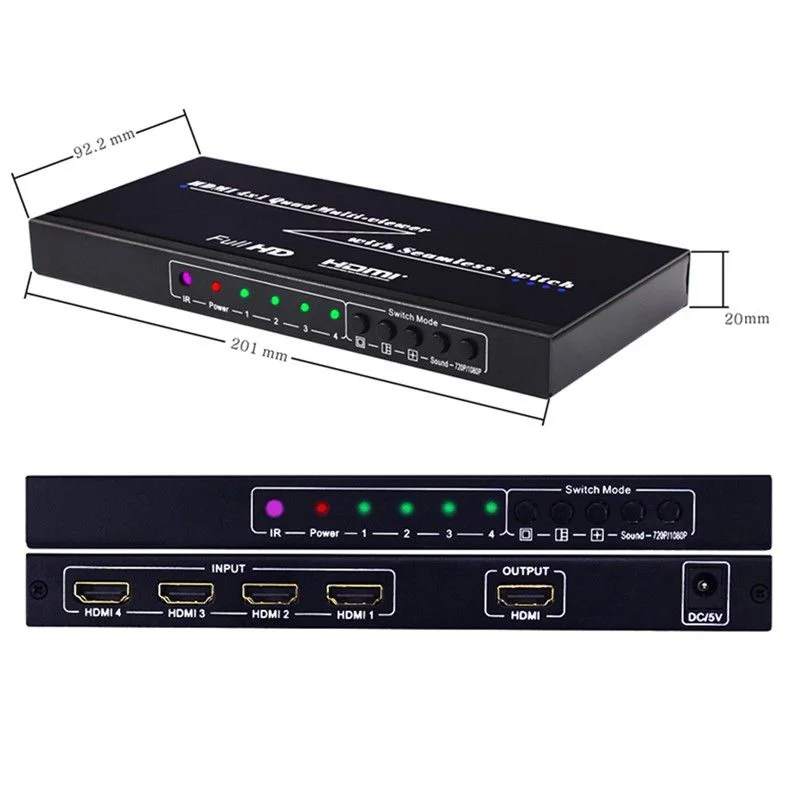

Size: Approx. 200x95x20mm

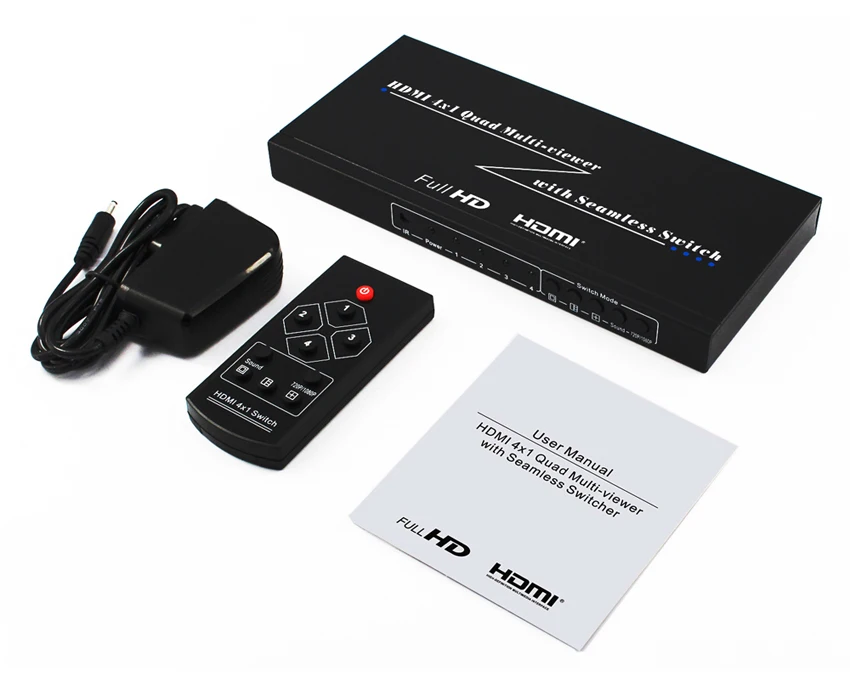

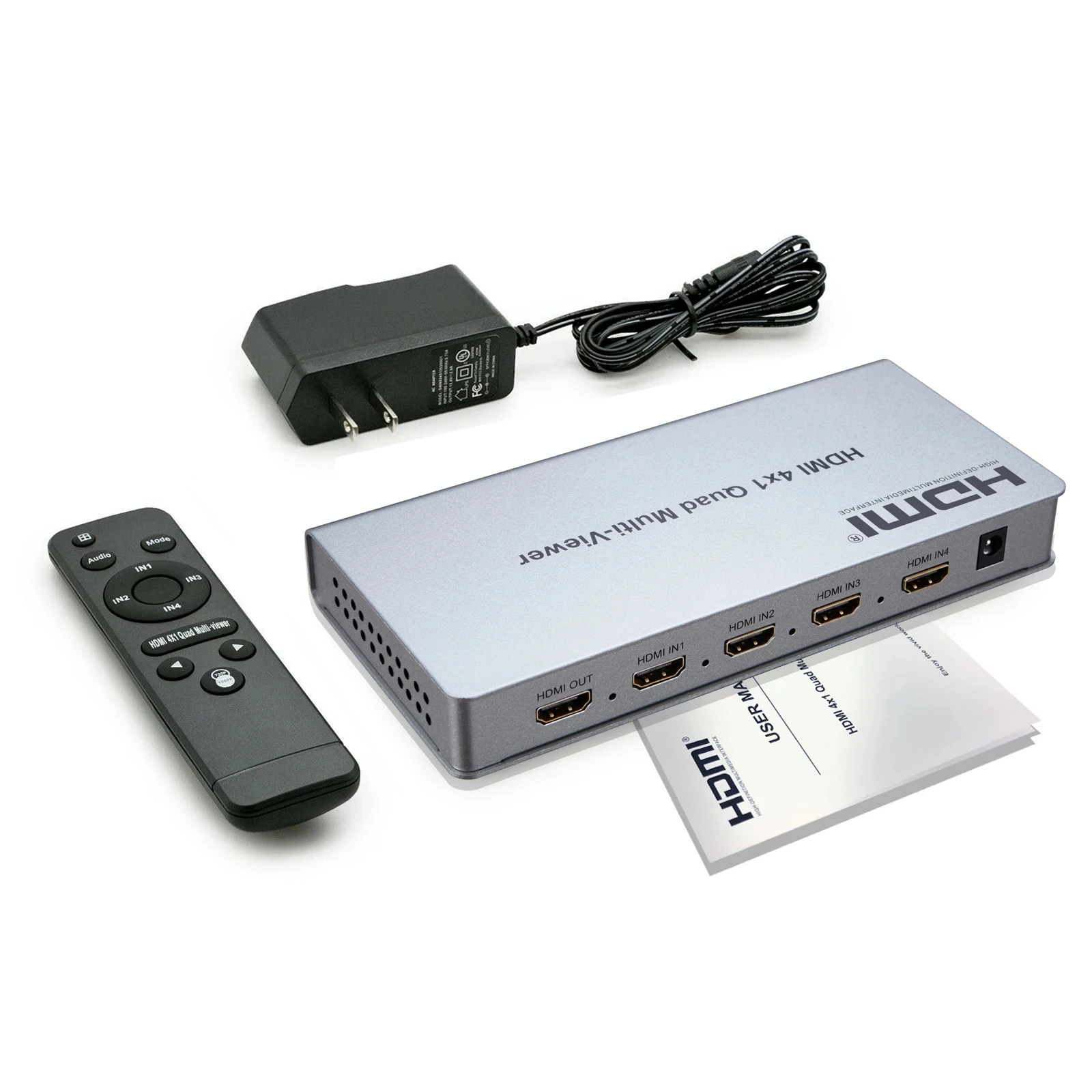

Package content:

1.HDMI 4x1 Quad Multi-viewer x1
2. Remote controller x1(NO Battery included)
3. User Manual x1
4. DC 5V Power Adapter x1
NO Retail Package Box,if need,pls contact us first

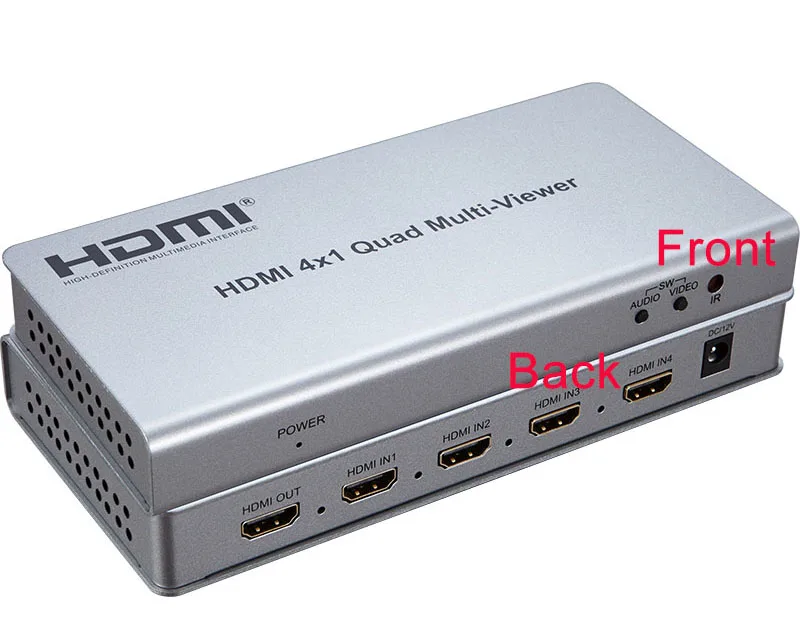

Introduction of Silver 4x1 HDMI Quad Multi-viewer:
This silver HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless
switching output switch. It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously. The control methods of the switch is flexible,
it can be switched via button and IR control. It's a very practical and stable switch and easy to install,
can be used in the major projects, meeting halls and other places.

Features :

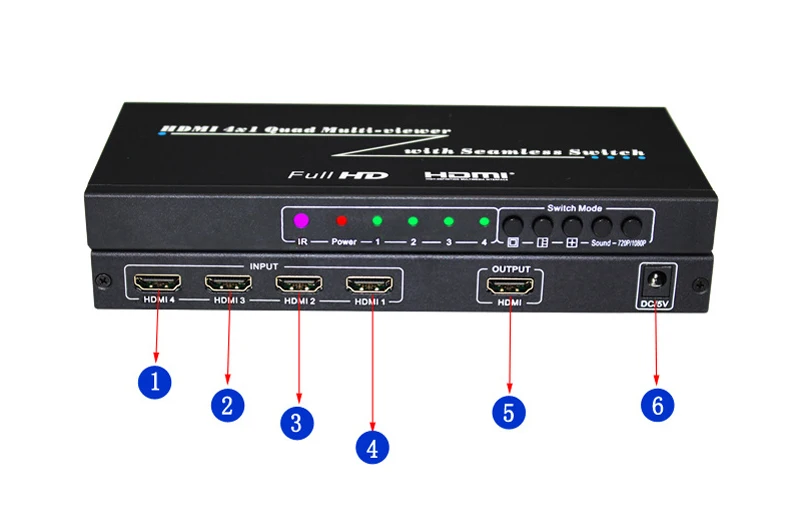

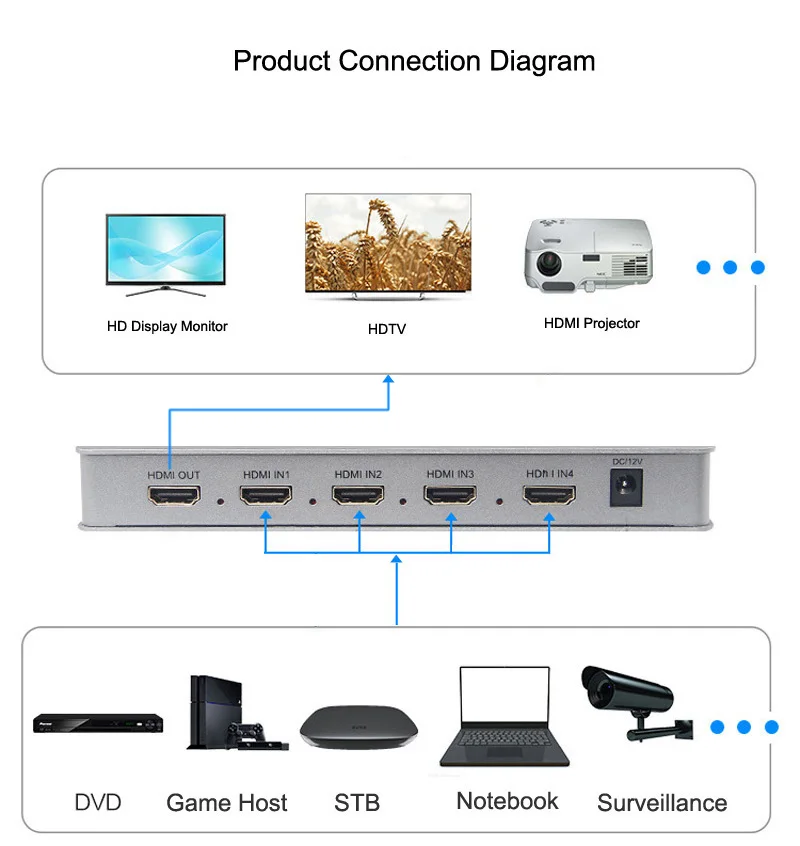

Support 4 HDMI input, 1 HDMI output

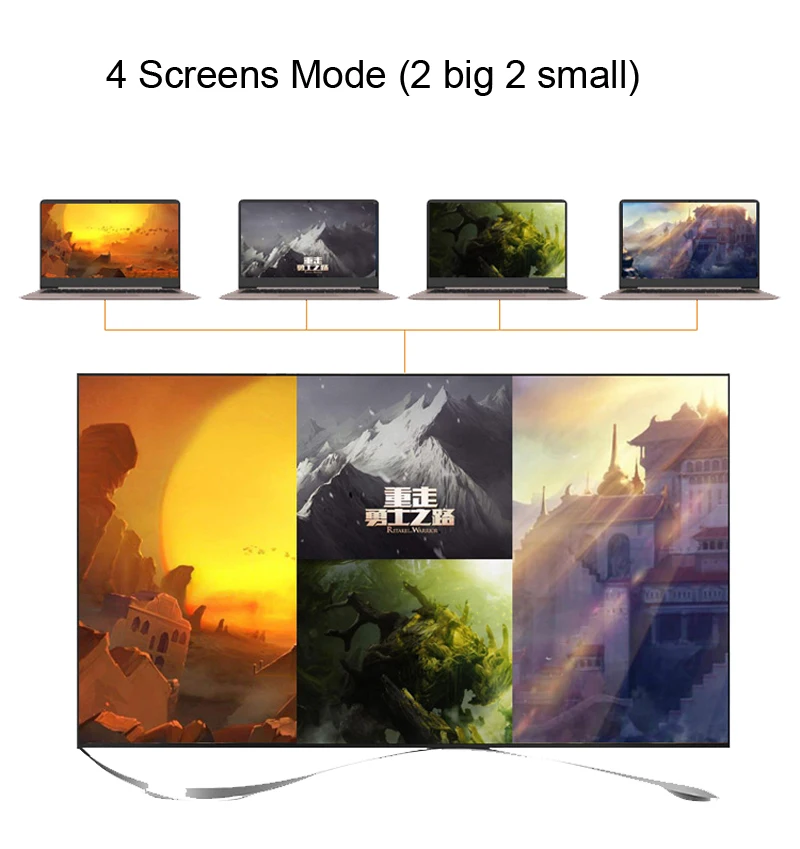

Support 4 channels HDMI signal screen segmentation
Support 4 channels HDMI signal seamless switching
Support highest resolution up to 1080P/60Hz
Support IR control
Compatible HDMI1.3a, HDCP1.2
Support resolution: 1080P,720P,1080i,1024X768,1360X768
Support audio output format: PCM2
Support standard AWG26 cable, input up to 15 metres ,output up to 15 metres
DC5V/2A power adapter
Dimension (L x W x H): approx, 19cm*9cm*2.3cm

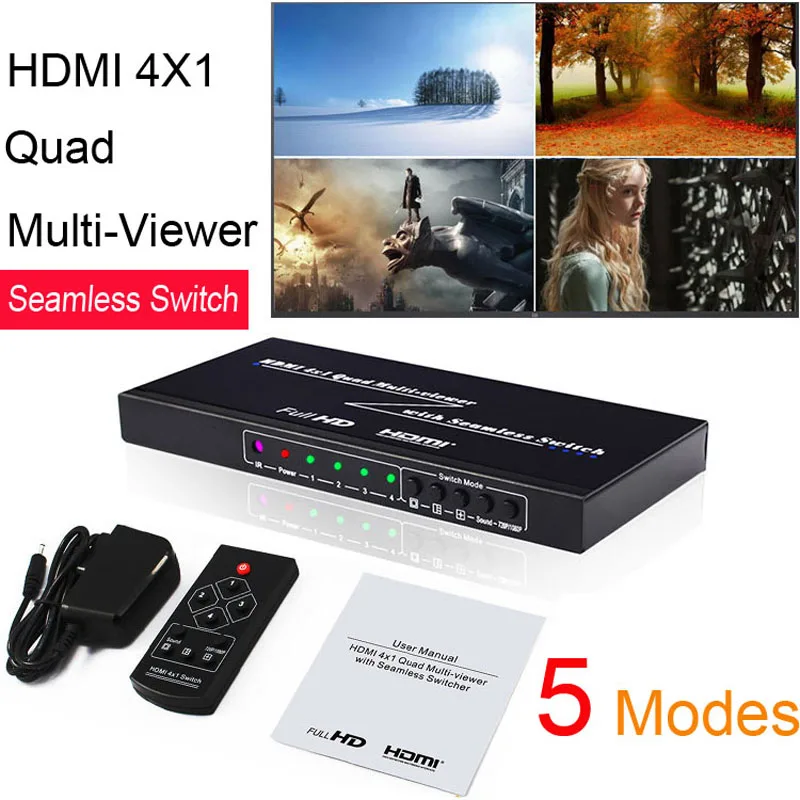

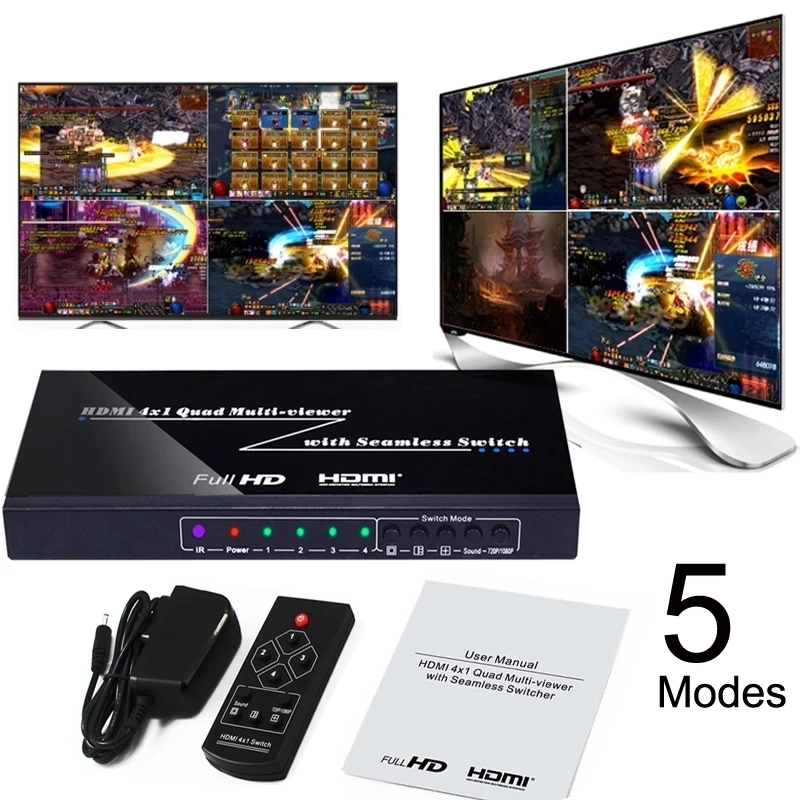

Package content:

1.HDMI 4x1 Quad Multi-viewer x1
2. Remote controller x1(NO Battery included)
3. User Manual x1
4. DC 5V Power Adapter x1
NO Retail Package Box,if need,pls contact us first
