Product Details:

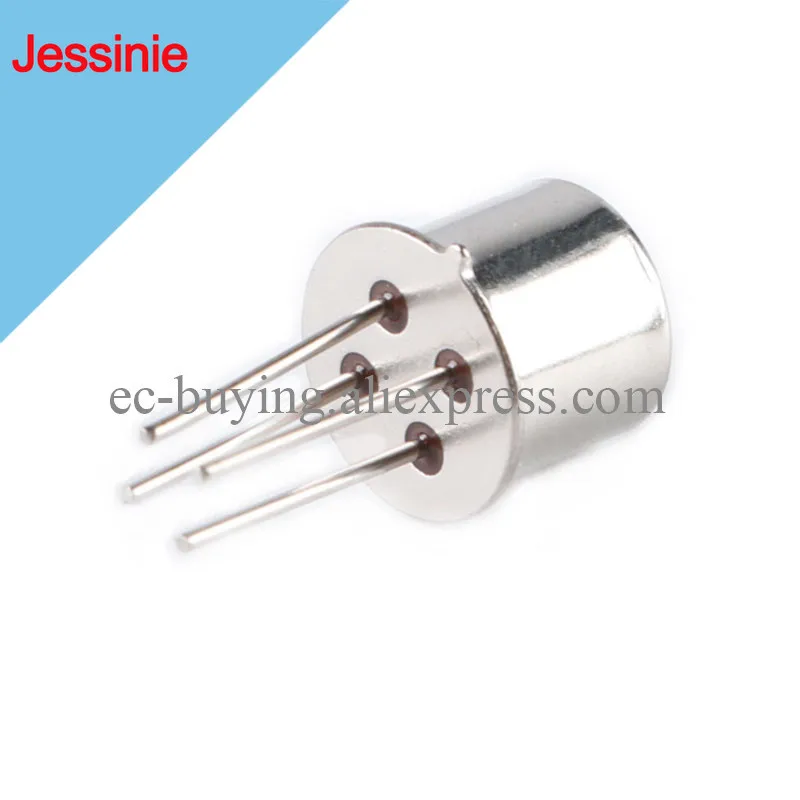

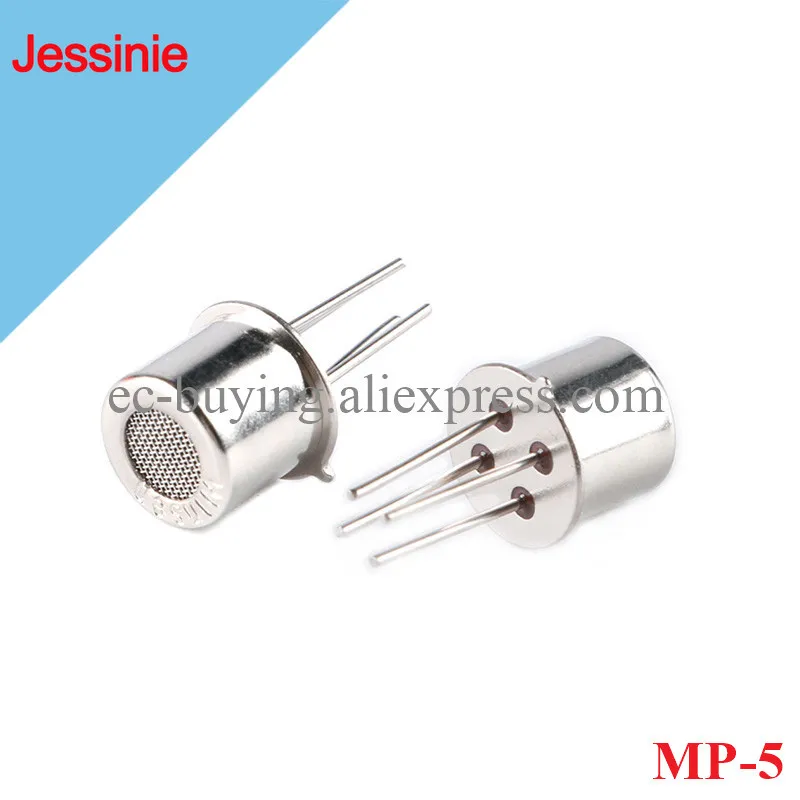

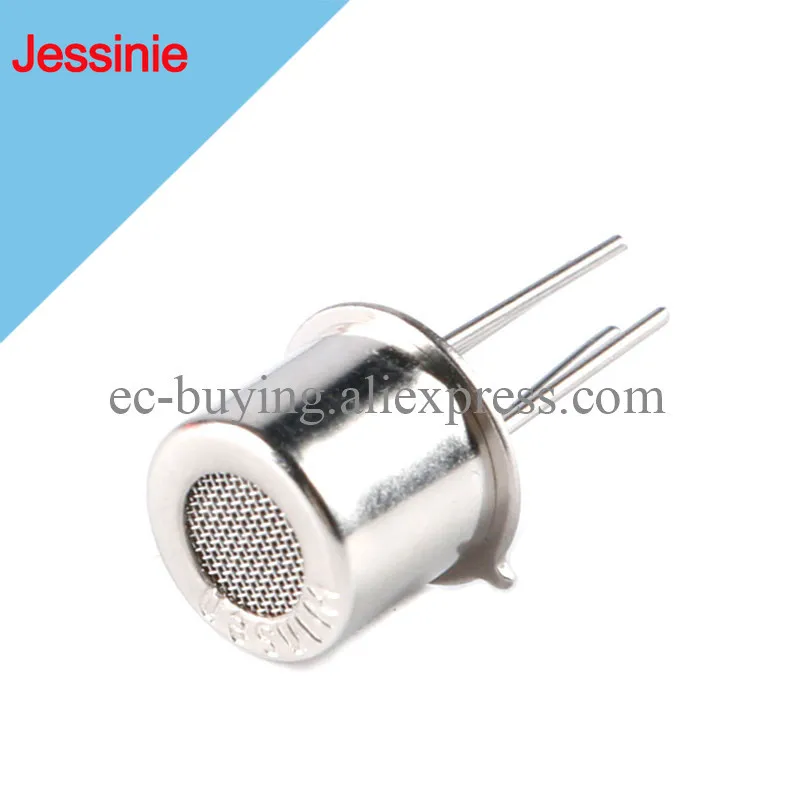

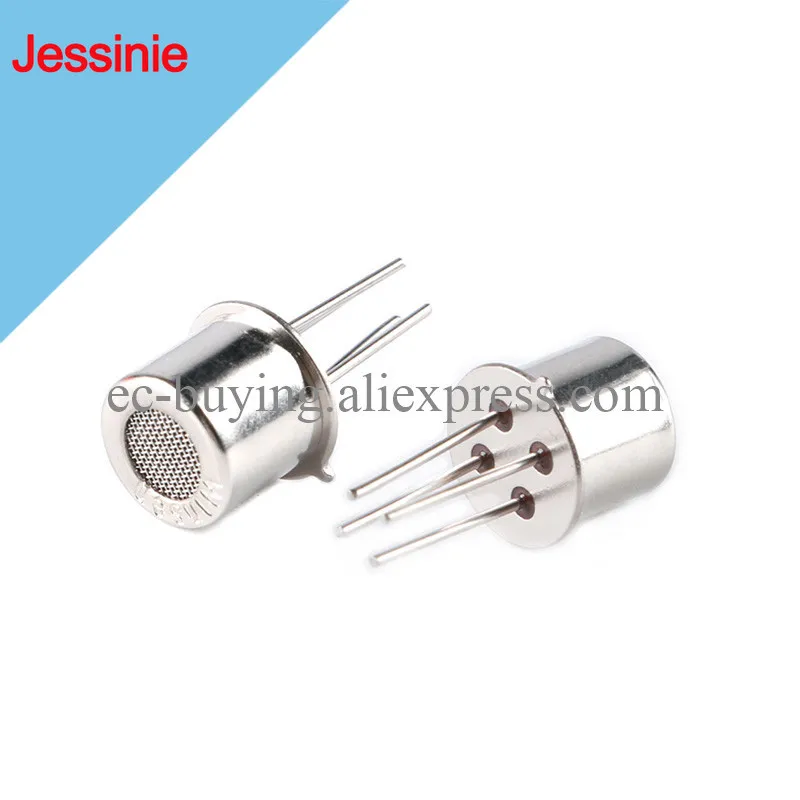

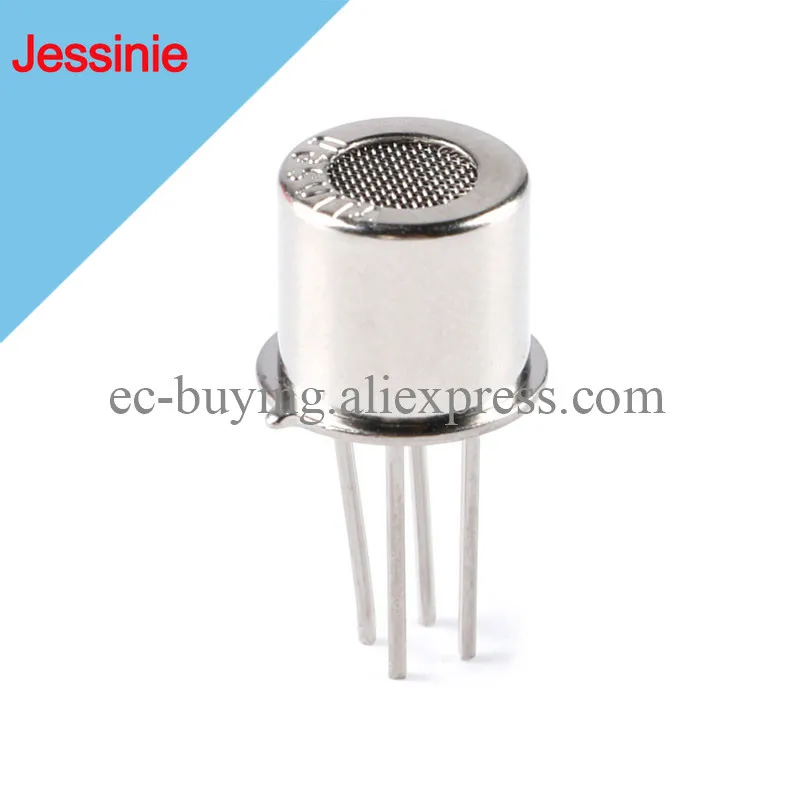

MP-5 combustible gas detection with planar semiconductor gas sensor using advanced planar production process, in the micro-Al2O3 ceramic substrate on the formation of heaters and metal oxide semiconductor gas-sensing material, with the electrode lead leads, packaged in the metal tube, tube Cap inside When there is a gas to be detected, the higher the concentration of the gas in the air, the higher the conductivity of the sensor. The conversion of this conductivity can be converted to an output signal corresponding to the gas concentration using a simple circuit.
Application:
For the home environment of harmful gas detection automatic exhaust device, air refresher and so on.
Technical indicators
Product number
MP-5
product type
Planar semiconductor gas sensor
Standard package
metal
Detection of gas
Day gas, methane
Detection of concentration
300-10000ppm (natural gas, methane)
Standard circuit conditions
Circuit voltage
VC
≤24V DC
Heating voltage
VH
5.0V ± 0.1V ACorDC
Load Resistance
RL
Adjustable
Characteristics of Gas Sensors under Standard Test Conditions
Heating resistance
RH
85Ω ± 15Ω (room temperature)
Heating power consumption
PH
≤ 300mW
Sensitive body surface resistance
RS
1KΩ-20KΩ (in 2000ppm propane)
Sensitivity
S
Rs (in air) / Rs (2000 ppm propane) ≥5
Concentration slope
Α
≤0.6 (R2000ppm/ R500ppmPropane)
Standard test conditions
temperature humidity
20 ° C ± 2 ° C; 65% ± 5% RH
Standard test circuit
Vc: 5.0 V ± 0.1 V; VH: 5.0V ± 0.1V
Warm up time
Not less than 48 hours
