En Stock
2,27 €
Con la garantía de
Última actualización: 2026-01-03T00:17:42.629Z
Descripción

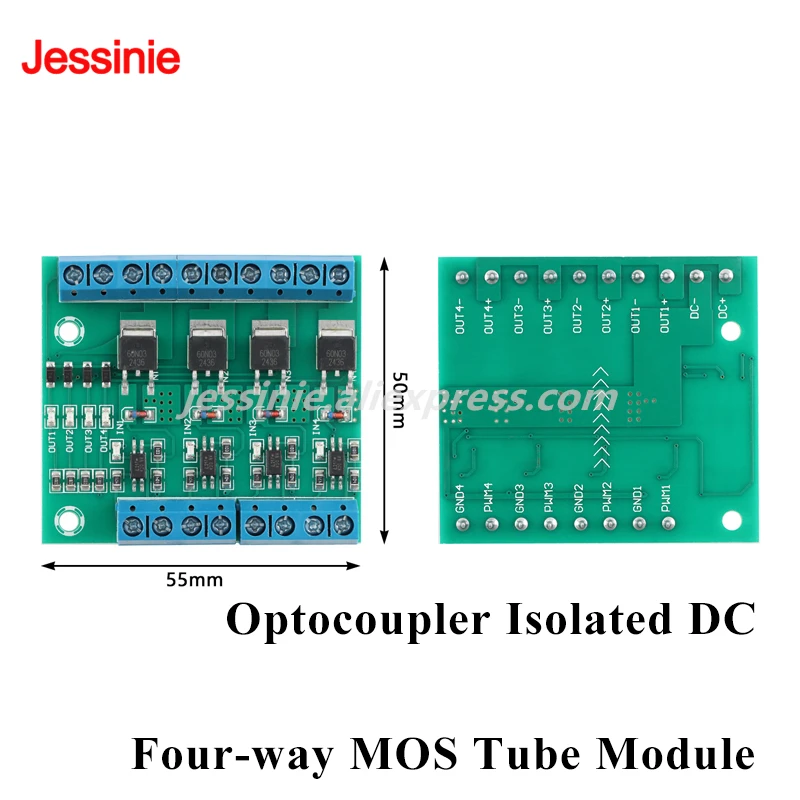

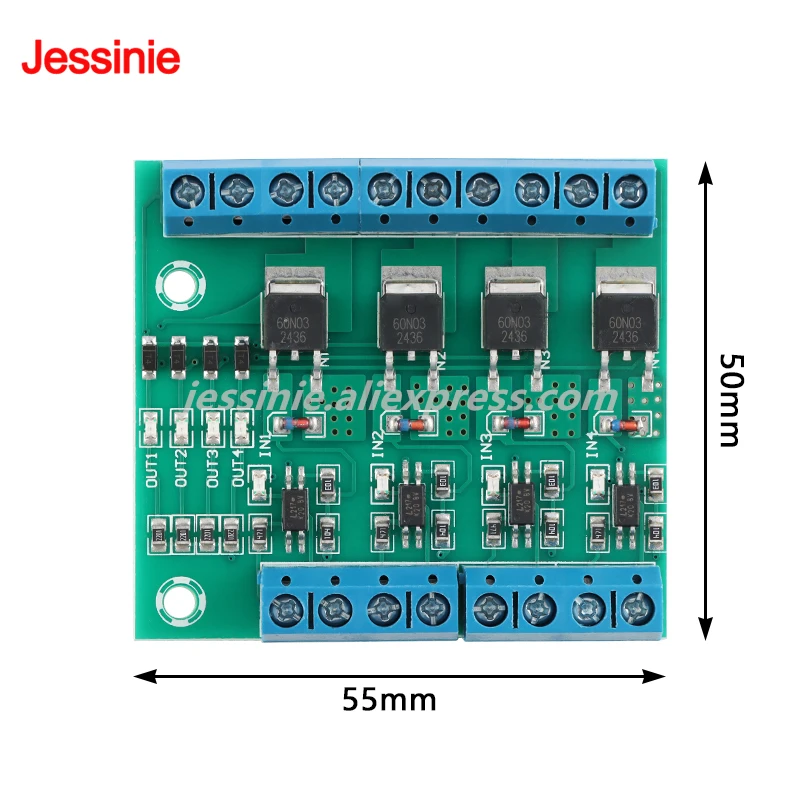

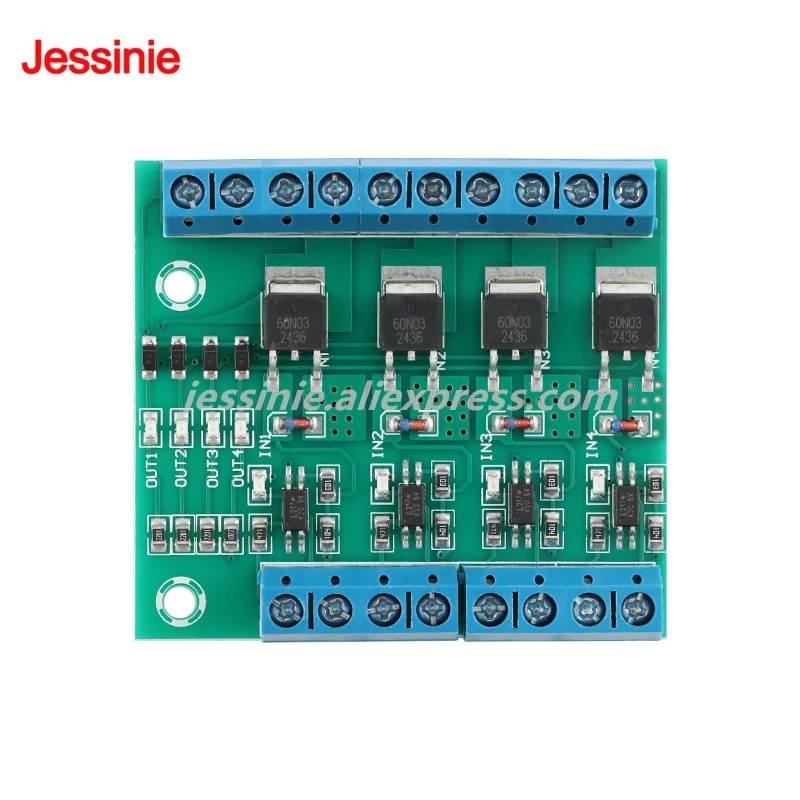

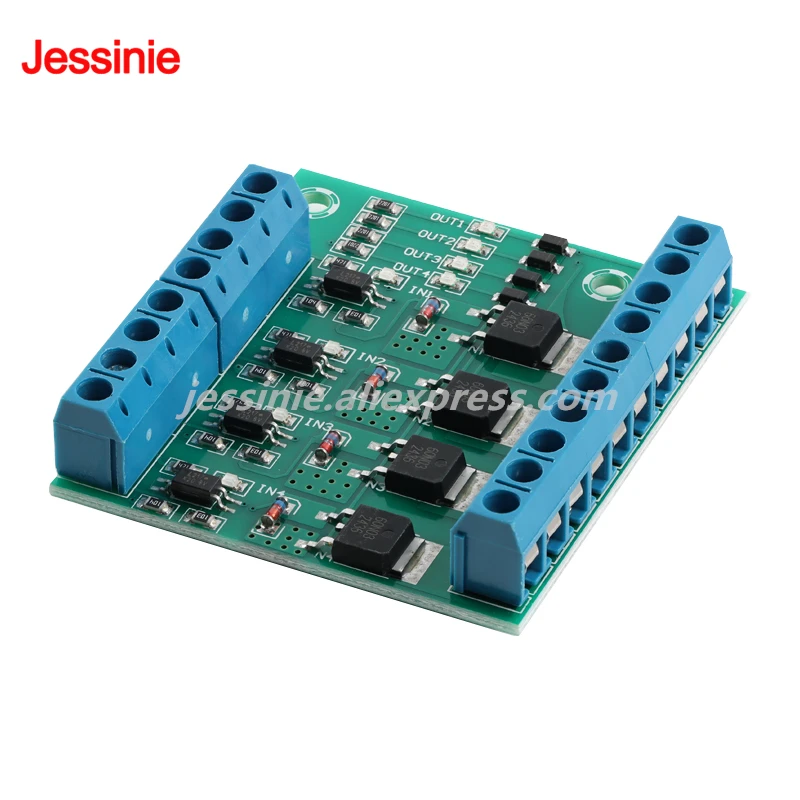

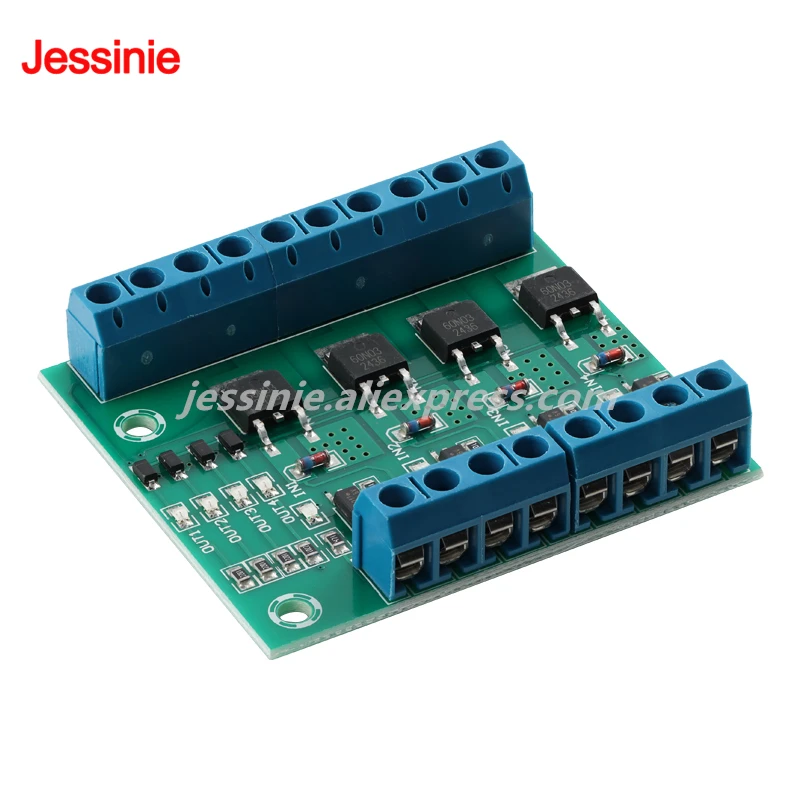

The module uses high-quality ultra-small optocouplers with strong anti-interference ability, stable performance, and complete isolation of input signals and outputs.

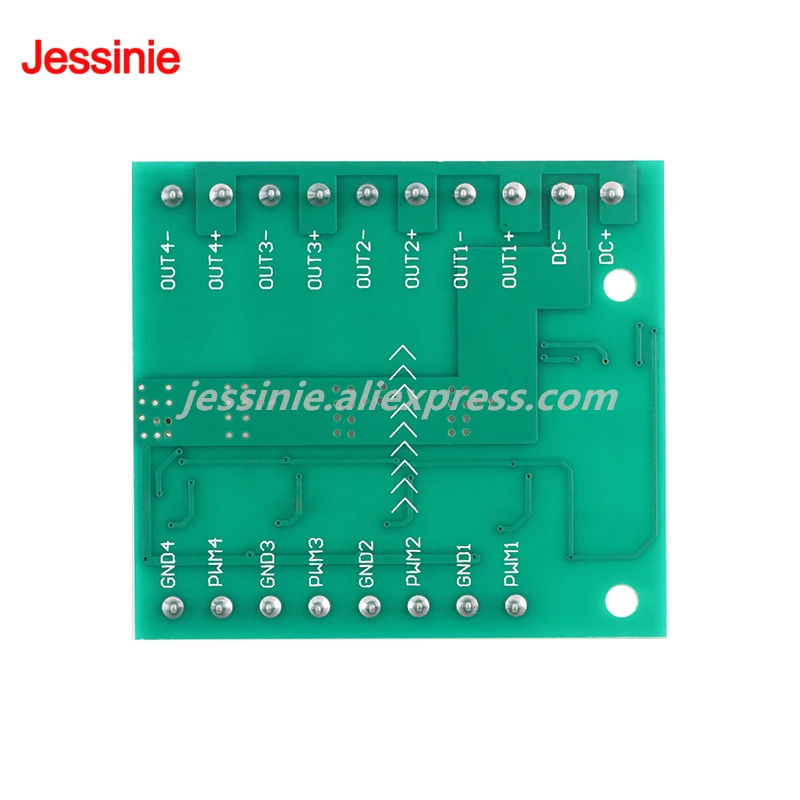

Pin Description
PWM: Signal input
GND: Negative signal terminal
DC+: Positive DC power output for the controlled device
DC-: Negative DC power output for the controlled device
OUT+: Positive output terminal (connected to the positive terminal of the device)
OUT-: Negative output terminal (connected to the negative terminal of the device)
*Each input terminal is isolated from each other and can be connected to signals from a microcontroller/PLC or a DC power supply for control.
*Output terminals OUT+ and OUT- can control high-power devices such as motors, light bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc. PWM input can be used to control motor speed, light brightness, etc.
Pin Description
PWM: Signal input
GND: Negative signal terminal
DC+: Positive DC power output for the controlled device
DC-: Negative DC power output for the controlled device
OUT+: Positive output terminal (connected to the positive terminal of the device)
OUT-: Negative output terminal (connected to the negative terminal of the device)
*Each input terminal is isolated from each other and can be connected to signals from a microcontroller/PLC or a DC power supply for control.
*Output terminals OUT+ and OUT- can control high-power devices such as motors, light bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc. PWM input can be used to control motor speed, light brightness, etc.
