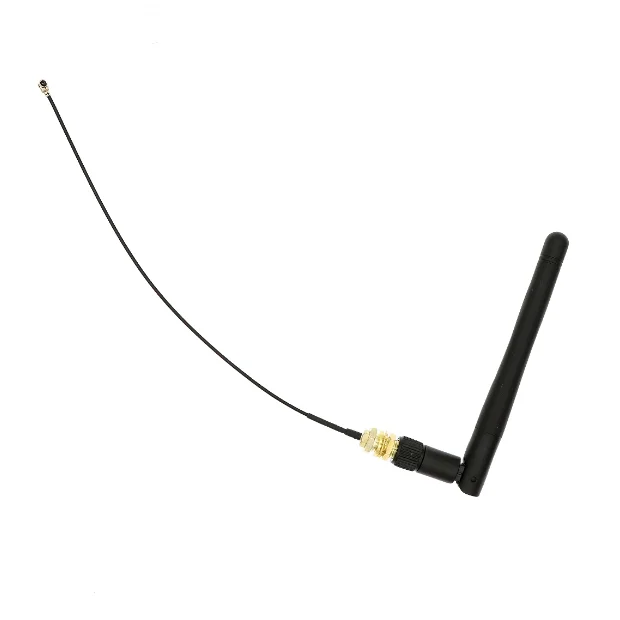

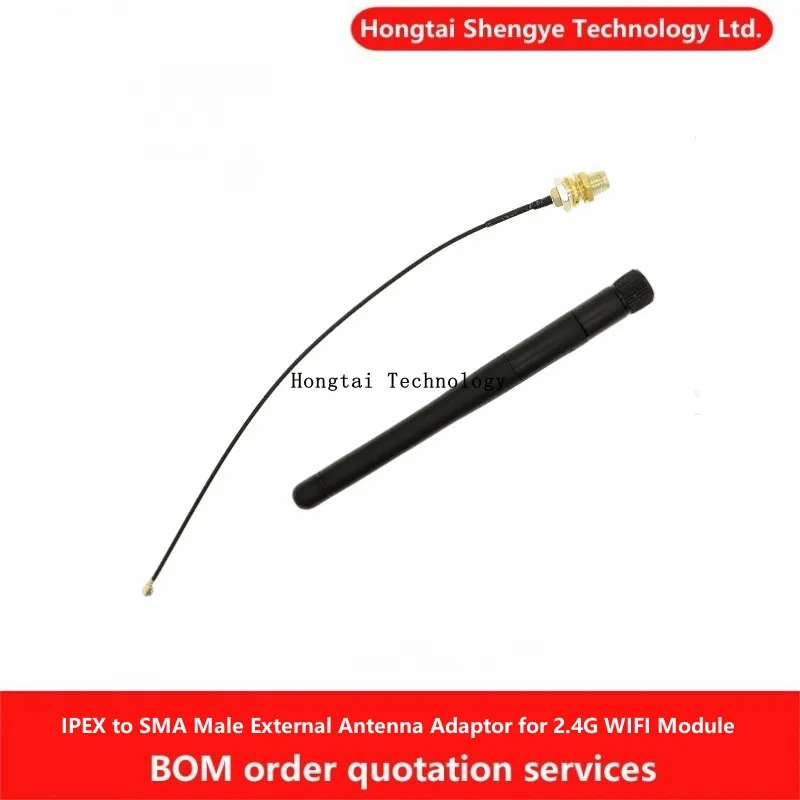

Módulo WIFI 2,4G con adaptador de antena externa hembra IPEX a SMA con antena plegable macho SMA

Parameters: 2DB gain antenna and antenna adapter cable

Cable length is about 14CM, total length of single cable is about 16CM.

Name: 2.4G omni-directional antenna

Frequency band: 2400-2500

Detailed indicators: electrical performance Electrical Specifications

Frequency Range(MHz) 2400-2500

Gain(dBi) ＞2.5

V.S.W.R. ＜1.5

Polarisation Vertical

Non-Circularity(dB) ±0.5

Input Impedance Impedance(Ω) 50

Lightning Protection Direct Ground

Power Maximum Input Power(W) 50

Mechanical Specifications

Connector Type SMA

Radiating Element Material Copper

Radome Material EVA

Radome Colour Gray

Antenna Size Dimension (mm) 110(Unbend) 92(Bend)

Tailing Cable Length(mm) 100/120/200

Packing Size Packing Size(mm) 295×110×60

Weight(Kg) 0.009/12

Application Condition Indoor

Operating Temperature(℃) -40~+70

Storage Temperature Reposition Temperature(℃) -55~+80
