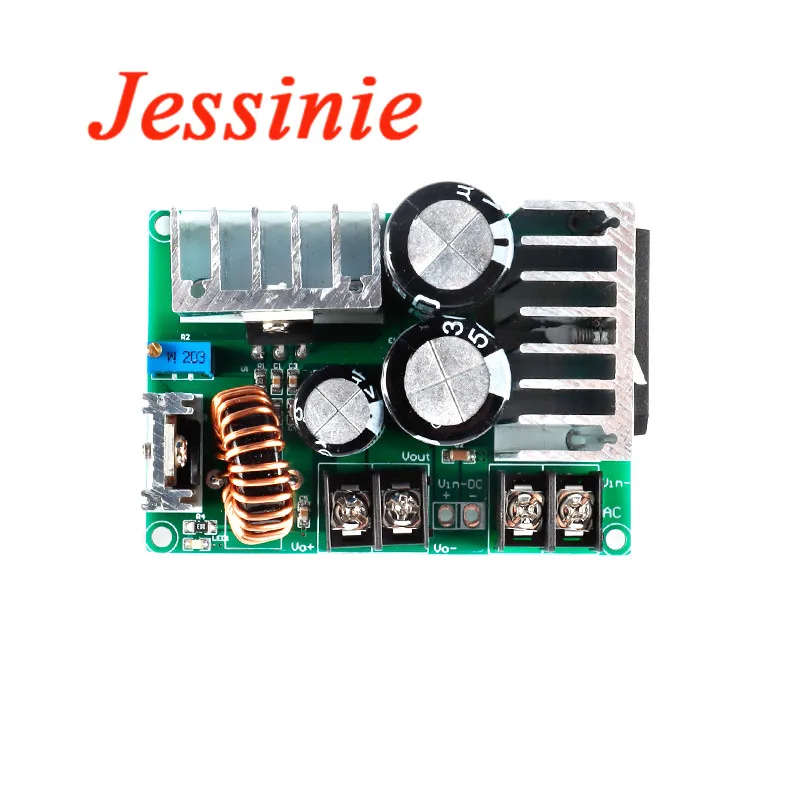

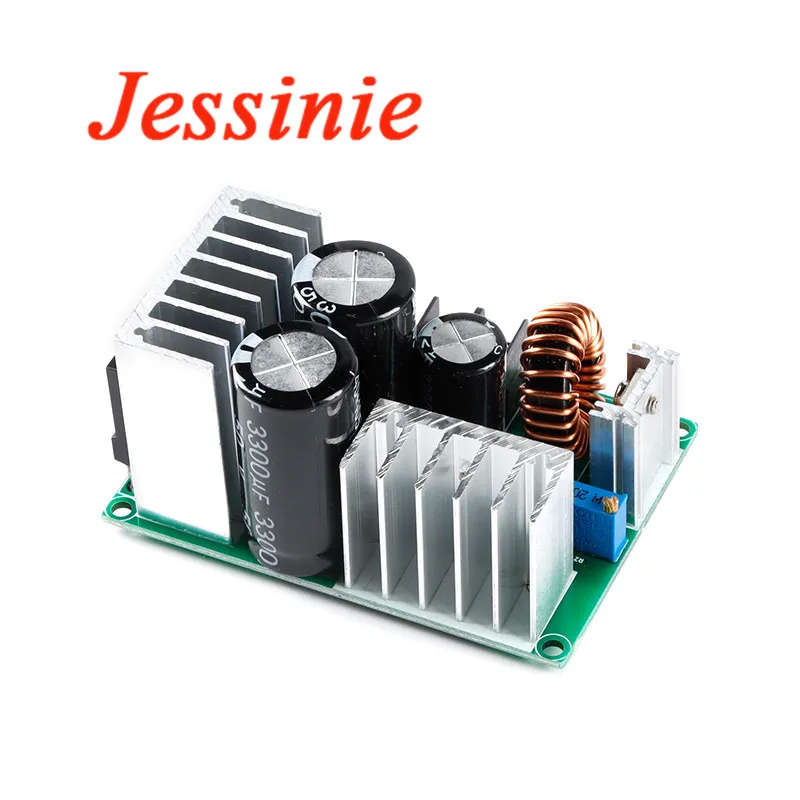

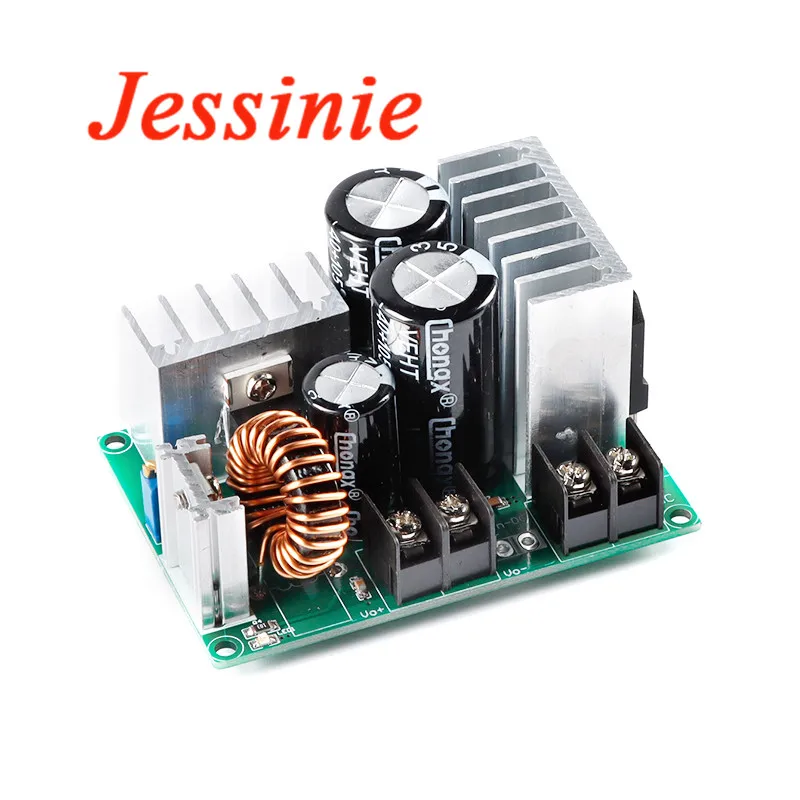

Módulo de voltaje Buke reductor de CA CC XL4016, convertidor de CC de 6A, módulo de fuente de alimentación regulada ajustable

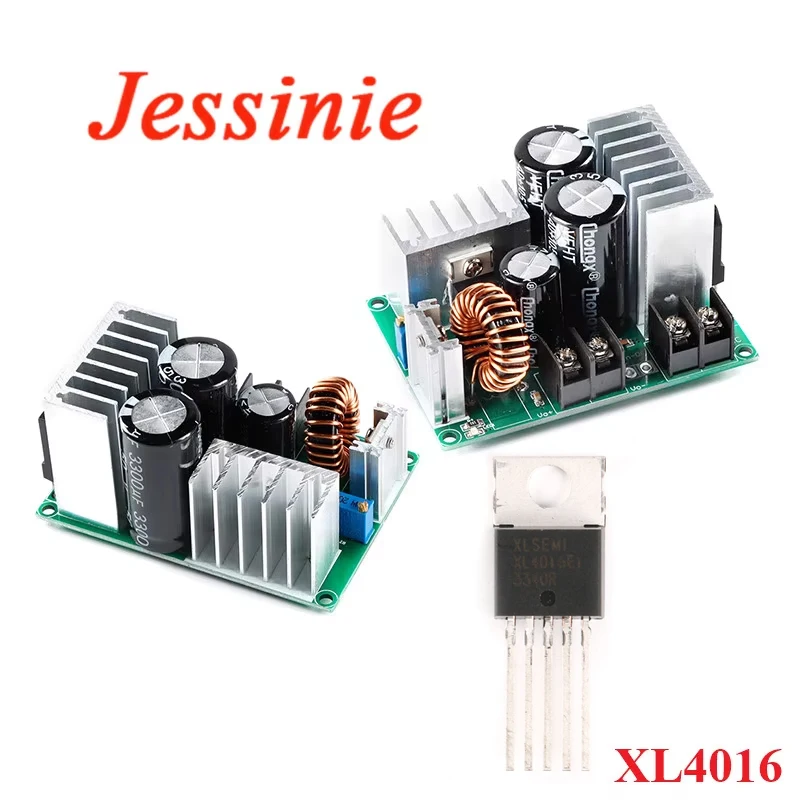

The power module uses XL4016 with external heat sink, which can withstand high current operation. The input end uses a 15A rectifier bridge stack to input AC power, and the power inductor is a sendust 10A coil with a dedicated DC input port, which is commonly used for AC and DC input. The output voltage can be adjusted, ranging from 3.3V to 33V, and the output voltage will vary with different input voltage ranges.

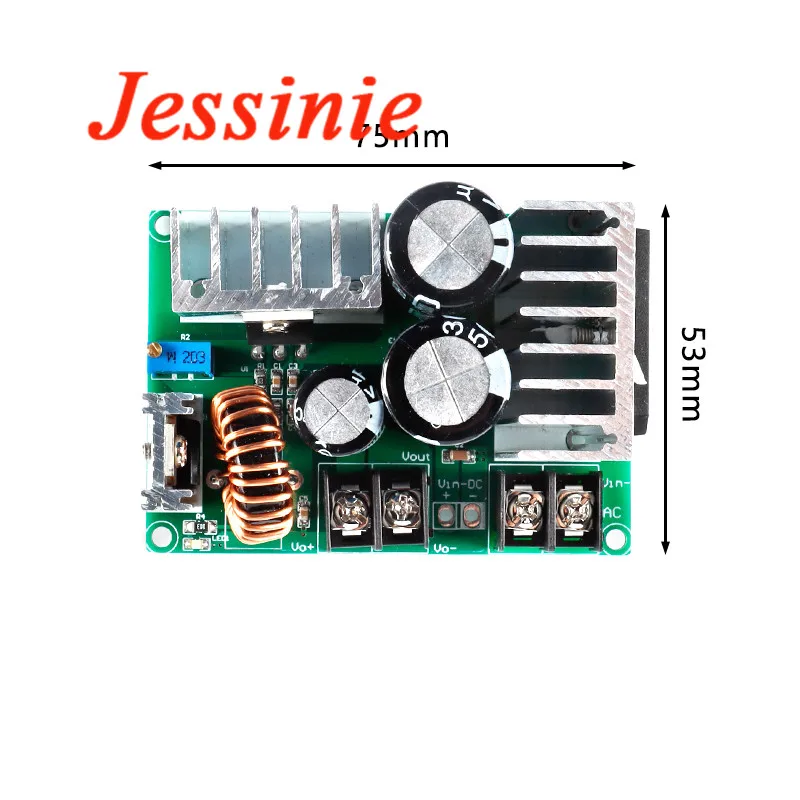

Input AC voltage AC5V~AC25V or DC5V-40V. Due to the relatively large fluctuation of AC voltage, the recommended AC voltage range has been reserved. The power module uses XL4016 with external heat sink, and the output current can work stably at 6A output current for a long time, and can work at 8A output current for a short time. The front of the PCB has the name of the silk-screened terminal, and the name of the silk-screened terminal on the back. Please recognize and re-solder to prevent damage when soldering the leads.

Parameter:

Input voltage range: AC 5V~25V, DC 5V-40V

Output output range: DC 3V~32V

Output current range: maximum 6A (the voltage regulator chip can withstand a maximum current of 8A, and can work at an output current of 8A for a short time)

Output power range: 80W (MAX)
