En Stock
28,9 €
Con la garantía de
Color
4 unidades vendidas
Última actualización: 2026-01-01T20:07:46.397Z
Descripción
Product Features
●Supports 9.95 to 10.3Gb/s bit rates●Simplex LC Connector●Hot pluggable SFP+ footprint●Uncooled 1310nm LD transmitter, 1310nm PIN photo-detector●Applicable for 3km SMF connection●Low power consumption, 1.0W●Digital Diagnostic Monitor Interface●Optical interface compliant to IEEE 802.3ae 10GBASE-LR●Electrical interface compliant to SFF-8431●Operating case temperature: Commerical:0 to 70 °CApplications
●10GBASE- at 10.3125Gbps●10GBASE at 9.953Gbps●Other optical linkProduct Descriptions

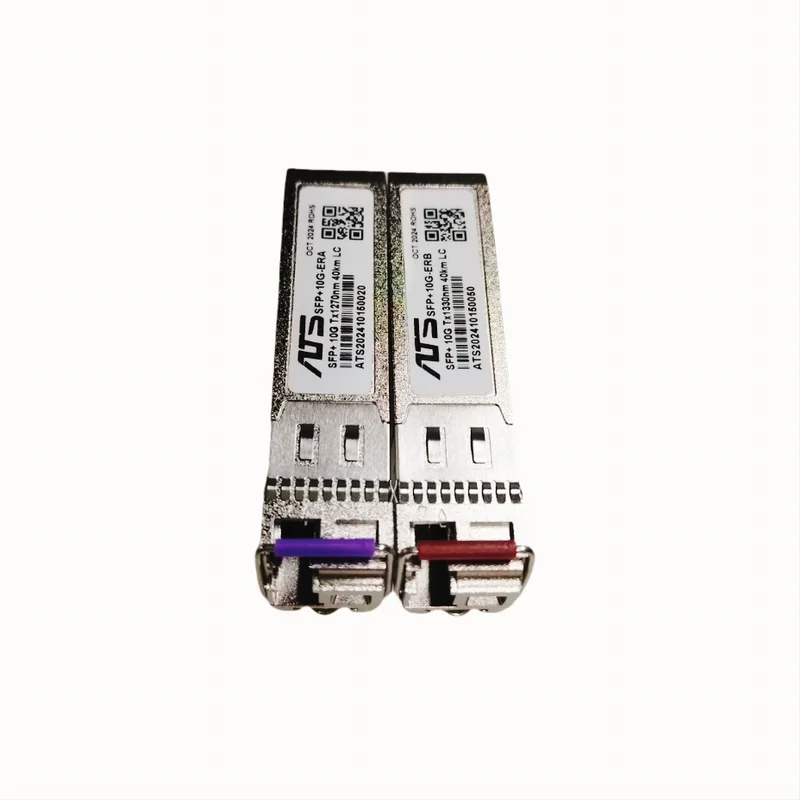

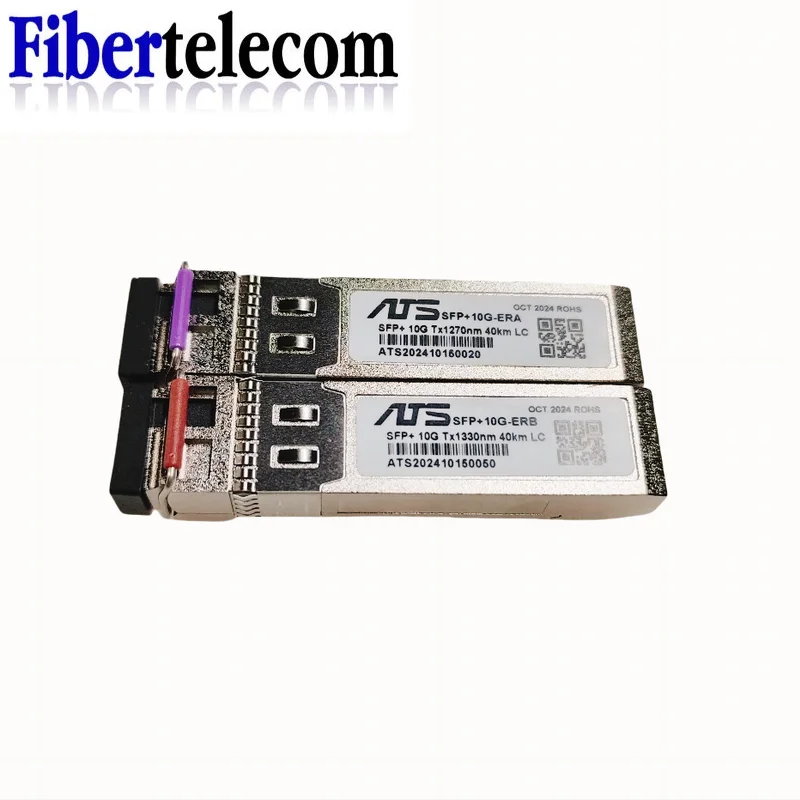

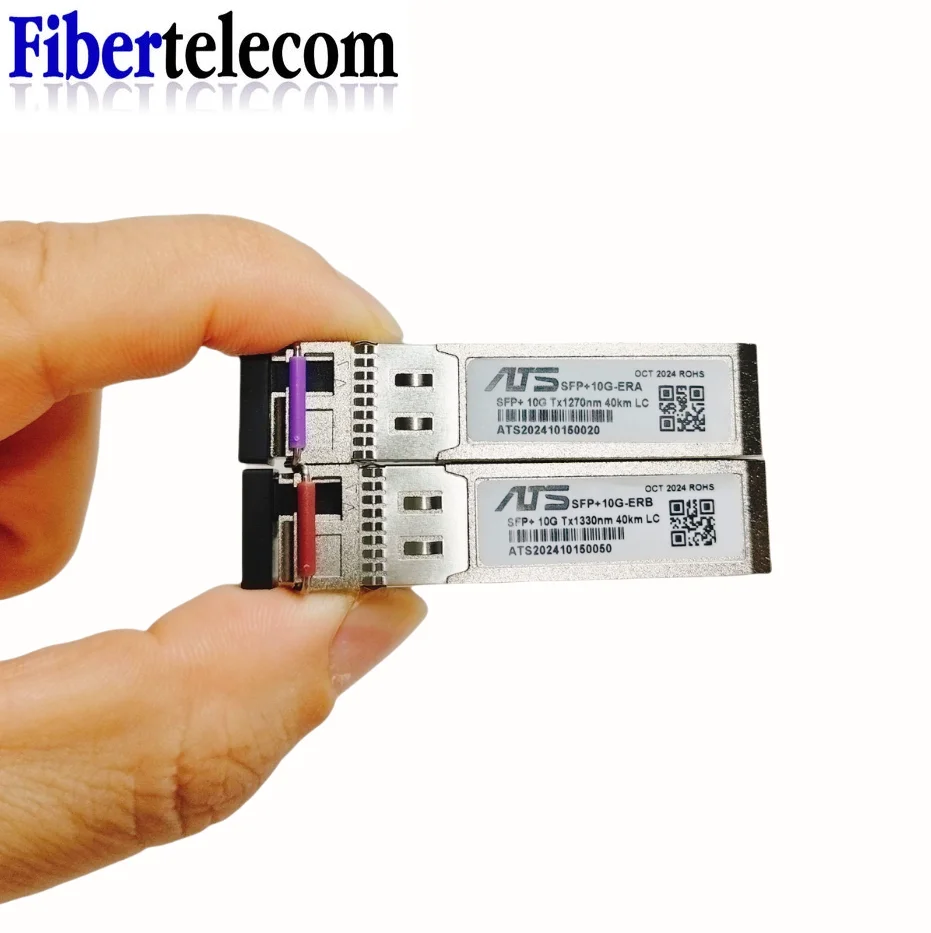

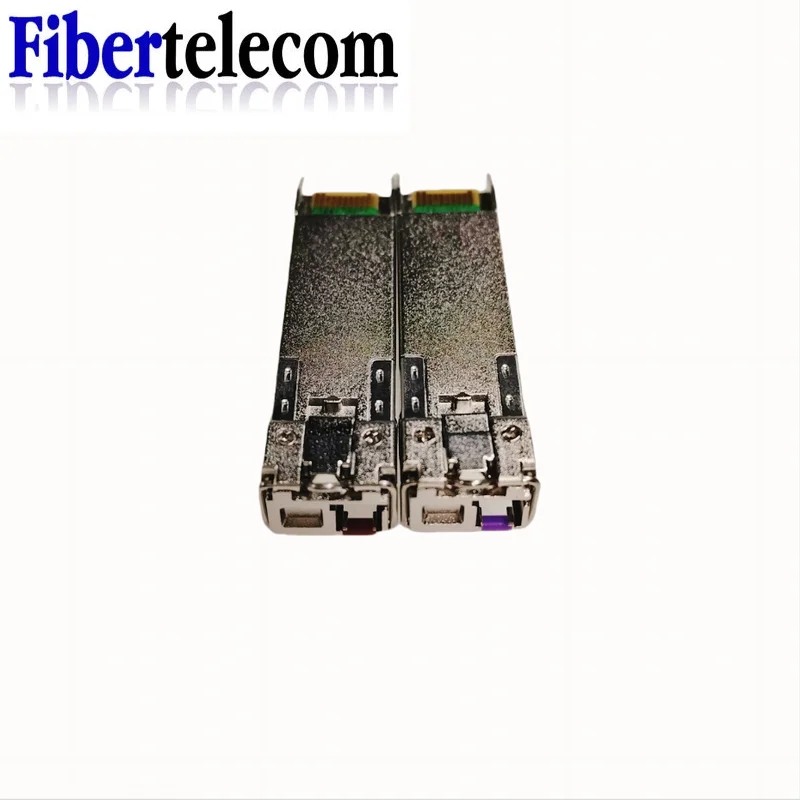

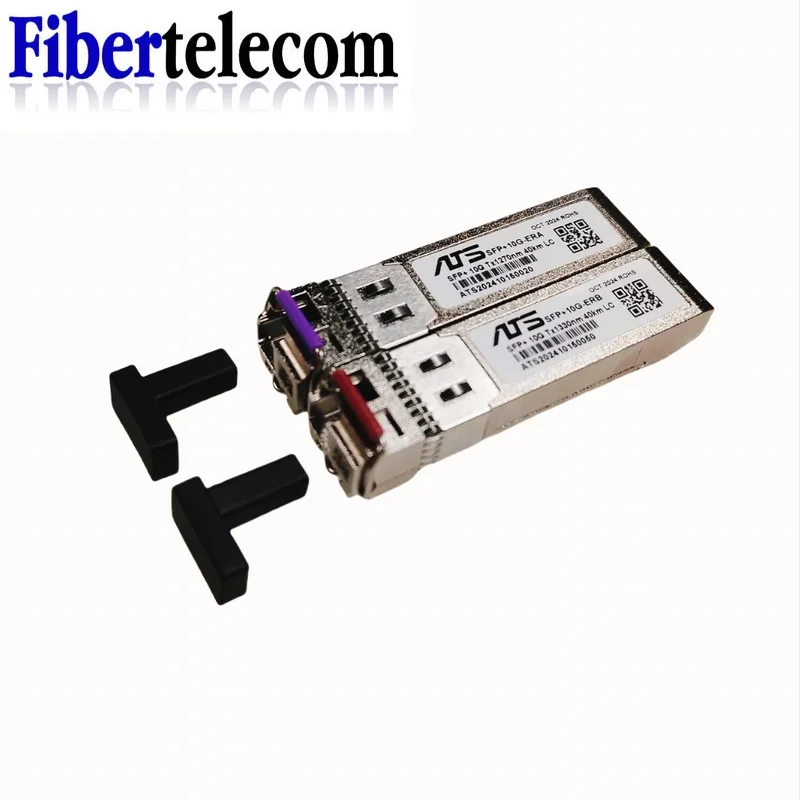

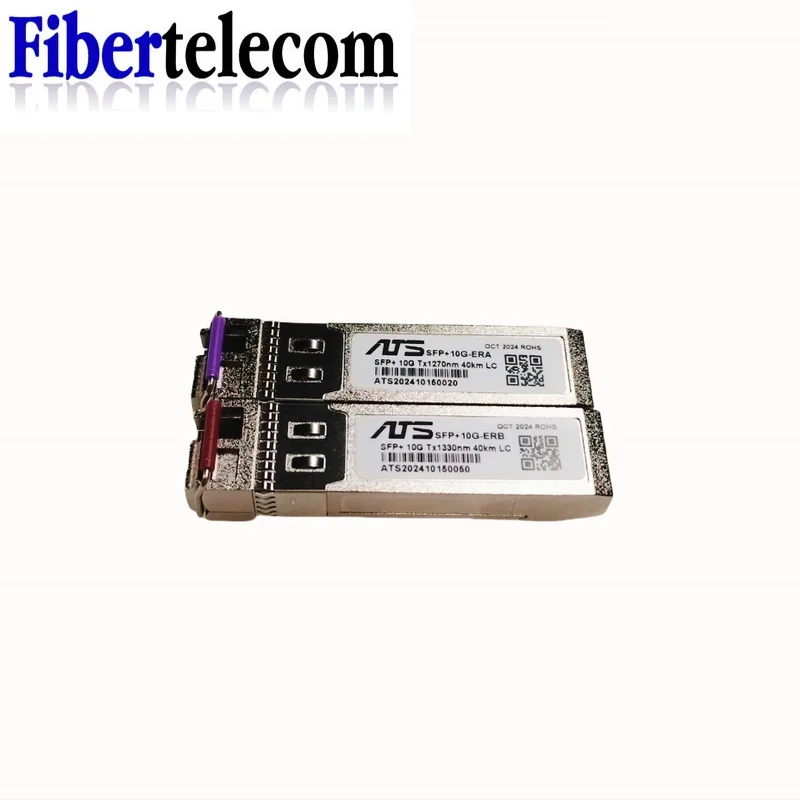

10G single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The Hilinktech module is designed for single mode fiber and operates at a nominal wavelength 1310nm; The transmitter section meet the class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions fortelecommunication.
