Parameter:

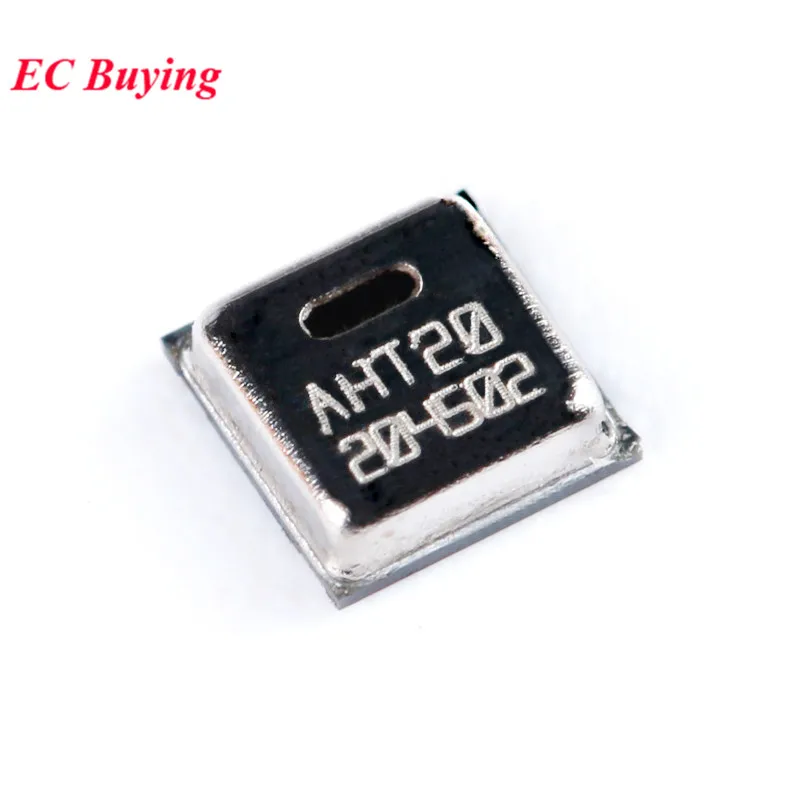

Product model: AHT20
Power supply voltage: 2.0-5.5V DC
Measuring range (humidity): 0-100%RH
Measuring range (temperature): -40-+85℃
Humidity accuracy: ±2%RH (25℃)
Temperature accuracy: ±0.3℃
Resolution: Temperature: 0.01℃ Humidity: 0.024%RH
Output signal: I2C signal
Application: mainly used for HVAC, dehumidifier, testing and inspection equipment, consumer products, automobiles, automatic control, data loggers, weather stations, home appliances, humidity control, medical and other related temperature and humidity detection and control .
1. Product Description:

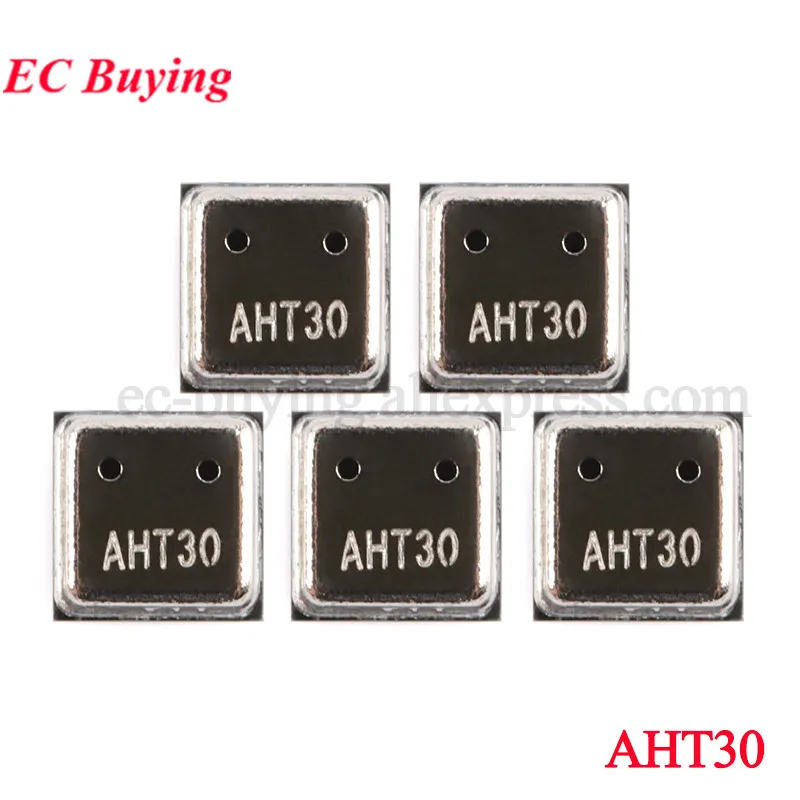

The AHT30 is a new temperature and humidity sensor with low power consumption and high accuracy, embedded in a reflow-solderable dual-row flat pinless SMD package with a ruggedised case and a small footprint for easy integration into challenging designs while meeting high reliability requirements.
Equipped with a newly optimised ASIC dedicated chip, a modified MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element, the AHT30 has gained significant performance enhancements to maintain stable performance even in harsh environments.
AHT30 temperature and humidity sensor can help reduce power consumption of the application equipment, very cost-effective, very suitable for cost control is more stringent but also focus on quality of enterprises for mass production.
2.Product Highlights:
Fully calibrated
Digital output, I2C interface
Excellent long-term stability
Quick response, strong anti-interference ability
