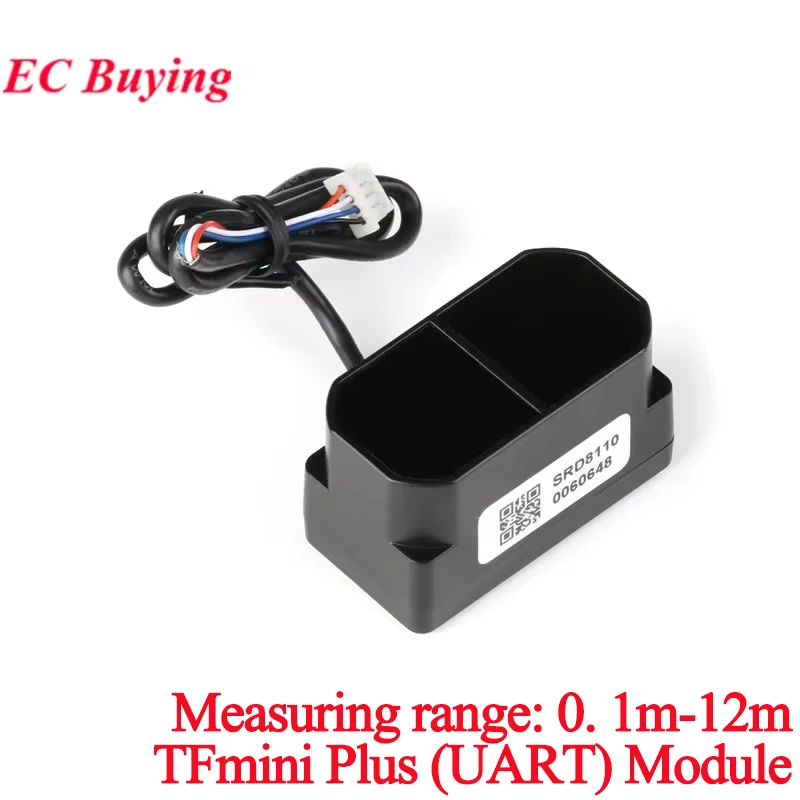

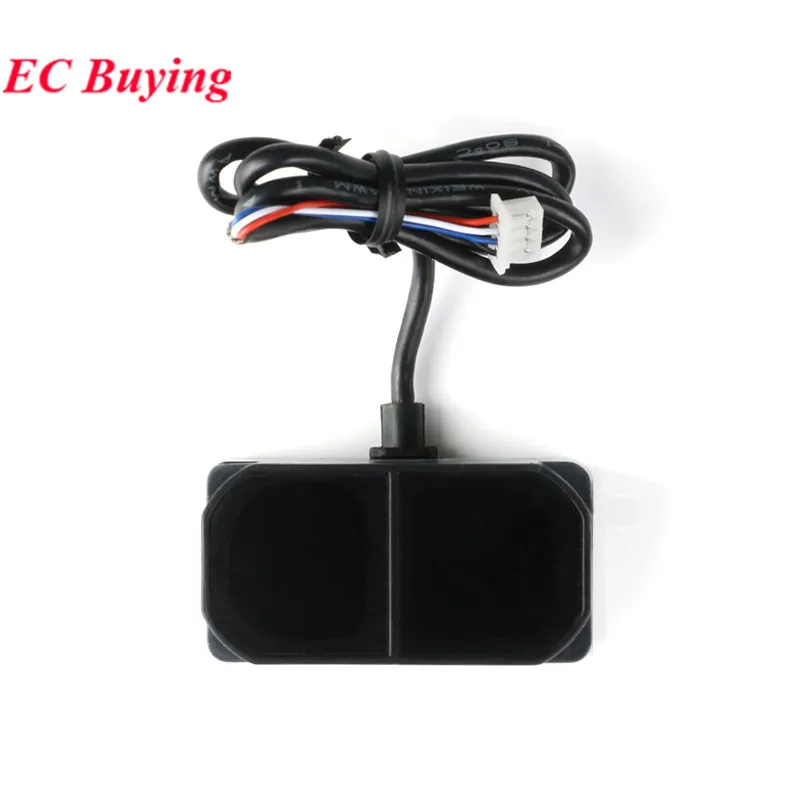

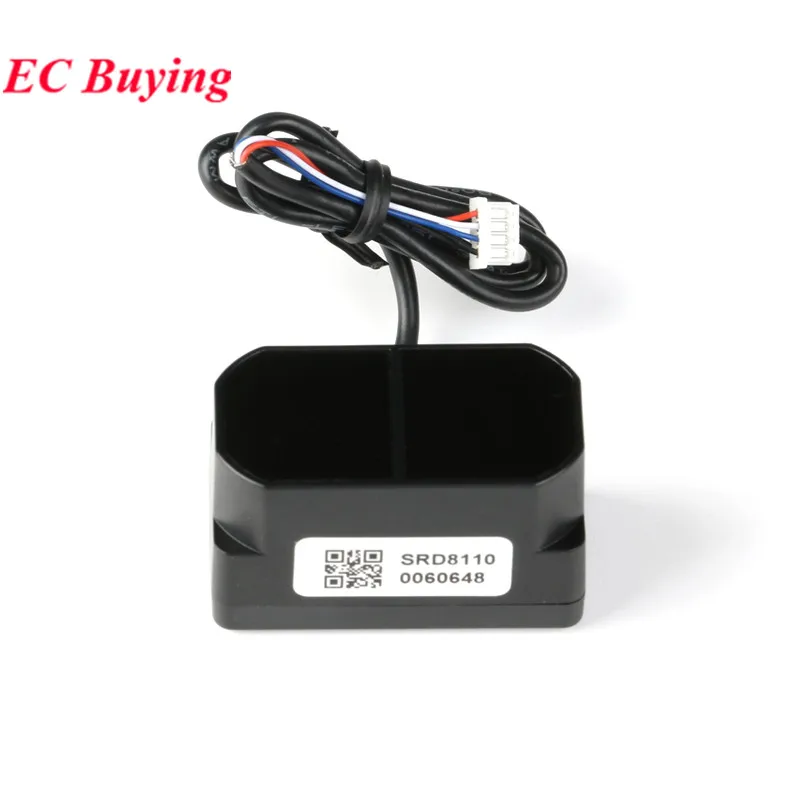

Módulo de Sensor de telémetro láser TFmini TF Mini-Plus Lidar, distancia de un solo punto TOF, obstáculo UART, Dron Pixhawk

Name: Módulo de Sensor de telémetro láser TFmini TF Mini-Plus Lidar, distancia de un solo punto TOF, obstáculo UART, Dron Pixhawk
Brand: EC Buying
SKU: 456074
Price: 38.2 EUR
Availability: InStock
Rating: 5.0 (5 reviews)

5 opiniones

En Stock

38,2 €

~~58,94 €~~ -64.81%

Comprar ahora

Con la garantía de

12 unidades vendidas

Última actualización: 2026-04-29T06:52:52.729Z

Descripción

TF mini Plus

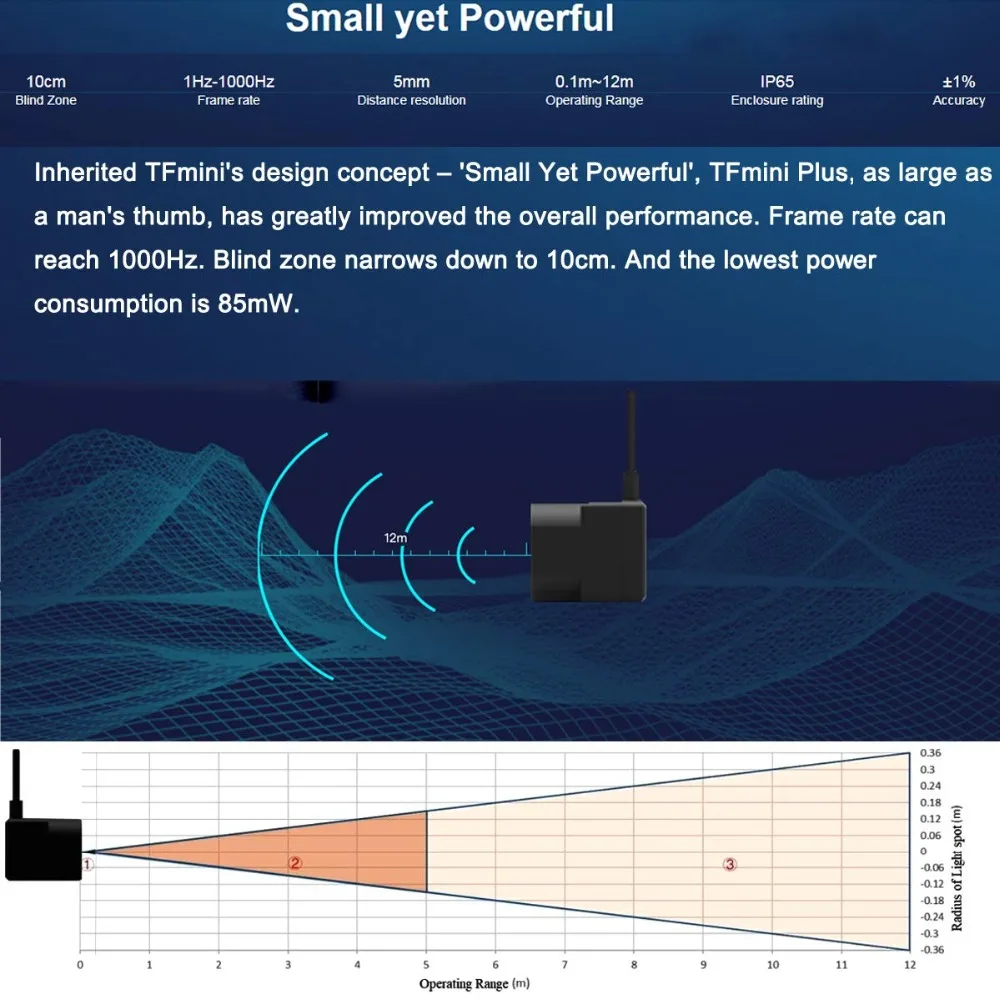

TFmini Plus is an upgraded product based on TFmini, based on the TOF (time of flight) principle, combined with unique optical, electrical, and algorithm design, mainly to achieve stable, accurate, high sensitivity and high-speed distance measurement functions. In addition to the low cost, small size, and low power consumption of TFmini, the product itself also adds IP65 protection, which is more adaptable to different environments such as strong outdoor light, different temperatures, and different reflectances.Product parameters:Accuracy: ±5cm@(0.1-6m)/±1% @ (6m-12m)Measuring range: 0.1m ~ 12mDistance resolution: 5mmFrame rate: 1-1000Hz (adjustable)Ambient light resistance: 70kluxWorking temperature: -20 ℃ ~ 60 ℃Protection level: IP65Light source: LEDCenter wavelength: 850nmSignal receiving angle: 3.6 °Input voltage: 5V ± 0.5VAverage current: ≤110mAPower consumption: 550mWPeak current: 500mACommunication level: LVTTL (3.3V)Shell material: ABS + PCStorage temperature: -20 ℃ ~ 75 ℃
