Descripción
Life: 2 years (in the air)

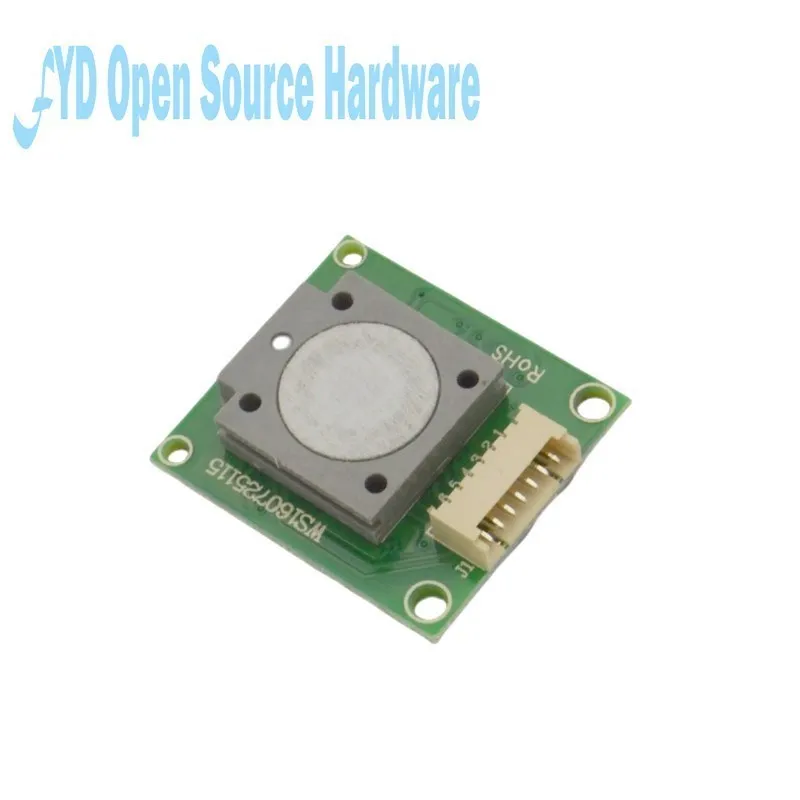

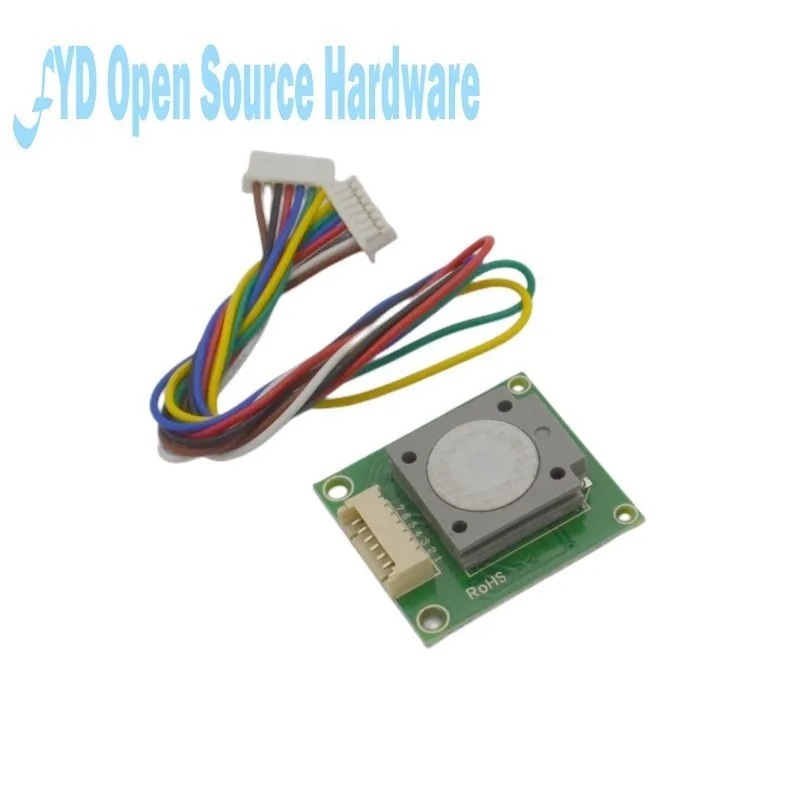

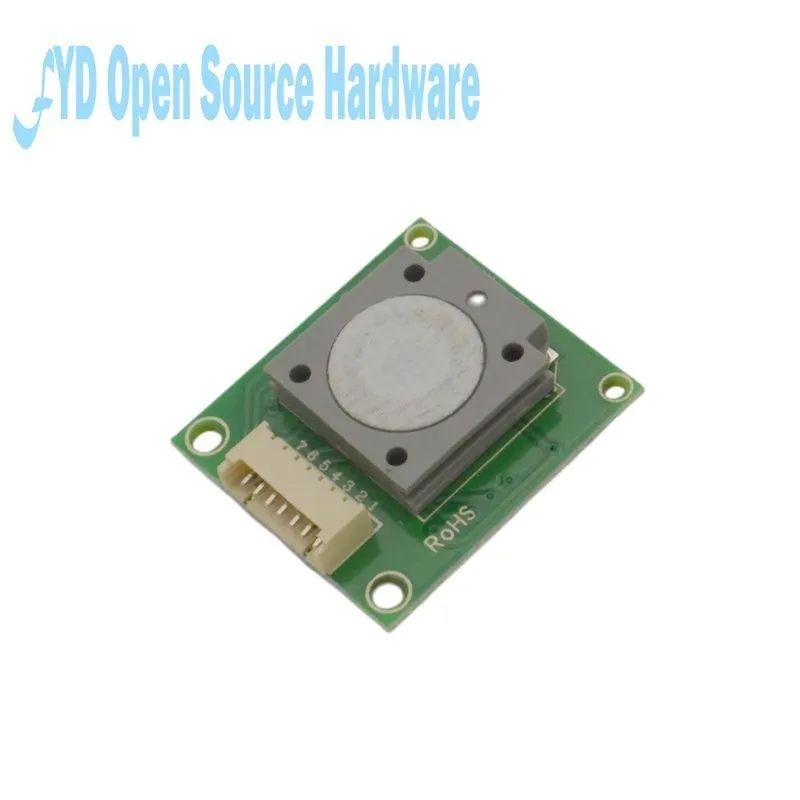

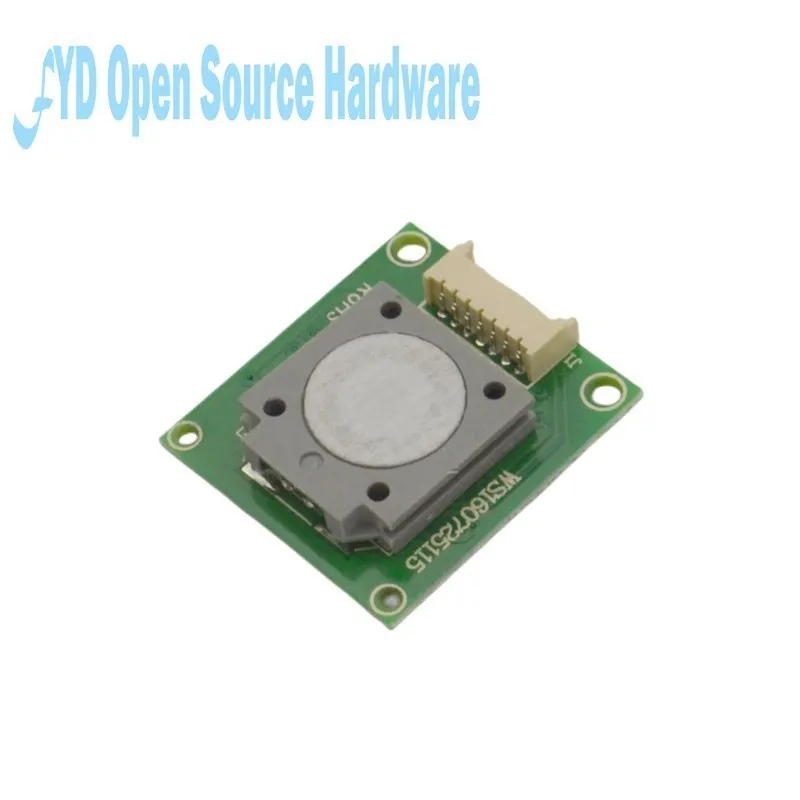

Formaldehyde module without calibration Standard serial output direct use and easy to use Formaldehyde sensor module built-in high-performance analog circuits and data processing unit, a large number of empirical algorithms, the direct output of digital density information, TTL level output have been zero and standard factory Gas concentration calibration, the user no longer need to electrochemical signal conditioning of complex analog circuits, no longer need professional equipment calibration calibration, easy to use

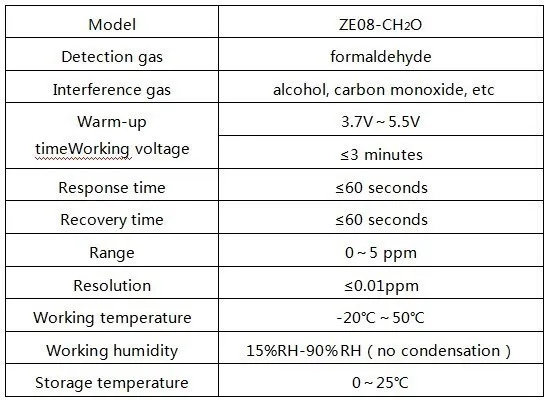

Technical Parameters
Detection of gas: formaldehydeInterference gas: alcohol, gas and so onChuan device: ME2-CH20 electrochemical formaldehyde sensorWorking voltage: 5-12V (without voltage reverse connection protection)Warm-up time: ≤ 3 minutesOutput: 1. DAC (0. 4-2V standard voltage signal 2.UART output (3V level)Response time:Recovery time:Range: 0-5pp «Resolution: 0. 02ppmOperating temperature: -20 ~ 50 ° CWorking humidity: 19XRH-90XRH (no Zhanjie)Storage temperature: -20 ~ 60 ° CLife: 2 years (in the air)
