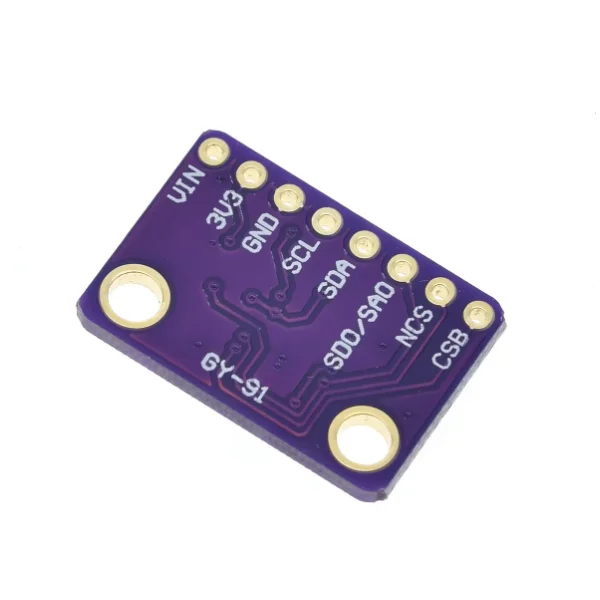

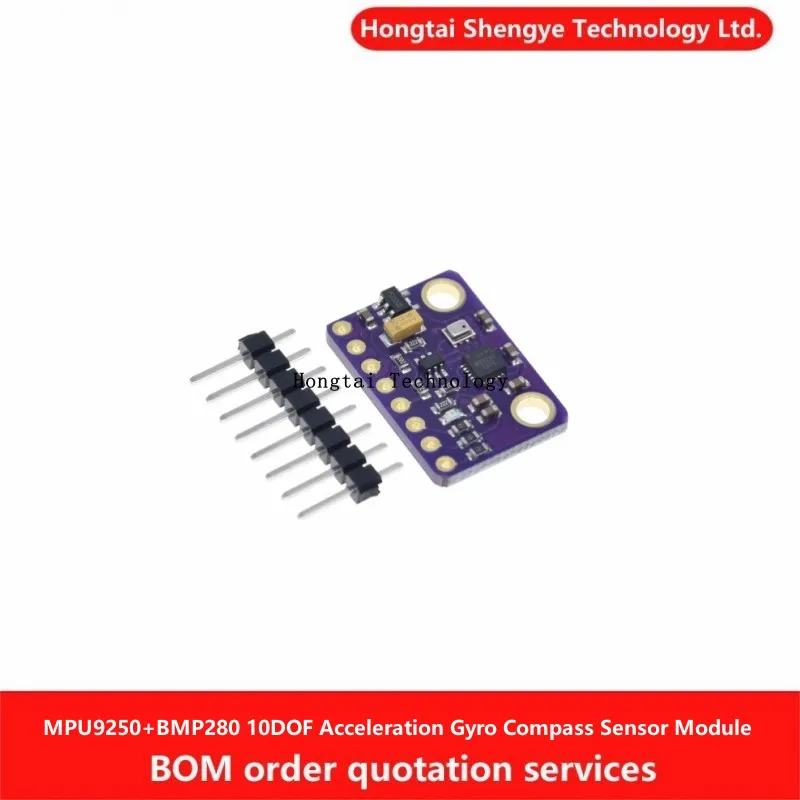

Módulo de sensor de brújula giroscópica de aceleración GY-91 MPU9250+BMP280 3V-5V 10DOF

Profile Download:

http://yunpan.taobao.com/s/gXKZ69bYMq

MPU-9250+BMP280 Module Refurbished Chip's

(3-axis gyroscope + 3-axis acceleration + air pressure)

Module Model: GY-91

Chip used: MPU-9250+BMP280

Power supply: 3-5v (internal low dropout voltage regulator)

Communication mode: standard IIC/SPI communication protocols

Chip built-in 16bit AD converter, 16-bit data output

Gyroscope range: ±250 500 1000 2000 °/s

Acceleration range: ± 2 ± 4 ± 8 ± 16g

Magnetic field range: ±4800uT

Air pressure range: 300-1100hPa

Adopting immersion gold PCB, machine soldering process to ensure the quality

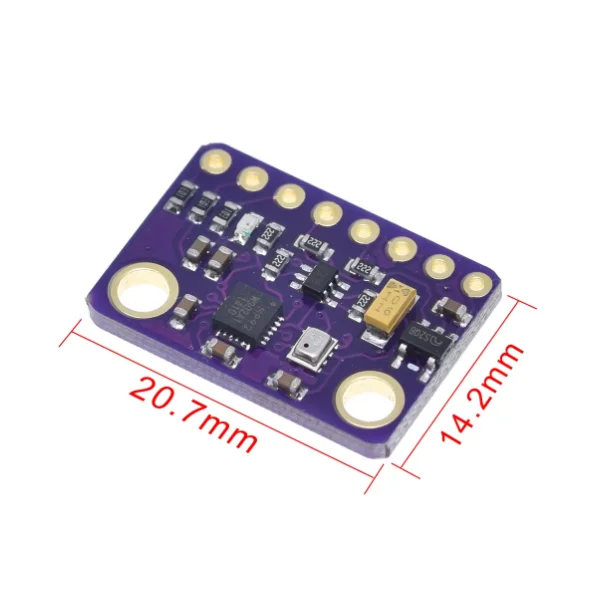

Pin spacing 2.54mm
