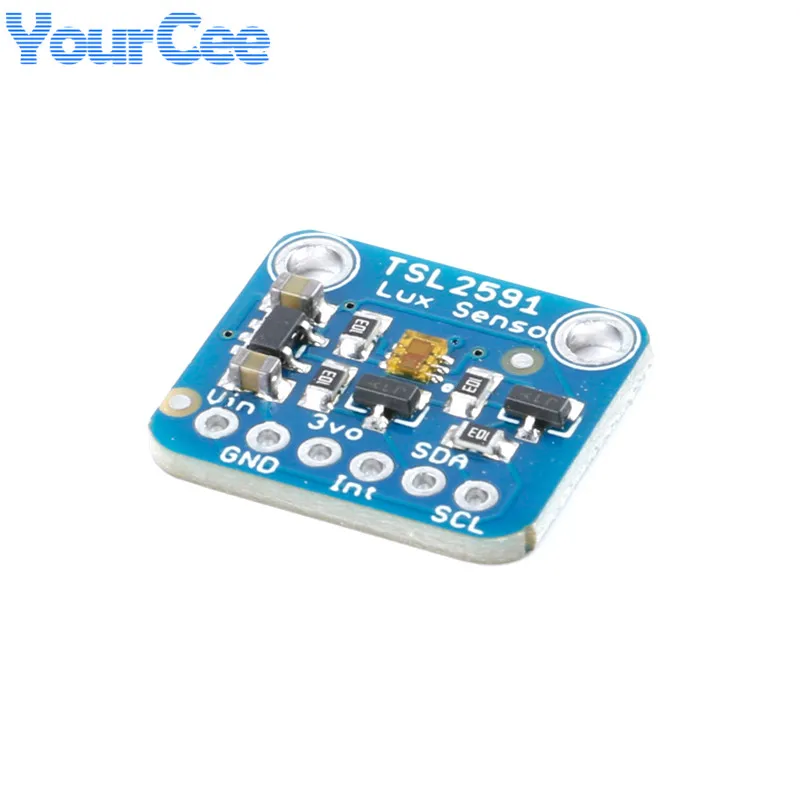

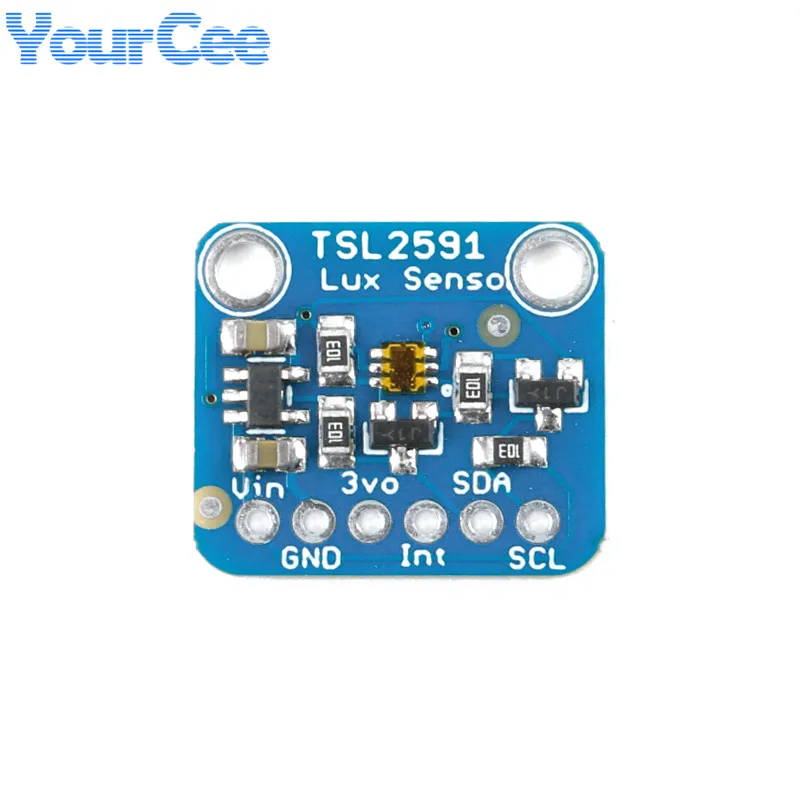

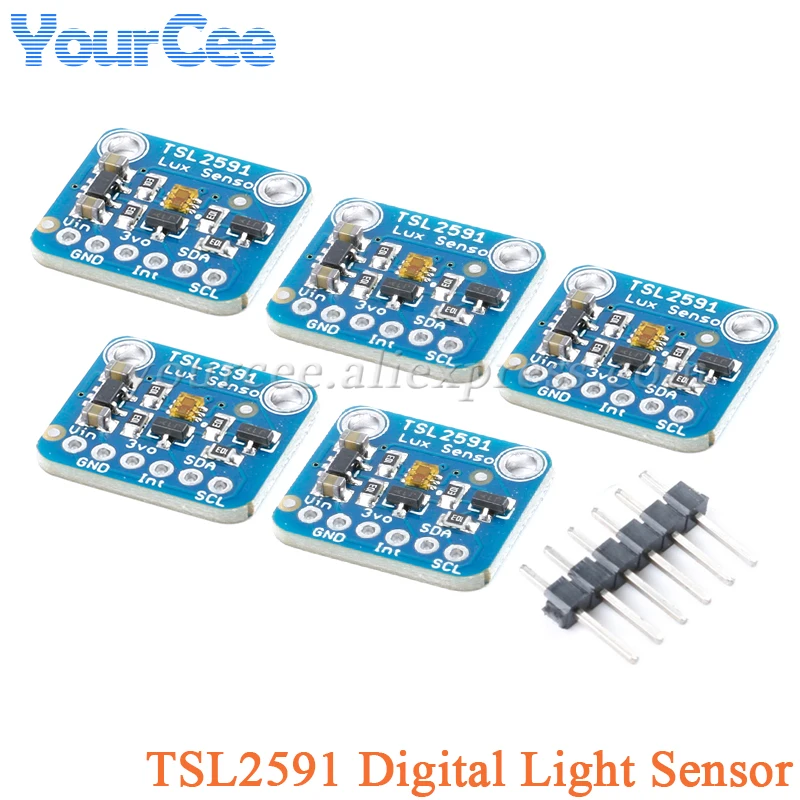

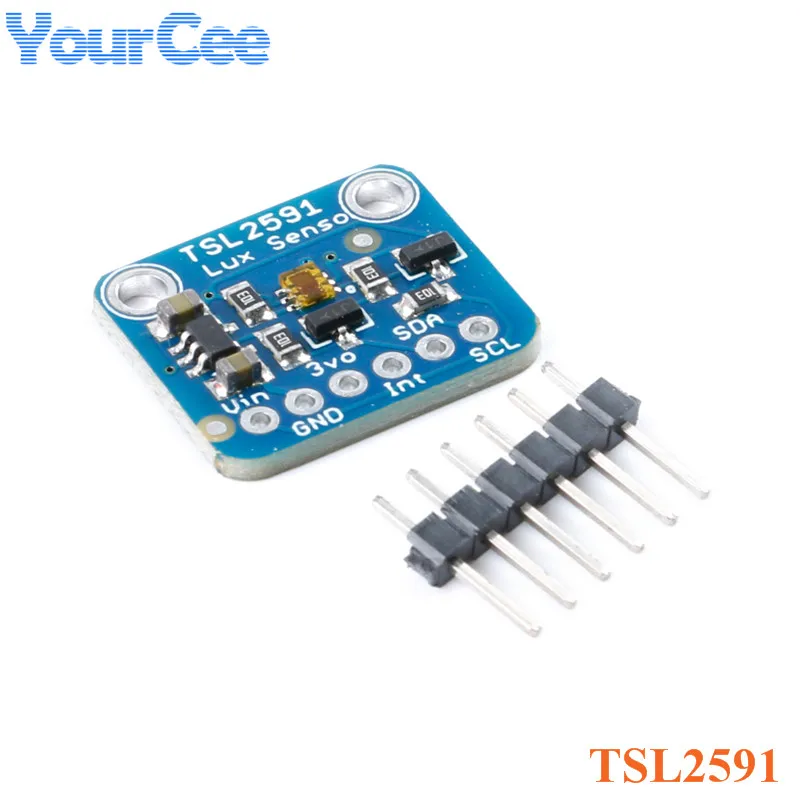

Módulo de ruptura de Sensor de luz Digital de alta dinámica TSL2591, detección de diodo de espectro completo Lux IR de alto rango para Arduino, 10 Uds./1 ud.
2,79 € 4,49 €
Con la garantía de
Selección del modelo
Color
comprobando cupones disponibles...
Some placeholder content for the collapse component. This panel is hidden by default but revealed when the user activates the relevant trigger.
The TSL2591 light sensor is an advanced digital light sensor, suitable for use in various light conditions. Compared to low-cost cadmium sulfide cells, this sensor is more accurate, allowing precise lux calculations and configurable for different gain/timing ranges, with a 188 DULUX light detection range up to 88,000 lux at a flying distance. It contains both infrared and full-spectrum diodes, which can measure infrared, full-spectrum or human visible light respectively. The TSL2591 light sensor has a huge dynamic range of 600 million:1. Please note that compared to the previous TSL256 1, the 7-bit I2C address (0x29) of the sensor cannot be changed. The board has a voltage regulator and can work at a voltage of 3.3V-5.0V. The built-in ADC device can take advantage of this with any microcontroller, even if it does not have an analog input. Actively sense 0.4mA, less than 5μA in power-down mode. The device current consumption is extremely low, so it is very suitable for low-power data recording systems.Product Parameters:Interface type: IICVoltage range: 3.3V-5VDynamic range count: 1 600,000,000Lux range: 188 uLux sensitivity, up to 88,000 lumens input measurement.Temperature range: -30°C~80°CDimensions: 1 9mmx16mmx1mmPin Definition:VIN: Power +GND: groundSCL: I2C serial clock lineSDA: I2C serial data lineINT: interrupt pinFunction Diagram:

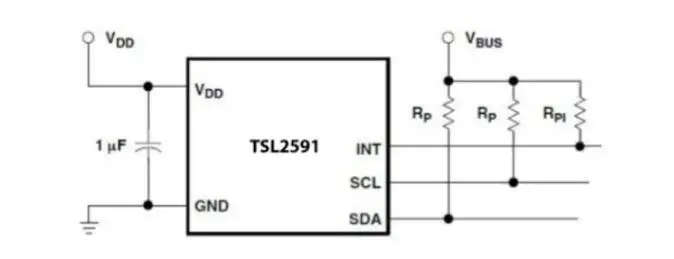

Typical Circuit Diagram:
Typical Circuit Diagram:Comprar Módulo de ruptura de Sensor de luz Digital de alta dinámica TSL2591, detección de diodo de espectro completo Lux IR de alto rango para Arduino, 10 Uds./1 ud.
