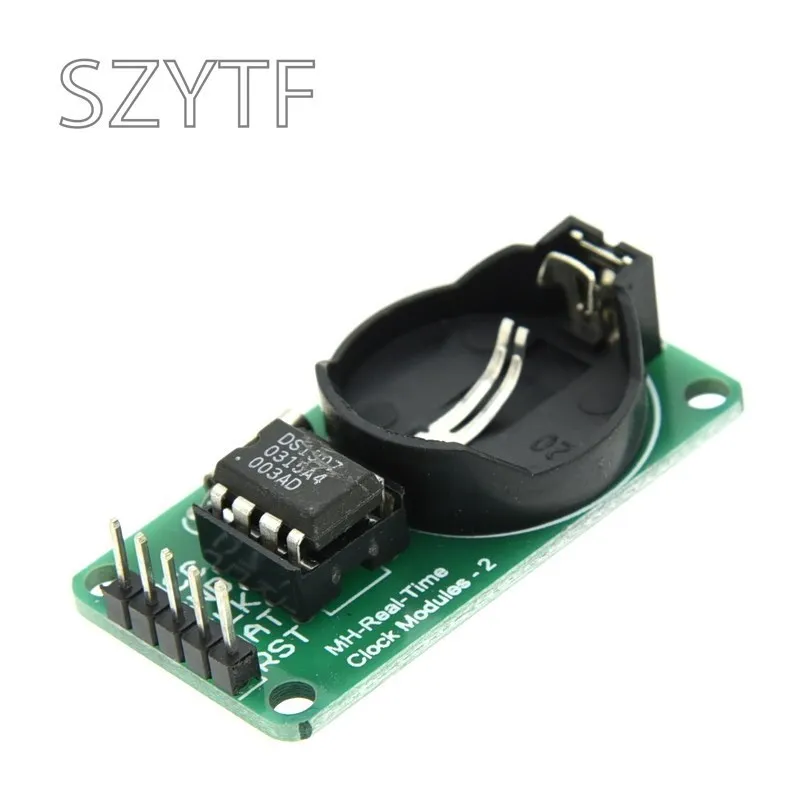

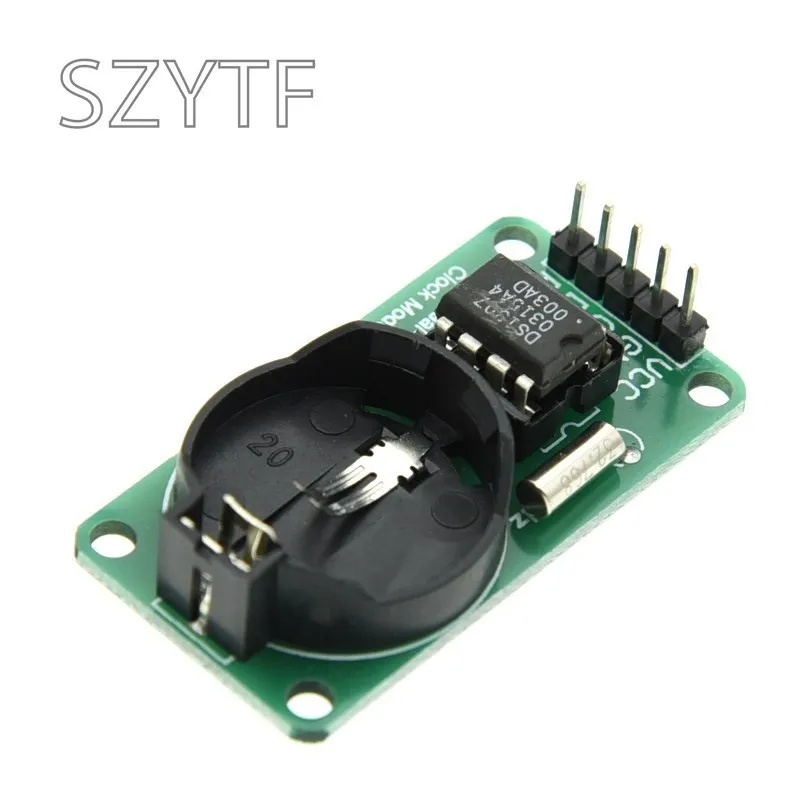

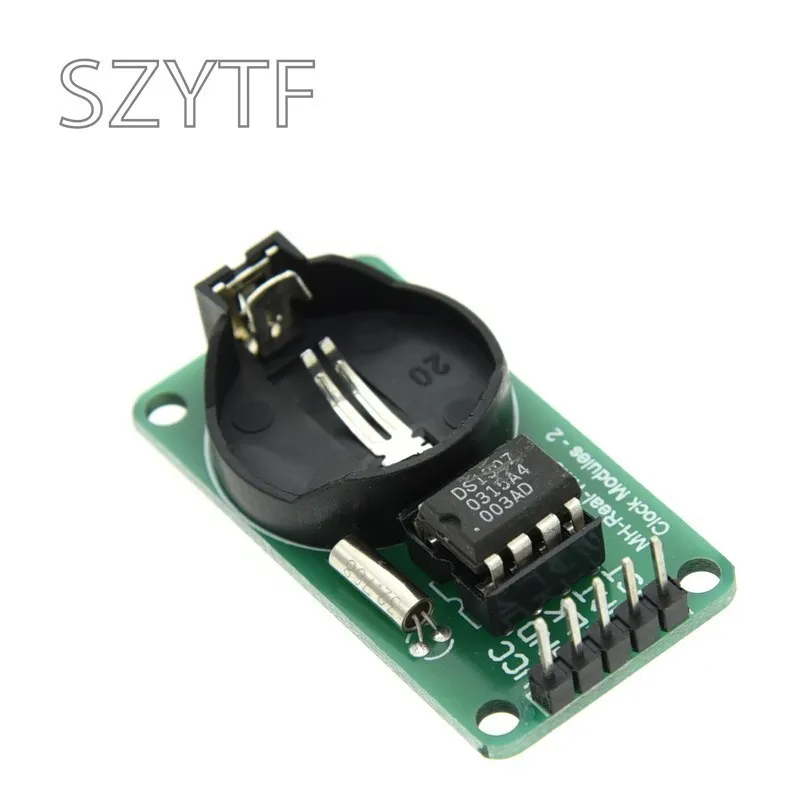

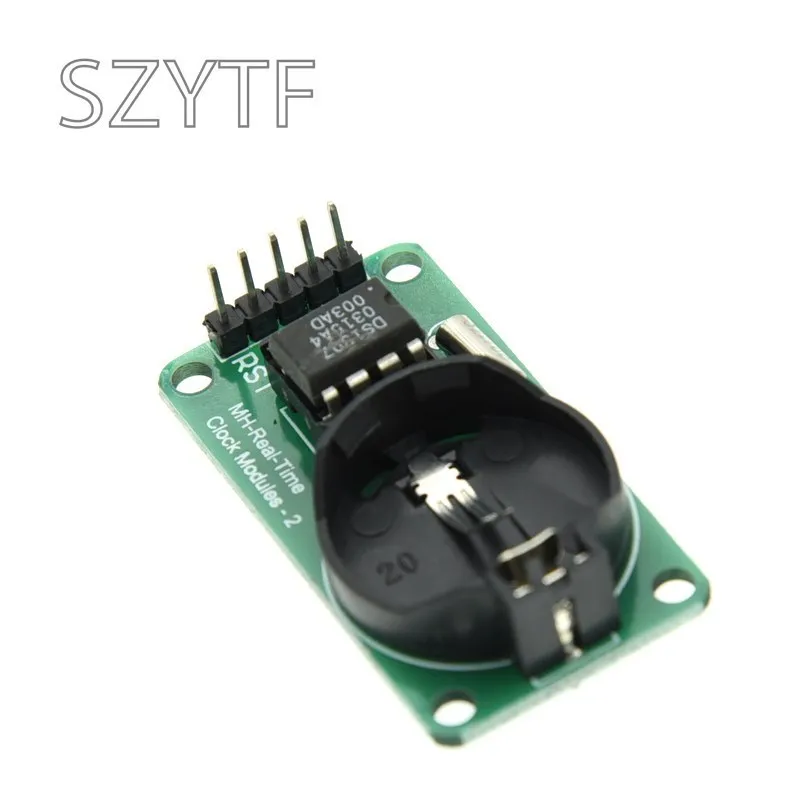

DS1302 Real Time Clock Module

Description:
hp

Serial I/O interface for minimum pin count
Wide Working Voltage: 2.0 ~ 5.5V
Single-byte and multi-byte transmission for clock or RAM data read / write
TTL-compatible (Vcc=5V)
Working Temperature: 0 to +70 Deg C
32.768KHz crystal oscillator
Equipped with a 260mAh CR2032 button battery, not rechargeable
Overall Size: Approx. 44 x 23 x 11mm
Wiring:
Vcc - +5V / 3.3V
GND - GND
CLK - P01
DAT - P02
RST - P00
Note:
Do not reverse VCC and GND, or it will cause damage
It requires a pull-up resistor for P0 port of 51 MCU, if without, you can connect the data cable to other terminal
Package included:
1 x DS1302 Real Time Clock Module
