Descripción
Description:

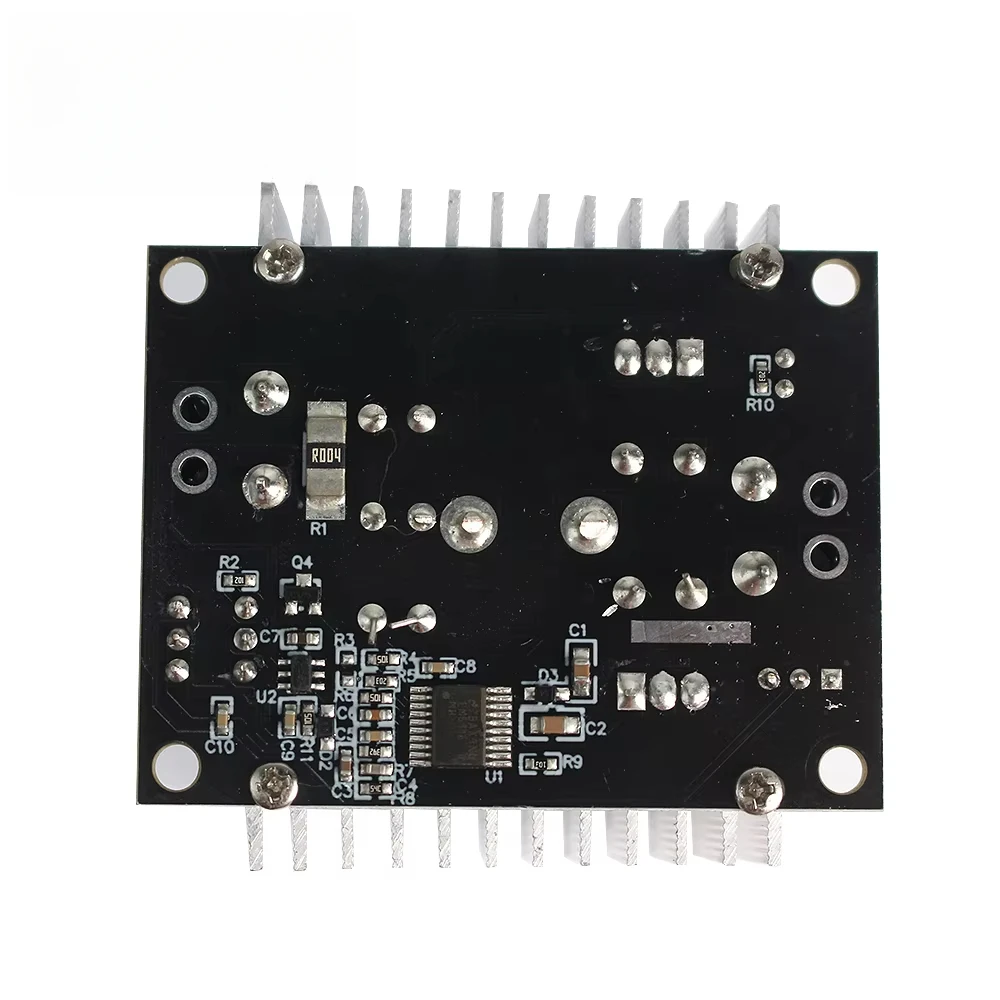

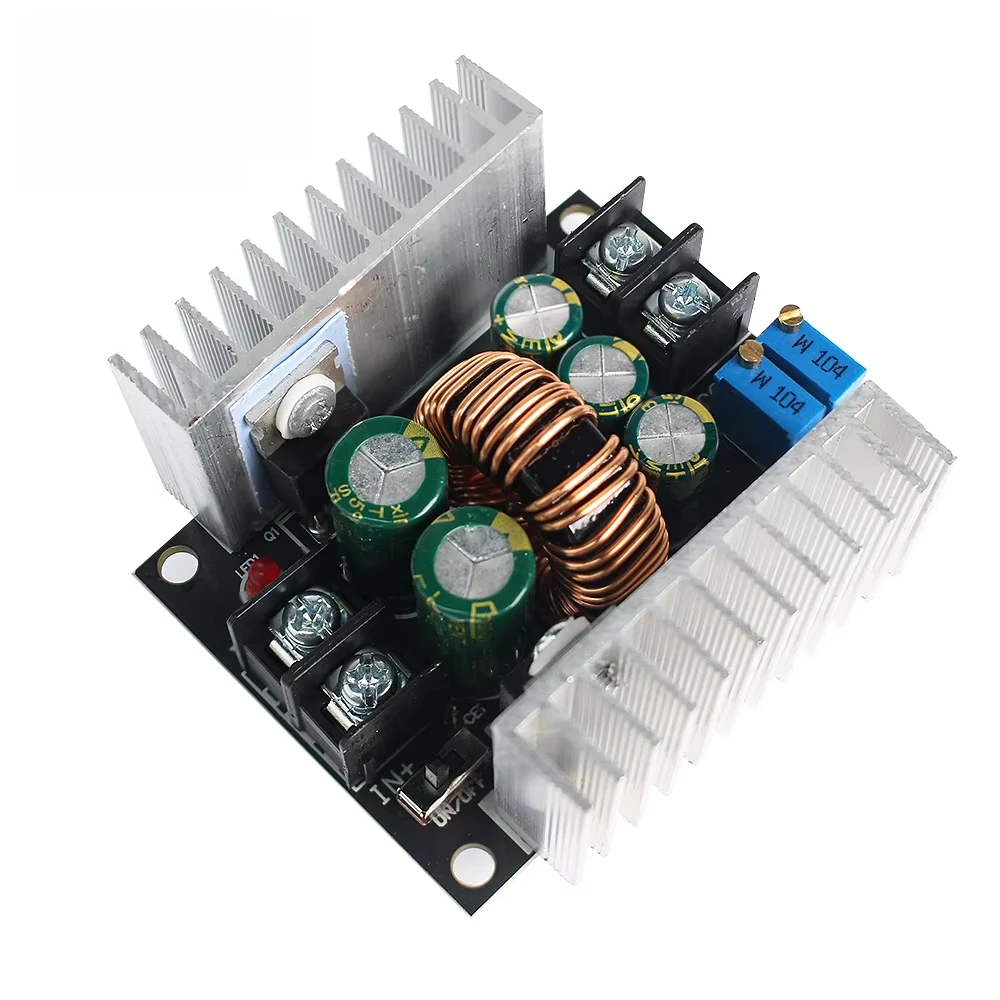

Feature(300W 20A):With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current.The efficiency can be up to 96%, measured at 20A, converting 24V to 12V.It is designed with 75V/80A large current dual MOS tube.Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.Wiring is convenient with these large current 30A screw terminals.The buck module has 2 heat sink that could enhance heat dissipation.When there is a big difference between input and output voltage, please decrease power and current.Specification:Input Voltage: 6V to 40V DC(10V to 40V is suggested)Output Voltage: 1.2V to 36V DCOutput Current: 20A(max.), 15A(suggested)Efficiency: 95%(24V to 12V, 20A)Output Ripple: ≤50mVWiring Method: TerminalShort Circuit Protection: Self-recovery(cannot short circuit for long time)Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"VO+: Output positiveVO-: Output negative+IN: Input positive -IN: Input negativeCV: Output voltage adjustmentCC: Output current adjustmentEN: Enable, low voltage level shut off output; suspension, high voltage level is effectiveWhen input and output is common grounded, no-load CV output constant voltage,CC output constant current

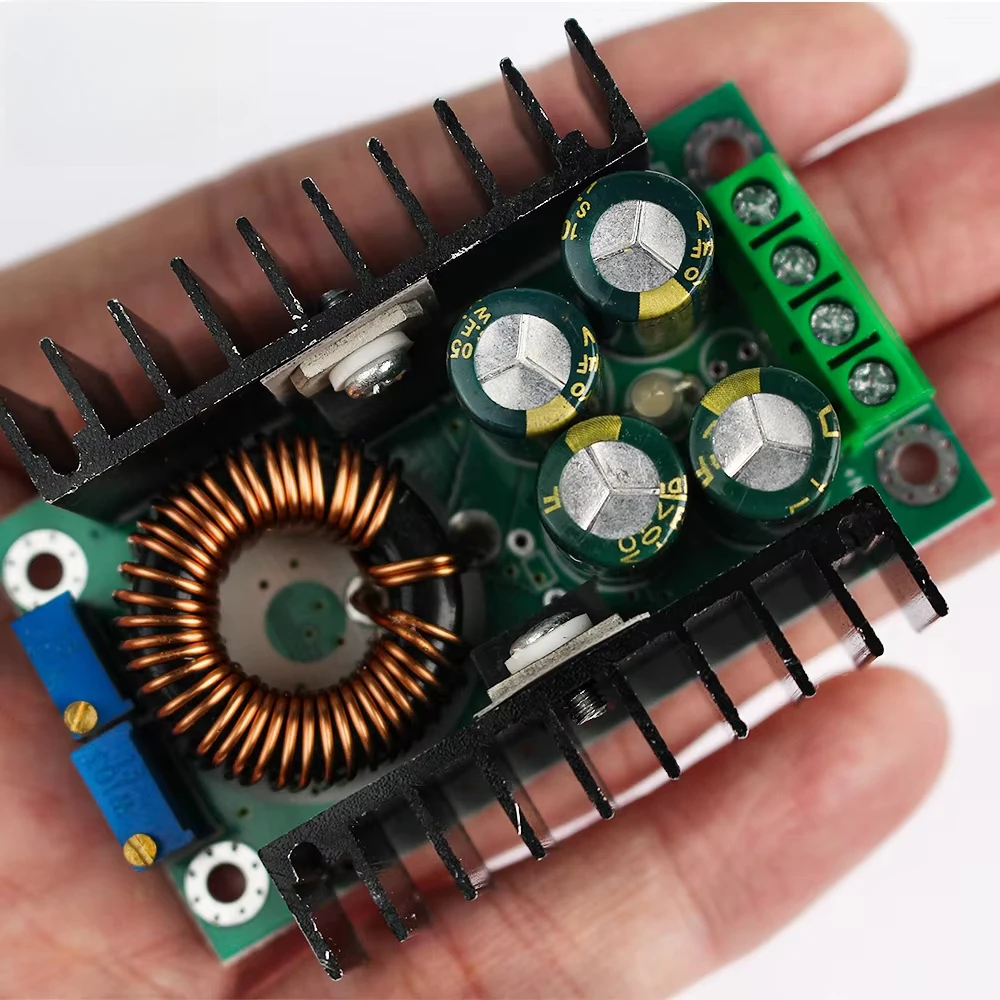

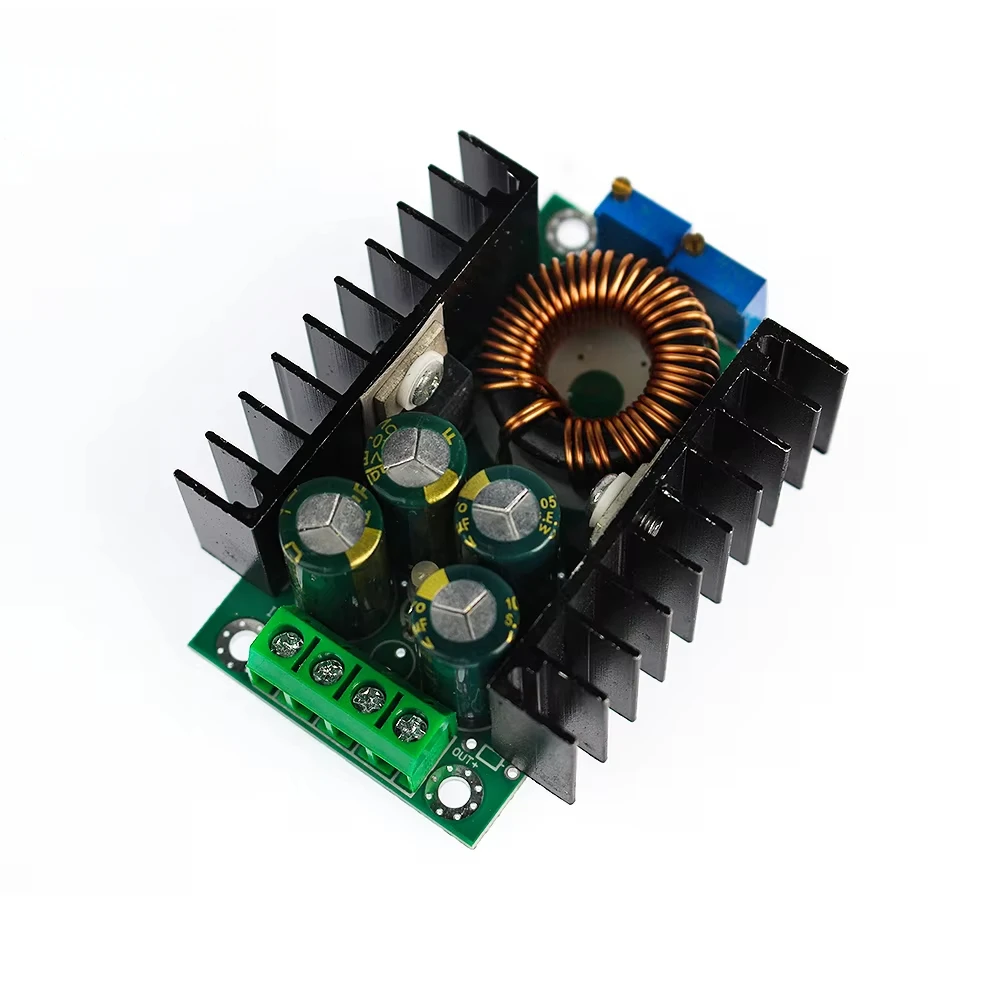

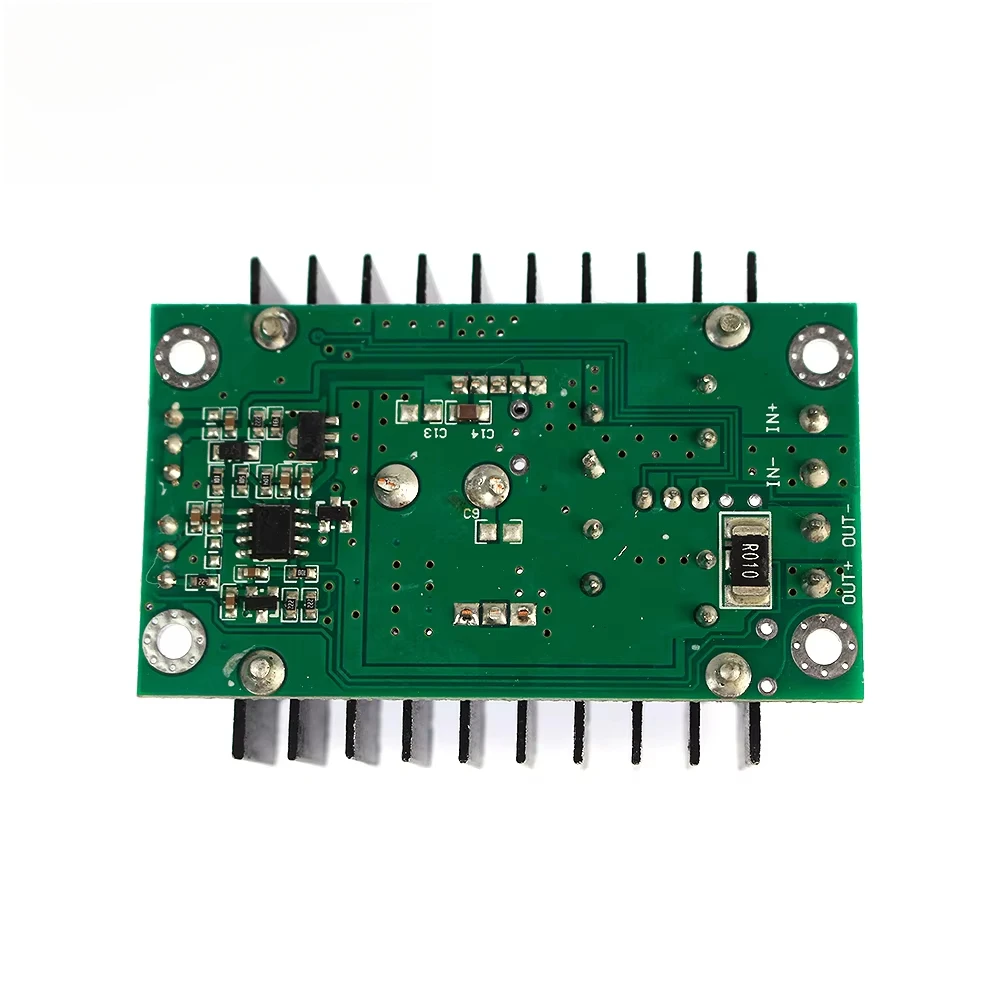

Features(300W 9A):
Use a dedicated benchmark IC, and high-precision current sensing resistor, can make more stable constant current
High output current, the max output current can reach 9A.
Low output ripple , high frequency capacitor reduces output ripple.
Suitable for LED driver.
Specification:
Material: PCB board and electronic component
Input voltage: 5-40V
Output voltage: 1.2-35V (continuously adjustable)
Output Current: 9A (power tube temperature exceeds 65°C please add cooling fan)
Constant current range:0.2-9A ( adjustable )
Output Power: Maximum power is about 300W (power tube temperature exceeds 65°C please add cooling fan)
Size: Approx. 2.55*1.88*0.94inch / 6.5*4.8*2.4cm(Length*width*thickness)
