Descripción

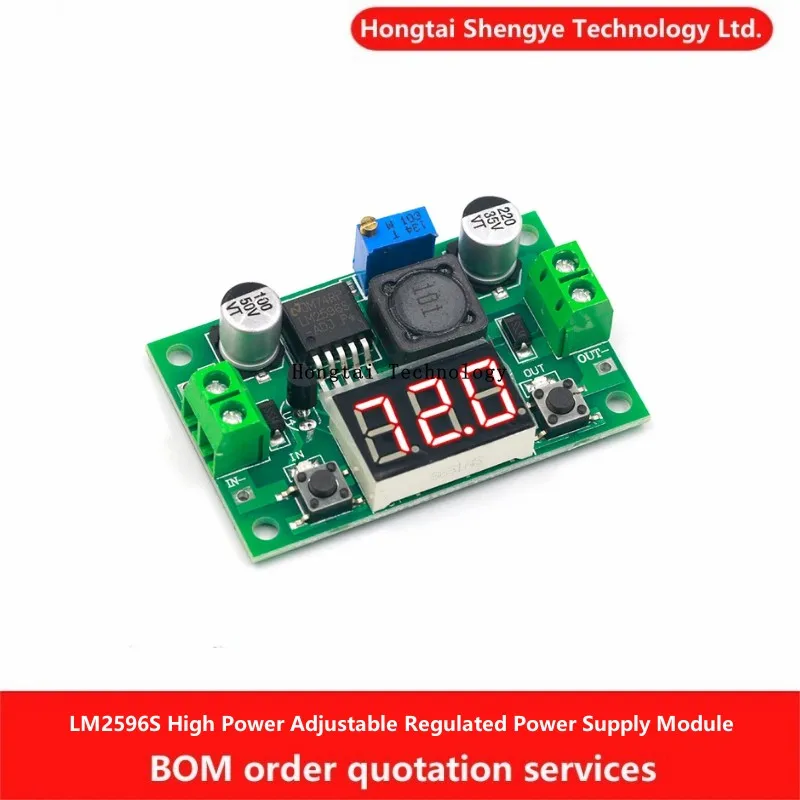

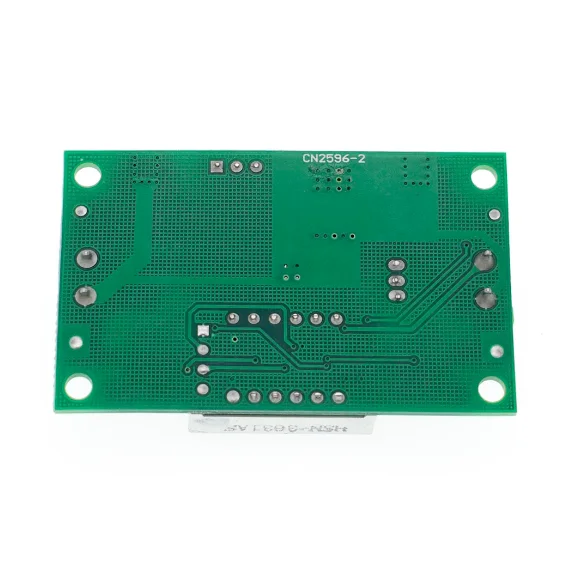

LM2596S High Power Step-Down Module DC-DC Adjustable Regulator Power Supply Module with Digital Display
With power indicator
●With voltmeter display, advanced microprocessor, voltmeter error ±0.05V, range 0~40V (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4V)
●Touch the right button to switch the measurement of input or output voltage, and there is an indicator to show which voltage is being measured, and save the setting, even if the power is off and on again
●Voltmeter can be switched off, when it is not needed, touch the left side button to achieve easily
●With terminal block, easy to use without soldering iron, and retains the soldering wire junction point.
Input voltage 4.0~40V (Input voltage must be more than 1.5v higher than the output voltage.)
●Adjustable output voltage range 1.25V~37V continuously adjustable (input voltage must be 1.5V higher than output voltage)
●Maximum output current can be up to 3A, normal stable operating current is 2A.
150KHz internal oscillation frequency, belongs to the second generation of switching voltage regulator, small power consumption, high efficiency.
●With overheat protection and short circuit protection.
