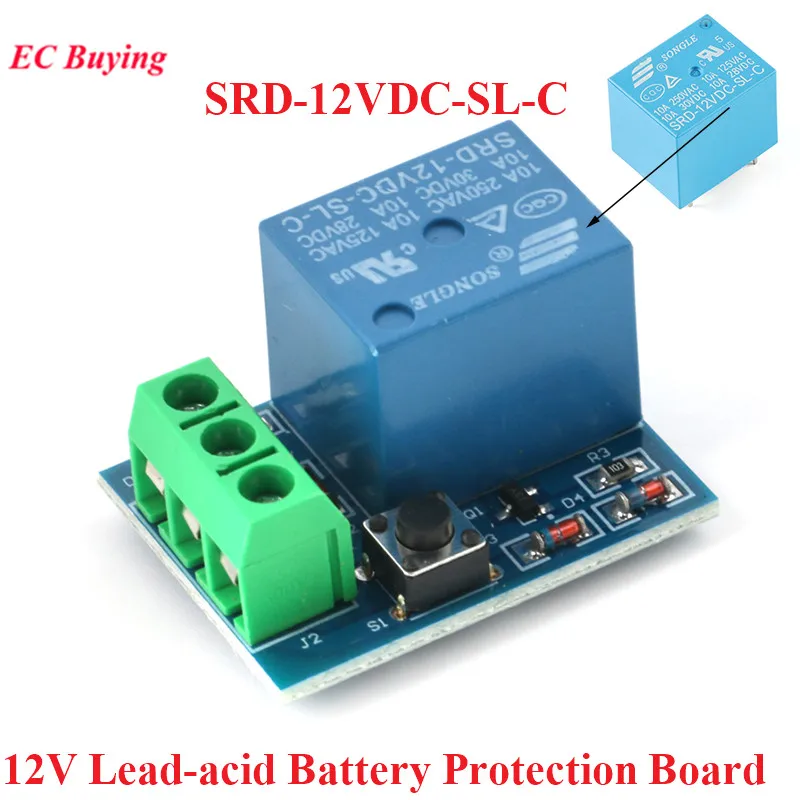

Módulo de protección de batería de 12V Placa de protección de batería de plomo-ácido Módulo de relé de protección de bajo voltaje de sobredescarga SRD-12VDC-SL

Name: Módulo de protección de batería de 12V Placa de protección de batería de plomo-ácido Módulo de relé de protección de bajo voltaje de sobredescarga SRD
Brand: EC Buying
SKU: 357016
Price: 0.48 EUR
Availability: InStock
Rating: 5.0 (8 reviews)

Módulo de protección de batería de 12V Placa de protección de batería de plomo-ácido Módulo de relé de protección de bajo voltaje de sobredescarga SRD-12VDC-SL

8 opiniones

En Stock

0,48 €

~~0,64 €~~ -75.00%

Comprar ahora

Con la garantía de

Color

36 unidades vendidas

Última actualización: 2026-01-01T20:17:40.991Z

Descripción

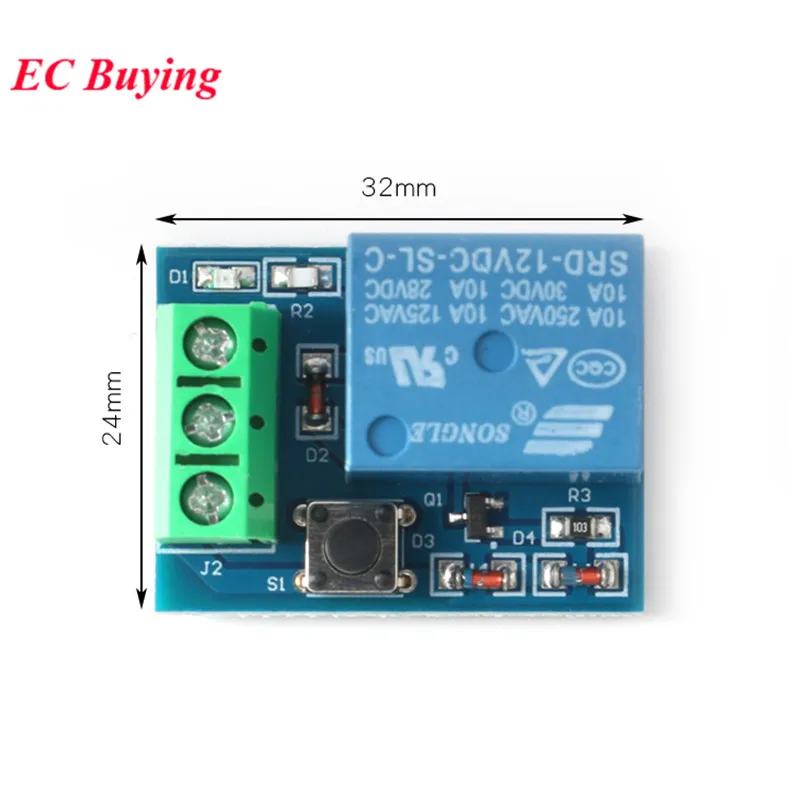

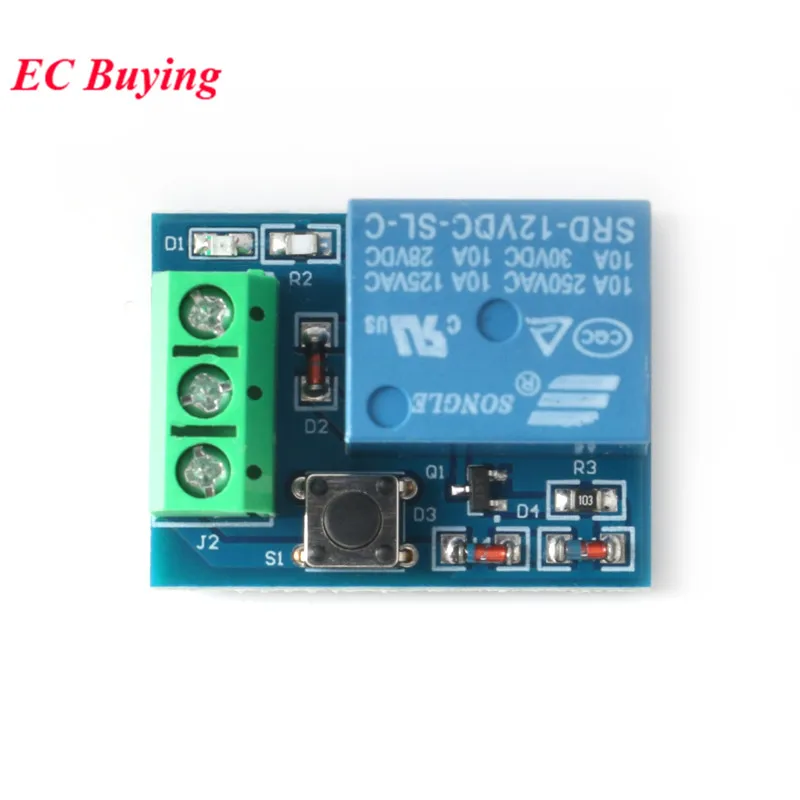

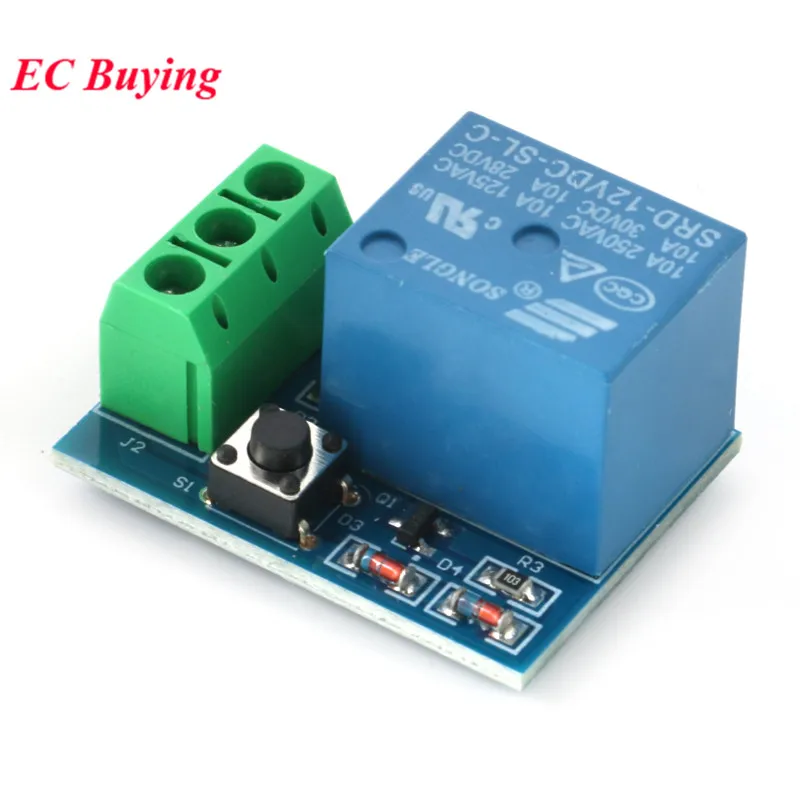

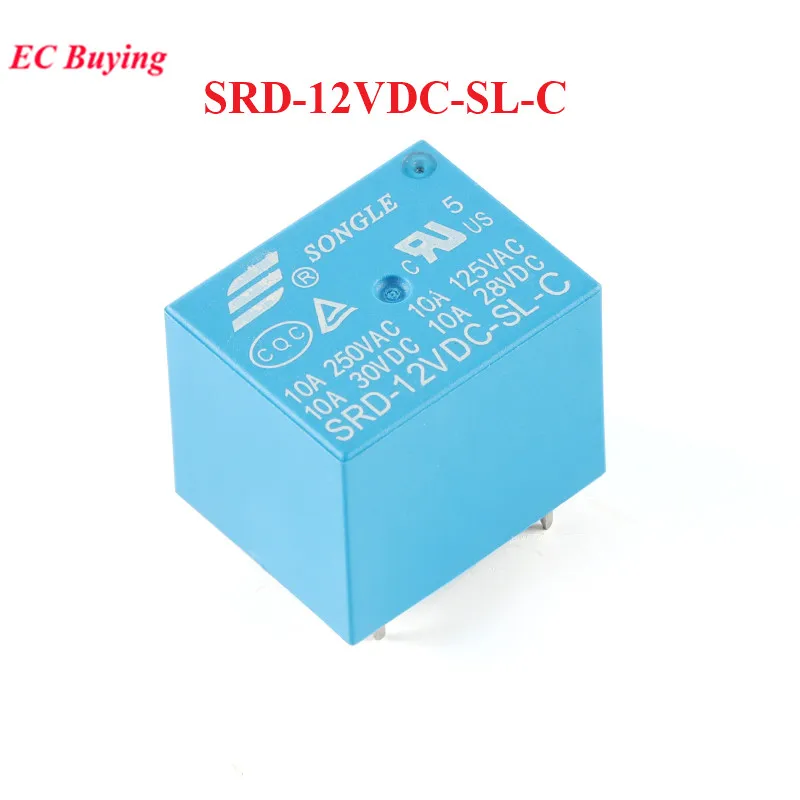

Note: 12V Relay, place an order for the customers who need it, and do not select the ones who don't need it, thank you!Product introduction:The 12V lead-acid battery battery protection module is mainly used for the protection of 12V battery batteries, because the 12V battery will cause damage to the battery when the battery voltage is lower than 10.5V. The module can automatically release the relay when the battery voltage is lower than the protection voltage. Turn on the battery for external power output.Product parameter:Working voltage: suitable for any capacity 12V battery/bud battery;Protection voltage / termination voltage: 10.7V, due to component differences, the maximum error may be ± 0.1 5VMaximum controllable current of relay: 10AAutomatically cut off all power when discharging to the protection voltage to avoid over-discharge and protect battery life

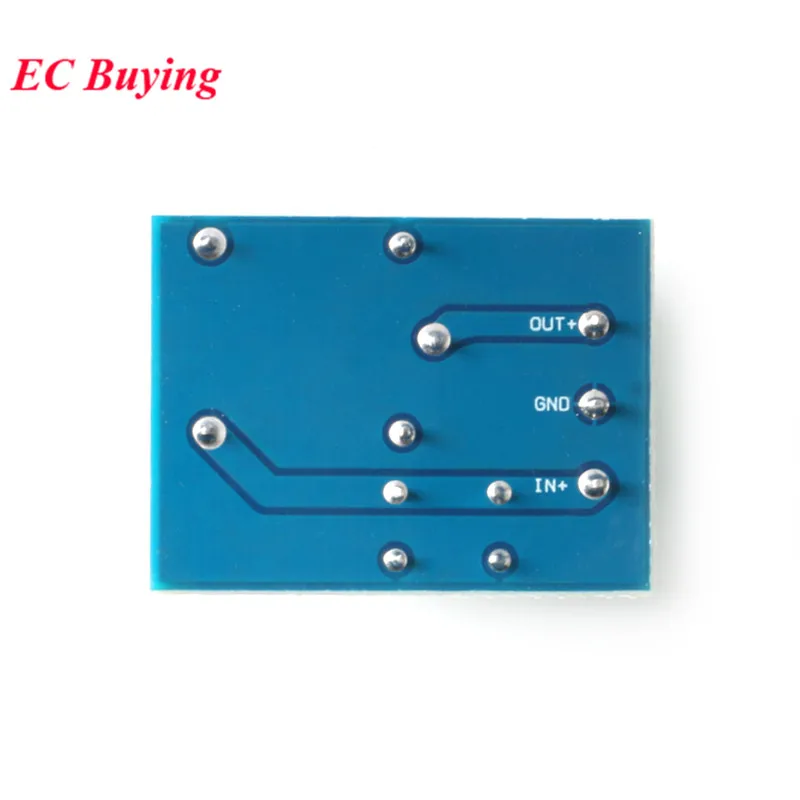

Interface specification: IN+: input + (connect battery +) GND: public-(connect load and battery -) OUT+: output + (connect to load +)

Instruction for use:1. After connecting the battery with the load and the protection board, when the battery voltage is normal, clickWhen the button is triggered, the relay is turned on, the LED is lit, and the protection board starts to work.2. When the battery voltage is lower than the protection voltage, the relay is turned off, the LED goes out, and it is automatically cut offOutput, battery disconnection and power supply to load and protector.3. When the battery voltage recovers above the protection voltage, you can press the trigger button again to makeThe monitoring and protection work continued.
