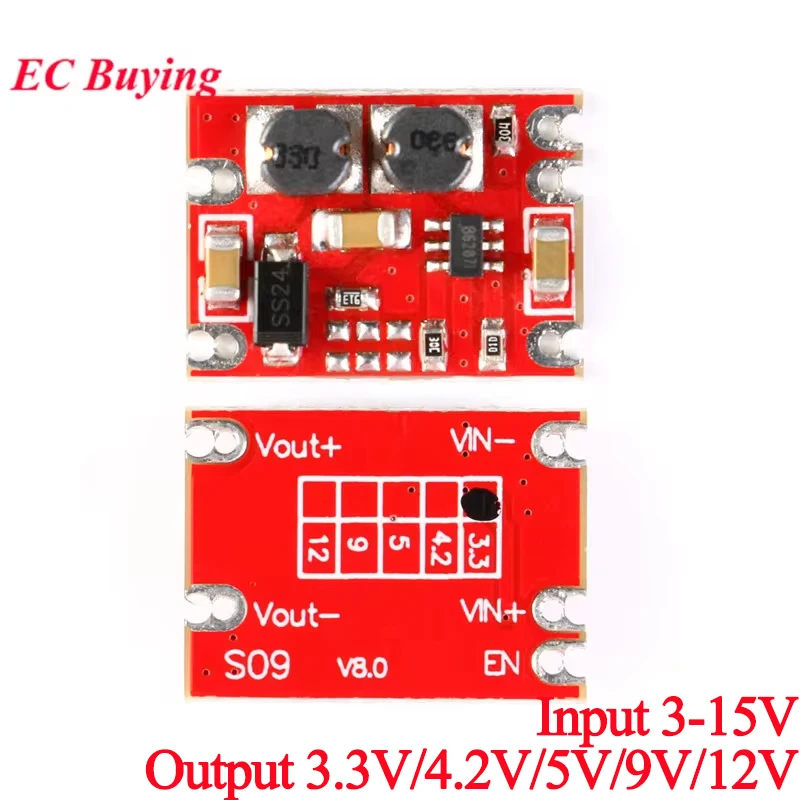

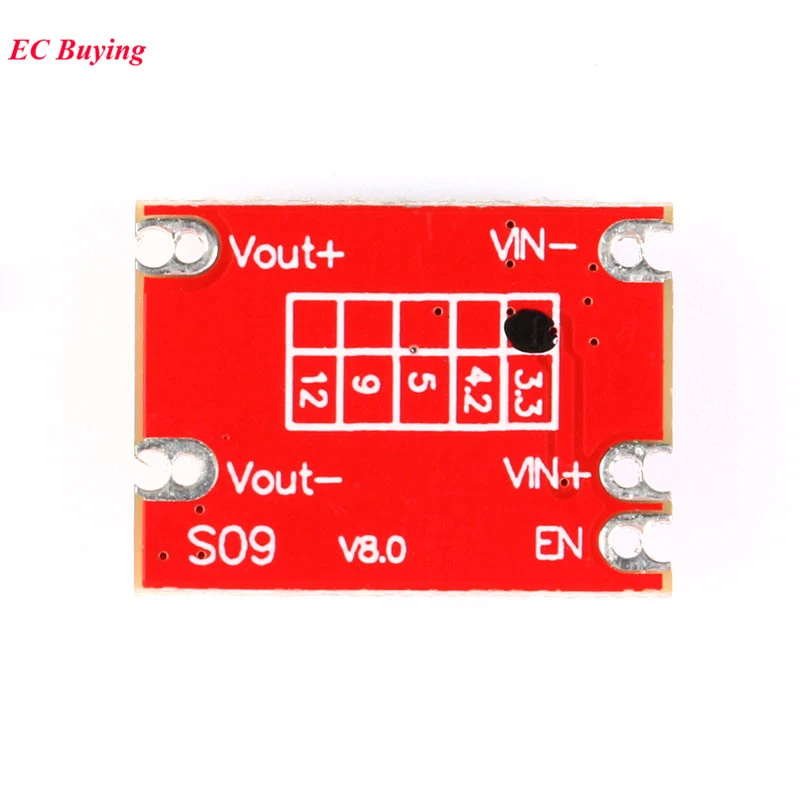

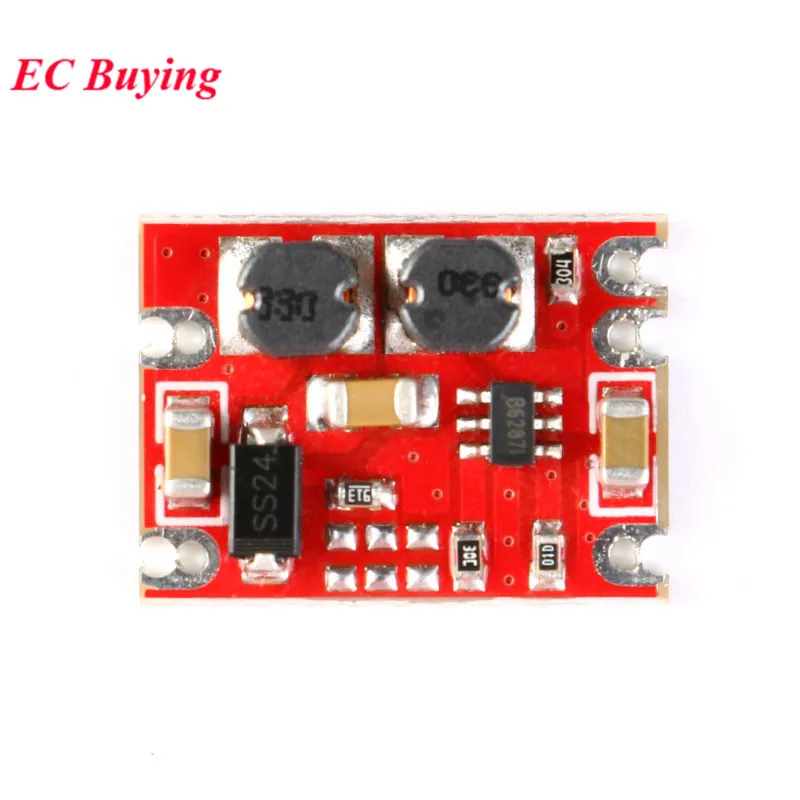

DC-DC Automatic Buck Boost Power Module Step Up and Down Board Input 3-15V Output 3.3V/4.2V/5V/9V/12V Electronic DIY PCB S9
Dear Buyer, We have diffenent Output Voltage. 3.3V/4.2V/5V/9V/12VPlease select the Votage you need when you make order.Or please feel free to leave us a message about the voltage yu need.FeaturesThe S09 a wide voltage and low power scheme. The DC-DC power module is automatically raised and lowered to support the shutdown function. The maximum input voltage is 15VDC, the quiescent current is less than 200uA, the fixed output is 3.3V and the maximum output current is 600mA. Design work frequency of up to 1.2MHZ, high stability, cost-effective, all industrial-grade components, long working voltage drift-free, suitable for demanding applications, mass production.

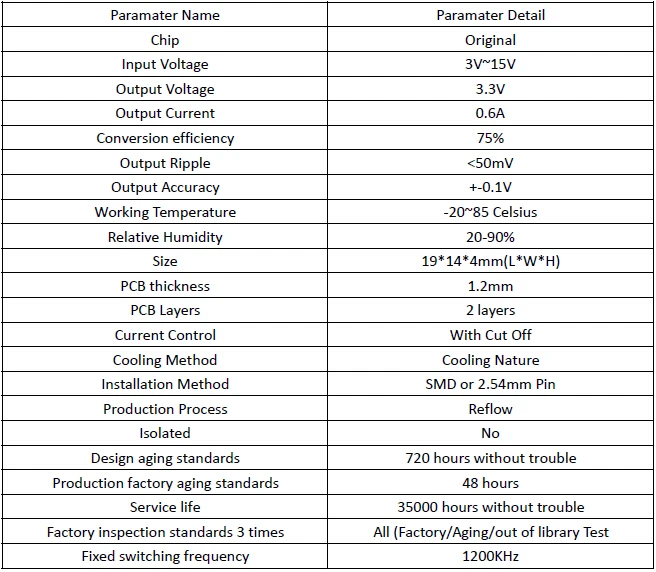

ApplicationWidely used in communications equipment, digital radio, industrial motherboards, toys, model aircraft, microcontroller motherboards, household electrical appliances, automotive power supply, security monitoring, field collection, street lamps.Parameters
Opiniones de clientes
6 opinionesDe acuerdo
Todo está bien.
Todo está bien.
Este no es un módulo buck boost. Tengo modelo de 3,3 V, con voltaje de entrada de 3,3 V que emite 2,6 V, con 3 V la salida es cero
