Módulo óptico de alta velocidad de división de longitud de onda 100G, interfaz LC de modo único, HW 100G-10km-1310nm-SM-CFP, 34060634

If you have any questions, please contact us whatsapp+8618874778827

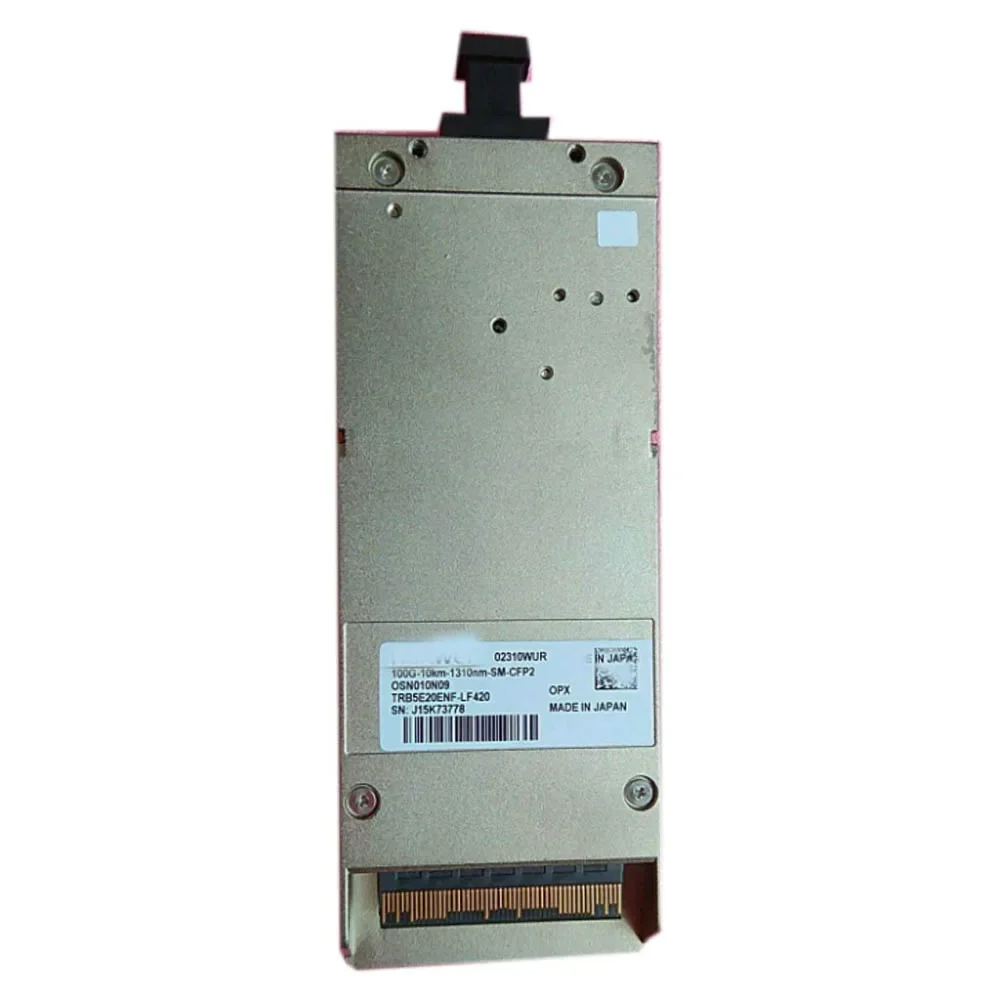

HW 100G-10km-1310nm-SM-CFP 100G wavelength division high-speed module single-mode LC interface optical module 34060634

Specifications

Project

Description

BOM

S4017456

Model

OSN010N04

The encapsulation form

CFP

Interface standard

IEEE 802.3ba, 100GBASE-LR4

Error Rate (BER)

1x10E–12

Working shell temperature (C)

0~70

Digital diagnostics

CFP MSA

Environmental standards

RoHS

Safety standards

FCC class B, IEC 60825-1 Class 1

ESD(HBM1) (V)

500

Transfer rate (bit/s)

103.125G

The connector type

LC

Transmission distance (km)

10

The type of fiber

SMF

Center wavelength (nm)

1295.56

1300.05

1304.58

1309.14

Optical transmitter operating wavelength range (nm)

1294.53-1296.59

1299.02-1301.09

1303.54-1305.63

1308.09-1310.19

Maximum transmit optical power (AVG) (dBm)

-

Maximum Sending Optical Power (OMA) (dBm)

per lane:4.5

Minimum transmit optical power (AVG) (dBm)

-

Minimum sending optical power (OMA) (dBm)

per lane:-1.3

Optical receiver operating wavelength range (nm)

1294.53-1296.59

1299.02-1301.09

1303.54-1305.63

1308.09-1310.19

Receive Sensitivity (AVG) (dBm)

-

Receive Sensitivity (OMA) (dBm)

per lane:-8.6

Saturated Optical Power (dBm)

per lane:4.5

Minimum extinction ratio (dB)

4

illustrate

1, the optical module optical power read on the device is the average optical power is not OMA optical power
