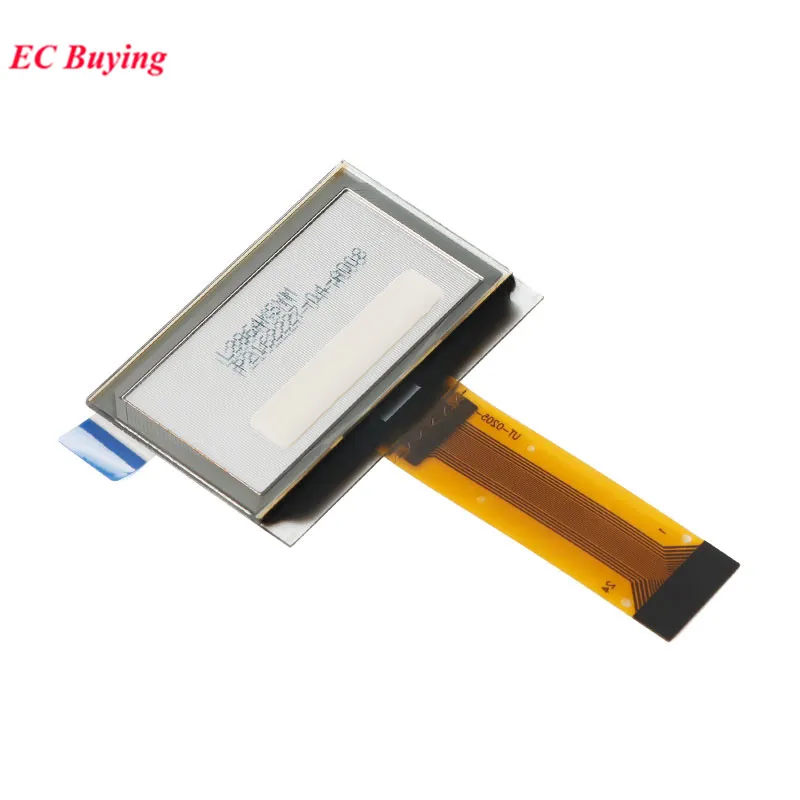

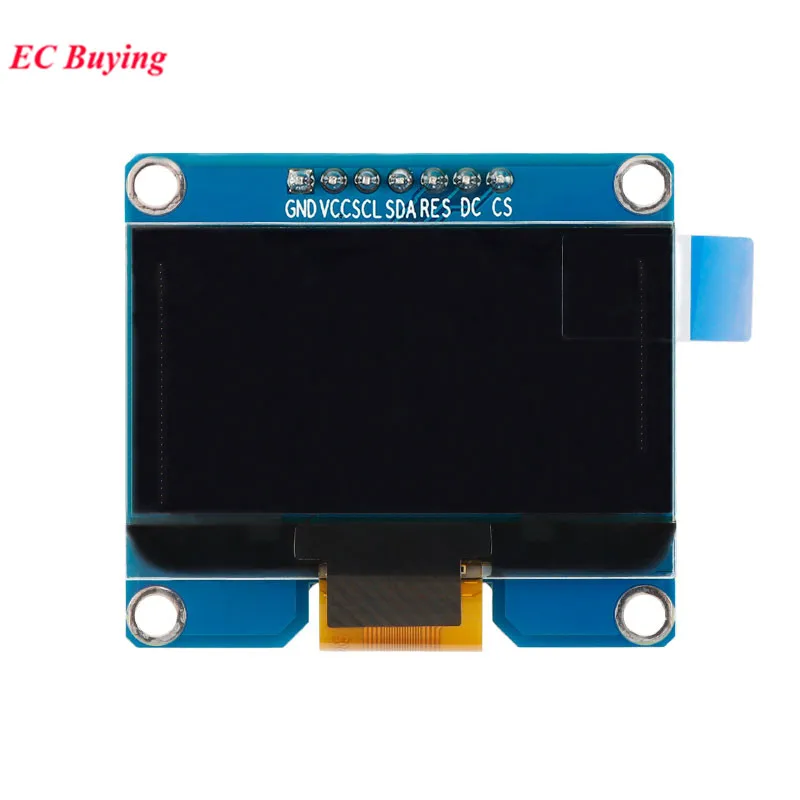

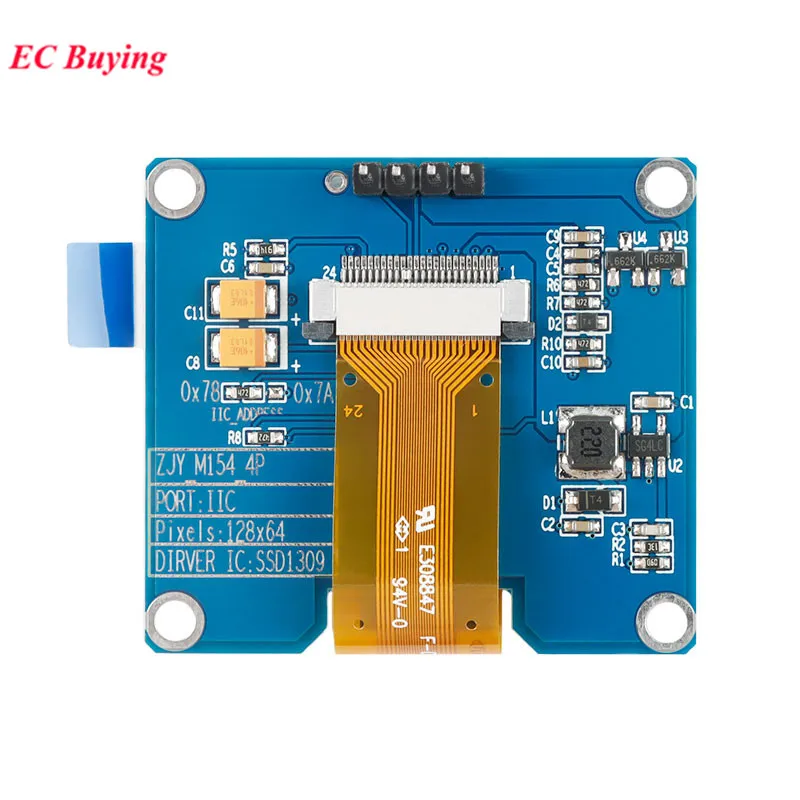

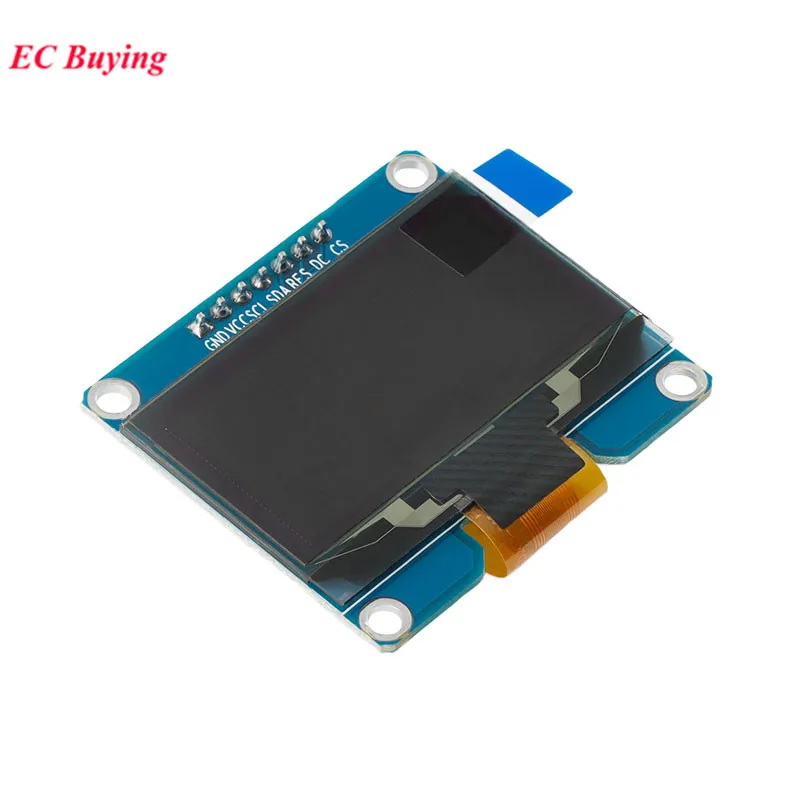

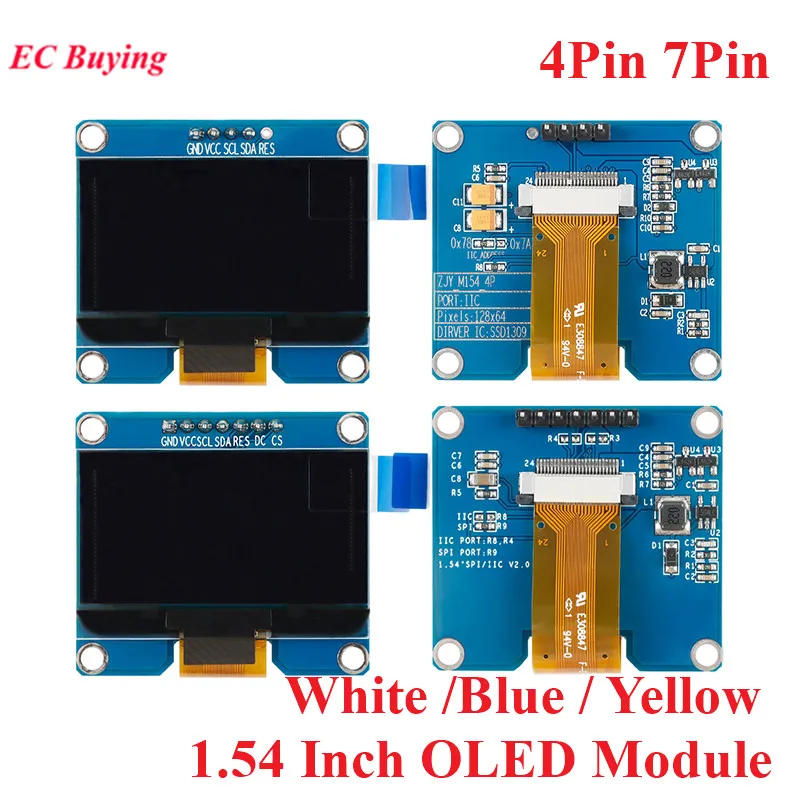

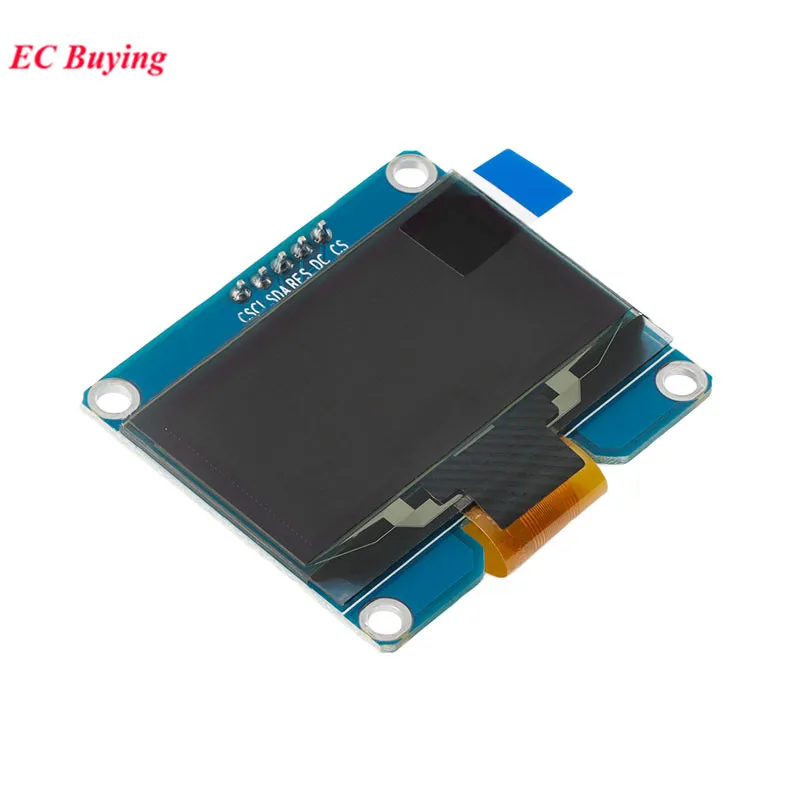

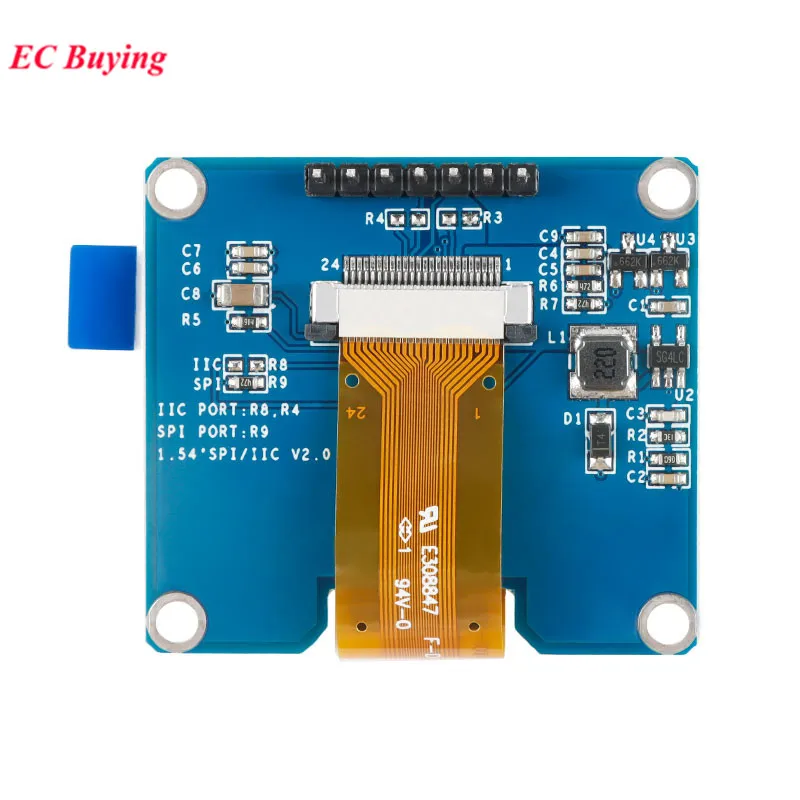

Módulo OLED de 1,54 pulgadas, pantalla LCD de 1,54 ", módulo de pantalla LED 128*64 SSD1309 interfaz SPI/IIC I2C para Arduino de 4 pines y 7 pines

Resolution: 128×64

Control chip: SSD1309

Interface type: 8-bit 68XX/80XX Parallel, 3/4-wire SPI, 12C

Display color: white, yellow, blue three colors are available

Display area: 35.052×17.516(mm)

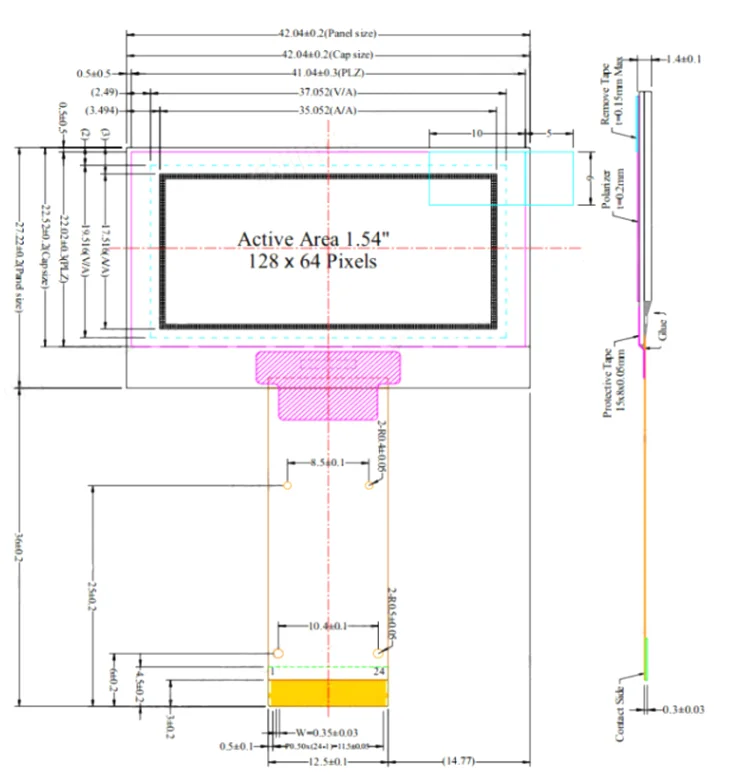

Panel size: 42.04×27.22×1.45 (mm)

Pixel size: 0.254×0.254 (mm)

Pixel pitch: 0.274×0.274 (mm)

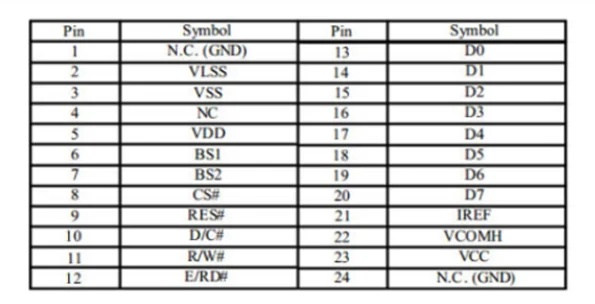

Number of pins: 24pin (plug in 24pin, 0.5mm pitch)

Viewing direction: full viewing angle

Working temperature: -40～70 degrees

Working voltage: 3.3V

Connection method: 0.5mm pitch plug-in FPC
