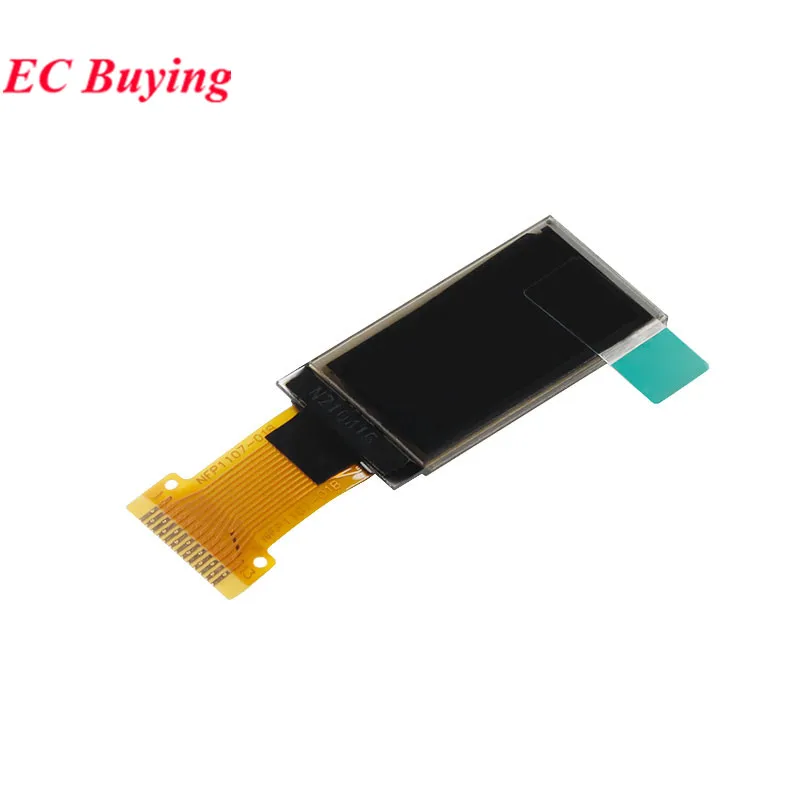

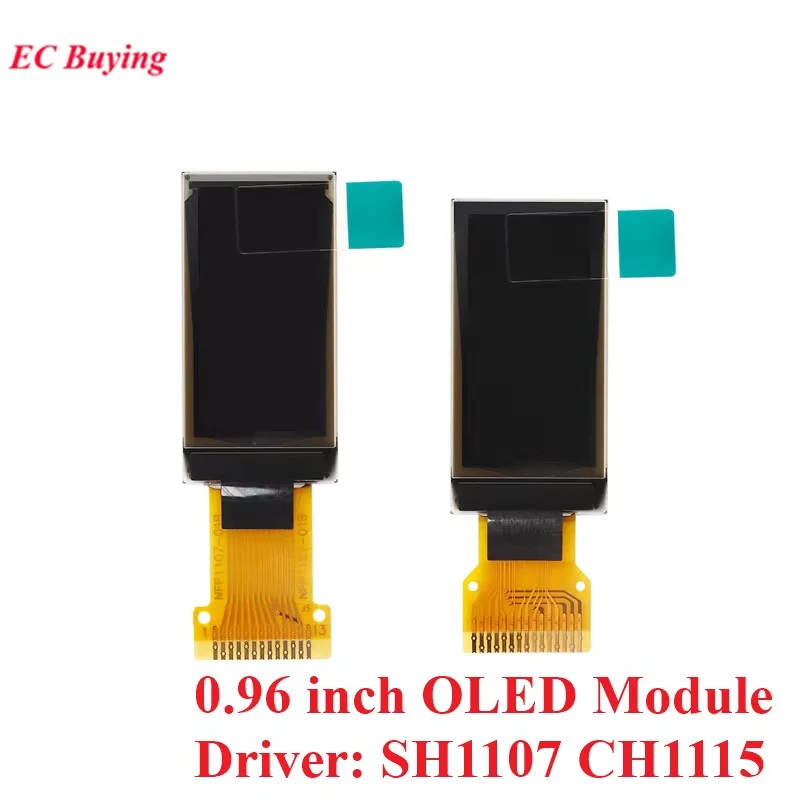

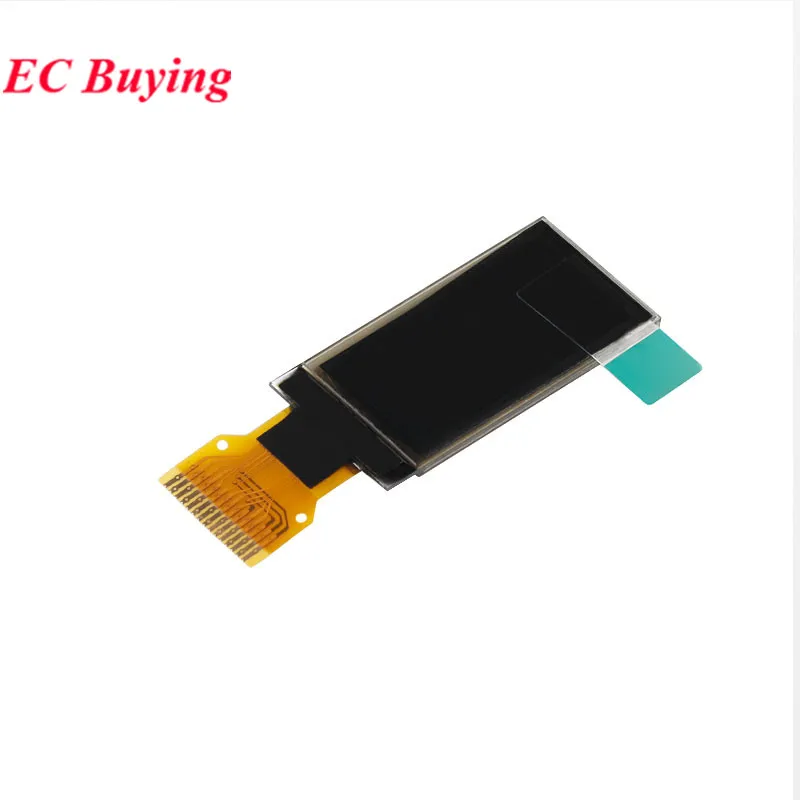

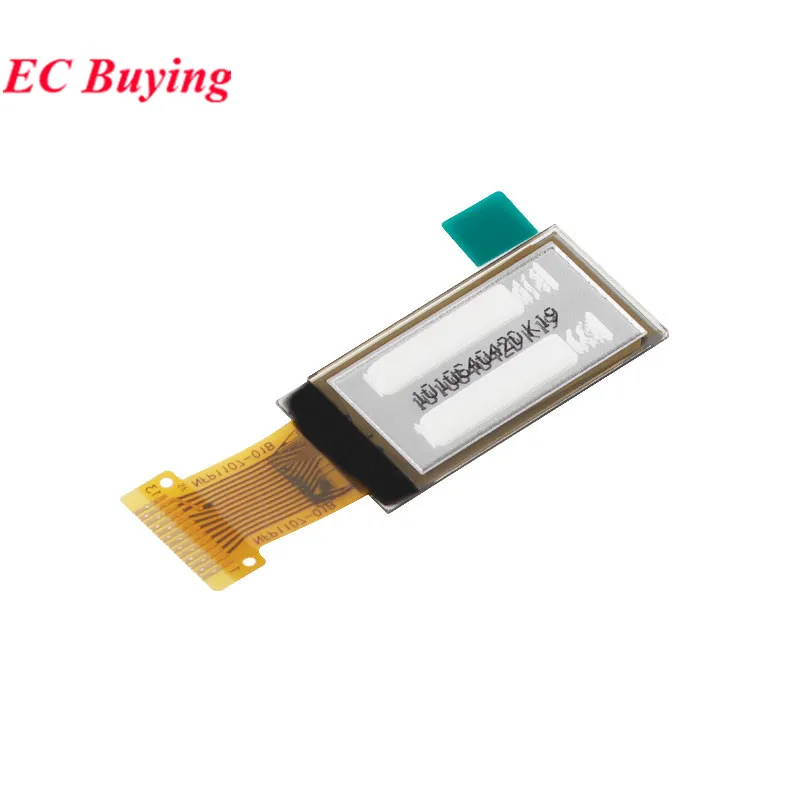

Módulo OLED de 0,96 pulgadas Pantalla de 0,96 "Blanco 128X64 12864 Módulo de pantalla LED LCD OLED interfaz IIC SPI SH1107 CH1115 para Arduino

Note: Please check if the display meets your requirements before placing an order

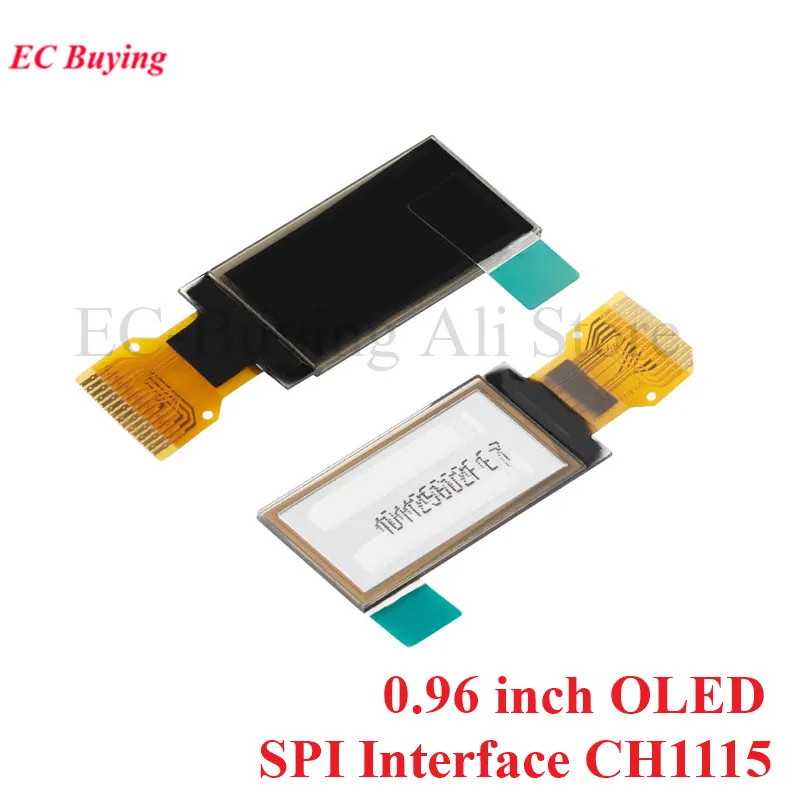

Resolution: 128 * 64

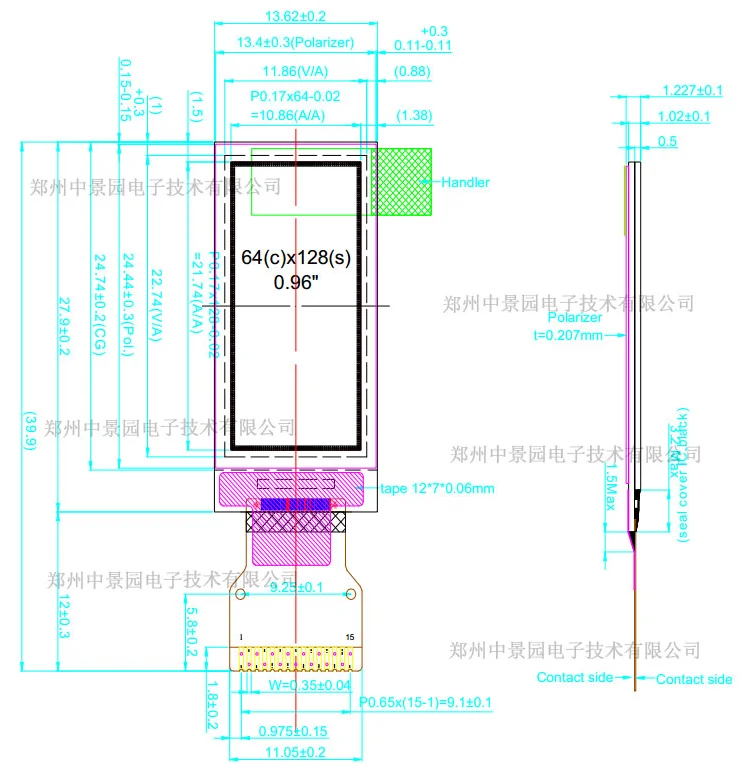

Control chip: CH1115

Highlights: built-in boost, horizontal display

Display area: 10.86X 21.74 (mm)

Panel size: 13.62x27.9x1.227 (mm)

Interface type: SPI interface

Display color: white

Working voltage: 3.3V

Pixel size: 0.15 x 0.15 (mm)

Pixel pitch: 0.17X0.17 (mm)

Connection mode: 0.65mm pitch welded FPC

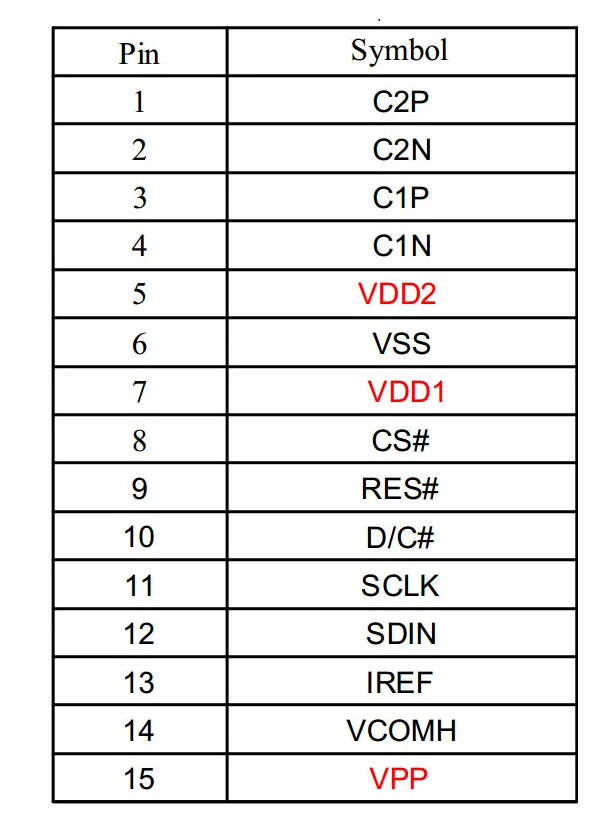

Number of pins: 15Pin (welding 15Pin, 0.6mm spacing)

View direction: full view

Operating temperature: - 40~70 ℃

Resolution: 64* 28

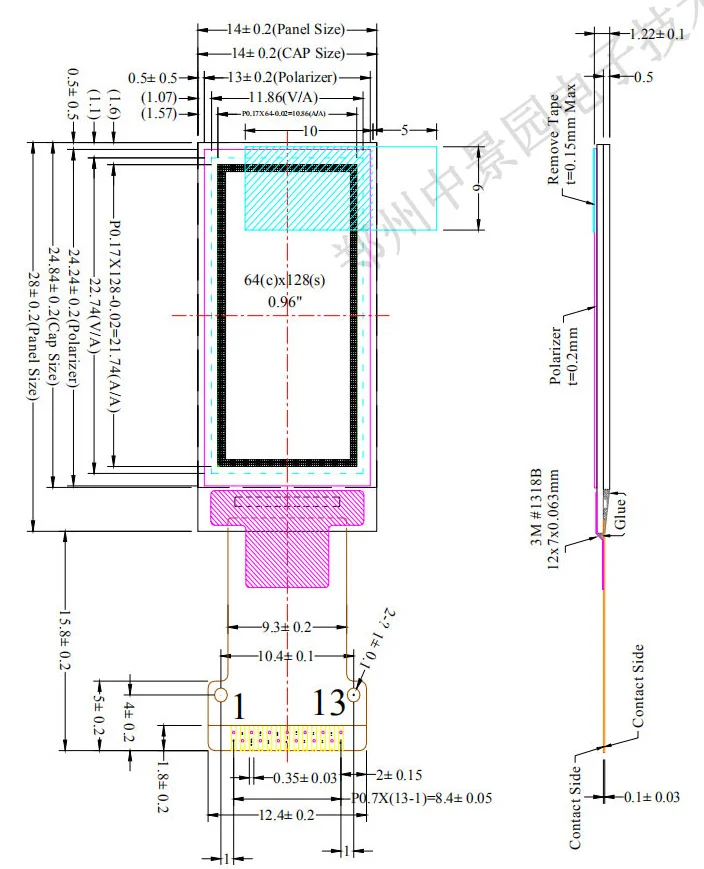

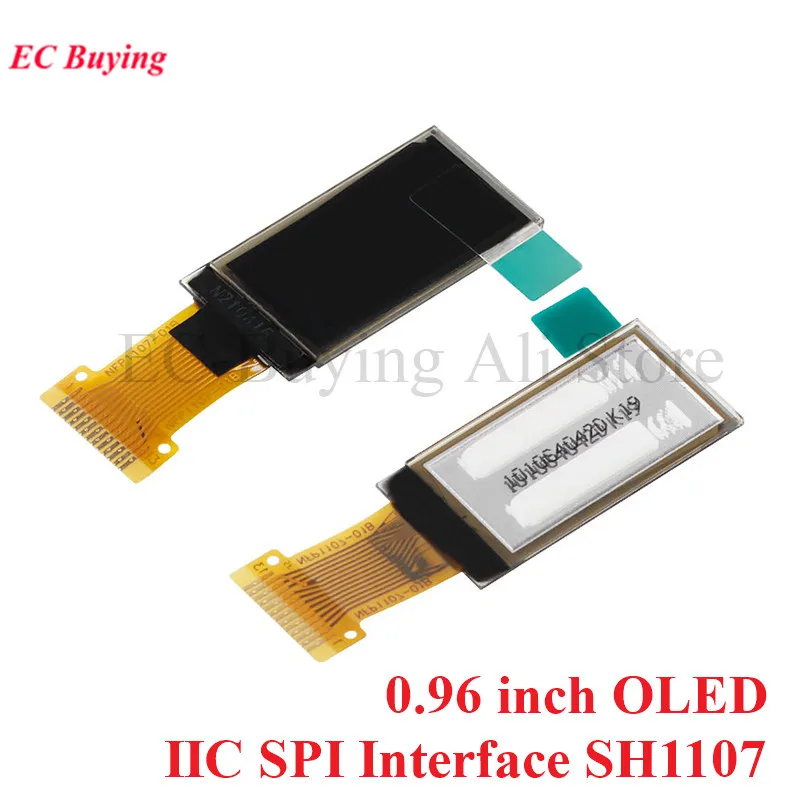

Control chip: SH1107

Display area: 10.86X 21.74 (mm)

Panel size: 14x28x1.22 (mm)

Interface type: SPI/IIC interface

Display color: white

Working voltage: 3.3V

Pixel size: 0.15 x 0.15 (mm)

Pixel pitch: 0.17X0.17 (mm)

Connection mode: 0.7mm spacing, welded FPC

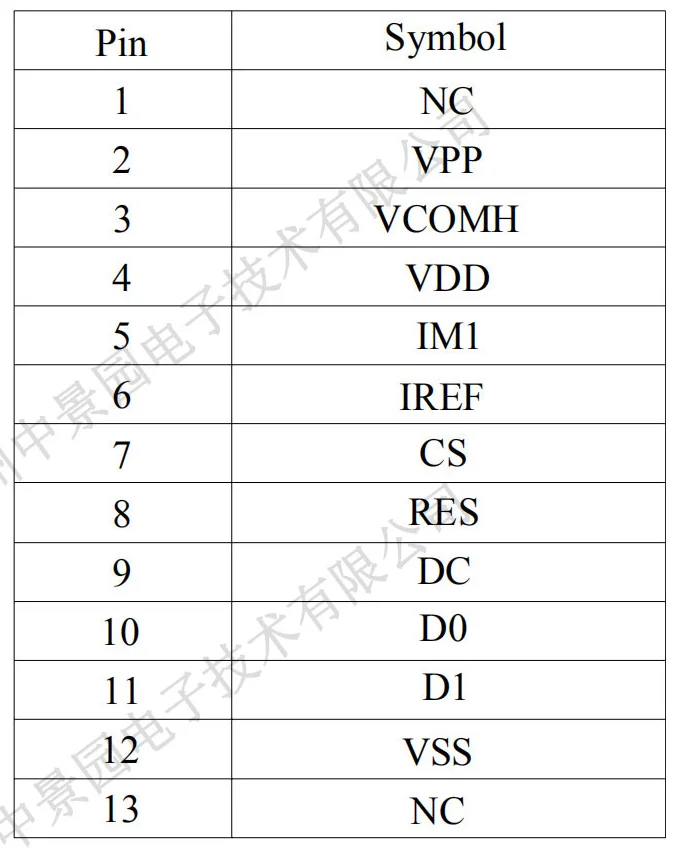

Number of pins: 13Pin (welding 13Pin, 0.7mm spacing)

View direction: full view

Operating temperature: - 40~70 ℃
