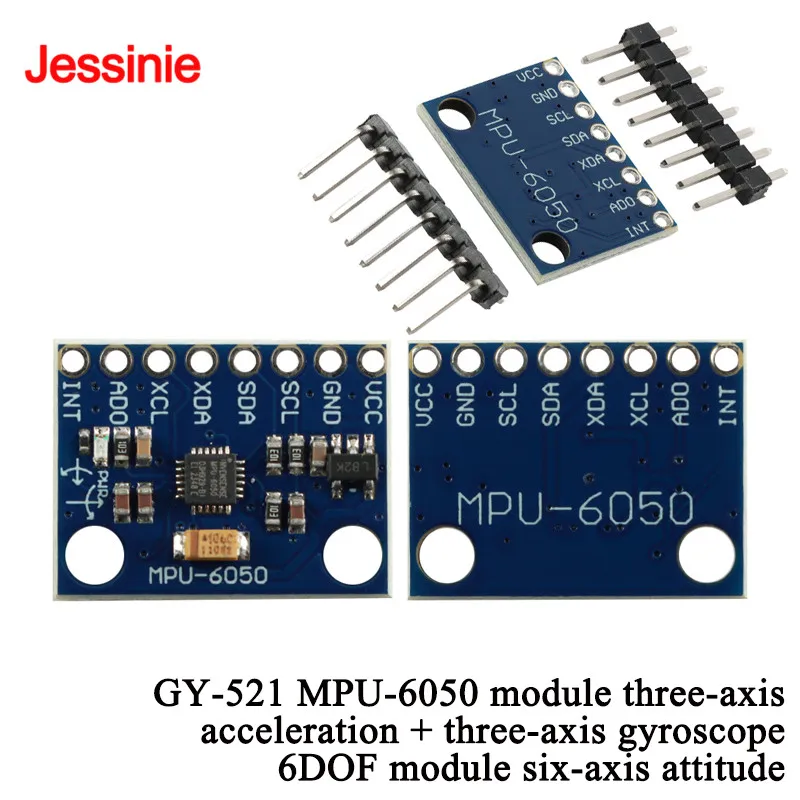

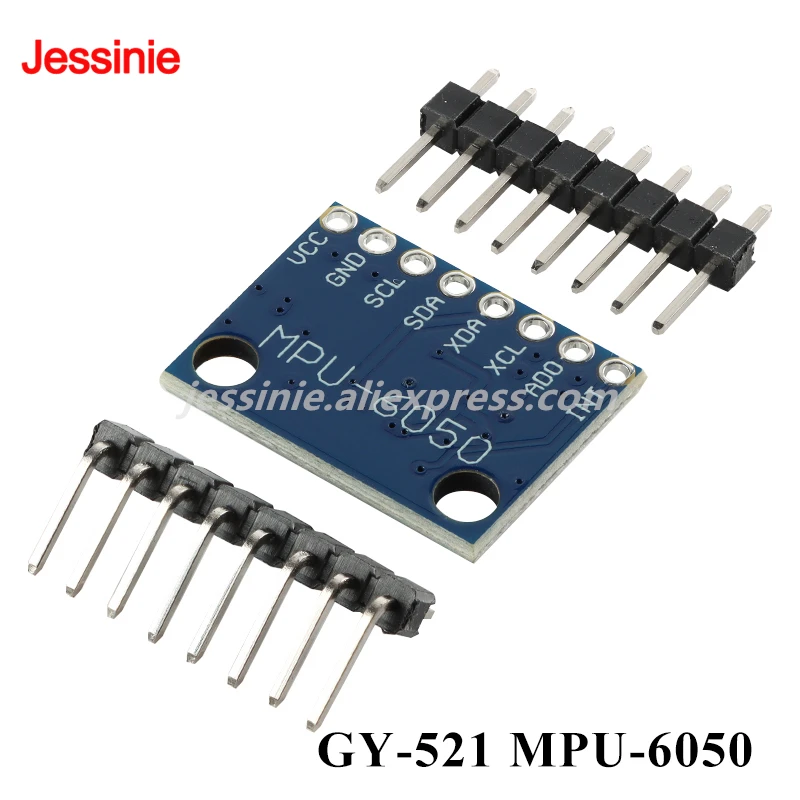

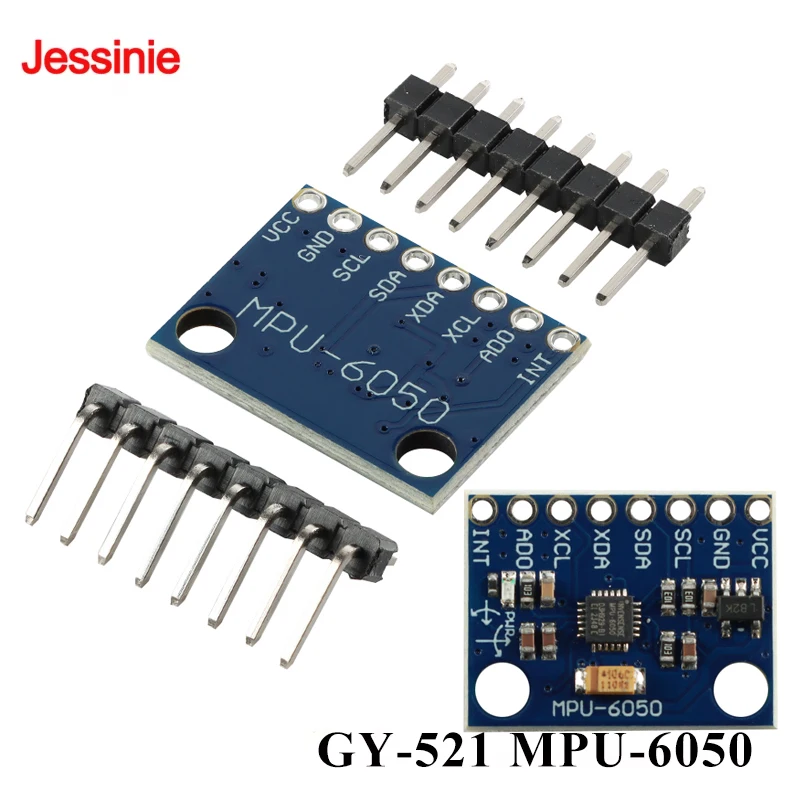

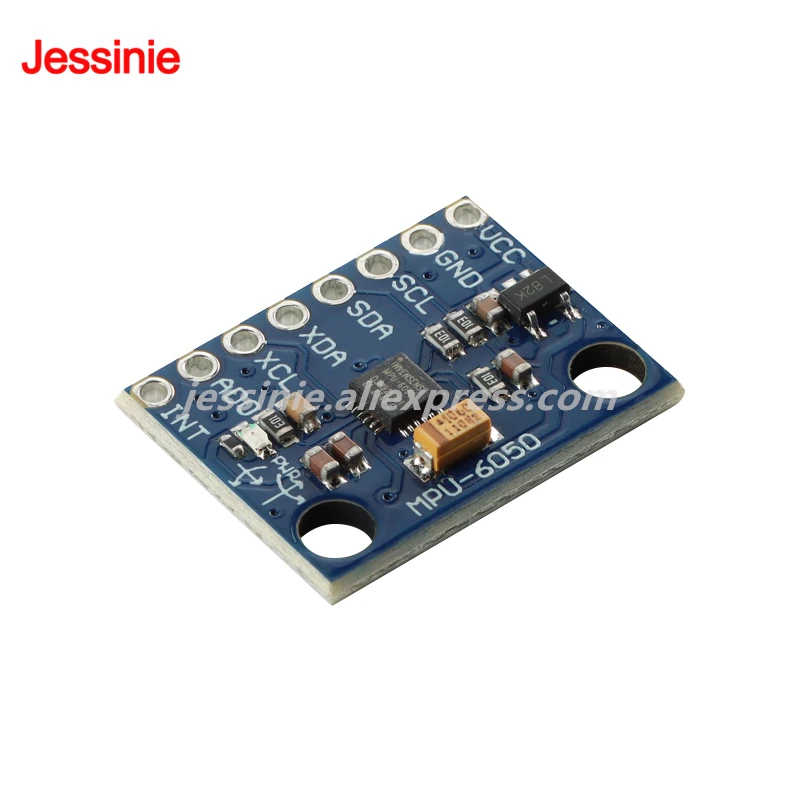

Módulo de MPU-6050 de 5 uds./1 unidad, aceleración de tres ejes + giroscopio de tres ejes, módulo 6DOF GY-521, actitud de seis ejes
1,47 € 1,96 €
Con la garantía de
Selección del modelo
Color
comprobando cupones disponibles...
Some placeholder content for the collapse component. This panel is hidden by default but revealed when the user activates the relevant trigger.
Product Features:
The MPU-60X0 is the world's first 9-axis motion processing sensor. It integrates a 3-axis MEMS gyroscope, a 3-axis MEMS accelerometer, and an expandable Digital Motion Processor (DMP). It can connect to third-party digital sensors, such as a magnetometer, via an I2C interface. This expansion allows for 9-axis signal output via I2C or SPI (SPI is only available on the MPU-6000). The MPU-60X0 can also connect to non-inertial digital sensors, such as pressure sensors, via its I2C interface.
The MPU-60X0 uses three 16-bit ADCs for the gyroscope and accelerometer, respectively, to convert analog measurements into outputtable digital values. To accurately track both fast and slow motion, the sensor's measurement range is user-controllable: the gyroscope's range is ±250, ±500, ±1000, and ±2000 decibels per second (dps), while the accelerometer's range is ±2, ±4, ±8, and ±16g.
An on-chip 1024-byte FIFO helps reduce system power consumption. Communication with all device registers utilizes a 400kHz I2C interface or a 1MHz SPI interface (SPI is only available on the MPU-6000). For applications requiring high-speed transmission, a 20MHz SPI interface can be used for register reads and interrupts. Additionally, the chip includes a temperature sensor and an oscillator with ±1% fluctuation under operating conditions.
Product Details:
Operating Voltage: DC 3-5V
Communication Interface: I2C/SPI
Gyroscope Measurable Ranges: ±250, ±500, ±1000, ±2000°/second
Accelerometer Measurable Ranges: ±2g, ±4g, ±8g, ±16g

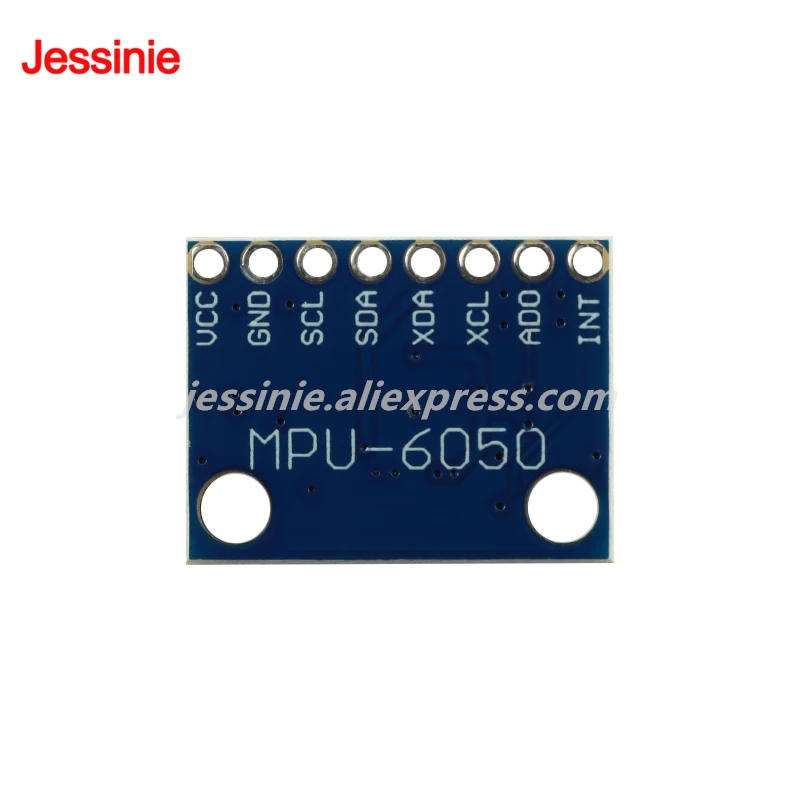

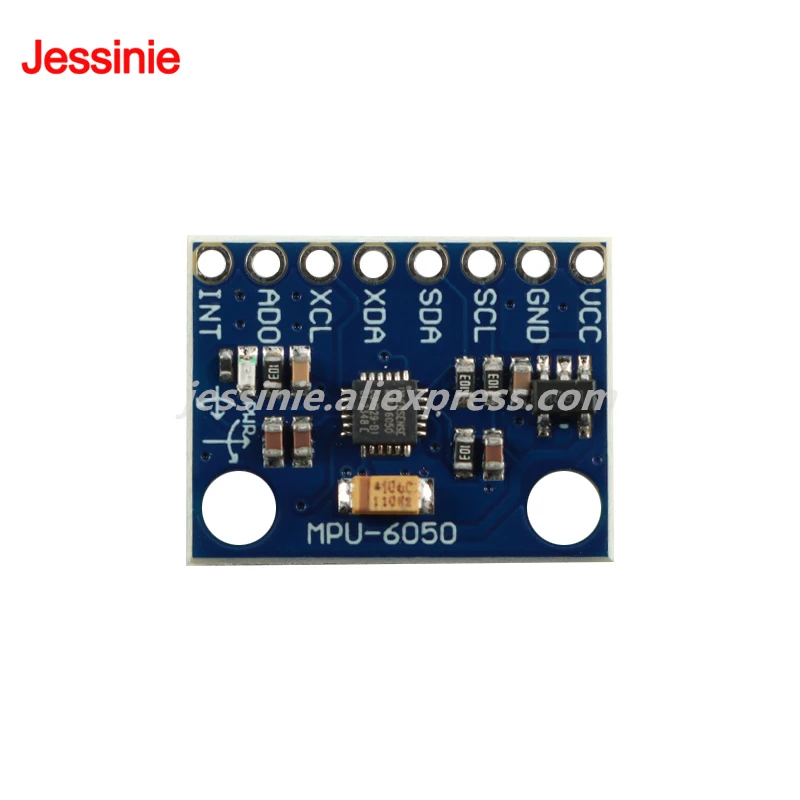

Pin Description:
VCC: Positive Power Supply
GND: Ground
SCL: I2C Serial Clock Line/SPI Serial Clock Port
SDA: I2C Serial Data Line/SPI Serial Data Input
XDA: Host Data Port Connecting to Other I2C Devices
XCL: Provides Master Clock for I2C Devices
AD0: I2C Device Address Select Bit/SPI Serial Data Output
INT: Interrupt Pin
The MPU-60X0 is the world's first 9-axis motion processing sensor. It integrates a 3-axis MEMS gyroscope, a 3-axis MEMS accelerometer, and an expandable Digital Motion Processor (DMP). It can connect to third-party digital sensors, such as a magnetometer, via an I2C interface. This expansion allows for 9-axis signal output via I2C or SPI (SPI is only available on the MPU-6000). The MPU-60X0 can also connect to non-inertial digital sensors, such as pressure sensors, via its I2C interface.
The MPU-60X0 uses three 16-bit ADCs for the gyroscope and accelerometer, respectively, to convert analog measurements into outputtable digital values. To accurately track both fast and slow motion, the sensor's measurement range is user-controllable: the gyroscope's range is ±250, ±500, ±1000, and ±2000 decibels per second (dps), while the accelerometer's range is ±2, ±4, ±8, and ±16g.
An on-chip 1024-byte FIFO helps reduce system power consumption. Communication with all device registers utilizes a 400kHz I2C interface or a 1MHz SPI interface (SPI is only available on the MPU-6000). For applications requiring high-speed transmission, a 20MHz SPI interface can be used for register reads and interrupts. Additionally, the chip includes a temperature sensor and an oscillator with ±1% fluctuation under operating conditions.
Product Details:
Operating Voltage: DC 3-5V
Communication Interface: I2C/SPI
Gyroscope Measurable Ranges: ±250, ±500, ±1000, ±2000°/second
Accelerometer Measurable Ranges: ±2g, ±4g, ±8g, ±16g
Pin Description:
VCC: Positive Power Supply
GND: Ground
SCL: I2C Serial Clock Line/SPI Serial Clock Port
SDA: I2C Serial Data Line/SPI Serial Data Input
XDA: Host Data Port Connecting to Other I2C Devices
XCL: Provides Master Clock for I2C Devices
AD0: I2C Device Address Select Bit/SPI Serial Data Output
INT: Interrupt Pin
Comprar Módulo de MPU-6050 de 5 uds./1 unidad, aceleración de tres ejes + giroscopio de tres ejes, módulo 6DOF GY-521, actitud de seis ejes
Opiniones de clientes que compraron este producto
J***a BR
10/30/2025
Compré 30 piezas, llegaron intactas. Abrí 5 paquetes para probarlas y ninguna funcionó, lo que indica que todo el lote no va a funcionar. ¡Cero control de calidad!
Variante: Color:5PCS
