Módulo humidificador atomizador ultrasónico tipo C, accesorios de pulverización, Kit de humidificación DIY, soporte amarillo, atomizador, 1-3 uds.

Features:
1. Using FR-4 epoxy board material, original electronic components, reasonable circuit board design, and long service life.
2. Upgrade the TYPE-C interface, with strong versatility, high fog output, stable performance, simple use, and easy to get started with.
3. It supports continuous spray mode and intermittent spray mode, and can be switched at will to meet different functional requirements.
4. The chip has an automatic timed shutdown function, which will automatically shut down for protection after working continuously for 4 hours. If you need to restart, press the power button again.
5. Micron atomization, which atomizes water into delicate 4-6 micron water molecules through micropores, dispersing them into the air.

Parameter:

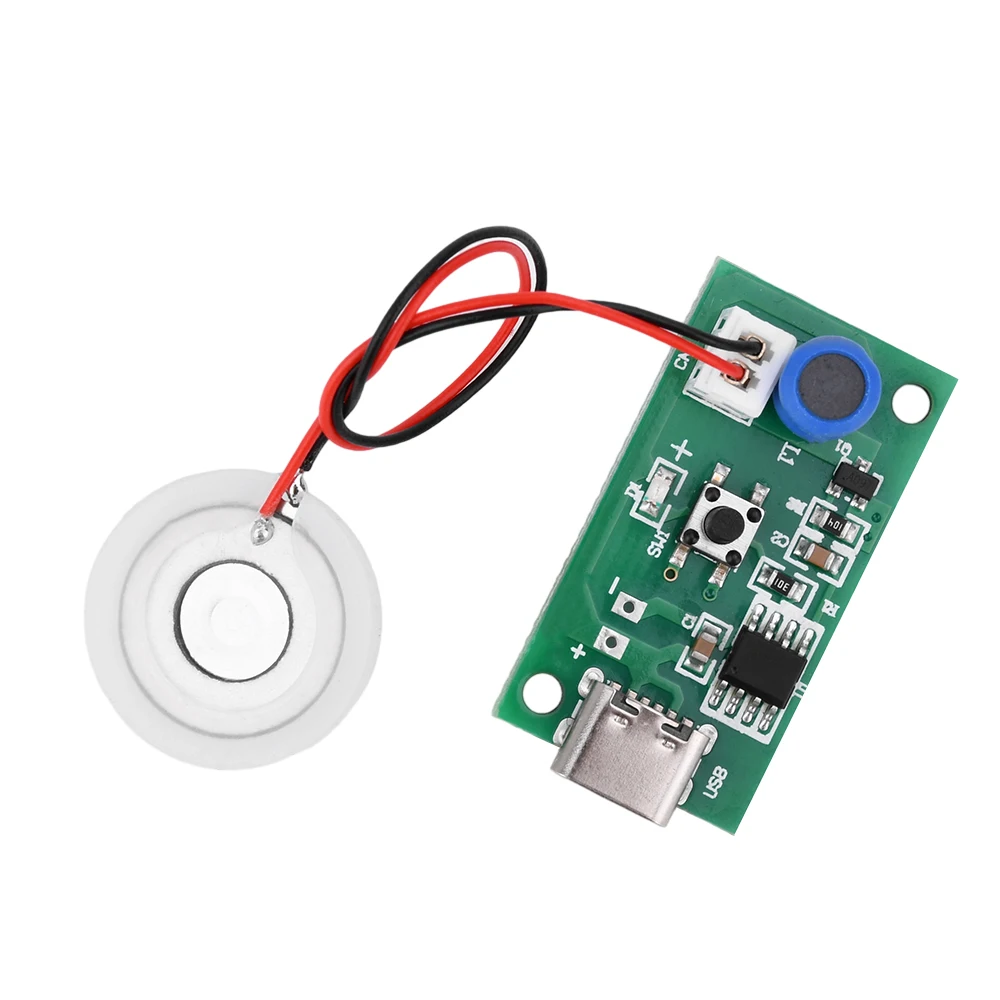

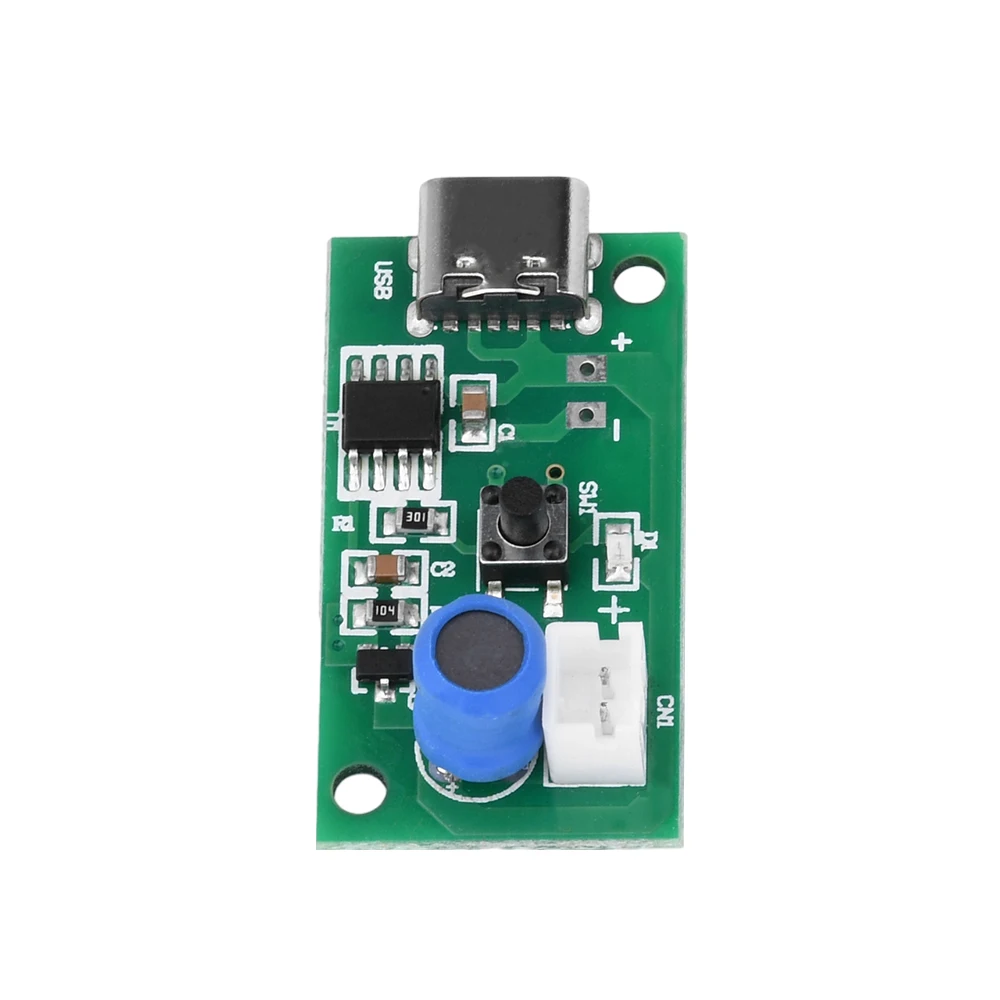

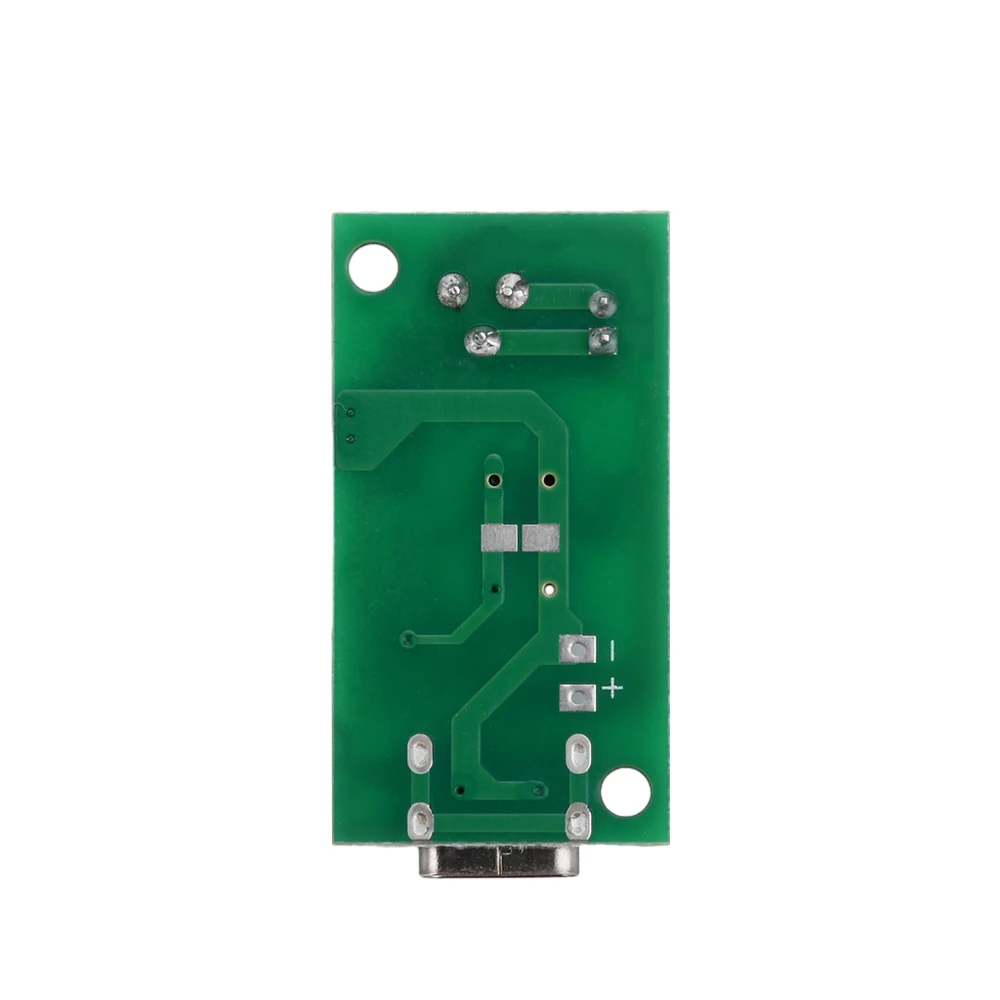

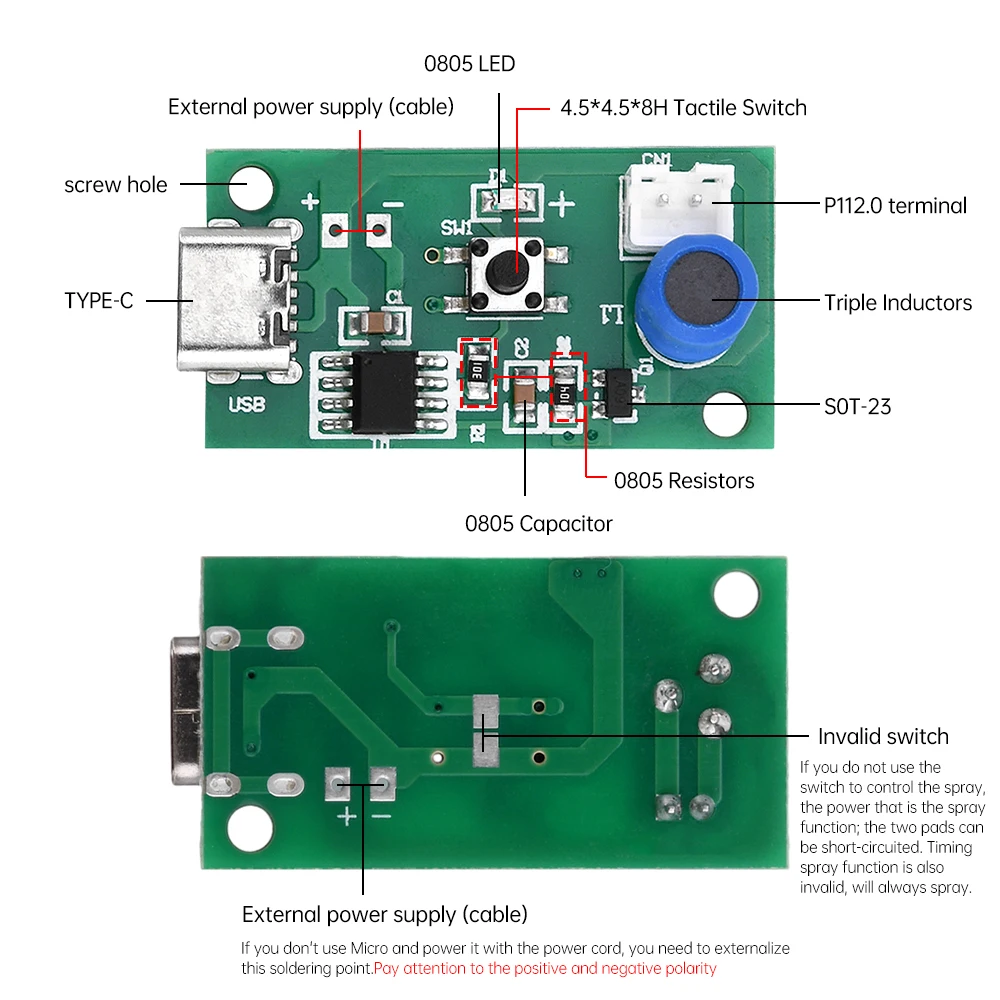

Driver circuit board:
Material: 1.2mm FR-4
Rated voltage: DC 5V
Rated current: 300mA
Power: 1.5-2W
Resonant frequency: 108-110KHz
Atmosphere lighting: monochromatic lights
Aperture: 2.3mm

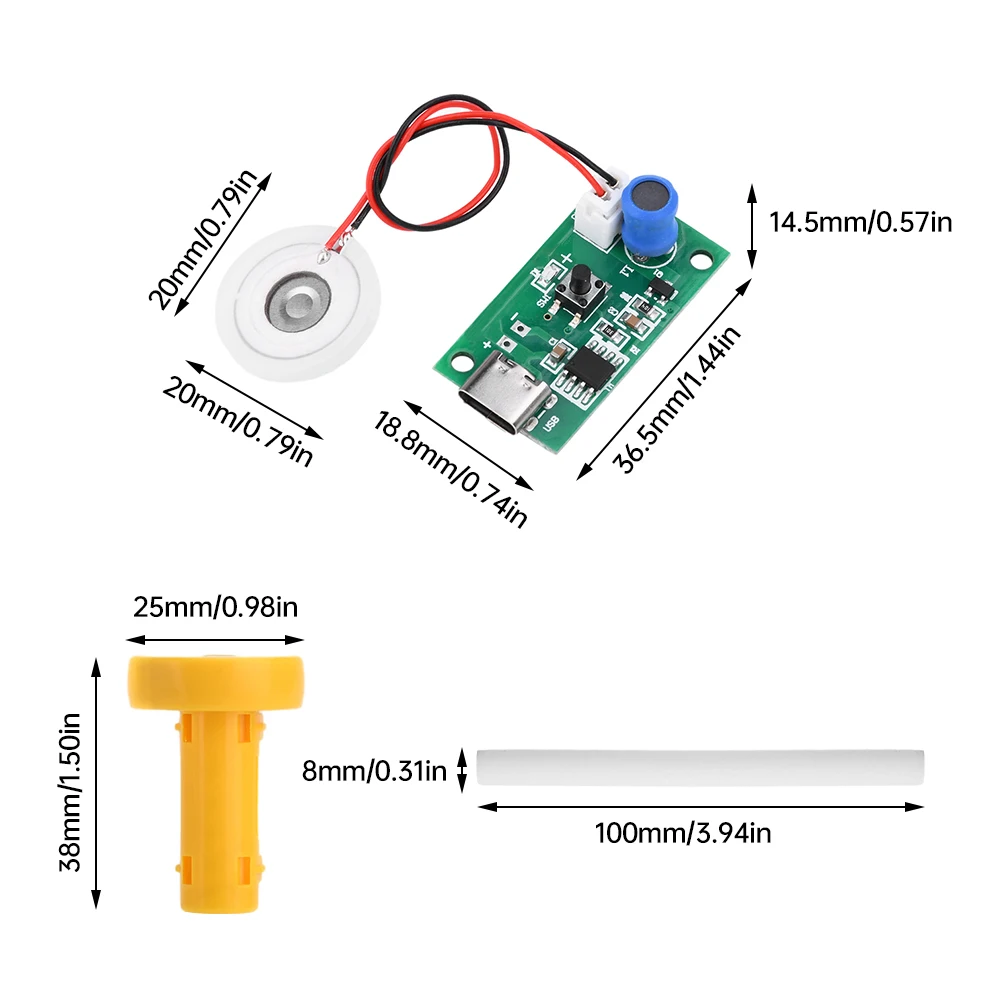

Size: 35 x 19 x 12mm (with slight errors)
Microporous atomization tablets:
Material: Piezoelectric ceramic ring+304 stainless steel plate
Terminal head: PH2.0
Steel plate diameter: 16mm
Outer diameter of silicone ring: 20mm, thickness 3.5mm
Wire length: 10mm
Voltage: DC 5V,
Current 300mA,
Power 2W,
Resonant frequency: 108-110KHz
Number of holes: 1100 holes
Aperture: 5um
Bracket size: 25mm x 38mm (with slight errors)
Cotton swab size: 8mm x 100mm (there may be slight errors)


Product Description:
The micro porous atomization sheet is coated with a special glaze layer protective layer on the surface of the ceramic sheet, which is acid and alkali resistant and prevents the silver layer from being corroded and oxidized by liquid.

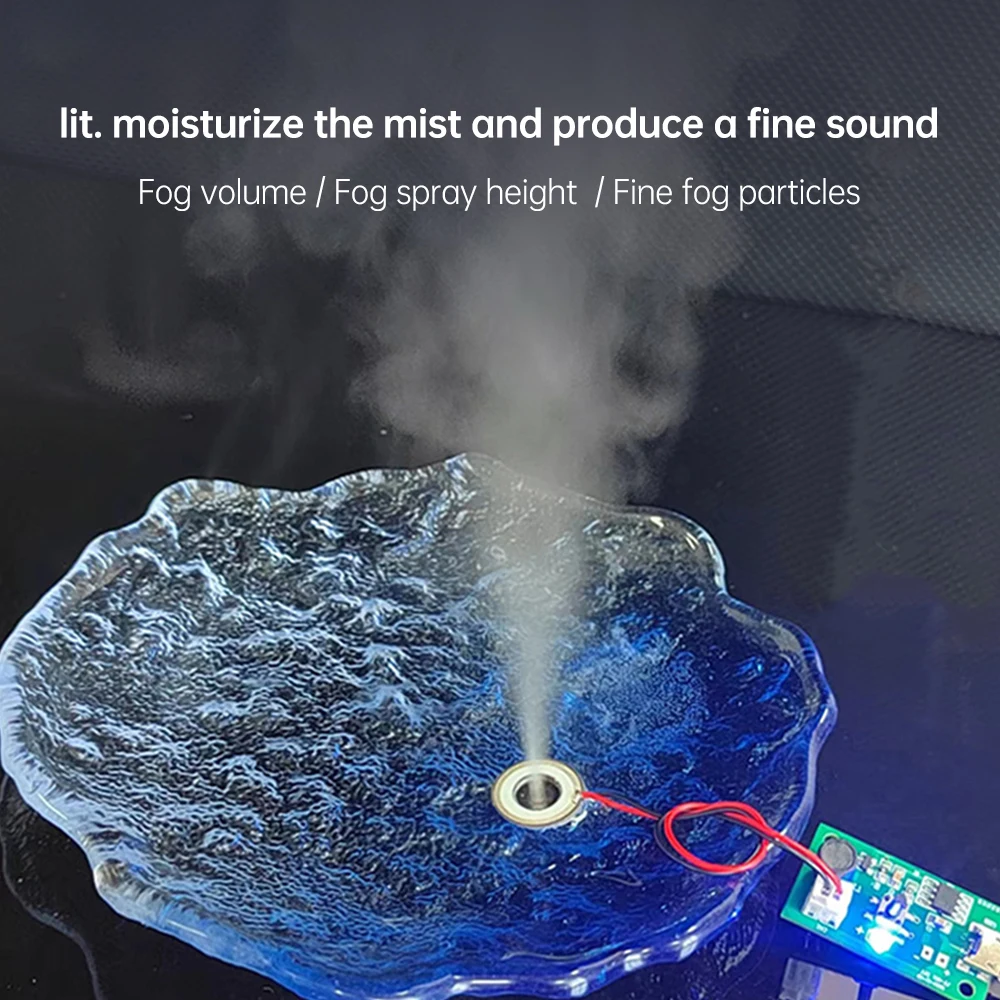

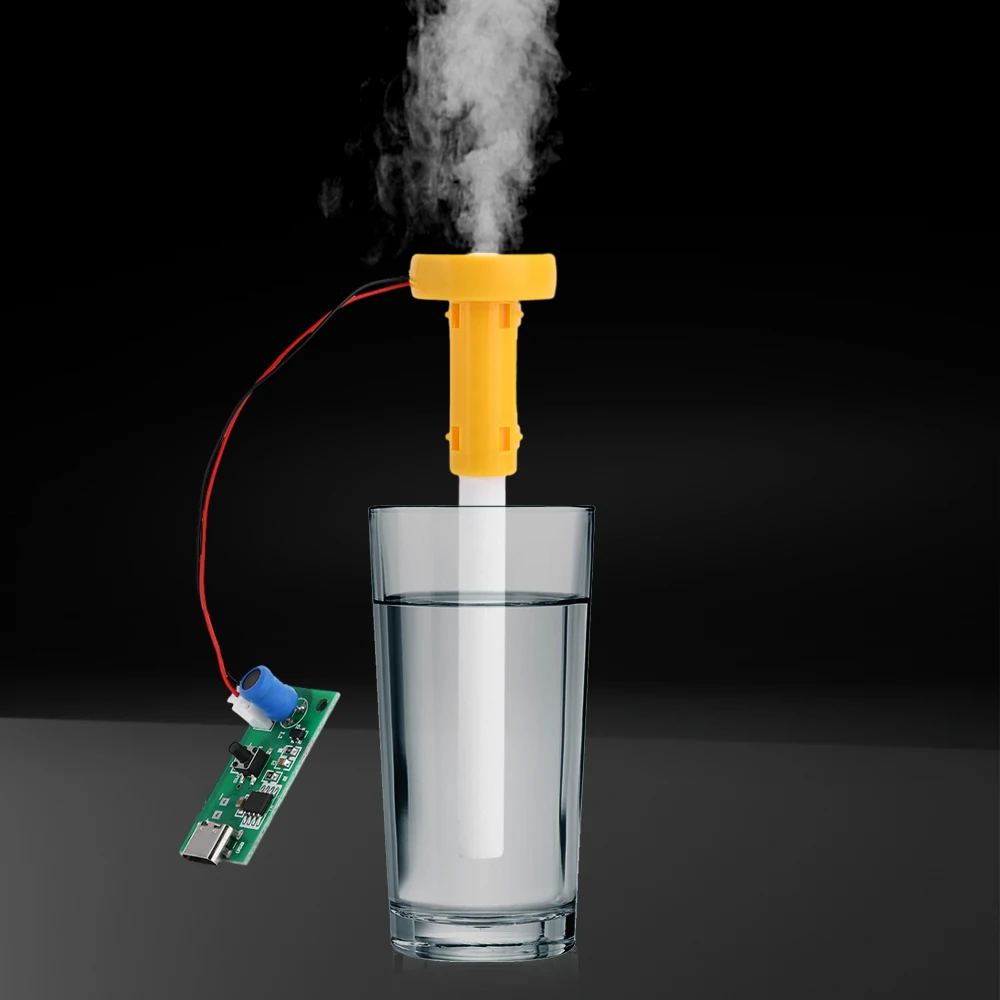

Microporous atomization sheet is composed of a piezoelectric ceramic ring and a metal steel sheet. By driving the circuit board to output PWM pulse width modulation, the piezoelectric ceramic generates hundreds of thousands of high-frequency resonances per second, driving the vibration of the metal sheet. Spray water from thousands of micropores in metal steel sheets to form 4-6 micrometer water molecules, which disperse the structure of liquid water molecules and produce water mist.


Spray mode:
1. Continuous spray mode: press the switch for the first time, the LED light is always on, continuous spray mode, continuous spray, spray 4 hours later, automatic shutdown protection.
2. Intermittent spray mode: press the switch for the second time, the LED light flashes, intermittent spray mode, spray for 10 seconds, stop spraying for 5 seconds, cycle in sequence, spray for 12 hours, automatic shutdown protection.
3. Shutdown: Press the switch for the third time to shut down.

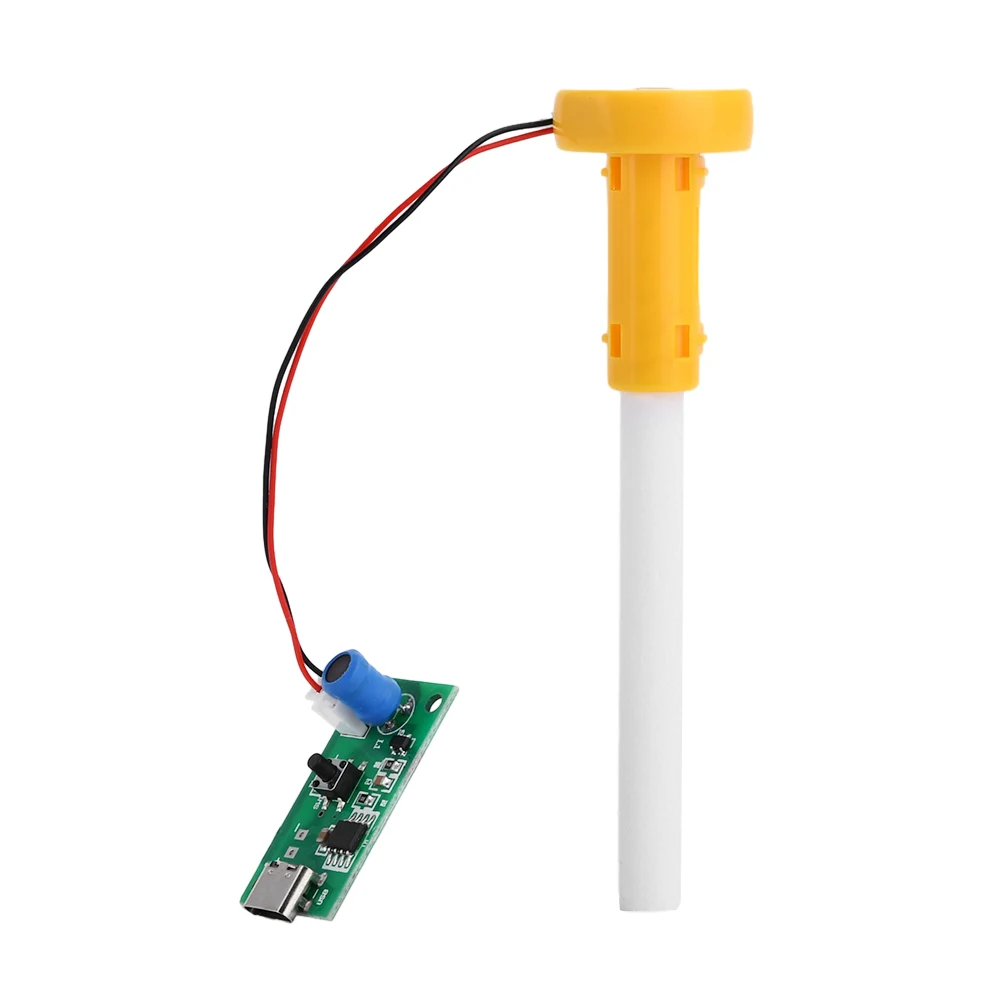

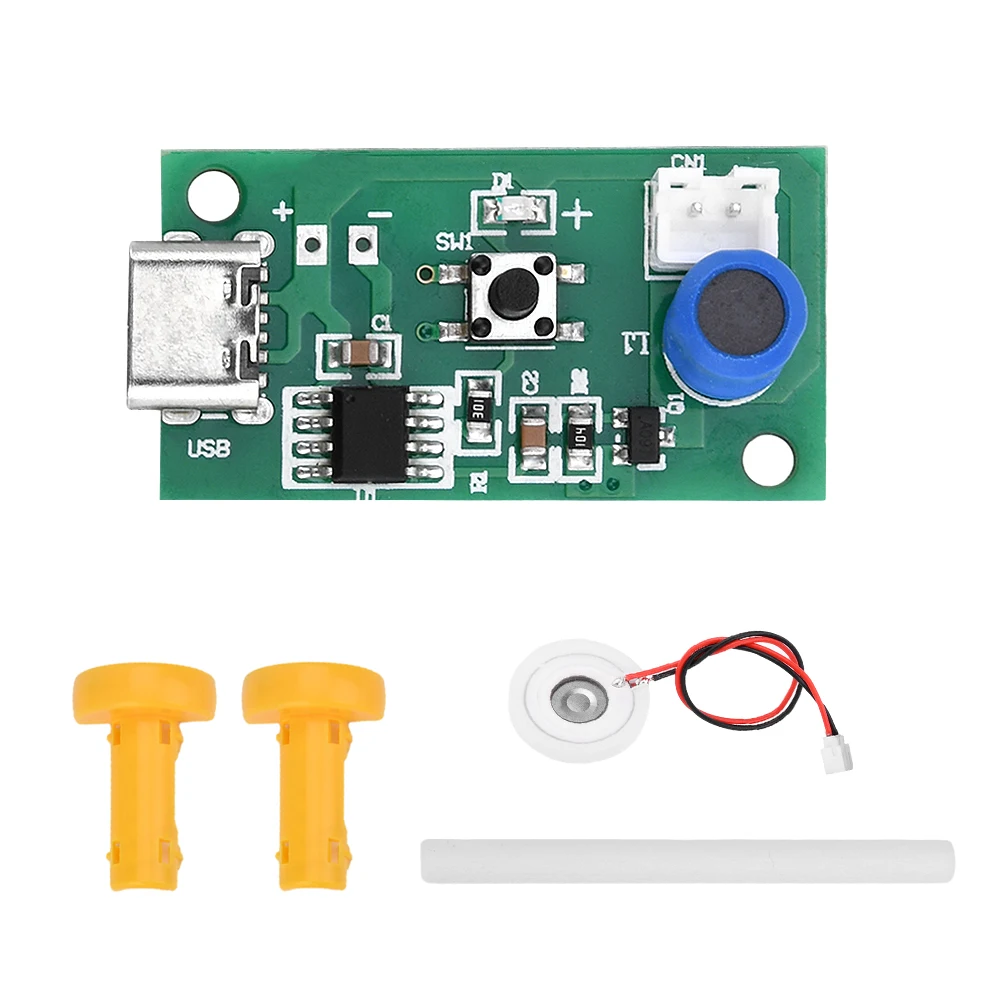

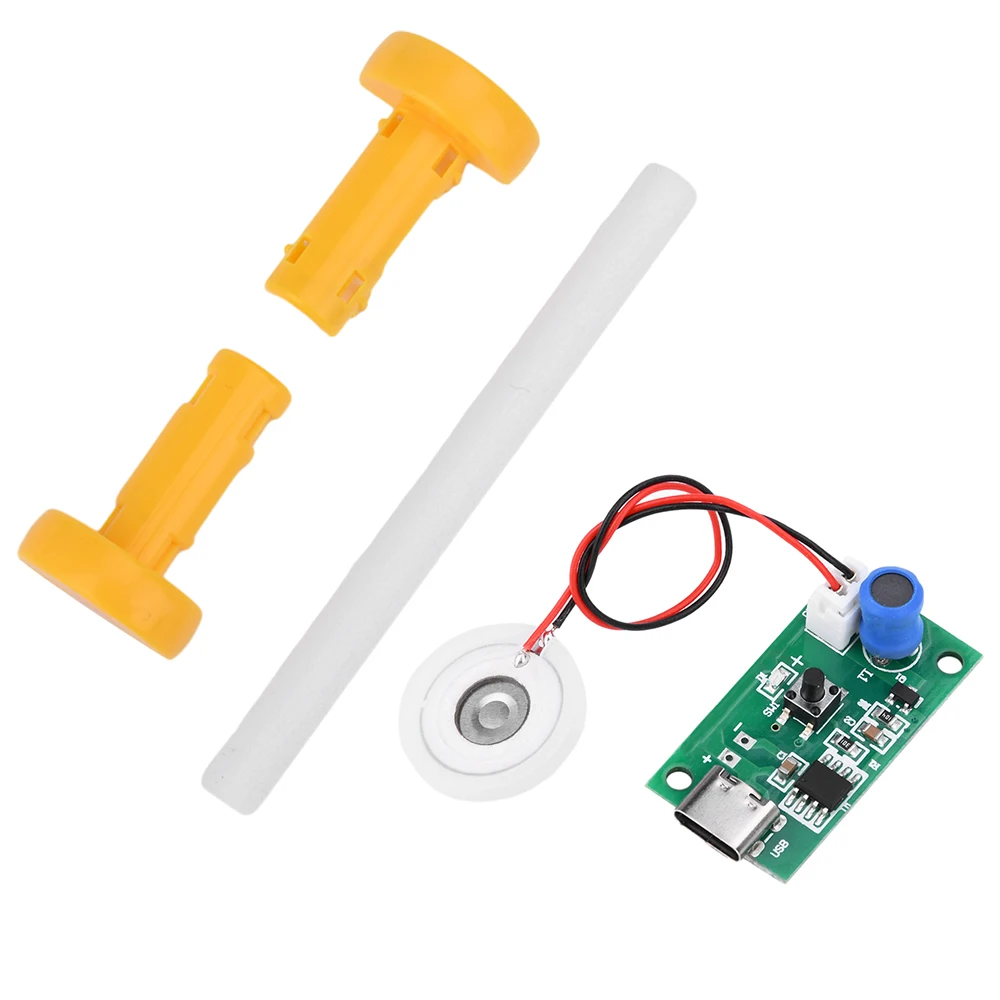

Package include:
Circuit board X1
Nebulizer X1
Support X1
Absorbent cotton core X1

Notes:
1. It is not allowed to modify the circuit board without authorization
2. Do not overload the input power supply
3. The circuit board should not be exposed to water or moisture
4. Must be used in conjunction with the same frequency atomizer
5. There may be differences in color due to batch issues with components. Please do not take photos if you mind
