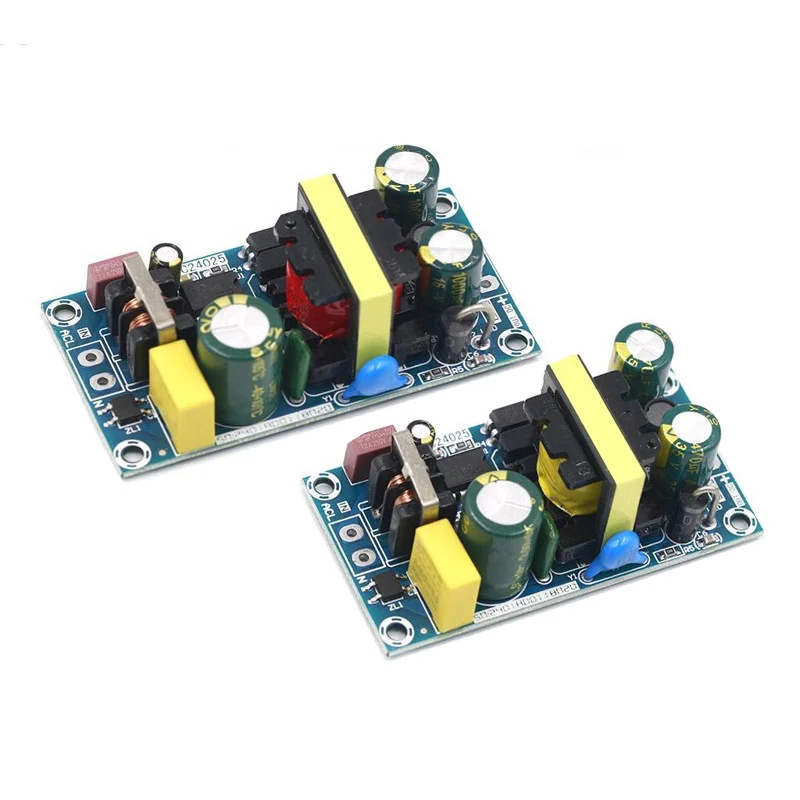

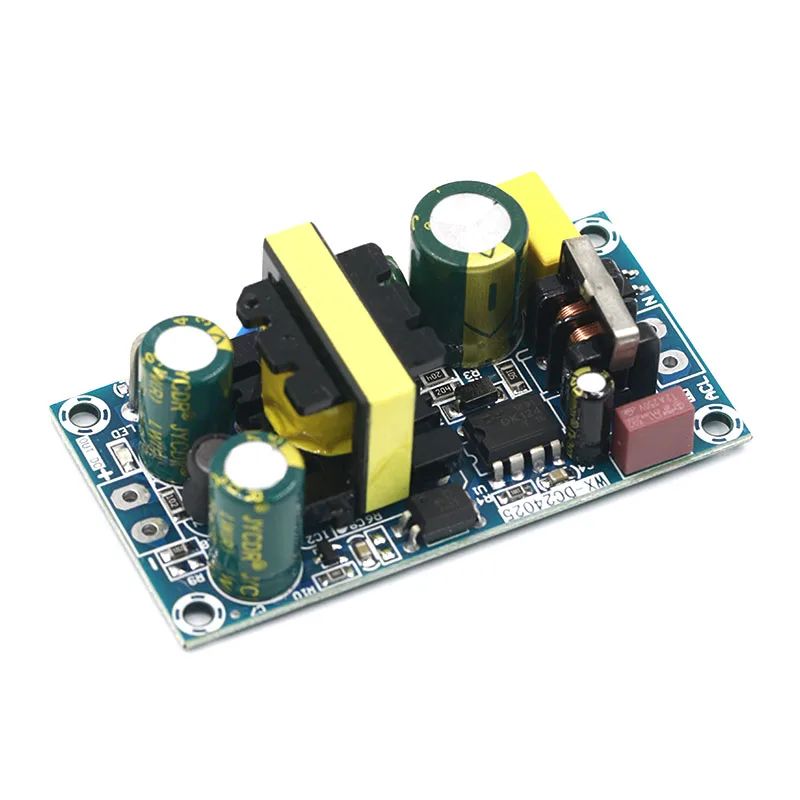

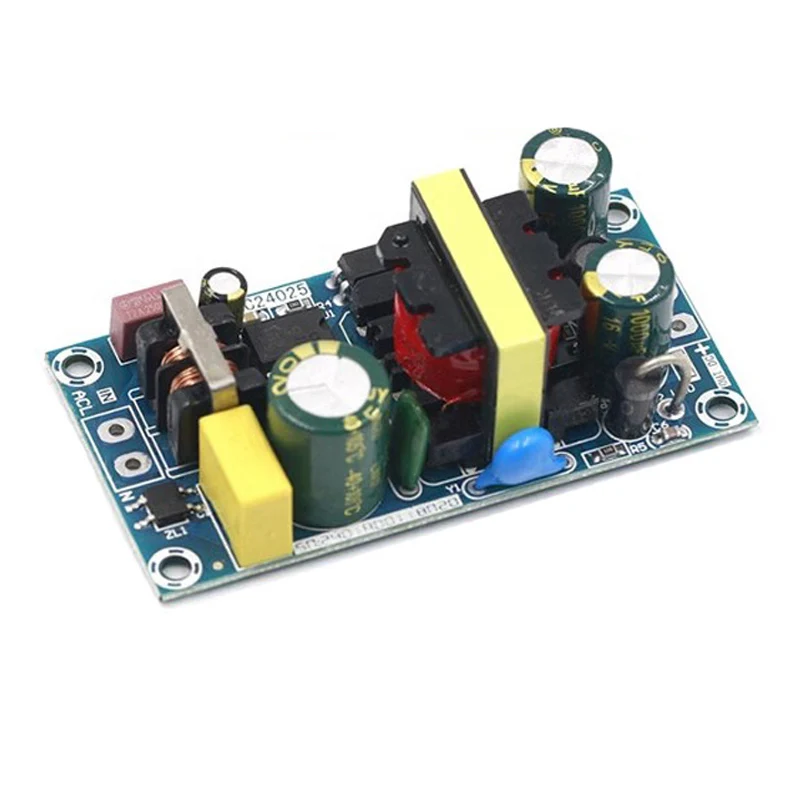

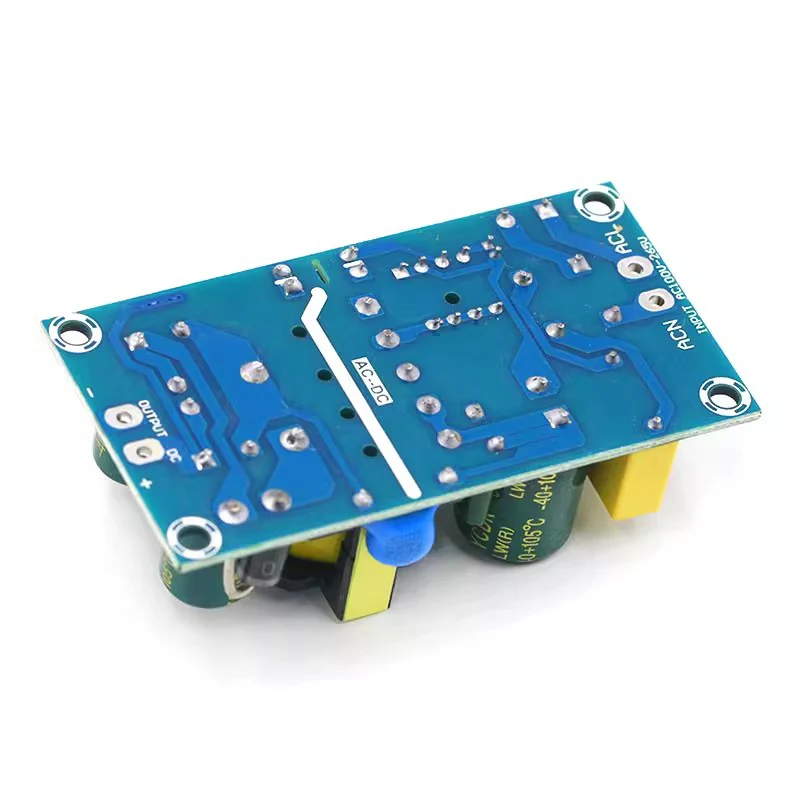

Módulo de fuente de alimentación conmutada AC-DC 12V2A 24W circuito desnudo 100-265V a 12V 2A placa para reemplazar/reparar 24V1A

Product Parameter
Product name : switching power supply board
Power protection : overload , short circuit . over temperature protection
Voltage input : AC100-265V
Frequency input : 50HZ-60HX
Output voltage : 24V version DC 24V,12V version DC 12V
Output current : 24V version rated 1A ( peak 1.5A protection )
12V version rated 1A ( peak 2A )
Output power : 24V version 24W
12V version 12W

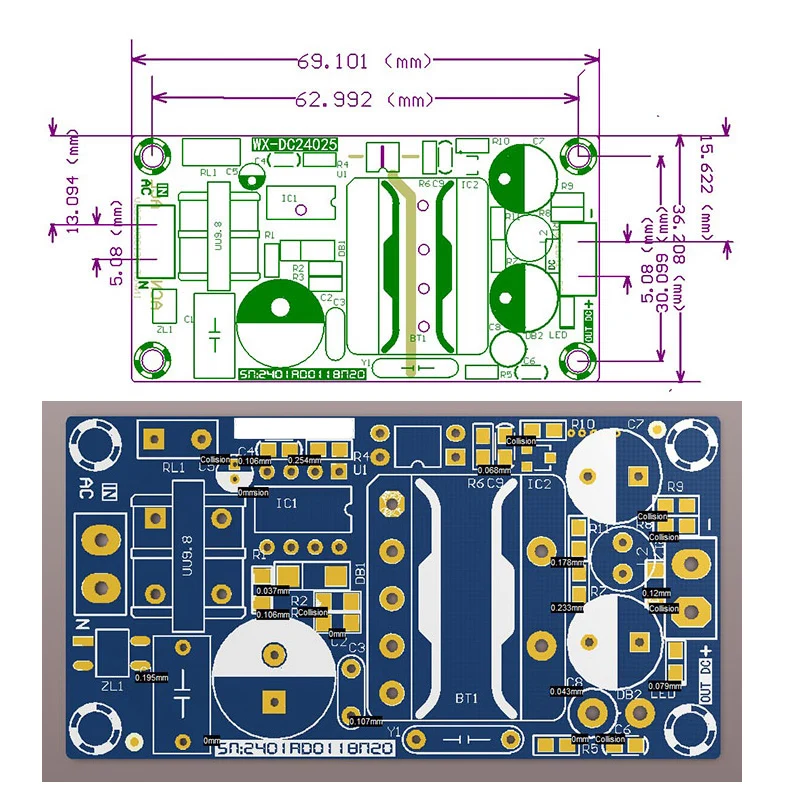

Module size : 69 * 36 * 25mm

Product Description
1. The product is easy to install, and the input and output can be welded with 5.08 terminals or pins.
2. Onboard M3 fixing holes can be fixed with screws to prevent movement or Vibration.
3. Universal input voltage AC100-265V, strong versatility.
4. High efficiency, strong design density; small size, convenient for your installation.
5. High isolation between input and output, low output ripple.
6. Overload, short circuit and over temperature protection.
