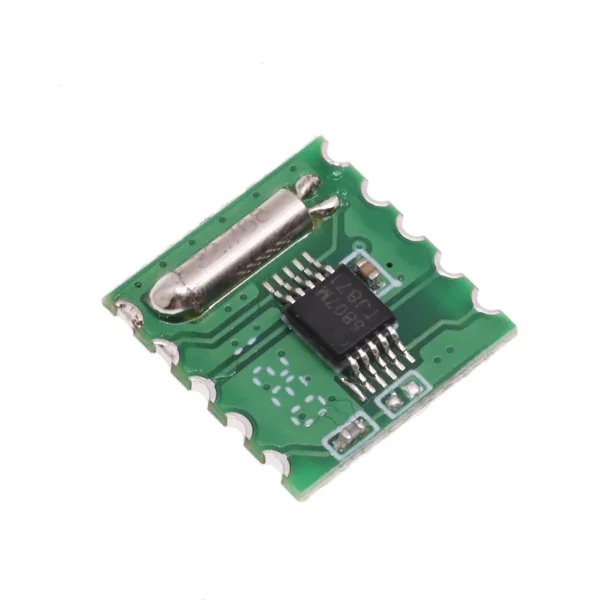

Módulo FM RDA5807M RRD102 V2.0 Módulo de radio estéreo

Data download link:

http://pan.baidu.com/share/link?shareid=1476768211&uk=2302102993

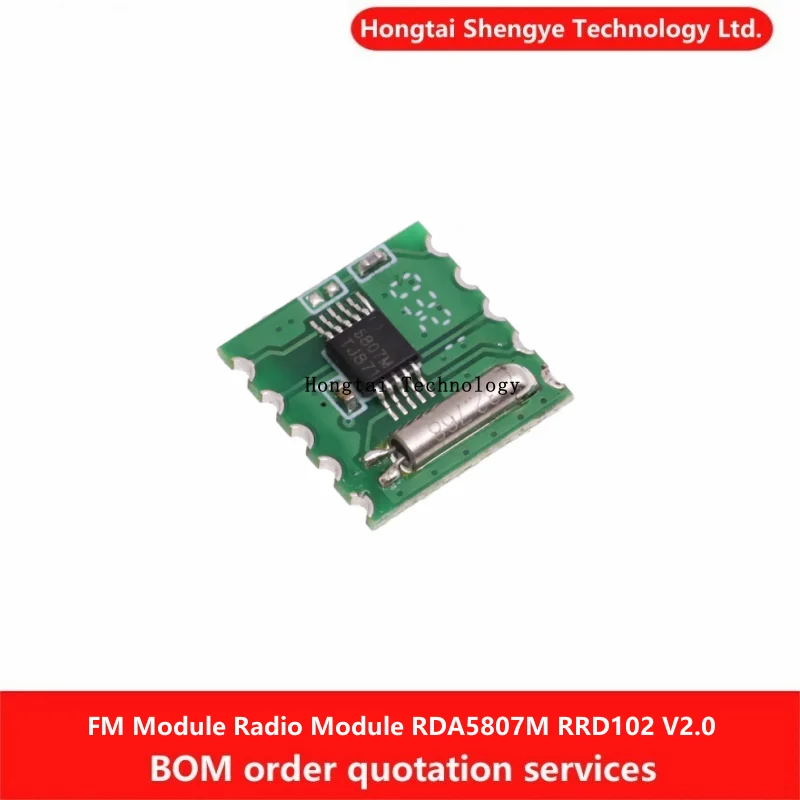

I. Product Overview:

"RRD-102V2.0" Stereo Radio Module (FM Stereo radio Module) High sensitivity, low power consumption, ultra-small size of the FM stereo radio module. Adopting RDA Microelectronics' RDA5807M (or RDA5802NM), this circuit has fewer peripheral components and extremely small noise figure. It has the advantages of small size, low power consumption, low cost, simple application and wide range of use. It is an easy-to-use and cost-effective single-chip FM stereo radio module.

A: Mobile DVD, TV, MP3, MP4 and other built-in FM full-band wireless receiver module.

B: industrial and mining, enterprises, campuses, neighborhoods, tourist areas and other public places stereo FM radio system.

C: wireless audio and wireless stereo headset function.

D: GPS navigation, TV broadcasting system and other wireless FM radio.

E: game consoles and wireless audio electronic toys.

F: Mobile phone, cell phone, intercom system, mobile radio device and other stereo radio.

G: PDAS and Notebook PC and other peripheral applications.

II. Functional features:

A, the use of universal 102BC module package, users can directly replace the use, without changing the circuit design.

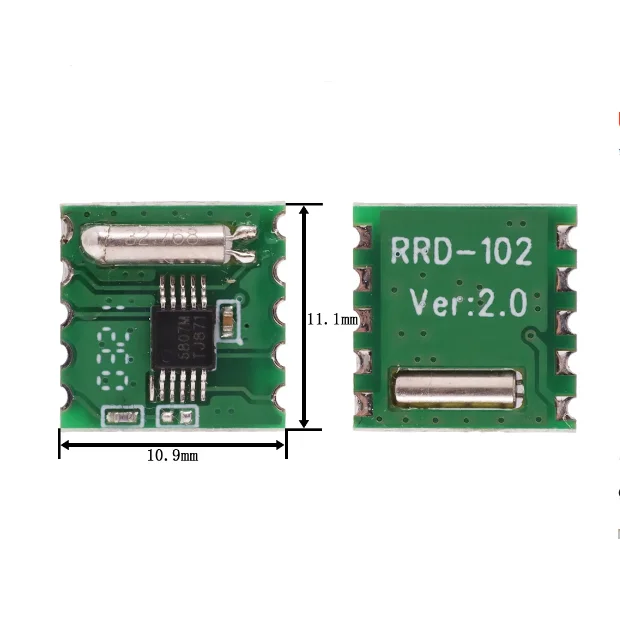

B, high sensitivity, low noise, strong anti-interference ability, very few external components, small size (11 * 11.2MM Max), extremely simple to use.

C. 76-108MHz global FM band compatible (including Japan 76-91MHz and Europe and the United States 87.5-108.5MHz).

D. I2C serial data bus interface communication, support for external reference clock input.

E. Fully integrated COMS process single-chip IC, very low power consumption.

F, built-in high-precision A/D (analog-to-digital converter) and digital frequency synthesizer.

G, built-in LDO adjustment, low power consumption, ultra-wide voltage range (2.7-3.6VDC).

H, built-in noise cancellation, soft mute, bass enhancement circuit design.

I, high-power 32Ω load audio output, direct headphone barge, without external audio driver amplification.

J, easy to apply, low cost, cost-effective.
