Outline

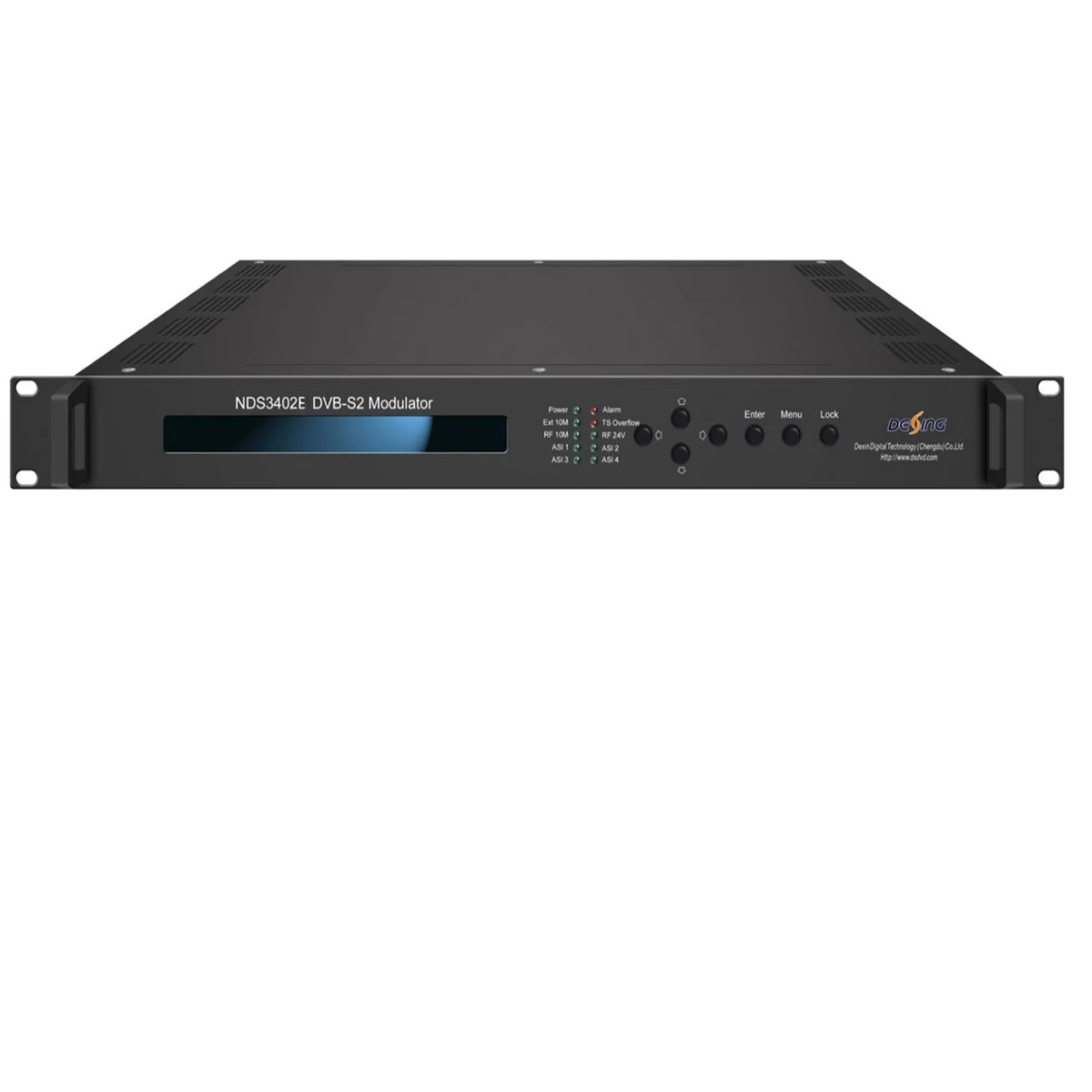

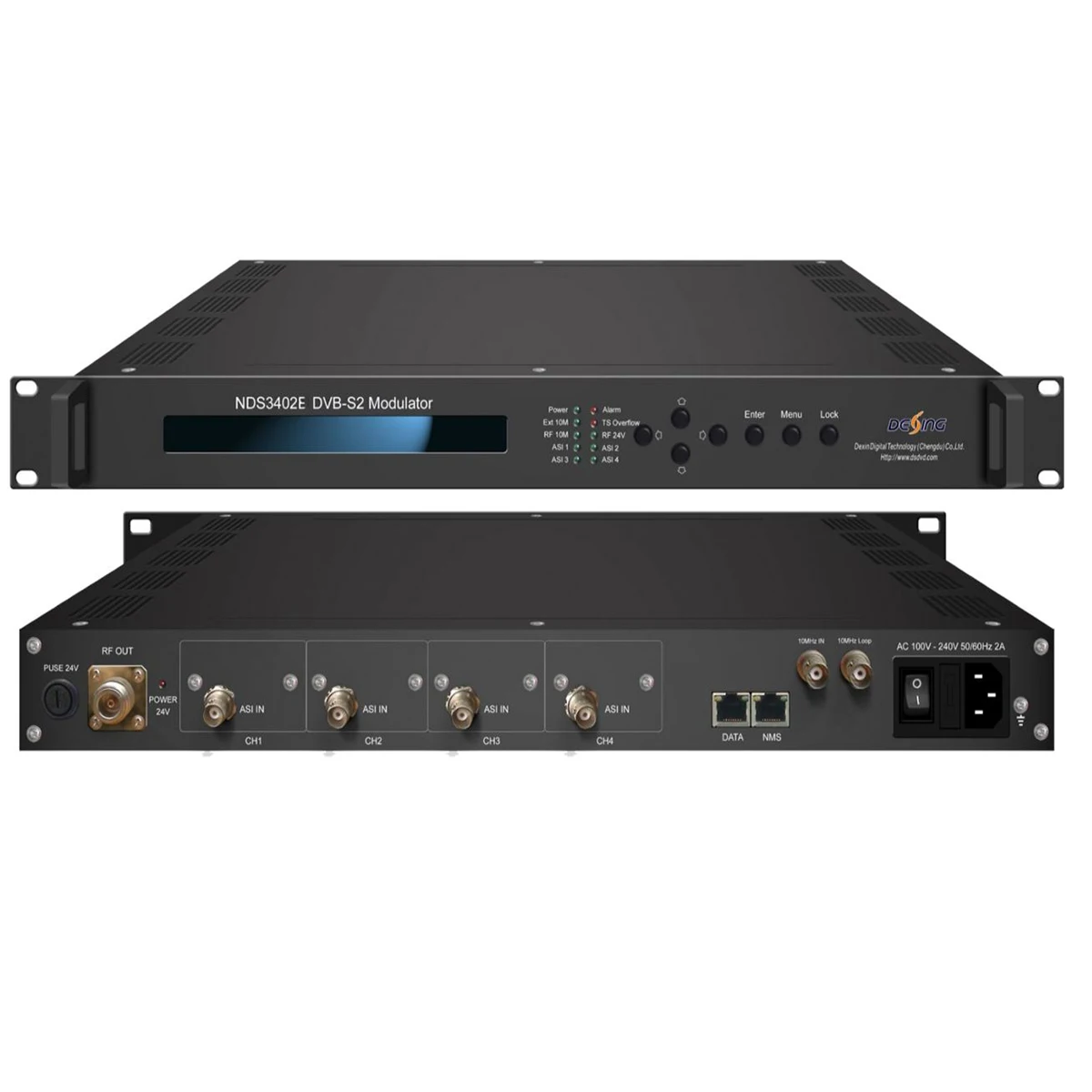

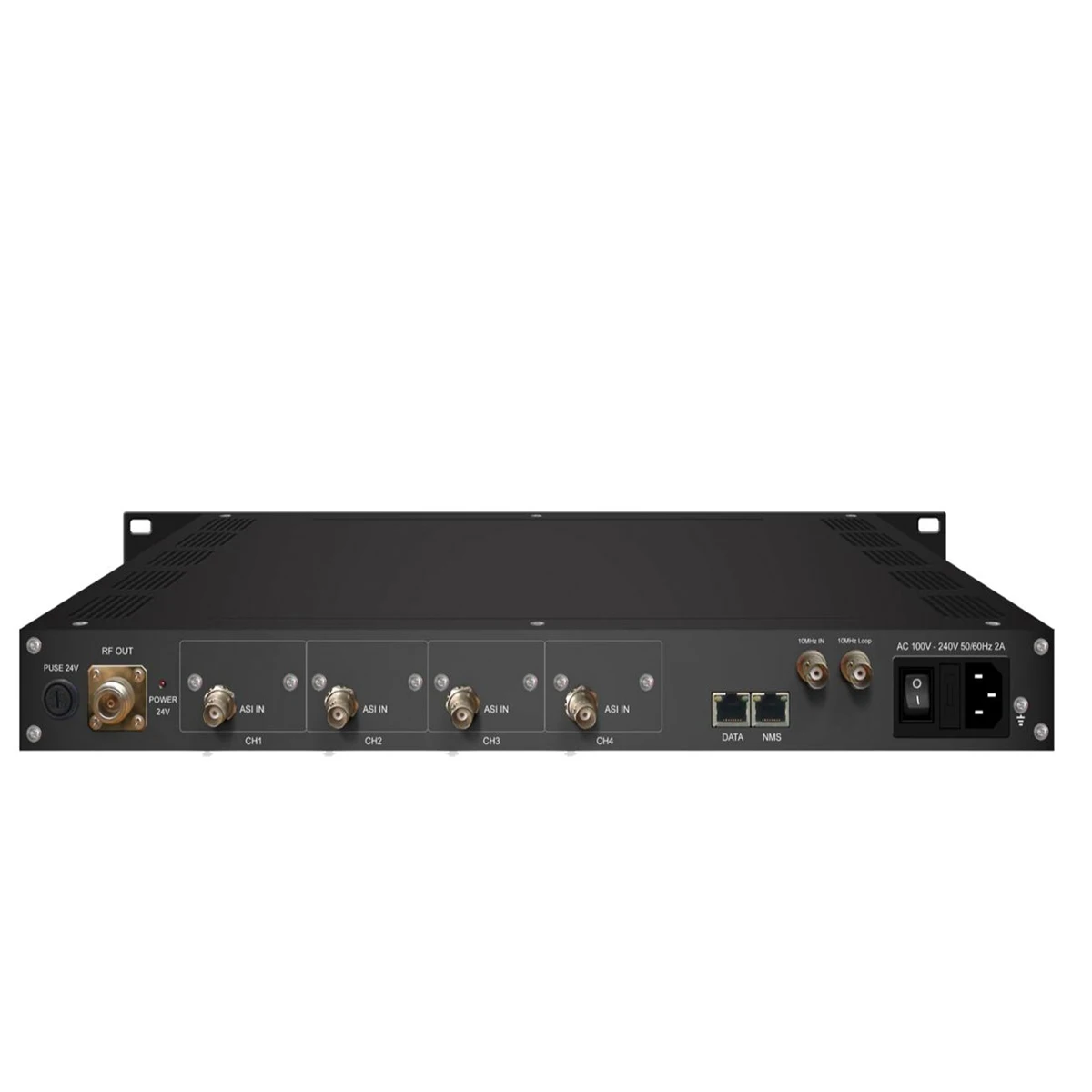

NDS3402E is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input satellite signal and/or ASI and IP streams into digital DVB-S/S2 RF output.
BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with Web-server NMS software and LCD in the front panel.

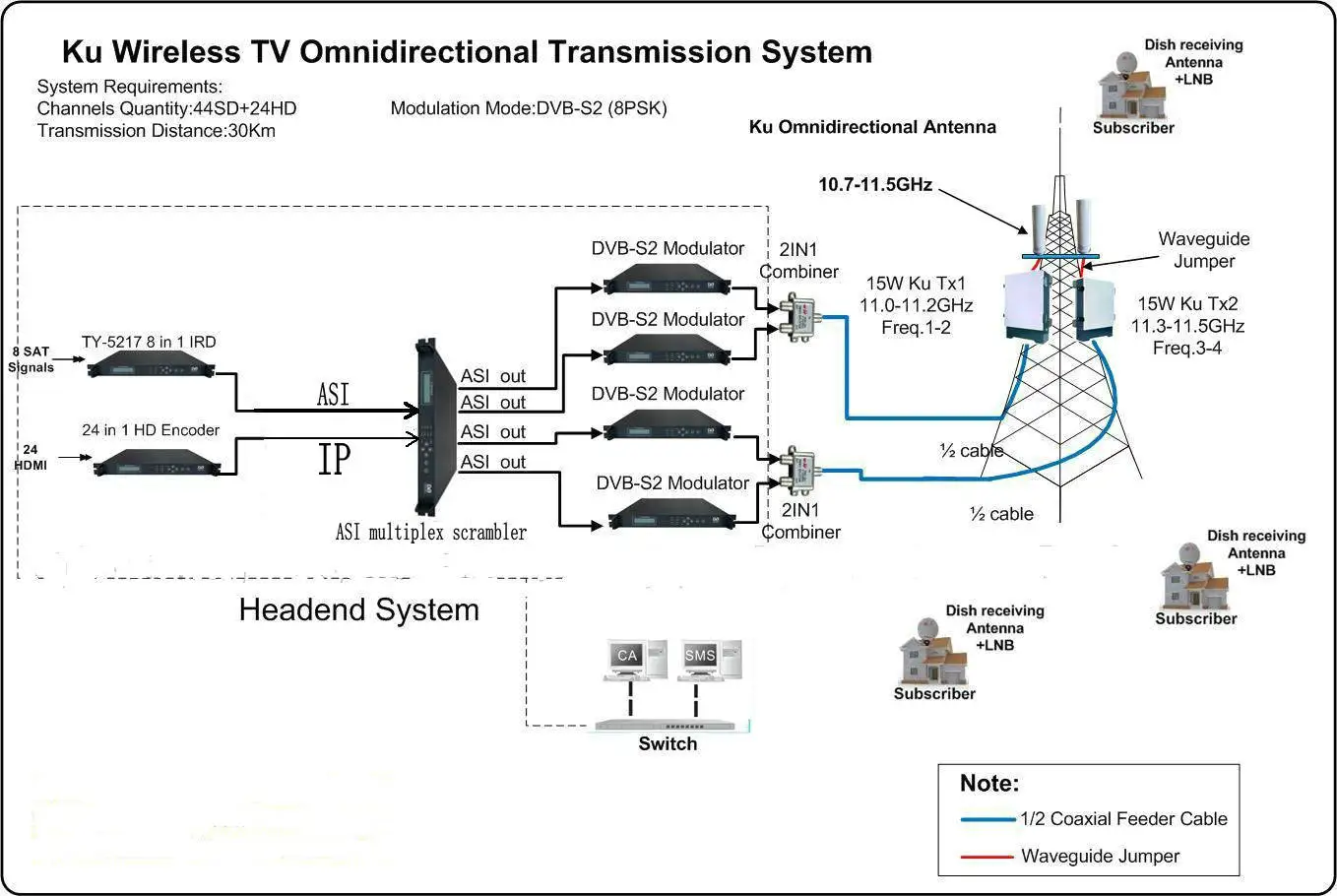

With its high cost-effective design, DEXIN NDS3402E DVB-S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.
Features
* Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard
* ASI and/or DVB-S2 inputs for re-mux or pass through (4 ports for ASI and S2 tuner input combination)
* Support IP (1000/100M) signal input for re-mux or pass through
* Support Multiplexing and PSI/SI edit
* QPSK, 8PSK, 16APSK, 32APSK Constellations
* Support RF CID setting (Optional as per order)
* Constant temperature crystal oscillator, as high as 0.1ppm stability
* Support 24V power output through RF output port
* Support BISS scrambling
* Support SFN TS transmission
* Output frequency range: 950~2150MHz, 10KHz stepping
* Support local and remote control with Web-server NMS
Specifications
IP Input
1*IP Input (RJ45, 1000/100M TS Over UDP)
ASI Input
Supporting both188/204 Byte Packet TS Input
1-4 ASI Inputs (Connector: BNC, Impedance 75 )
Tuner Input
(0-4 inputs optional)
DVB-S
Input Frequency
950~2150MHz
Symbol rate
0.5~45Msps
Signal Strength
- 65- -25dBm
FEC
1/2, 2/3, 3/4, 5/6, 7/8
Constellation
QPSK
Max input bitrate
160 Mbps
DVB-S2
Input Frequency
950~2150MHz
Symbol rate
QPSK/8PSK /16APSK :0.5~45 Msps
32APSK: 0.5~40Msps
FEC
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
Constellation
QPSK, 8PSK, 16APSK, 32APSK
Max input bitrate
160 Mbps
DVB-S2X
Input Frequency
950~2150MHz
Symbol rate
QPSK/8PSK /16APSK :0.5~45 Msps
8APSK/32APSK: 0.5~40Msps
FEC
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
Constellation
QPSK/8PSK/8APSK/16APSK/32APSK
Max input bitrate
160 Mbps
Multiplexing
Maximum PID Remapping
128 input per channel
Function
PID remapping (automatically or manually)
Accurate PCR adjusting
Edit PSI/SI tables (PAT/PMT/SDT/CAT/NIT)
10MHz Reference Clock
1*External 10MHz Input (BNC Interface); 1*Inner 10MHz Reference clock
RF Output
RF Range: 950 ~ 2150 MHz, 10KHz stepping
Output Level Attenuation -26 ~ 0 dBm 0.5dBm Stepping
MER 40dB
Connector: N type, Impedance 50 ; N to F adapter
Channel Coding and Modulation
Standard
DVB-S
DVB-S2
Outer coding
RS Coding
BCH Coding
Inner coding
Convolution
LDPC Coding
Constellation
QPSK
QPSK,8PSK, 16APSK,32APSK
FEC/ Convolution Rate
1/2, 2/3, 3/4, 5/6, 7/8
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
Roll-off Factor
0.2, 0.25, 0.35
0.2, 0.25, 0.35
Symbol Rate
0.05~45Msps
0.05~40Msps (32APSK);
0.05~45 Msps (16APSK/8PSK/QPSK)
BISS Scramble
Mode 0, mode 1, mode E
System
Web-server NMS
Language: English
Ethernet software upgrade
24V power output through RF output port
Miscellaneous
Dimension
482mm×410mm×44mm
Temperature
0~45 (operation), -20~80 (storage)
Power
100-240VAC±10%, 50Hz-60Hz
