Descripción

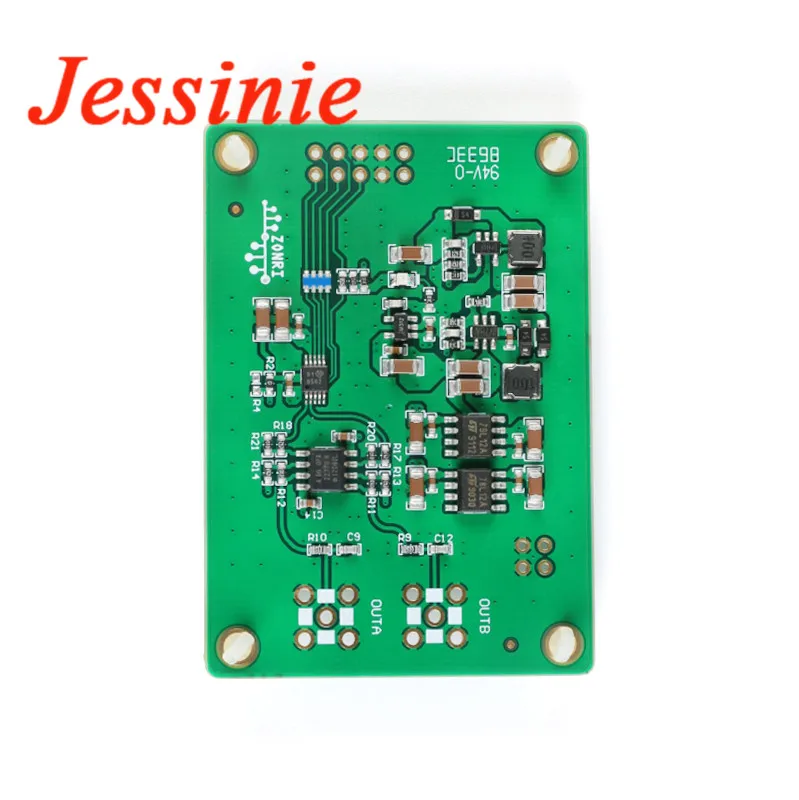

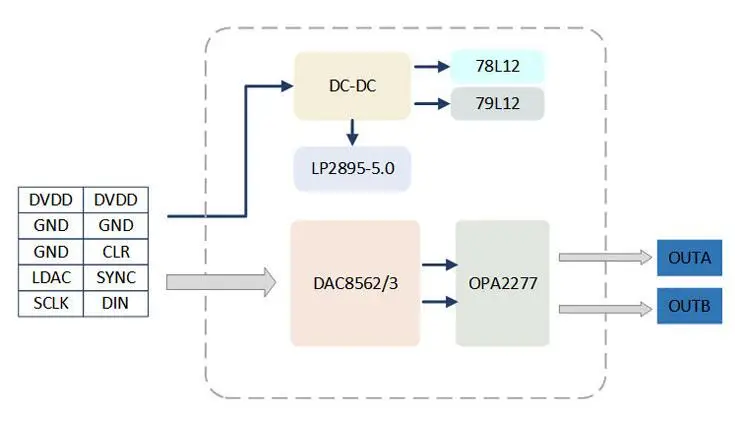

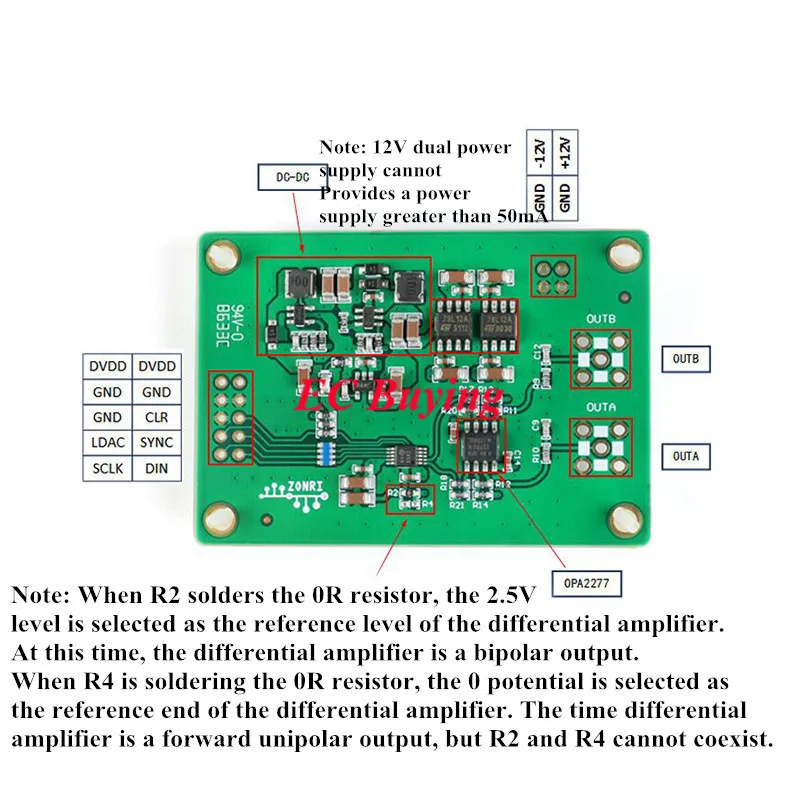

Descripción del producto:Complete DAC8562 application circuit module.Provides a ±12V output within 50mA of current.Use the OPA2277 low drift amplifier.Single/bipolar output can be configured.The module power input range is: 2.7V–5.5V DC.The default is 4.17 times differential amplifier.The default amplifier output resistance is 51R.When operating at 3.3V, the operating current is 82mA, and when operating at 5V, the operating current is 49mA.Common problem:Q: What is the difference between DAC8562 and DAC8563?A: DAC8562 reset output level is 0, DAC8563 reset output level 1/2 output range(Mid-scale).Q: How is the single/bipolar output set?A: The DAC8562/3 is a unipolar output, setting the single/bipolar pass to change the reference of the output differential amplifier.(Reference) level, select between 0 and 1/2 output range.Q: How do I set up as a unipolar output and need 16Bit resolution?A: Change the reference level of the differential amplifier to 0, and change the amplification factor of the differential amplifier.Set to 2 times. (Please refer to the application module schematic)
