Módulo convertidor de carga rápida de 3 vías 12V 24V a QC3.0 tipo-c Placa de carga de teléfono USB adaptador de fuente de alimentación de carga rápida

Details of pictures and text

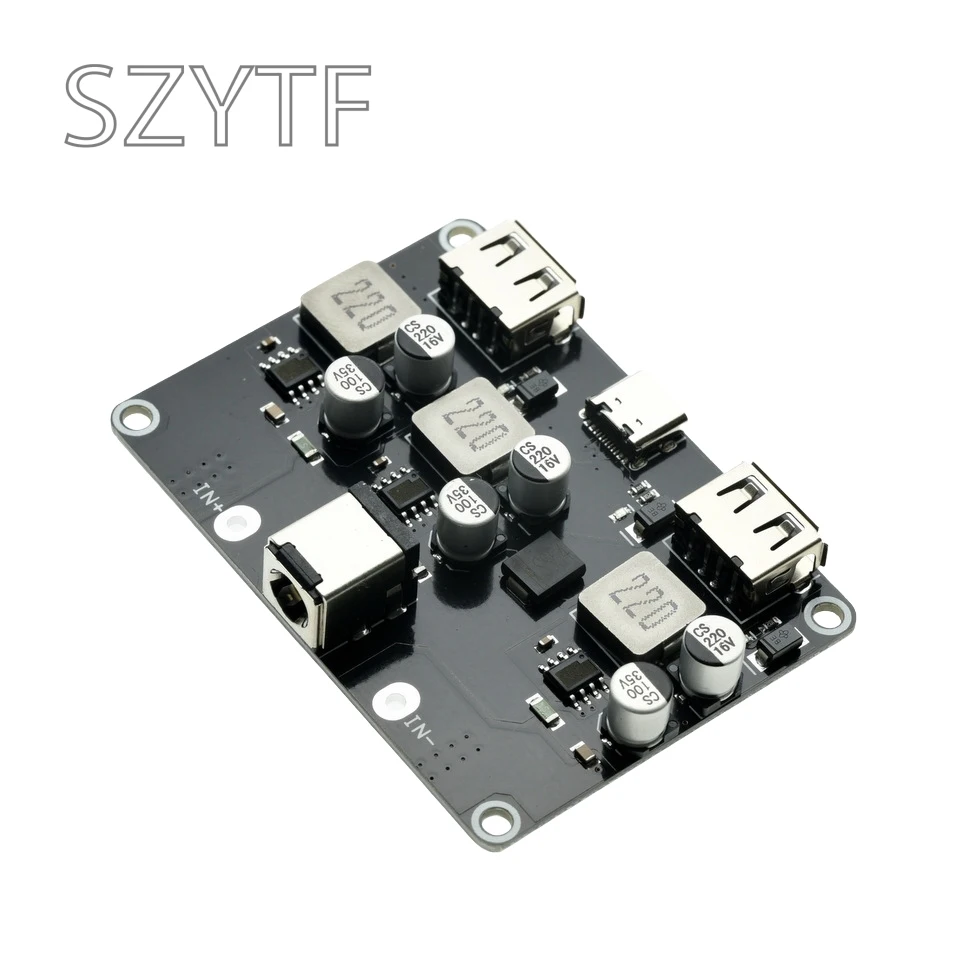

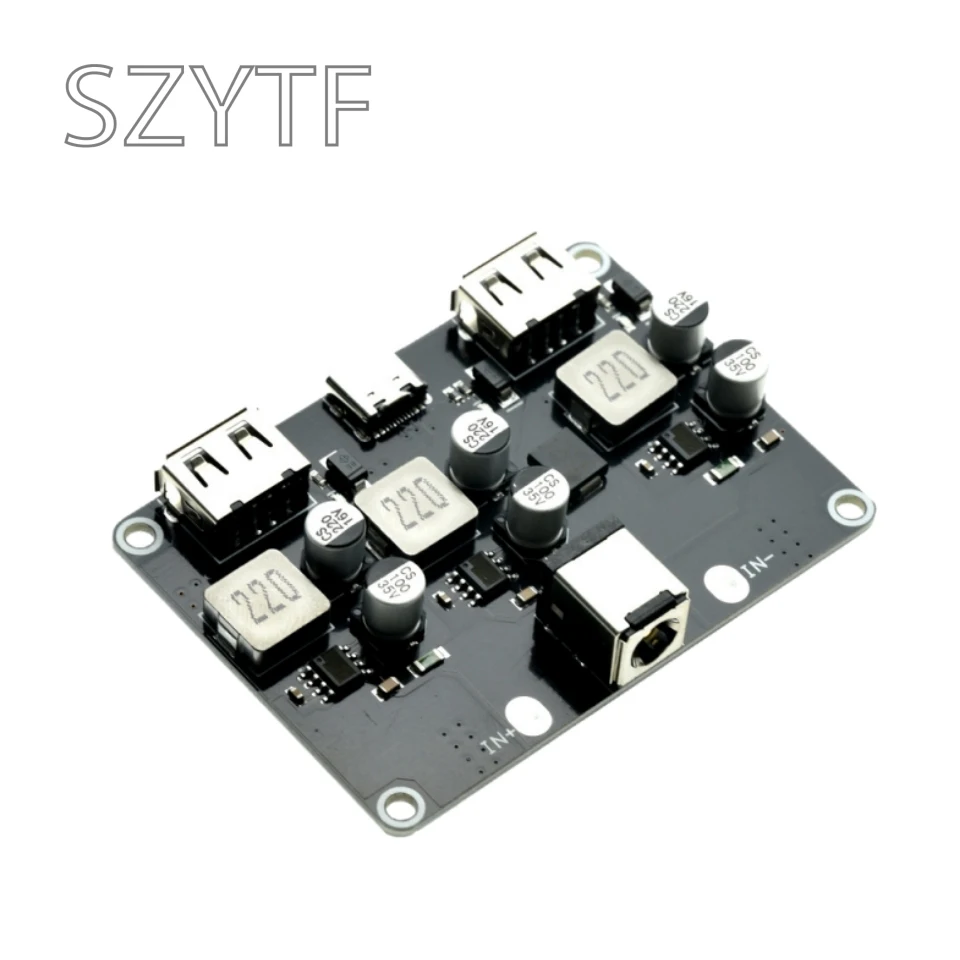

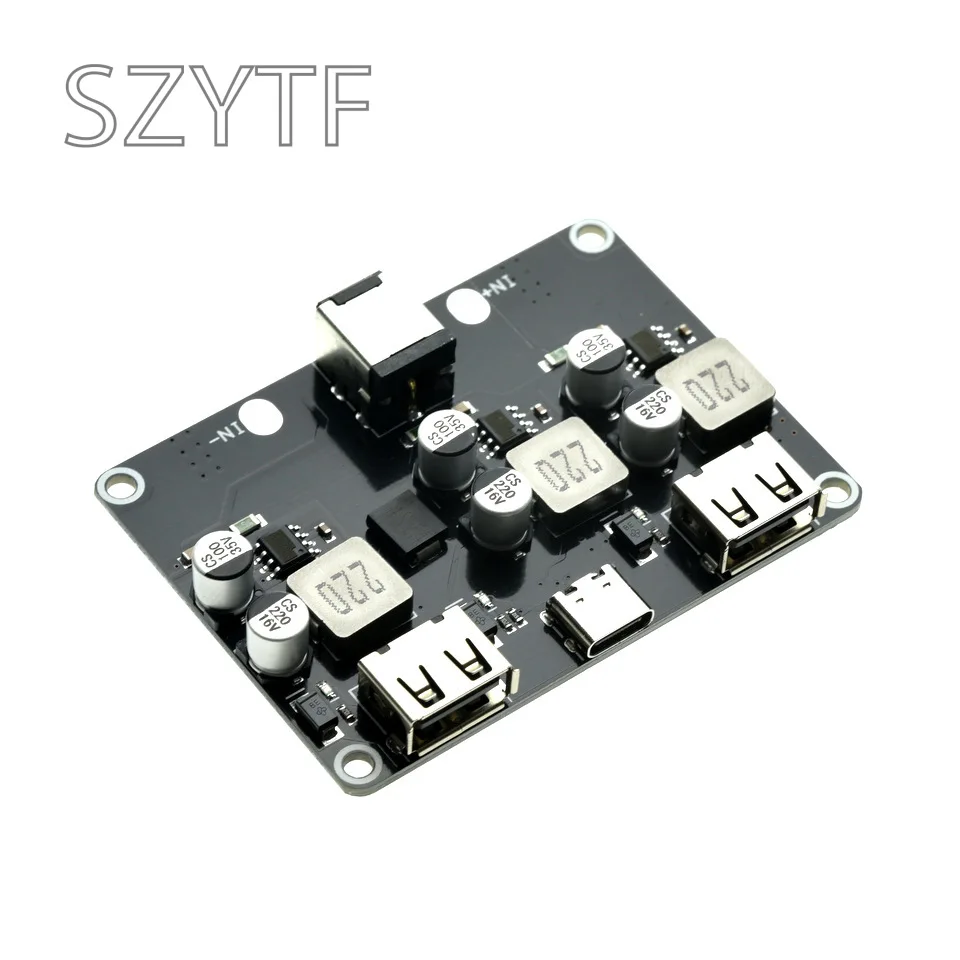

This fast charging module supports 2 USB ports and 1 TYPE-C output

Board size: 7CM*5CM

Input voltage range: 6V-32V

Output voltage: Default is 5V. After triggering fast charging, it will automatically adjust between 3 and 12V

Output power: Maximum 24W ([email protected], [email protected], 12V@2A, etc.)

Output voltage wired compensation function

Conversion efficiency: 90%-97%

Support multiple fast charging protocols

Input overvoltage and undervoltage protection

Input overcurrent protection

Output overcurrent and short-circuit protection

The whole machine has over-temperature protection

Support fast charging protocol

BC1.2, Apple, Samsung agreement

Qualcomm QC2.0 and 3.0

MTK PE1.1/PE2.0

Huawei's fast charging protocol AFC

Spreadtrum Fast Charging Protocol SFCP

Product application

Solar panel to cell phone charging

Vehicle-mounted charging transformation

Power supply for dashcam

Household power supply renovation
