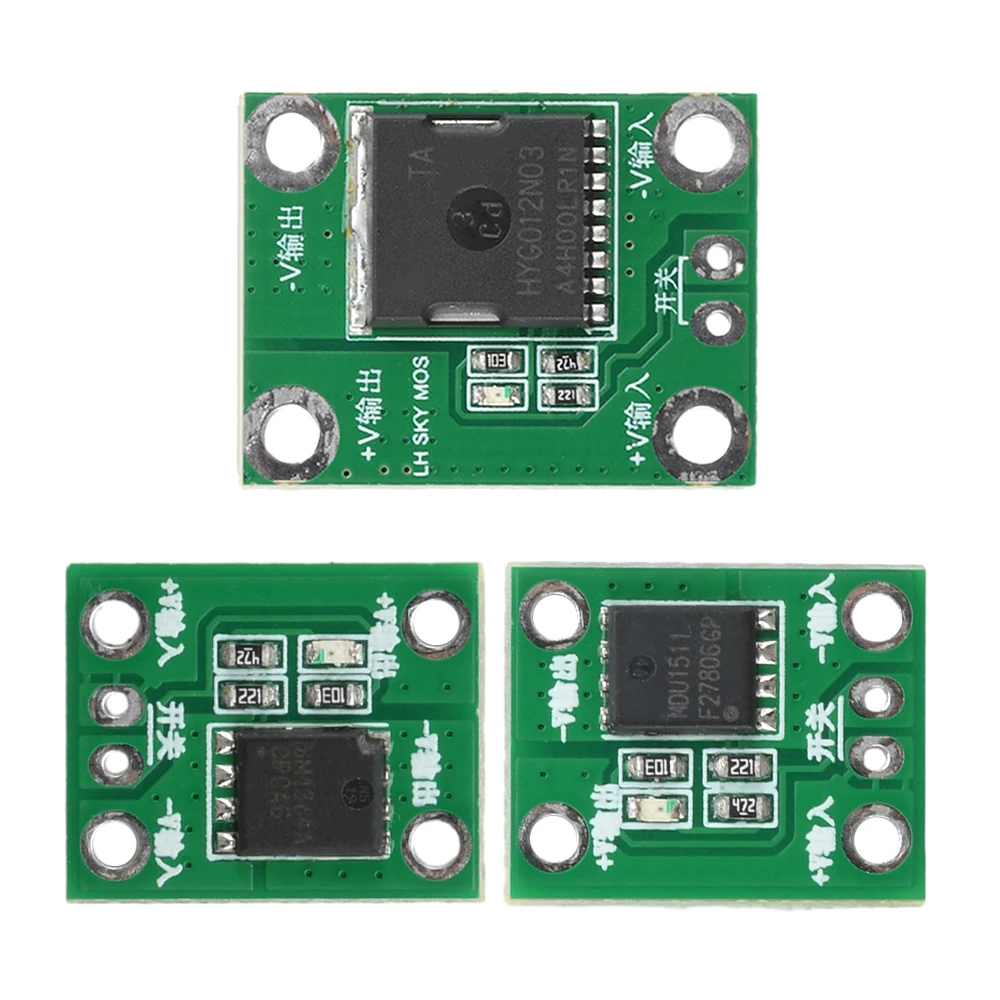

Módulo de controlador de interruptor de disparo MOS de alta potencia, 5-26V, 20A, 50A, 100A, tubo de efecto de campo, regulación PWM, placa de Control de interruptor electrónico

Feature:

1. Supports 5 to 26V DC voltage input, suitable for various power supply environments

2. Using high-quality high-power MOS transistors to withstand high current loads

3. Integrated PWM signal input to achieve precise adjustment of output current

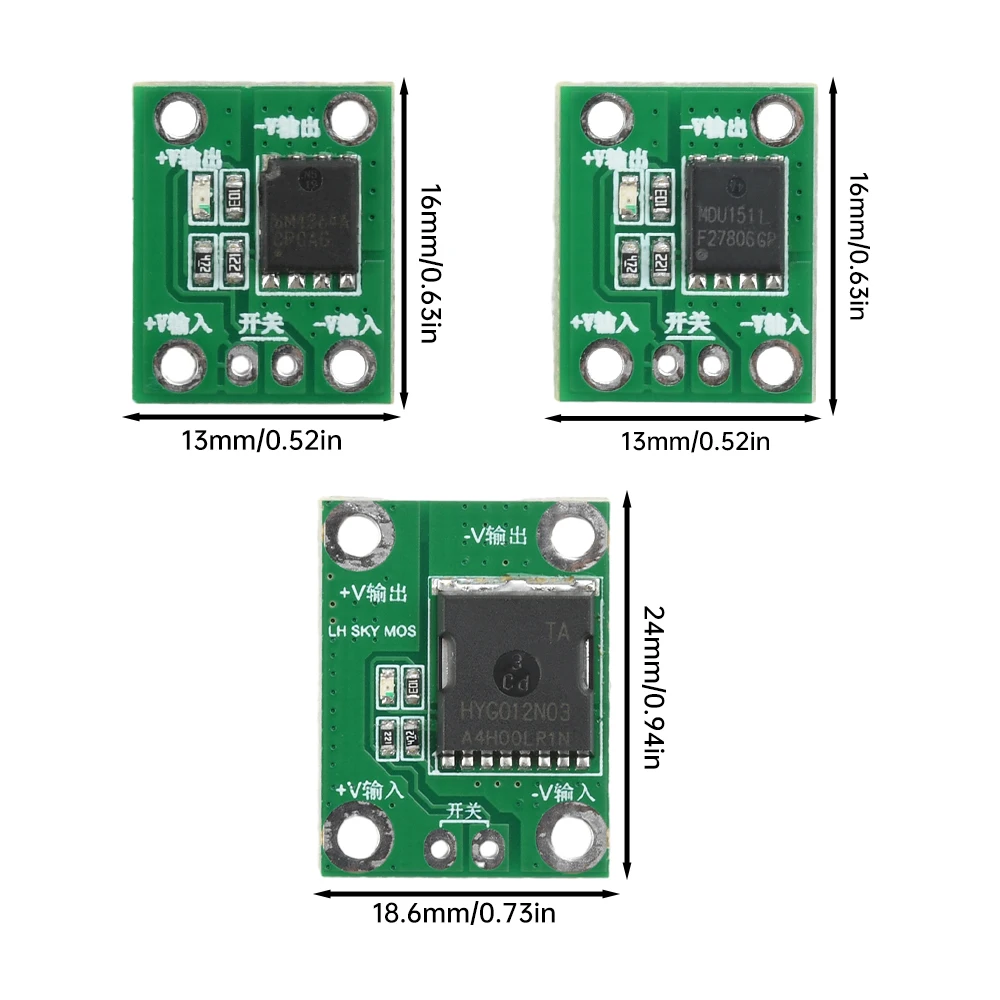

4. The module has a small size and is easy to install, making it very suitable for compact devices and DIY projects

5. With a wide range of applications, it is an ideal choice for electronics enthusiasts and professional engineers

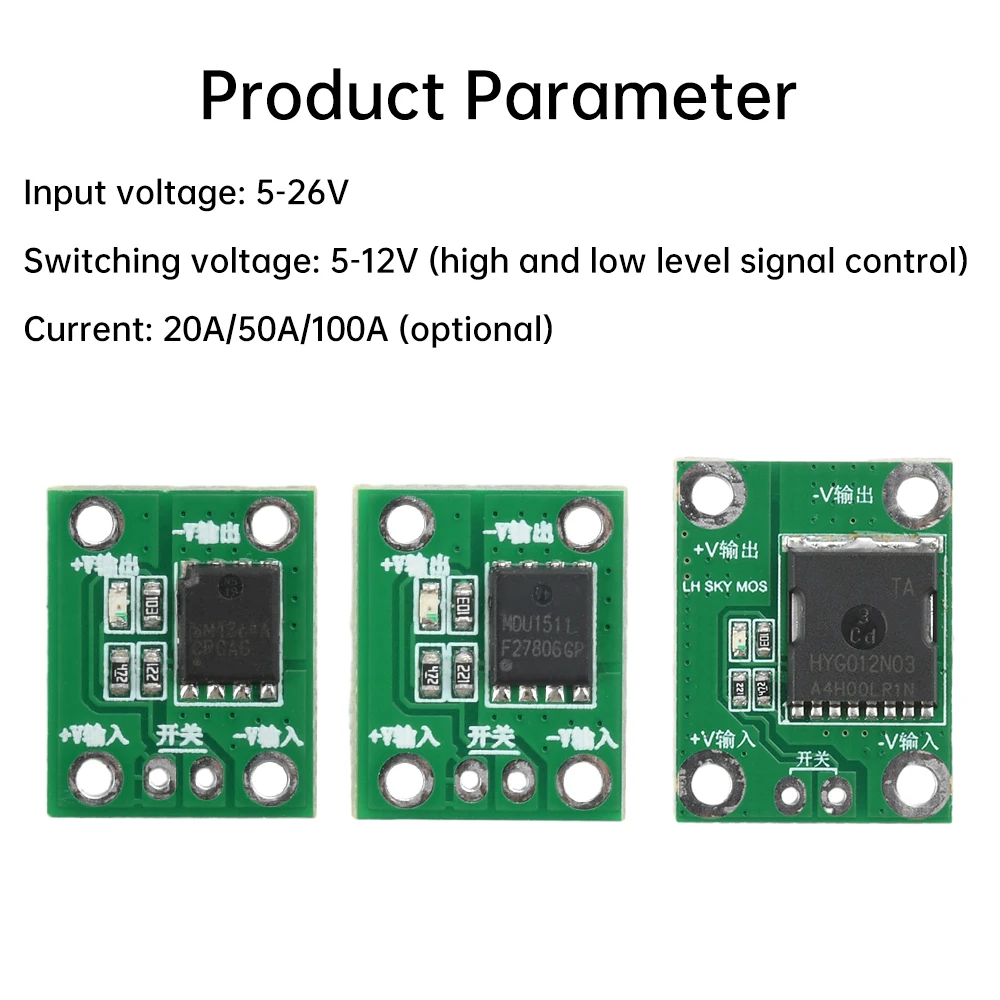

Parameter function introduction:

Input voltage: 5-26V

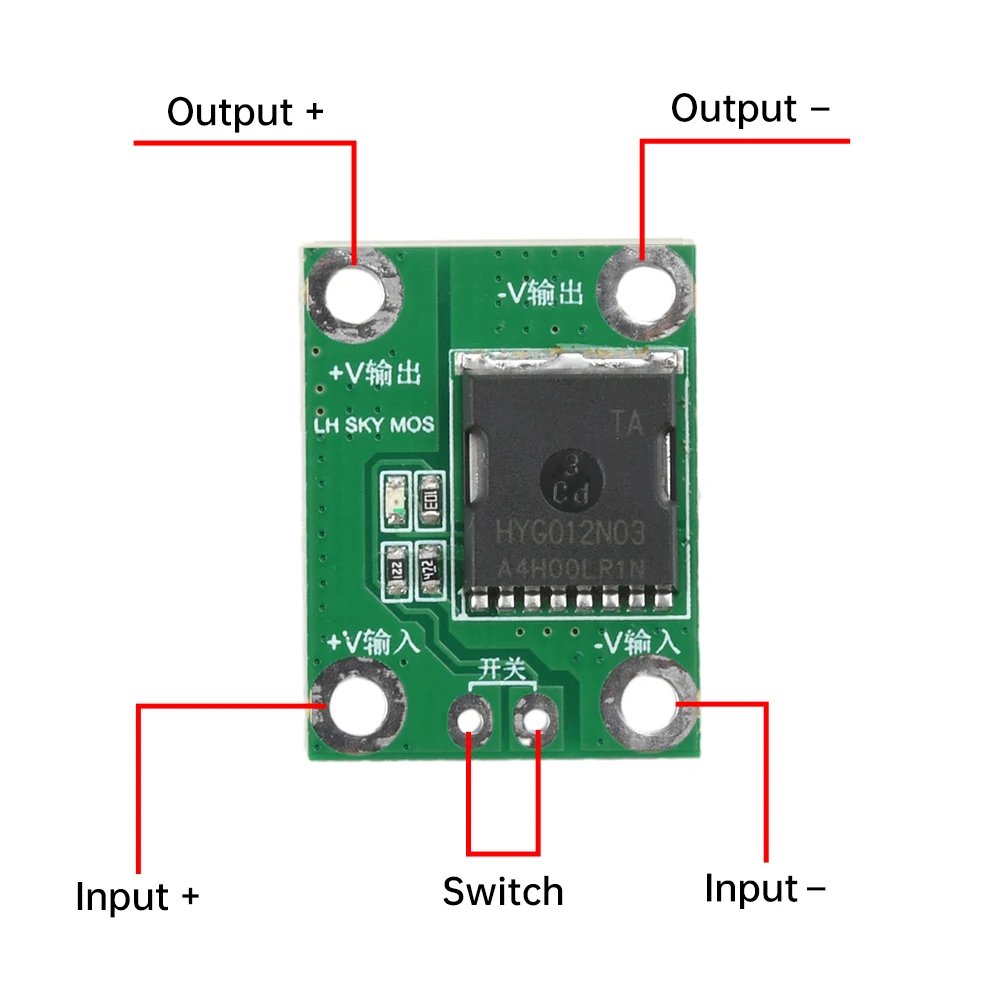

Switching voltage: 5-12V (controlled by high and low level signals)

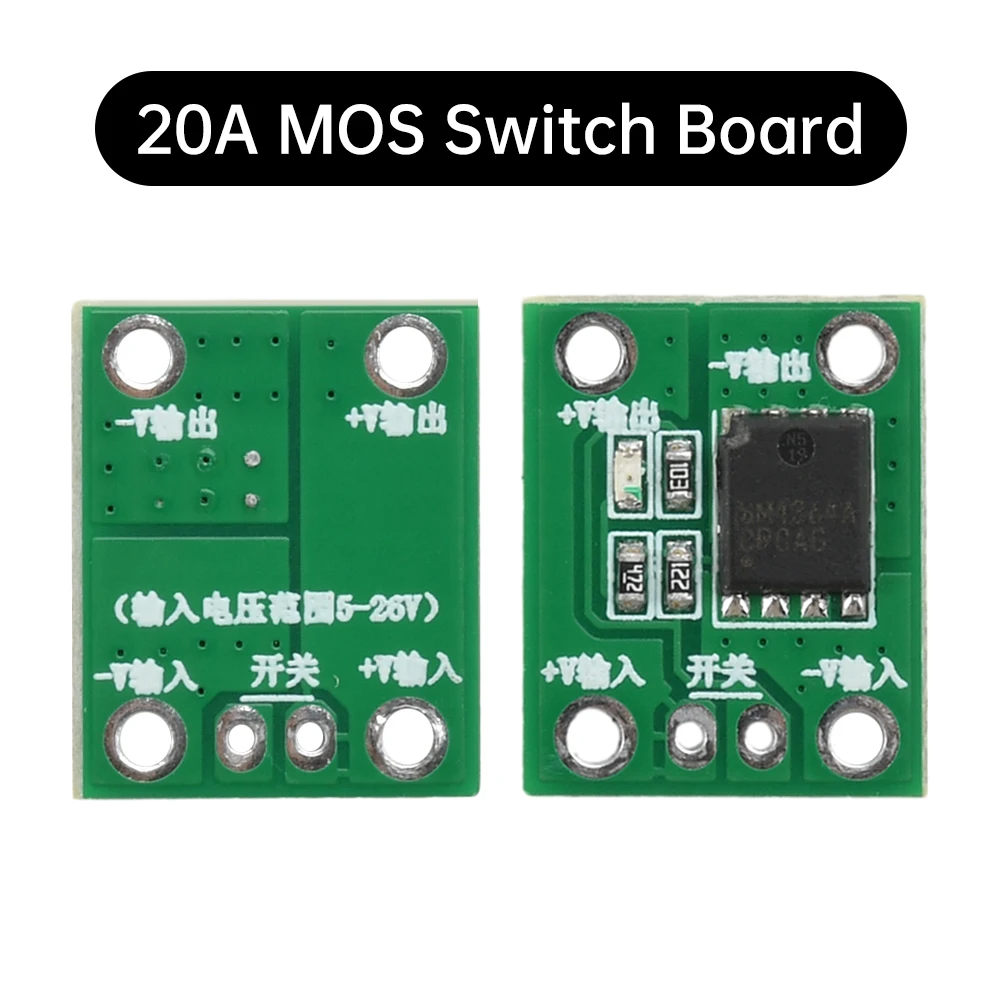

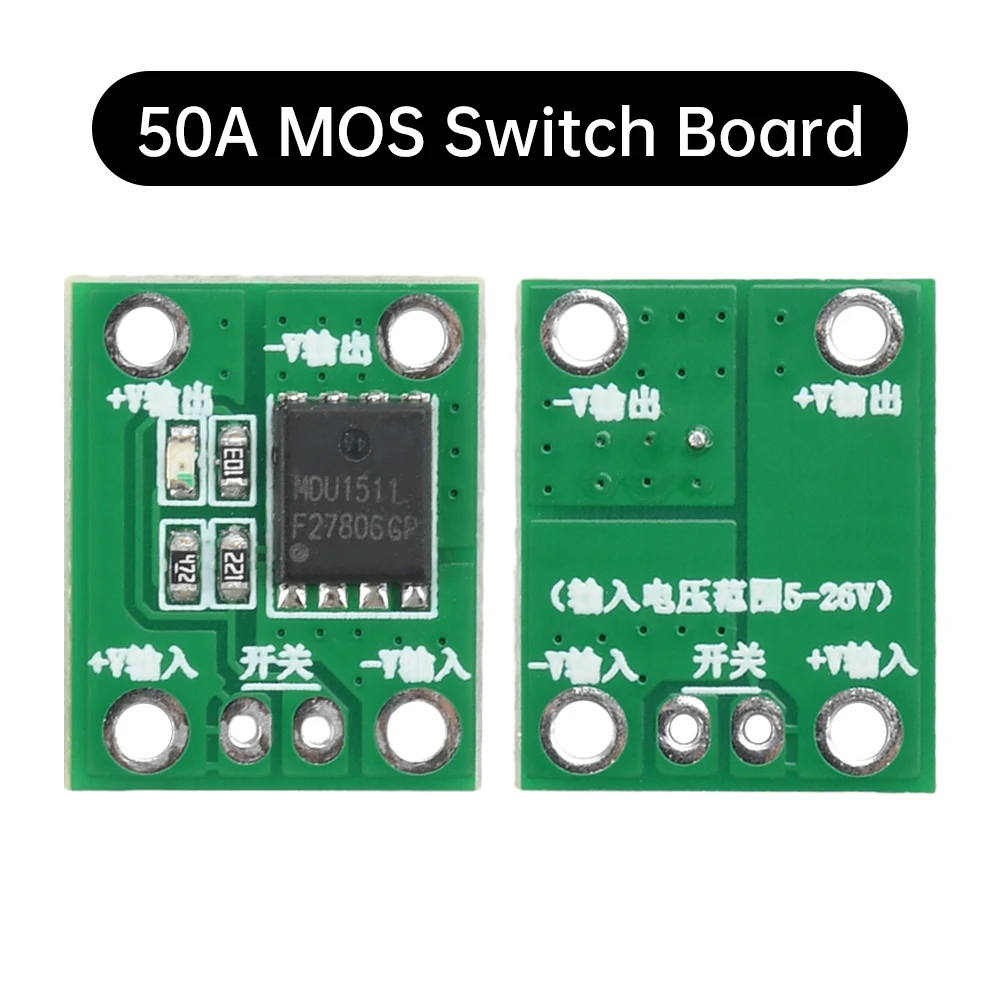

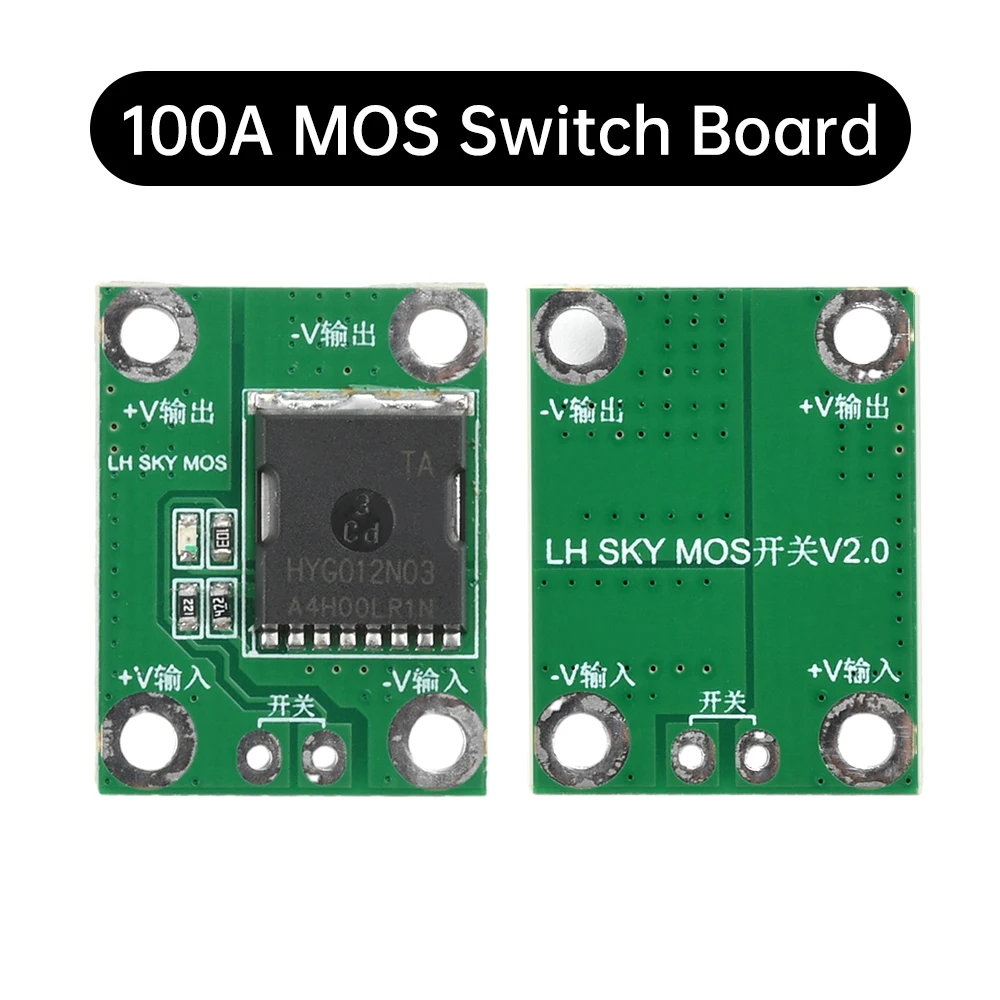

Current: 20A/50A/100A (optional)

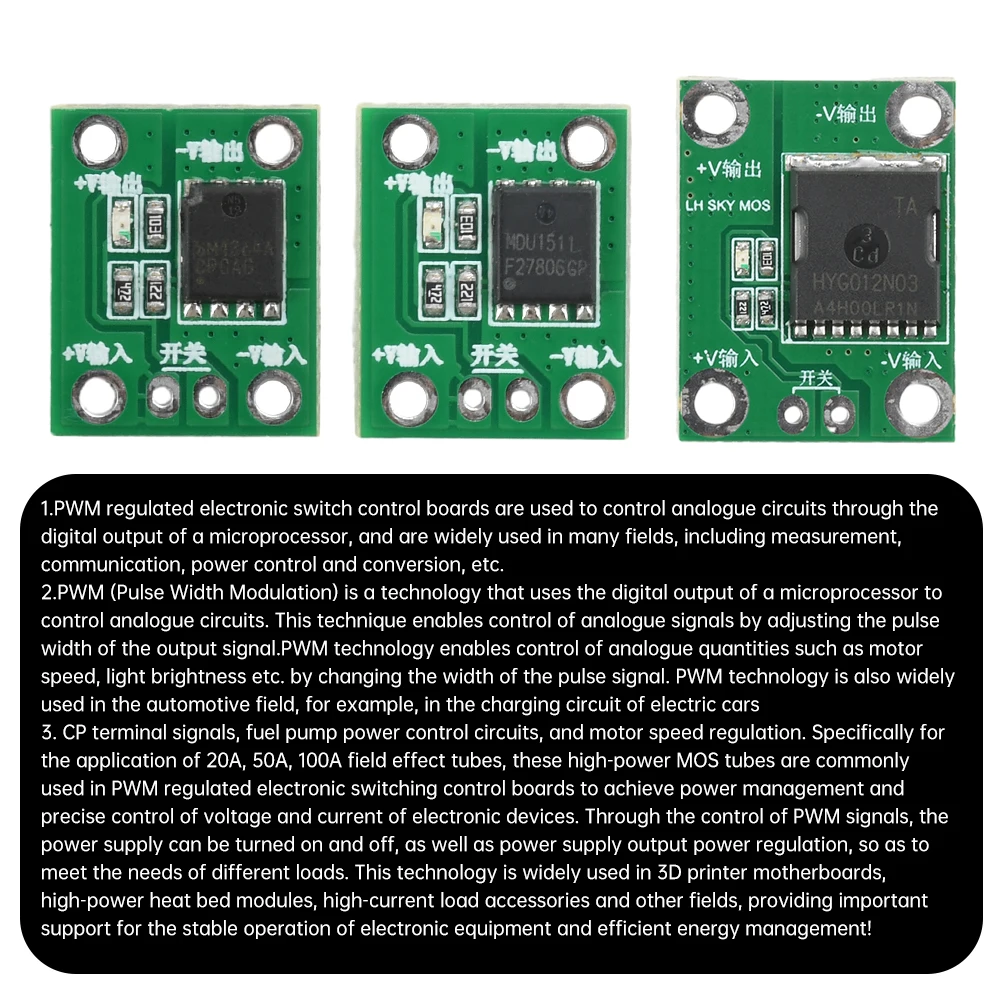

The function of PWM regulated electronic switch control board is to control analog circuits through the digital output of microprocessors, which is widely used in many fields, including measurement, communication, power control and conversion, etc

PWM (Pulse Width Modulation) is a technology that uses the digital output of a microprocessor to control analog circuits. This technology achieves control over analog signals by adjusting the pulse width of the output signal. PWM technology controls analog quantities such as motor speed and light brightness by changing the width of the pulse signal. In the automotive field, PWM technology is also widely used, such as in the charging circuit of electric vehicles

3. CP terminal signal, fuel pump power control circuit, and motor speed regulation. Specifically for the application of 20A, 50A, 100A field-effect transistors, these high-power MOS transistors are commonly used in PWM regulated electronic switch control boards to achieve power management and precise control of voltage and current in electronic devices. By controlling the PWM signal, the power supply can be turned on and off, as well as the output power of the power supply can be adjusted to meet the needs of different loads. This technology has a wide range of applications in fields such as 3D printer motherboards, high-power hot bed modules, and high current load accessories, providing important support for the stable operation and efficient energy management of electronic devices

Package included:

1 x 20A 50A 100A High Power MOS Trigger Switch Driver Module Field Effect Tube PWM Regulation Electronic Switch Control Board
