En Stock
6,89 €
Con la garantía de
2 unidades vendidas
Última actualización: 2026-01-29T23:47:30.780Z
Descripción

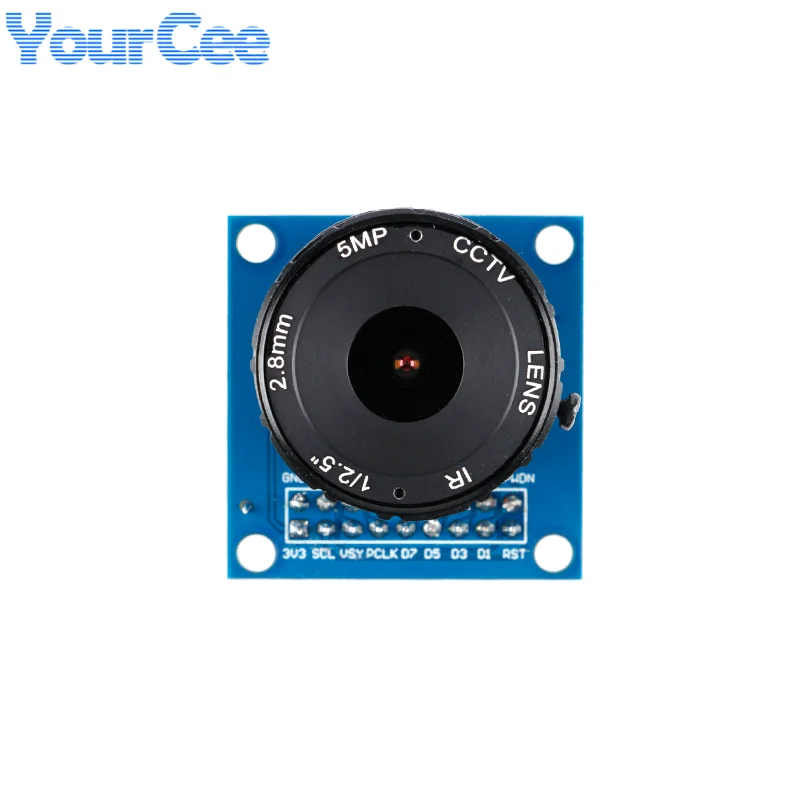

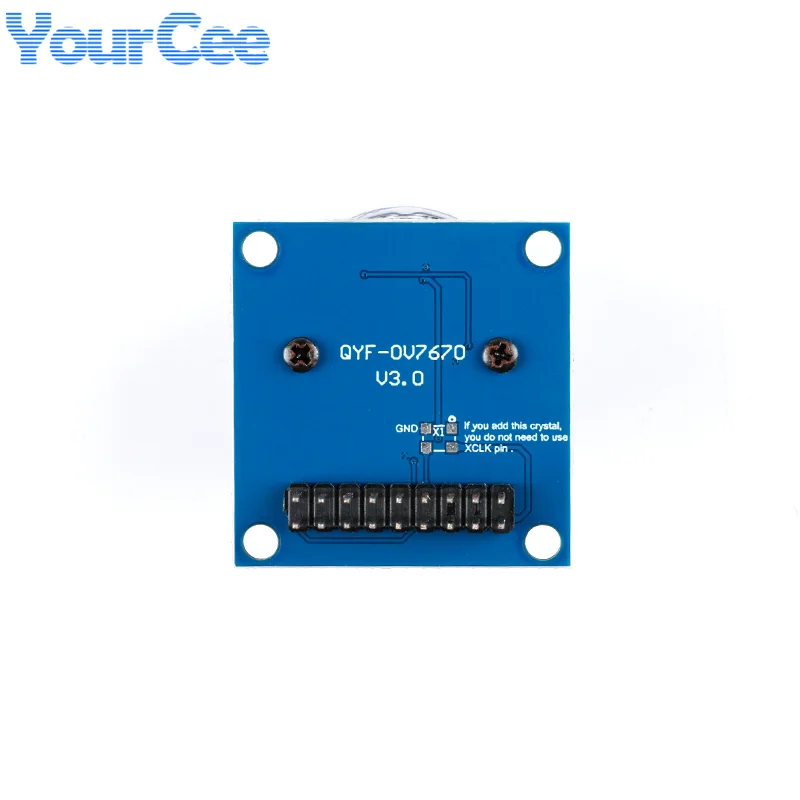

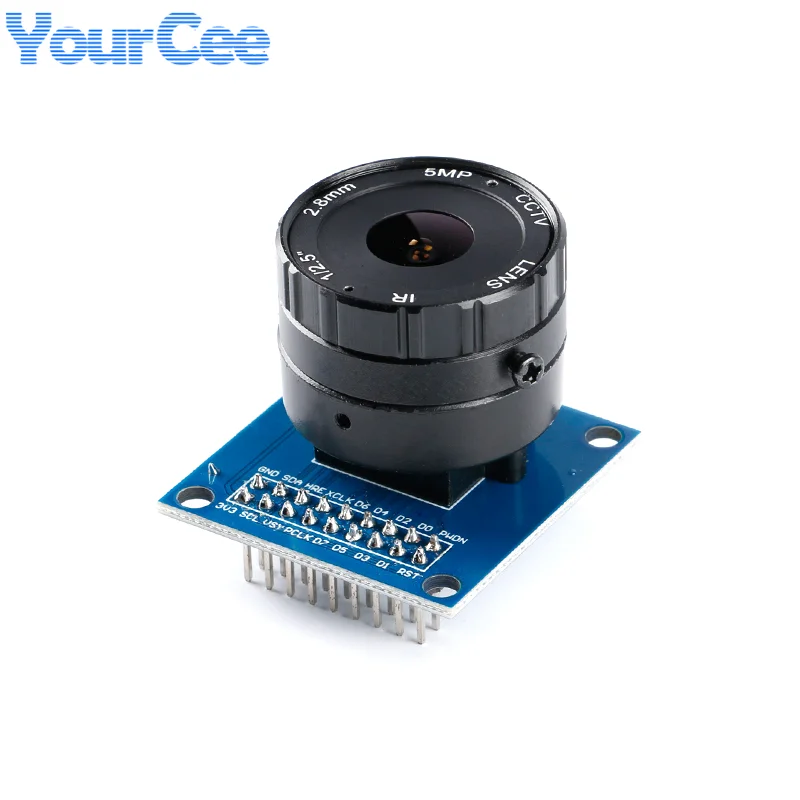

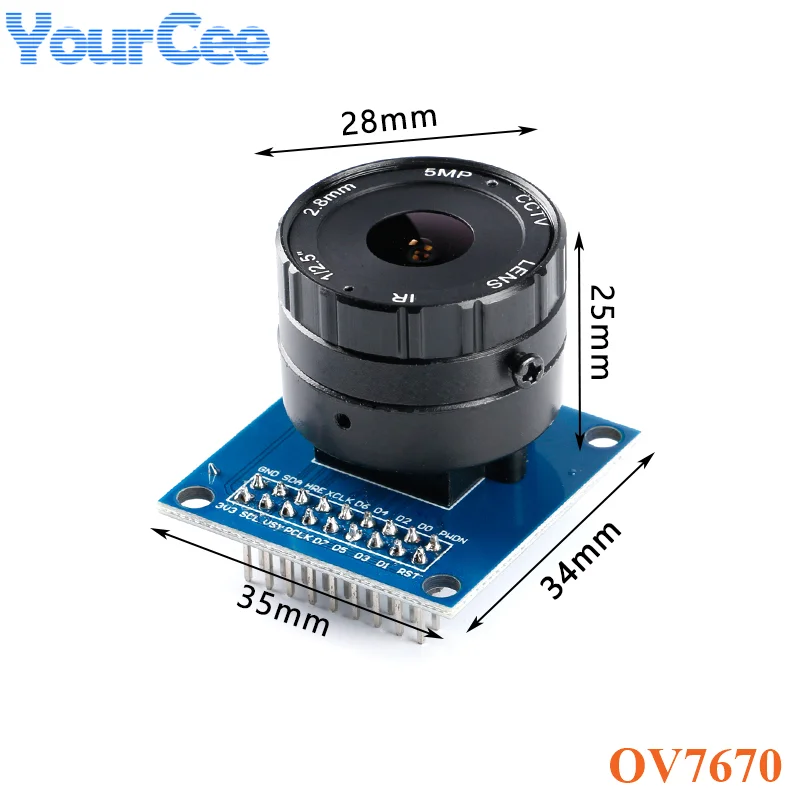

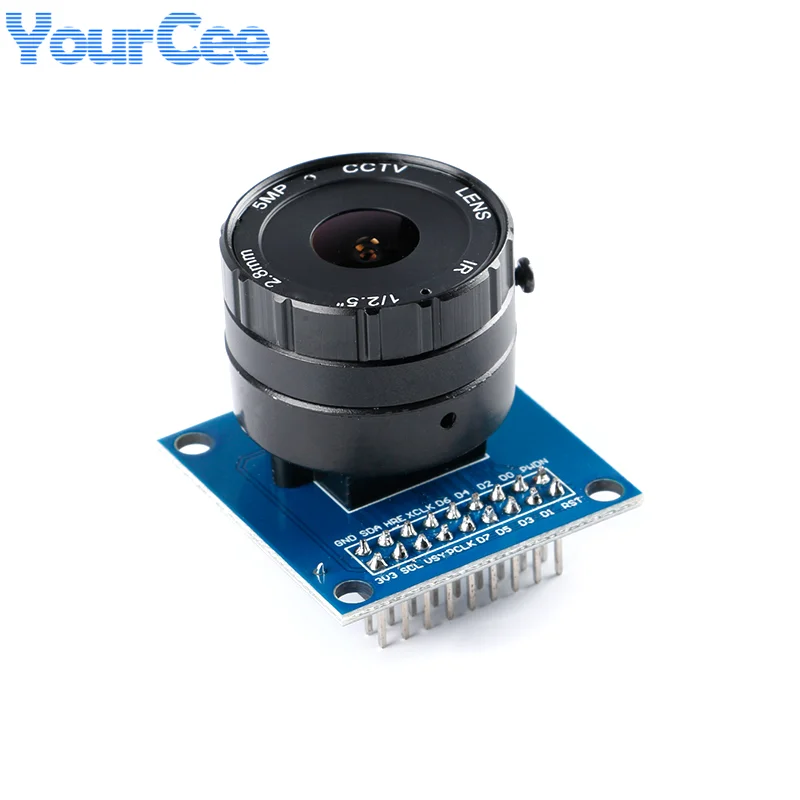

Adjustable macro OV7670 camera module CS lens, the focal length is closer, the imaging distance is about within 1CM. OV7670 image sensor, small size, low working voltage, provides all the functions of a single-chip VGA camera and image processor. Through SCCB bus control, it can output 8-bit impact data with various resolutions in the form of whole frame, sub-sampling, windowing, etc. The VGA image of this product can reach up to 30 frames per second. Users can fully control the image quality, data format and transmission method. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface.Features:High sensitivity suitable for low illumination applicationsLow voltage suitable for embedded applicationsStandard SCCB interface, compatible with I2C interfaceRawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formatsSupport VGA, CIF, and various sizes from CIF to 40x30VarioPixel sub-sampling methodAutomatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control includes color saturation, hue, gamma, sharpness ANTI_BLOOMISP has the function of noise elimination and dead pixel compensationSupport image zoomLens loss compensation50/60HZ automatic detectionSaturation automatic adjustment (UV adjustment)Edge enhancement automatic adjustmentNoise reduction automatic adjustmentLens Parameters:Specification: 1/3’’Interface: CSFocal length: 12mmAperture: 1.6Viewing angle: 25Focus: ManualAperture: fixedPin Definition:3V3--input power supply voltage (3.3V is recommended, 5V is also possible, but not recommended)GDN--GroundSIO_ C--Control clock of SCCB interface (note: some low-level MCUs need pull-up control, similar to I2C interface)SIO _ D--The serial data input (output) end of the SCCB interface (note: some low-level microcontrollers require pull-up control, similar to I2C interface)VSYNC--frame synchronization signal (output signal)HREF-line synchronization signal (output signal)PCLK--pixel clock (output signal)D0-D7--data port (output signal)RESTE--reset port (pull high for normal use)PWDN--power consumption selection mode (normal use pull down)
