Módulo BLE 5,0 compatible con Bluetooth, placa de Control de luz, red de malla BLE5.0, transmisión transparente, TB-03TB-03F, 10 Uds./1 ud.

Name: Módulo BLE 5,0 compatible con Bluetooth, placa de Control de luz, red de malla BLE5.0, transmisión transparente, TB-03TB-03F, 10 Uds./1 ud.
Brand: Your Cee
SKU: 436146
Price: 1.5 EUR
Availability: InStock
Rating: 5.0 (4 reviews)

4 opiniones

En Stock

1,5 €

~~2,24 €~~ -66.96%

Comprar ahora

Con la garantía de

Color

15 unidades vendidas

Última actualización: 2026-03-04T01:21:07.737Z

Descripción

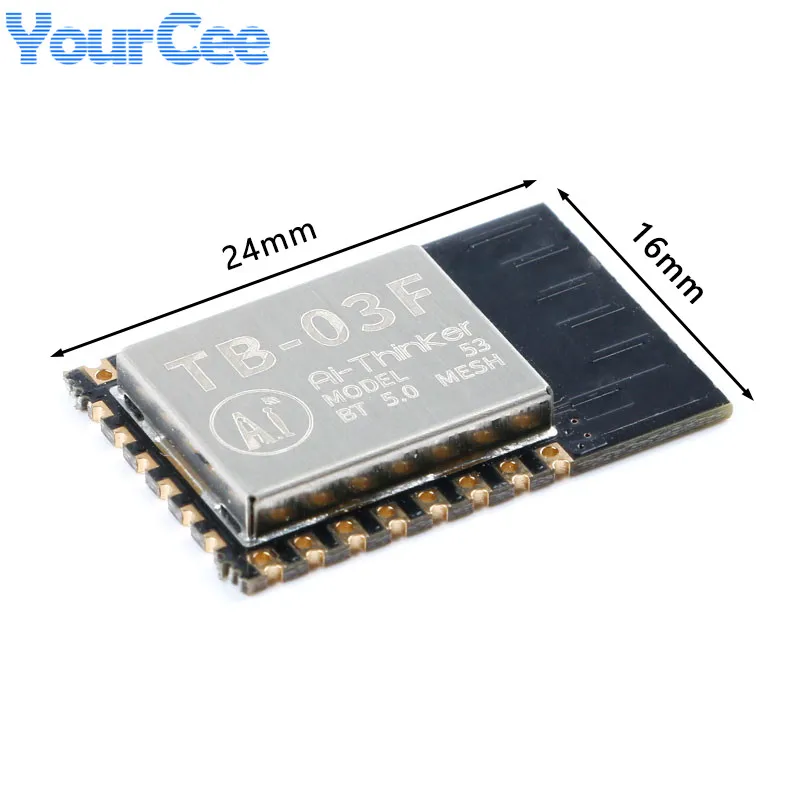

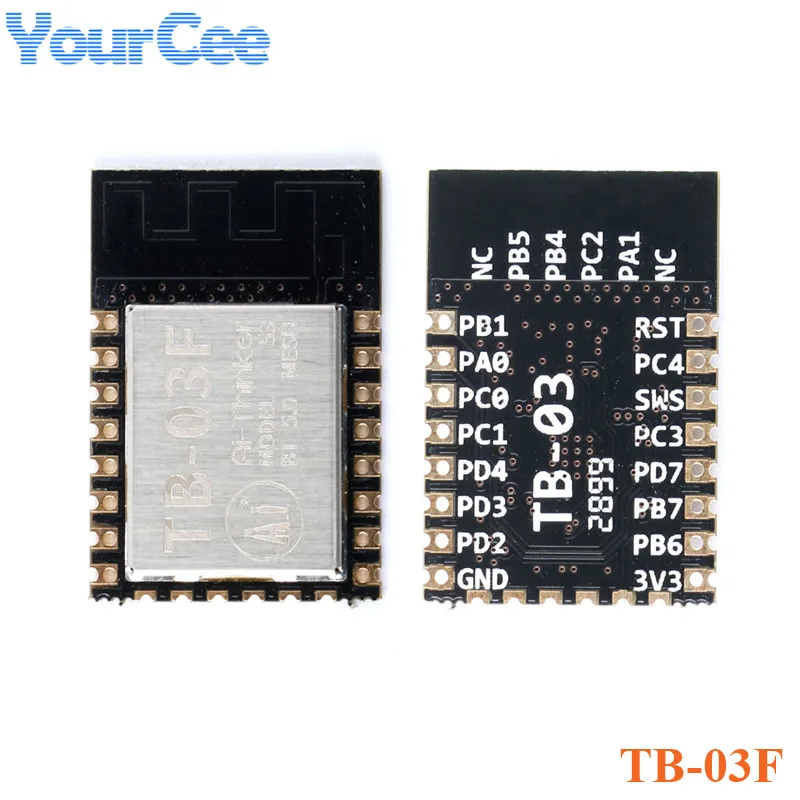

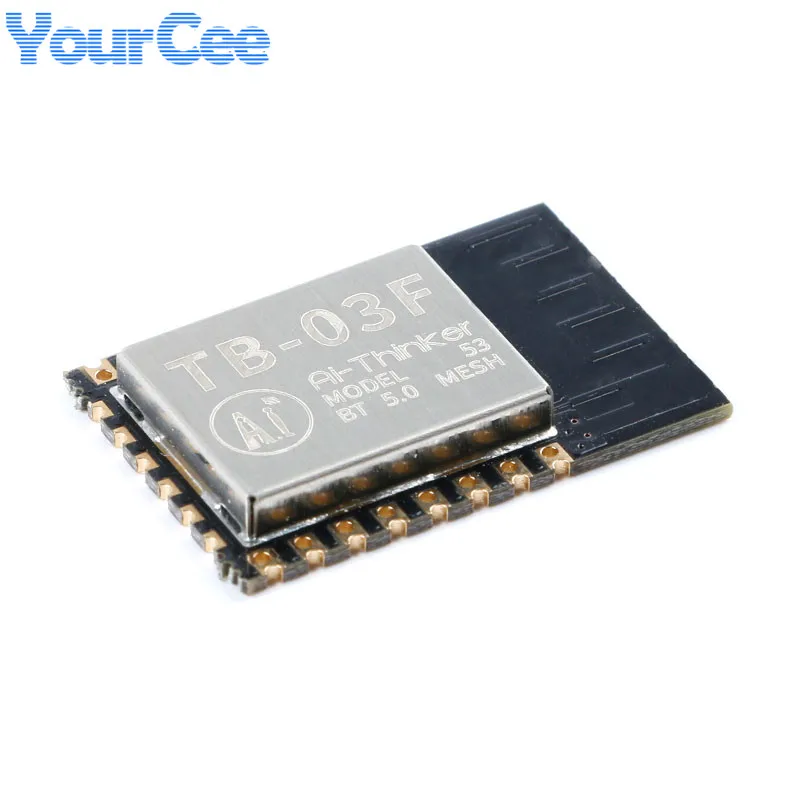

The TB-03F intelligent lighting module is a Bluetooth-compatible module designed based on the TLSR8253 chip and compliant with BT 5.0 low-power Tmall Genie Mesh; the module supports direct control by Tmall Genie, and has the Bluetooth-compatible mesh networking function; For star network communication, Bluetooth-compatible broadcast is used for communication, which can ensure timely response in the case of multiple devices. This module is used in intelligent light control, which can meet the requirements of low power consumption, low delay, and short-range wireless data communication.Parameter:Wireless standard: Bluetooth-compatible 5.0Frequency range: 2400 ~ 2483.5MHzMaximum transmit power: maximum 10dBmReceiving sensitivity: -93dBm±2Interface: GPIO/PWM/SPI/ADC/I2SWorking temperature: -40°C ~ 85 °CStorage environment: -40 °C ~ 125 °C, 90%RHPower supply range: power supply voltage 2.7V~ 3.6V, power supply current ≥50mATransmission distance: Outdoor open viewing distance: 80 meters -150 metersPin description:RST: reset active lowPC4: PWM2 output/UART_CTS, PWM0 reverse output/SAR ADC input/GPIO PC4SWS: Single-wire slave/UART_RTS/GPIO PA7PC3: PWM1 output/UART_RX/I2C serial clock/32kHz crystal input (optional)/GPIO PC3PD7: GPIO PD7/SPI clock (I2C_SCK)PB7: SPI_D0 data output/UART_RX/SAR ADC input/GPIO PB7PB6: SPI_DI data input (I2C_SDA), UART_RTS/SAR ADC input/GPIO PB63V3: power supplyNC: empty pinPA1: GPIO PA1/ I2S_clockPC2: PWM0 output/I2C serial data/32kHz crystal output (optional)/GPIO PC2PB4: PWM4 output/SAR ADC input/GPIO PB4PB5: PWM5 output/SAR ADC input/GPIO PB5NC.: empty pinGND: GroundPD2: GPIO PD2/PWM3 output/SPI chip select (active low)/I2S_LR 17 PD3 GPIOPD3/PWM1 reverse output /I2S_SDIPD4: GPIO PD4/single-wire slave SWM/PWM2 reverse output/I2S_SD0PCI: I2C_CLK/PBI1 reverse output/PWMO output/GPIO PCIPC0: I2C_SDA/PWM4 reverse output/UART_RTS/GPIO PCOPA0: UART_RX/GPIO PAO, PWMO reverse call outputPB1: UART_TX/GPIO PB1/PWM4 output/SAR ADC input
