Descripción
1. Can be changed into in-phase amplifier.
2. Can be changed into reverse amplifier.
3. It can be changed to shoot with output.
4. It can be changed into an integral amplifier.
5. It can be changed into a differential amplifier.
Two gain modes for users:
1. Direct Resistance Fixed Amplification Ratio
2. High Quality Sliding Manual Amplification Multiplier
Parameters:

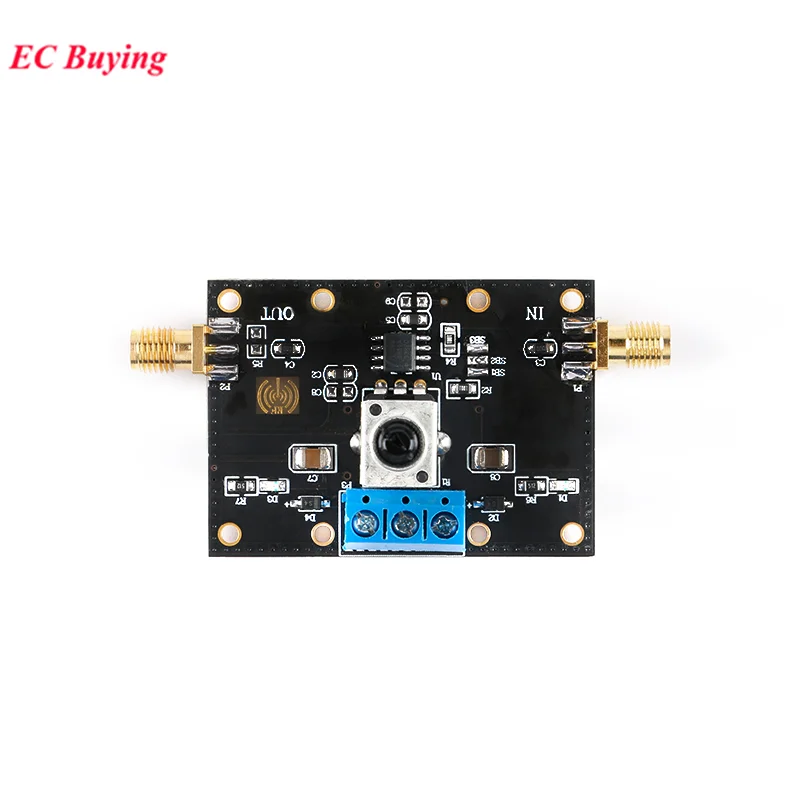

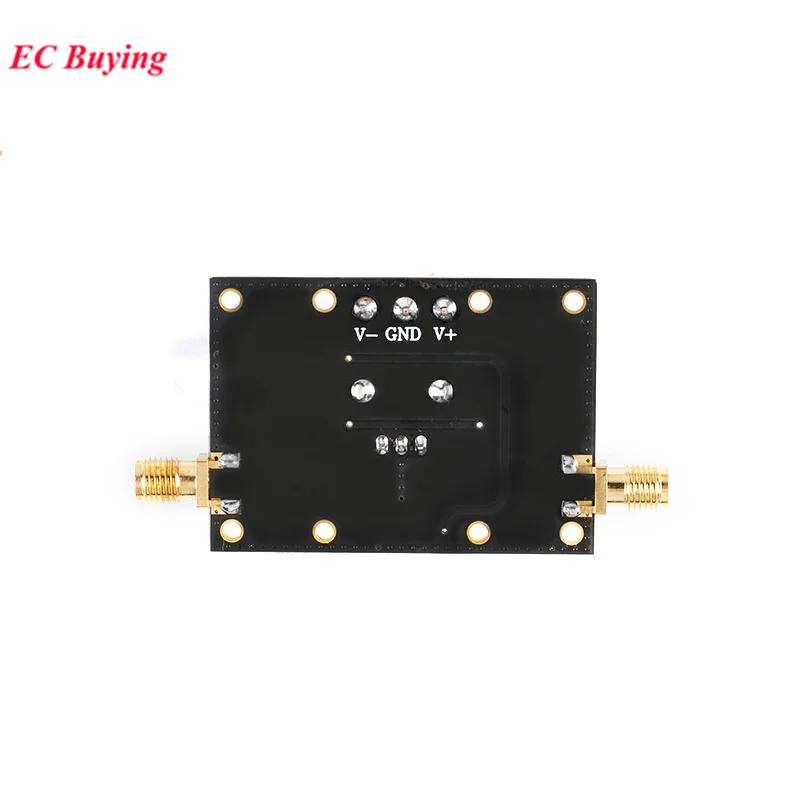

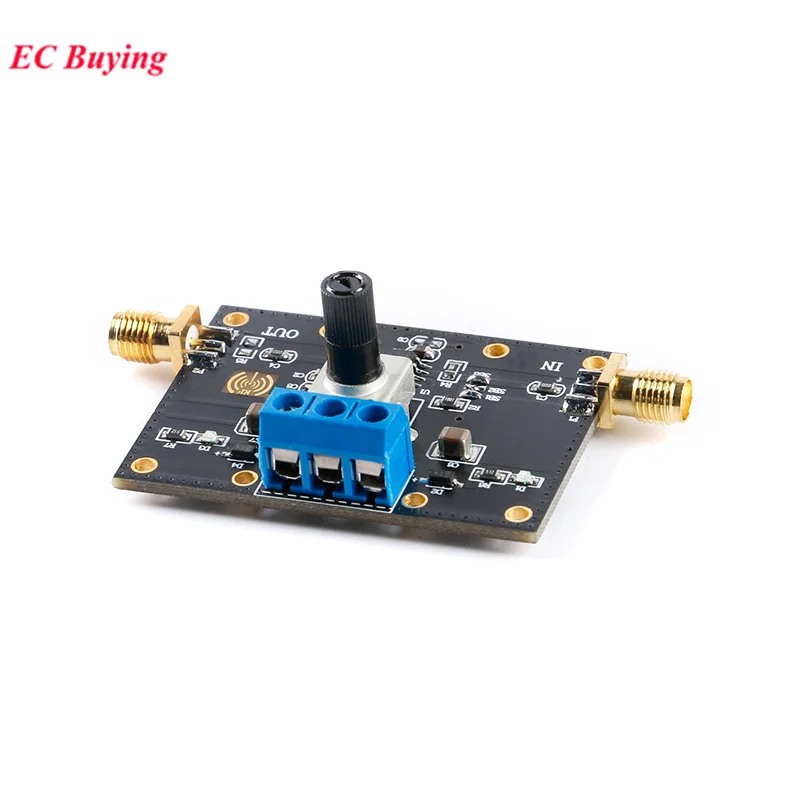

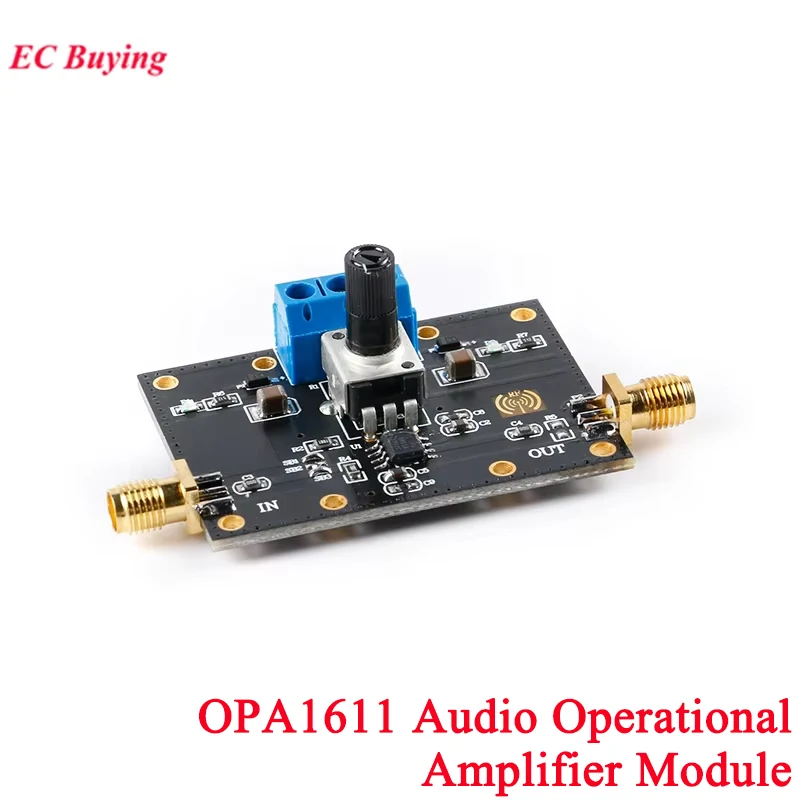

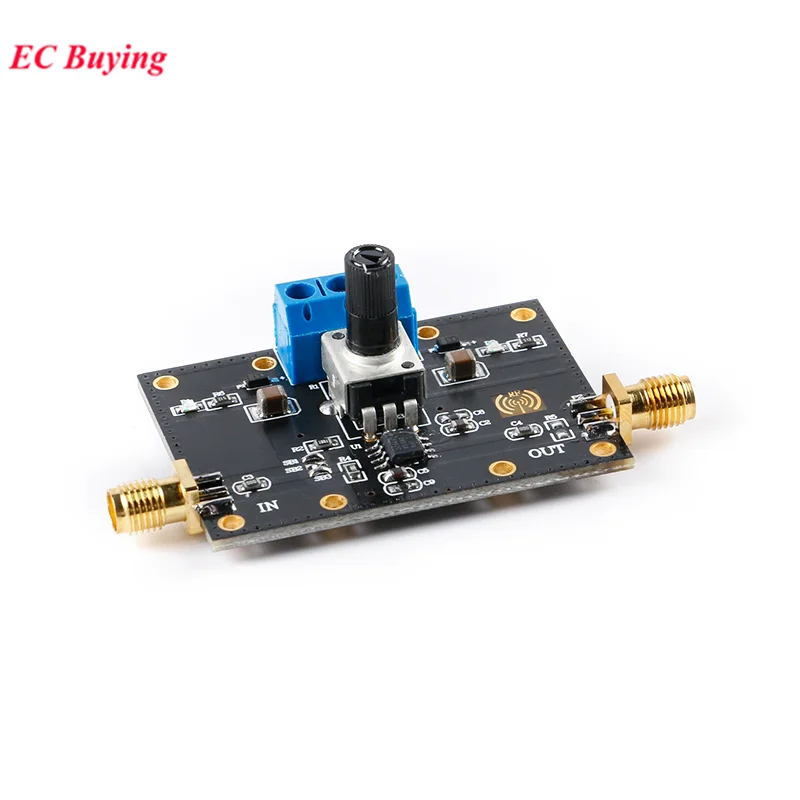

Name: OPA1611 Amplifier Module
Size: 50mm*36mm
Power supply: ±18V(MAX)
Chip characteristics：
Ultra-low distortion: 0.000015% at 1kHz
Ultra-low noise: 1.1nv/√HZ at 1kHz
Maximum Open Loop Benefit: 130dB (Typical Value)
Low static current: 3.6 mA per channel
Wide power supply voltage range:±2.25V ~ ±18V
Working Temperature Range: - 40°C-150° C
Rail-to-Rail Output
High-pressure pendulum rate: 27V/uS
High bandwidth: 40MHz (G=+1)
High open-loop gain: 130dB
Note: The above chip features are only available as user selection, not equivalent to module features.
