Módulo amplificador de bajo ruido RF de radiofrecuencia de banda ancha de 50M-4GHz carcasa CNC 90mA bajo consumo de energía con conector hembra SMA

CNC Shell 50M-4GHz Wideband Radio Frequency RF Low Noise Amplifier Module 90mA Low Power Consumption with SMA Female Connector

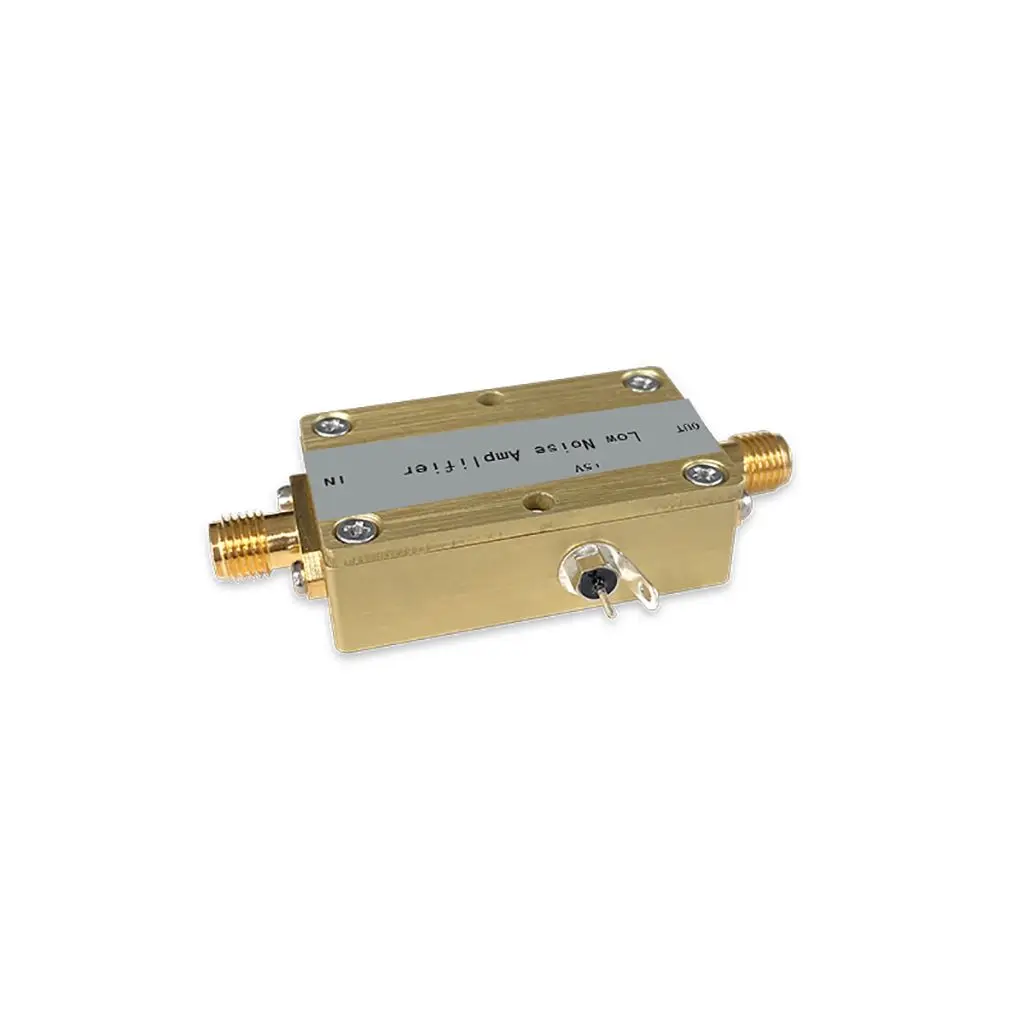

Module Introduction:
This module adopts the classic low-noise amplifier tube design, with noise factor as low as 0.6dB, CNC shell, with excellent heat dissipation and electromagnetic shielding performance, can work in the wideband range of 50MHz-4GHz, with 17dB@1GHz high gain characteristics, widely used in the front-end of wireless receiver systems, can effectively improve the reception sensitivity.

Module parameters.
Operating voltage: +5V single power supply.
Operating current: 90mA (low power consumption).
Operating frequency: 50MHz-4GHz.
Gain: 17dB@1GHz (reference test curve).
P1dB output power: 160mW (22dBm);
Noise figure: 0.6dB;

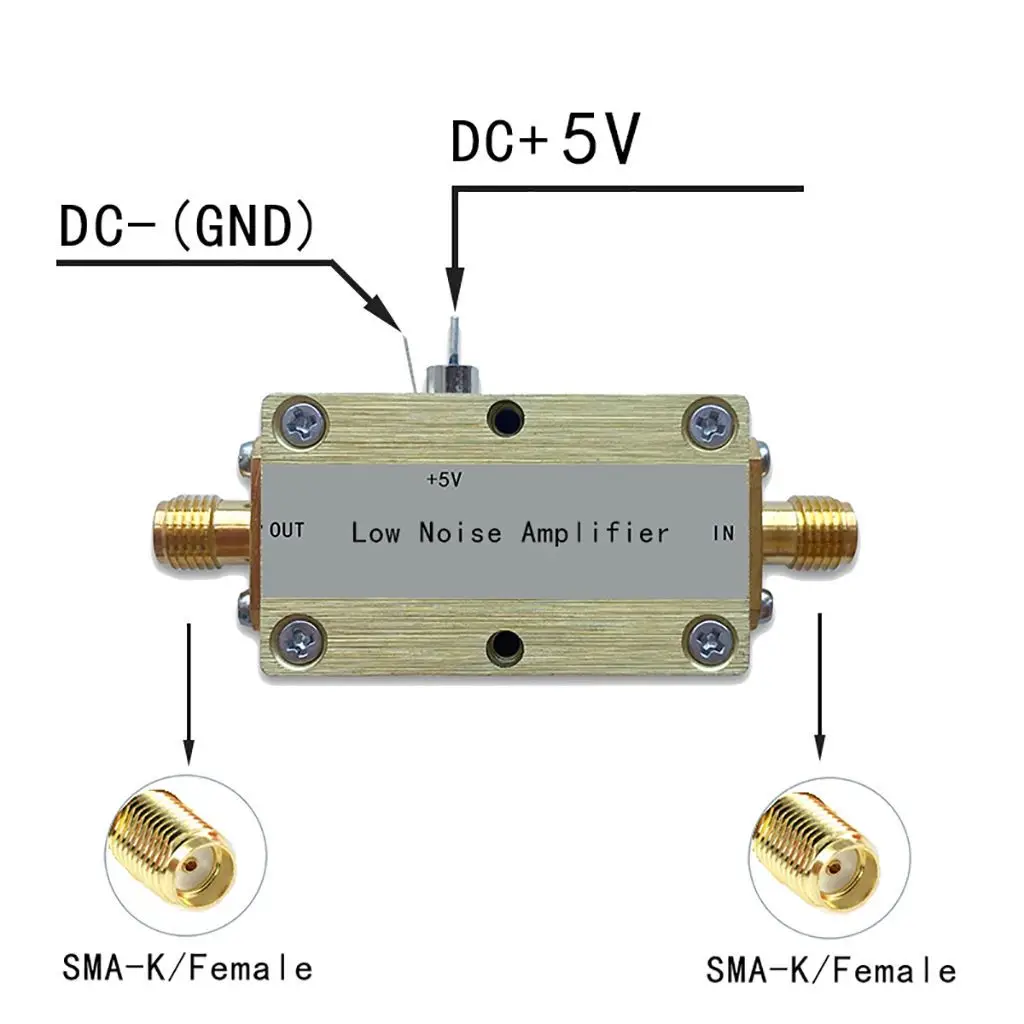

Input and output interface: SMA (female).

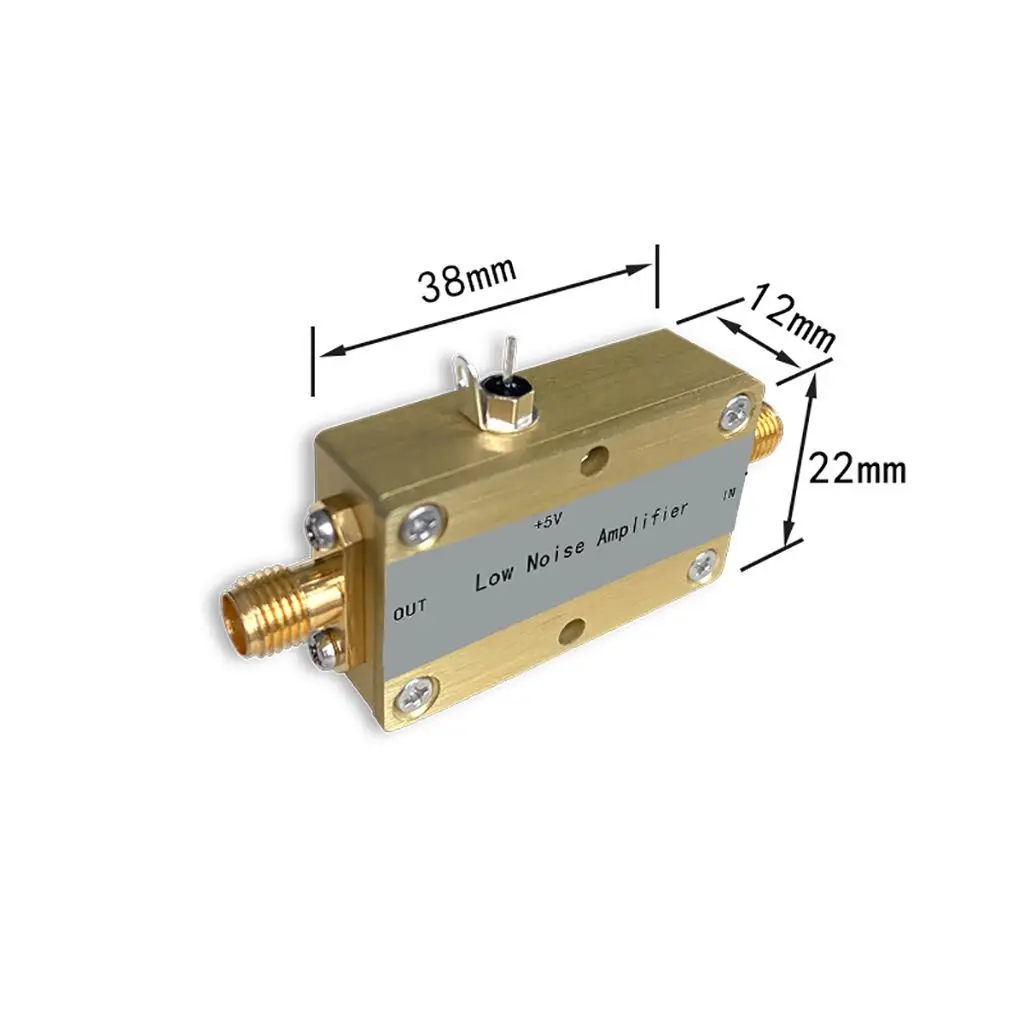

Module size: 38.2*22.4*12mm (without connector).
With mounting holes.

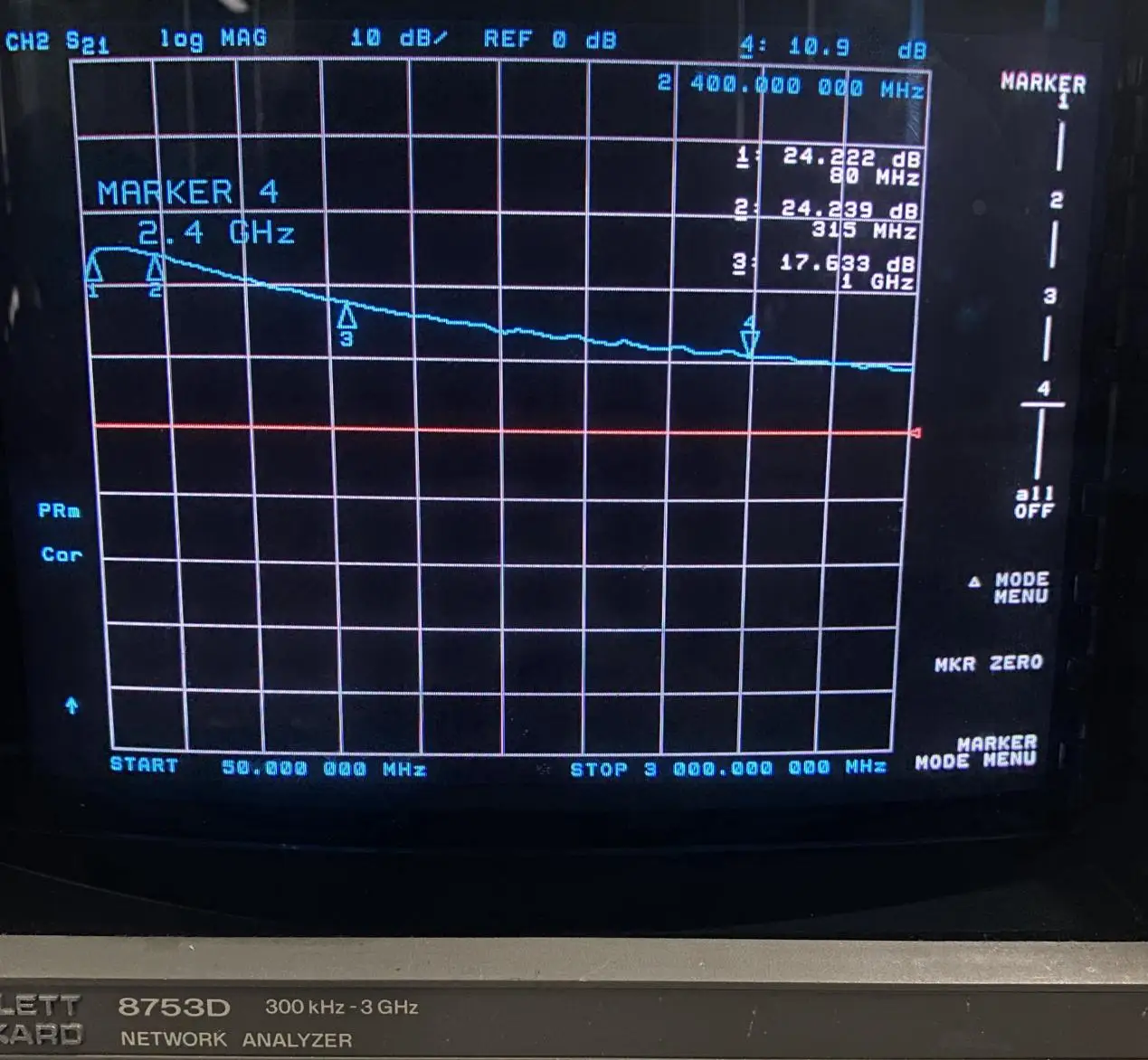

Measured curve:
MARK1: 24.2dB @ 80MHz
MARK2: 24.2dB @ 315MHz
MARK3: 17.6dB @ 1GHz
MARK4: 10.9dB @ 2.4GHz
For other frequencies without MARK points, please check the corresponding gain values against the following curves:
