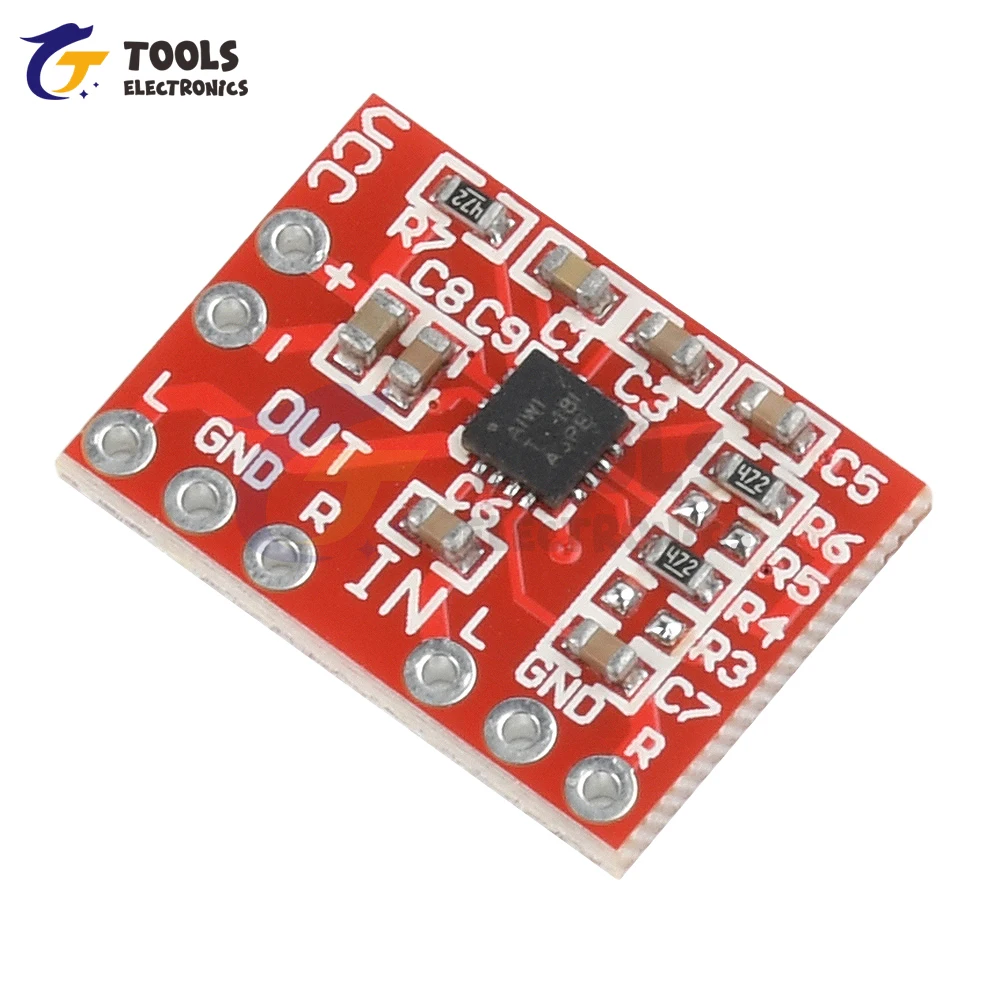

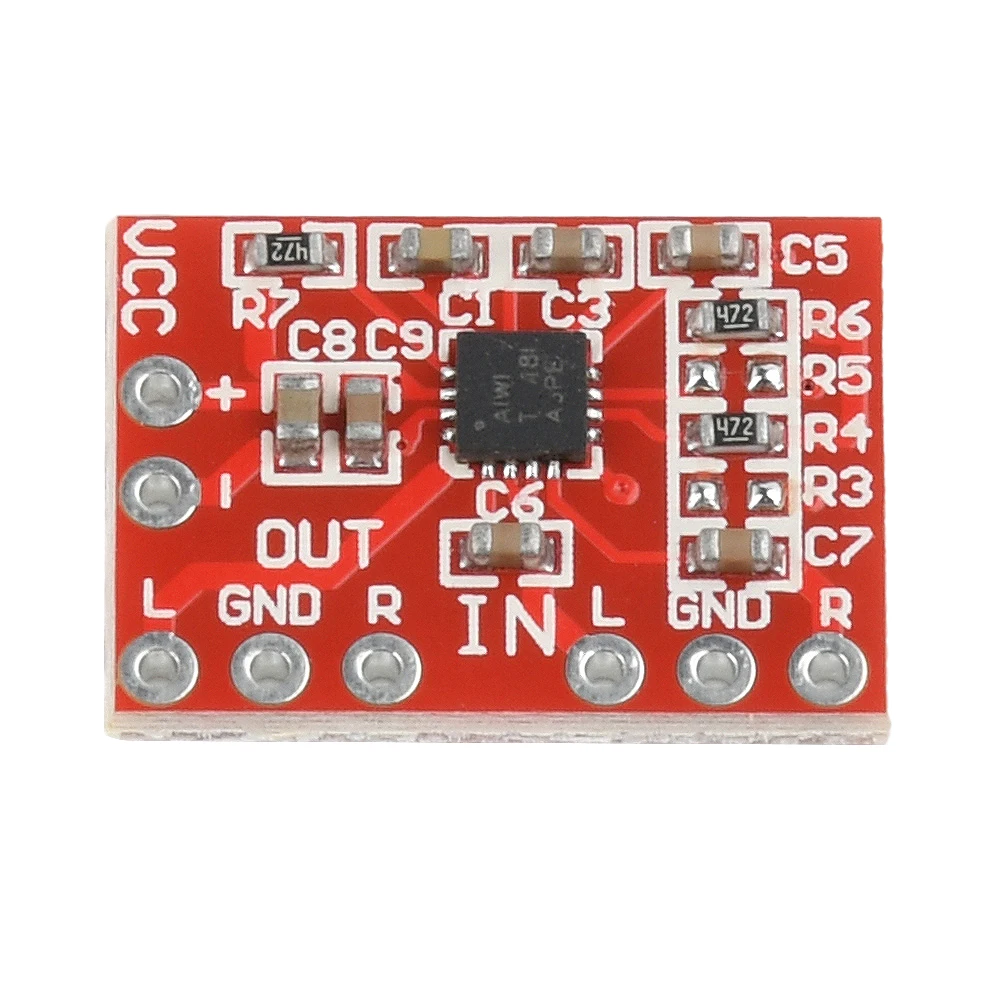

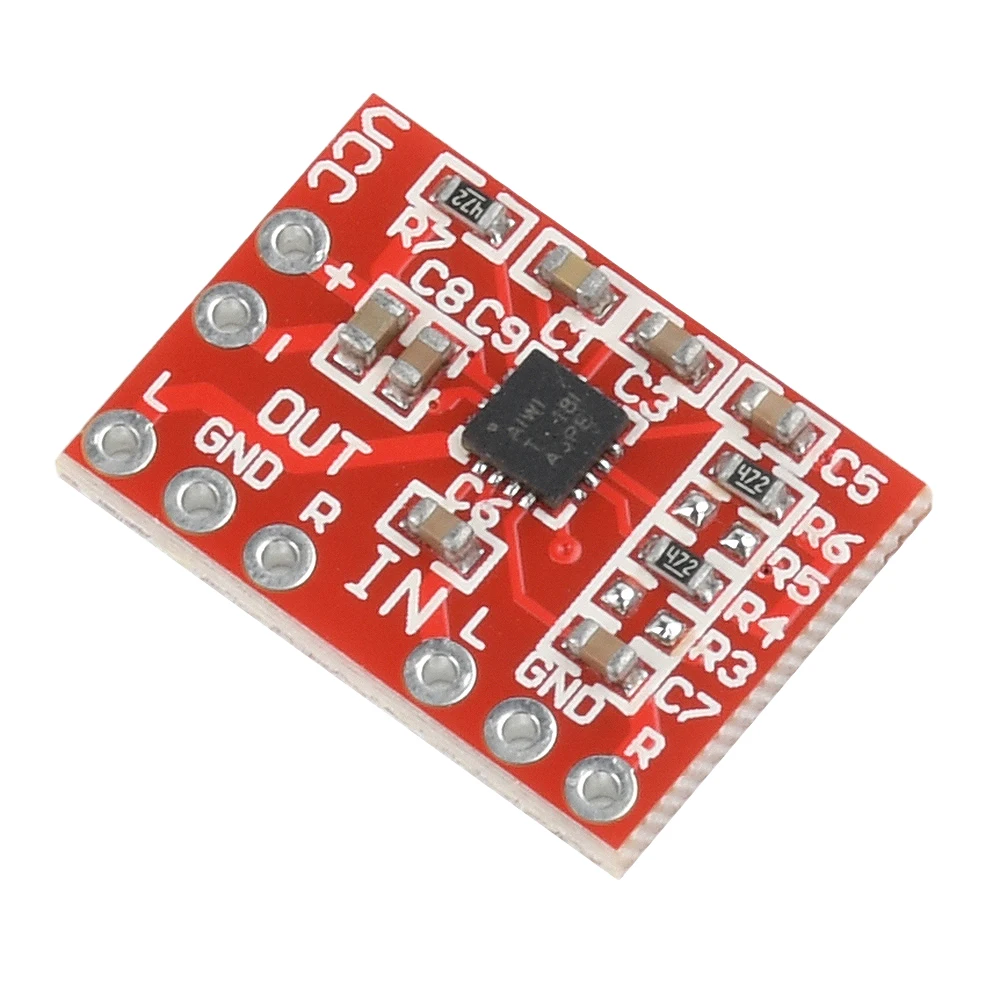

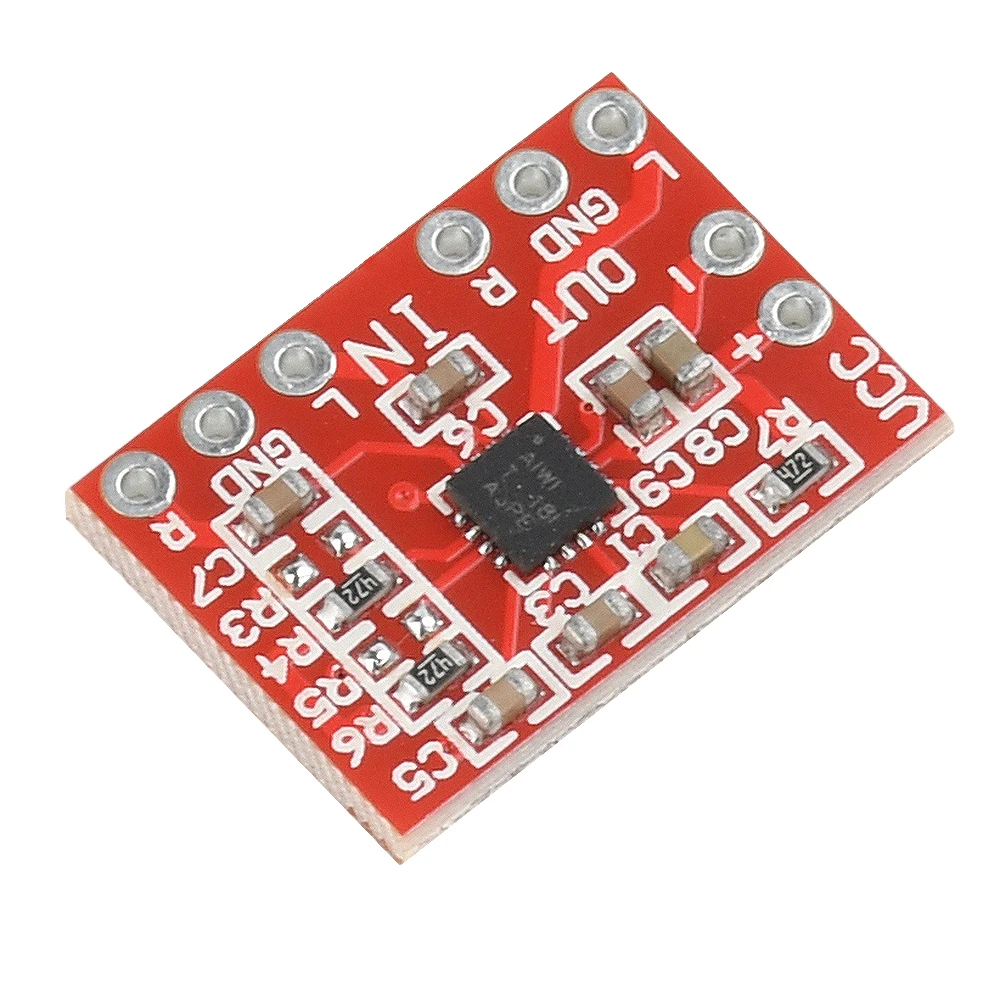

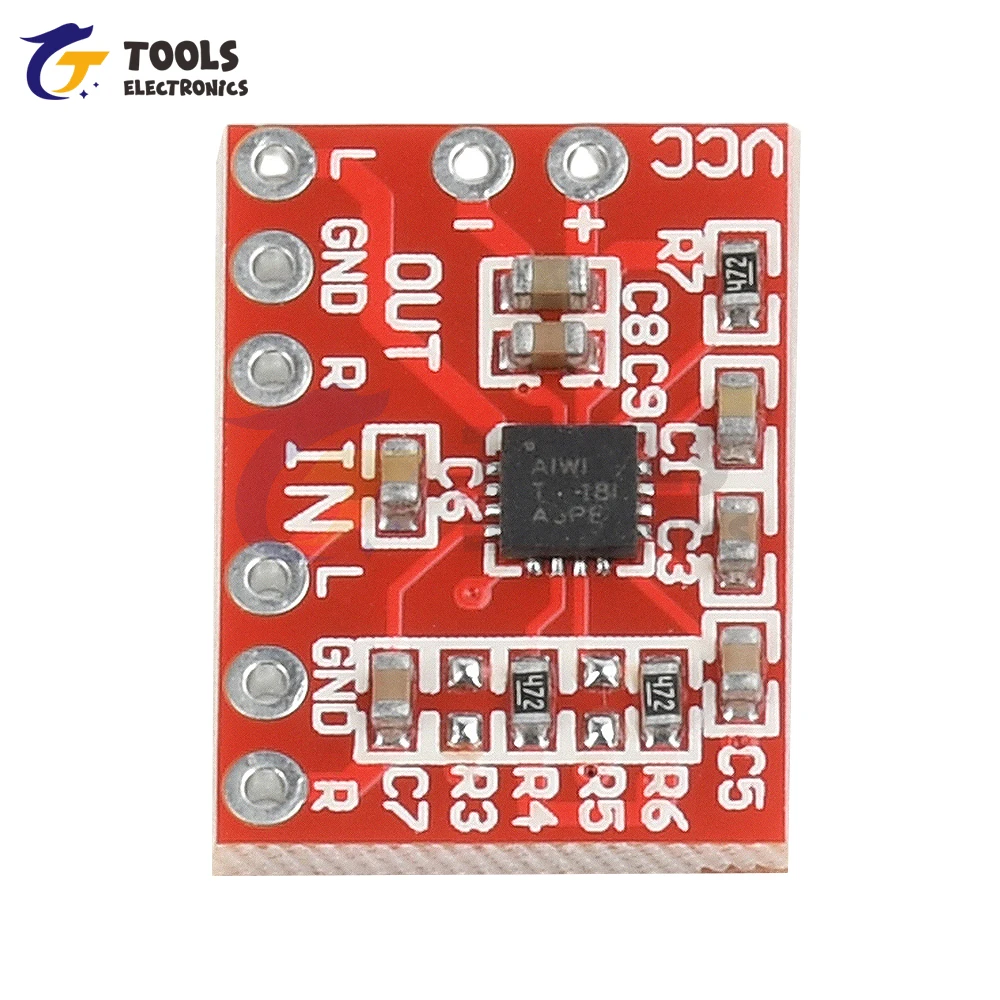

Módulo amplificador de auriculares TPA6132, diferencial a entrada única, placa amplificadora diferencial, preamplificador de señal pequeña

Features:
1.Made of durable material, which can ensure the long-term stability and reliable operation of the device
2. Using TPA6132 headphone amplifier chip, perfect for enhancing your listening experience.
3. Can be used as headphone amplification, can also be used as amplifier preamplification
4. Suitable for music lovers and professionals seeking to optimize their audio systems.
5. This amplifier board can be installed into the device to provide excellent performance for immersive sound experience.

Parameter:
Input working voltage: DC 2.3-5.5V
Output power: 25mw

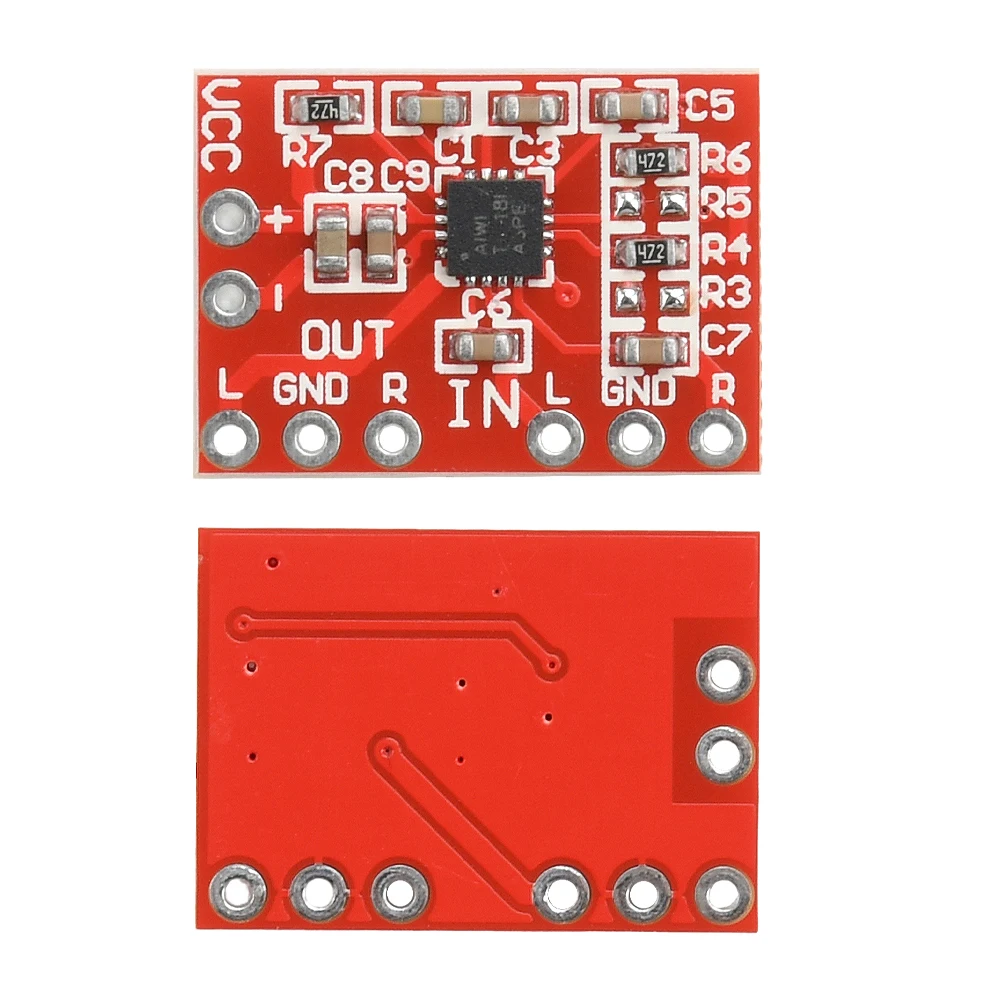

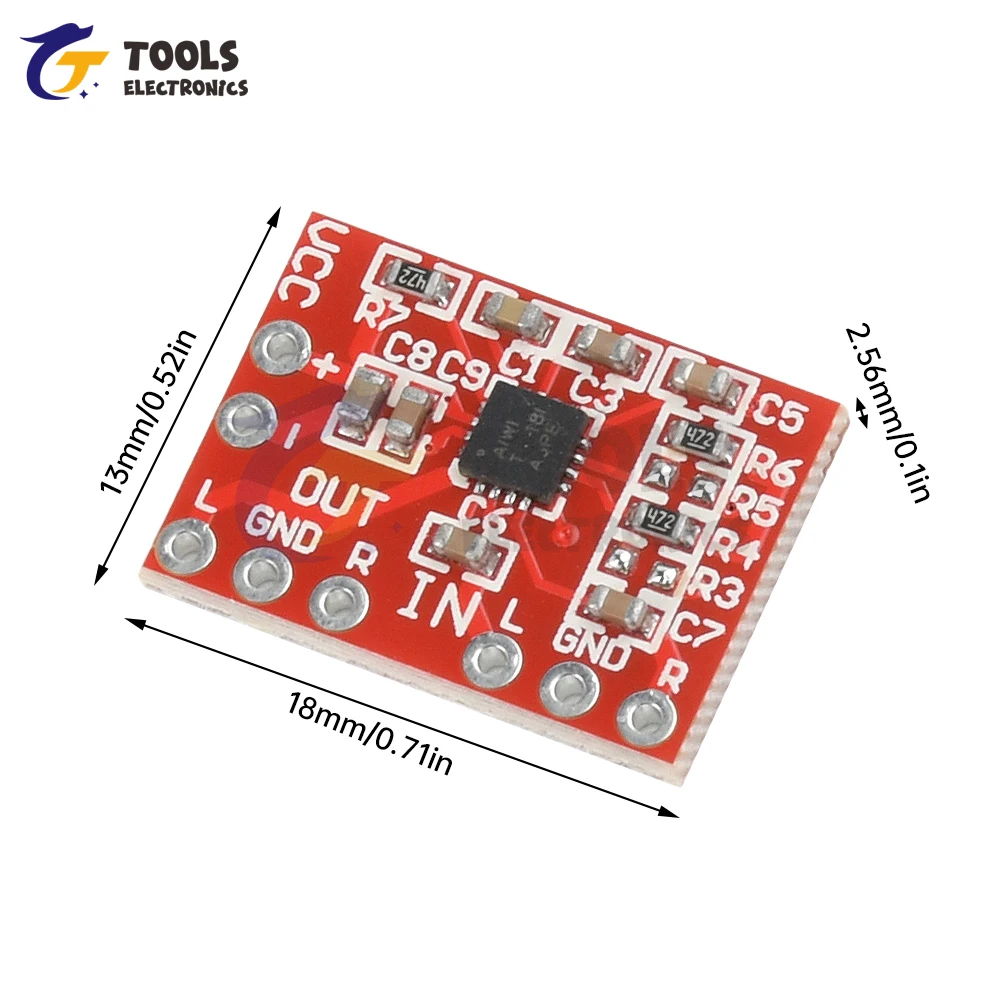

Module size: 18*13mm

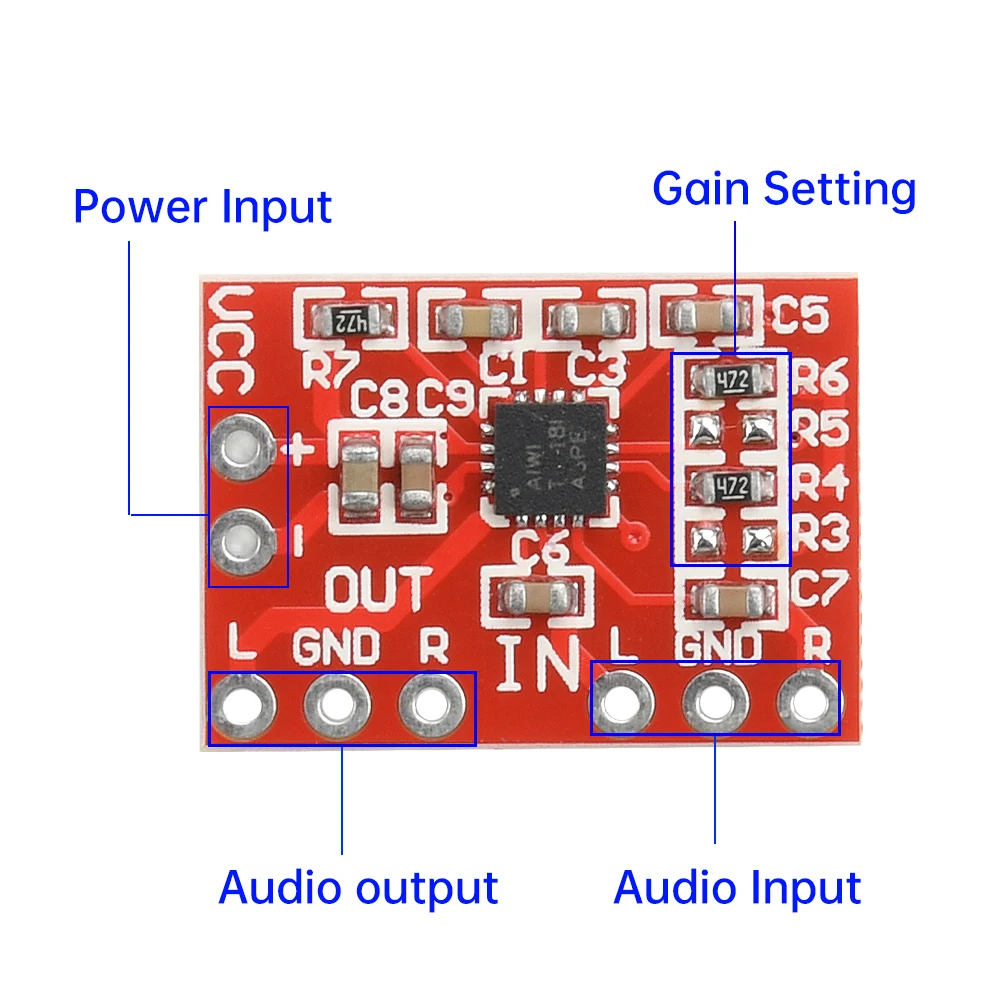

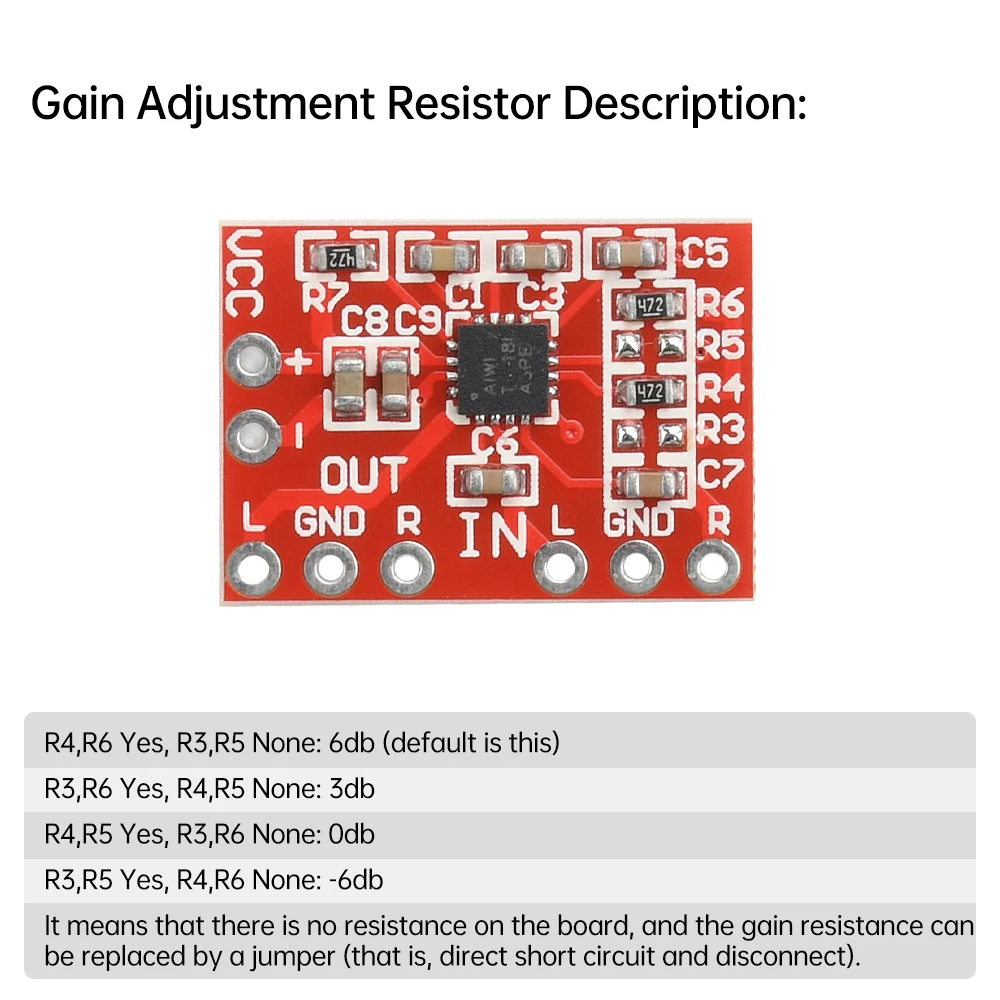

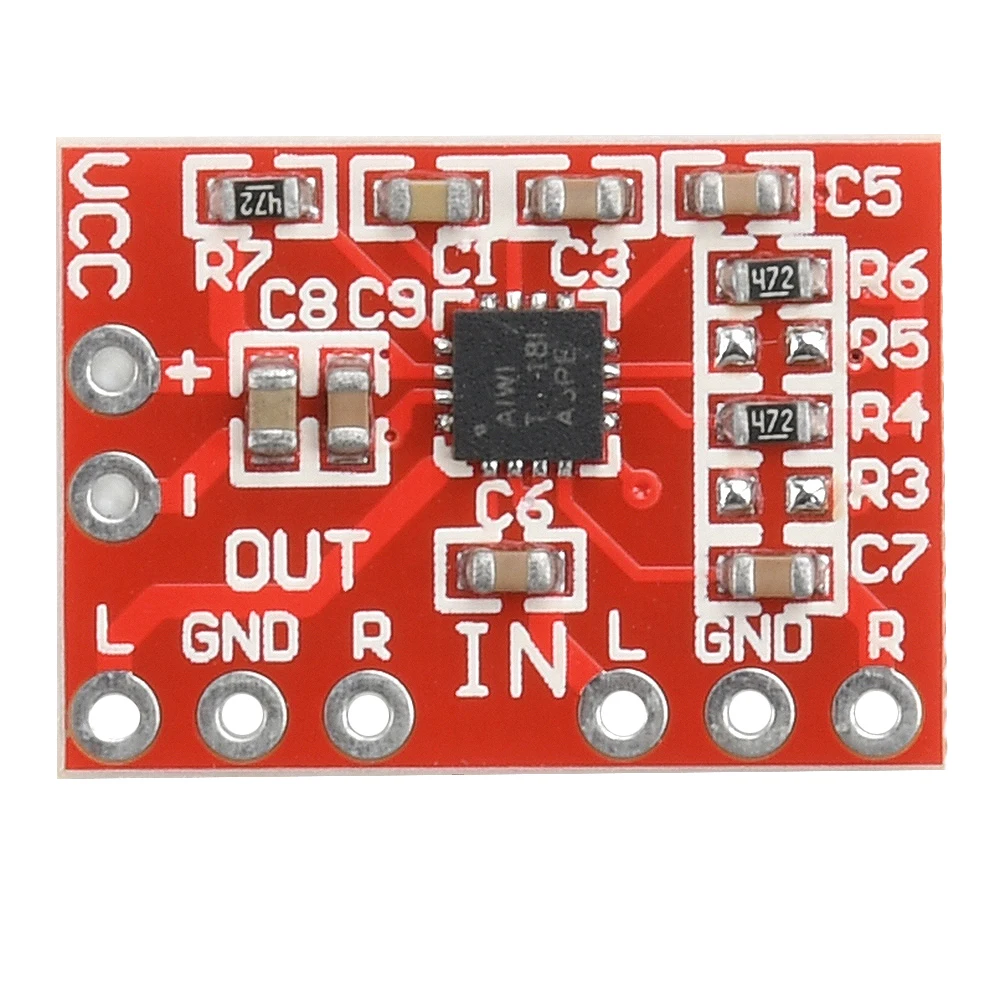

Gain adjustment resistor description:
R4,R6 yes, R3,R5 no: 6db (default is this)
R3,R6 yes, R4,R5 no: 3db
R4,R5 yes, R3,R6 no: 0db
R3,R5 yes, R4,R6 no: -6db
It means that there is a resistor or not on top of the board, and setting the gain resistor can be replaced by a jumper (that is, directly shorted and disconnected)

Package include:
Module*1
