Descripción

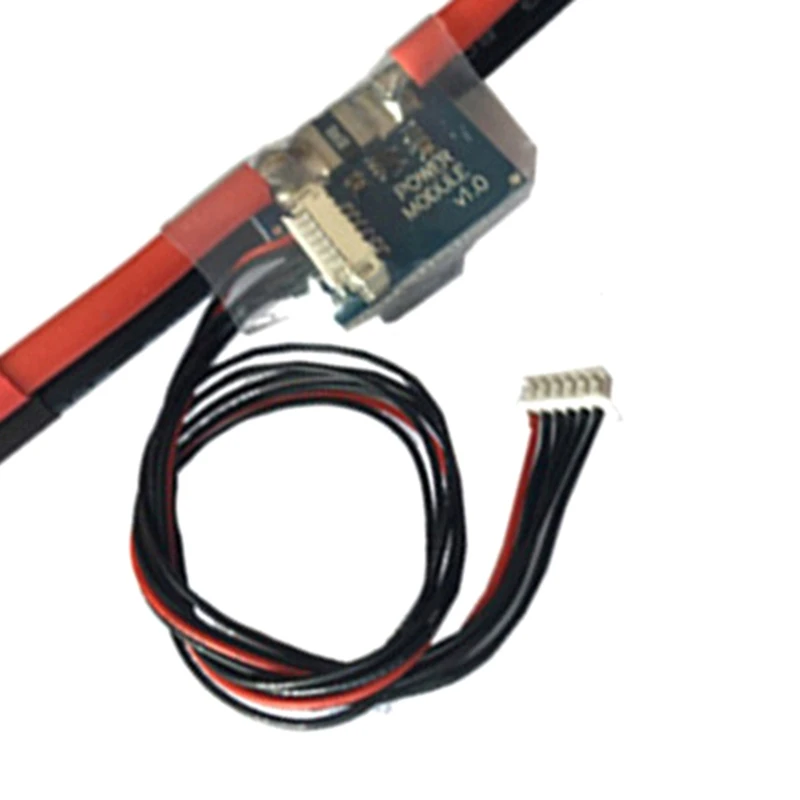

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Used to detect the battery voltage and the battery current, flight control board receives two signals, calculate the remaining battery power, estimate the remaining flight time. In addition the module also comes with BEC function, you can output 5.3 DC, 3A maximum continuous current for the flight control board to provide a stable power supply. APM flight control board and reliable connection between the power supply module.
Max input voltage: 30V
Max current sensing: 90A
Colour:As shown
Material:plastic

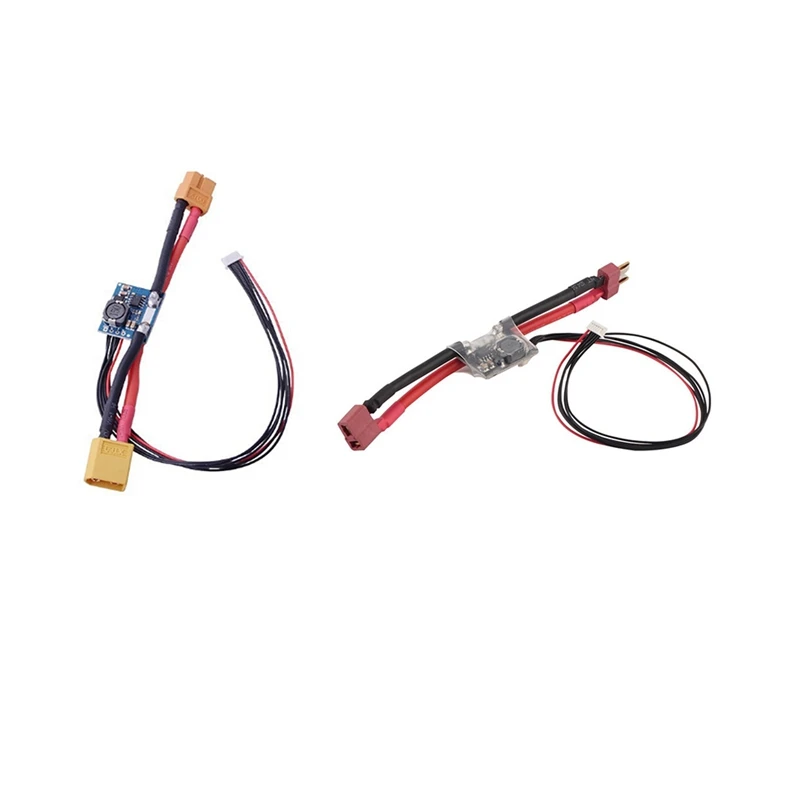

Package Contents:

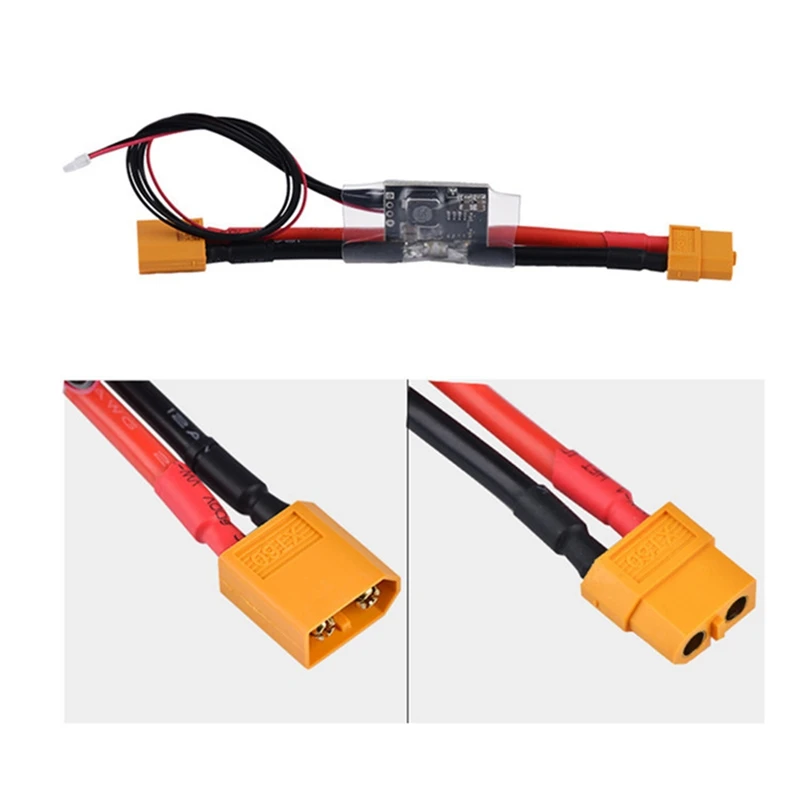

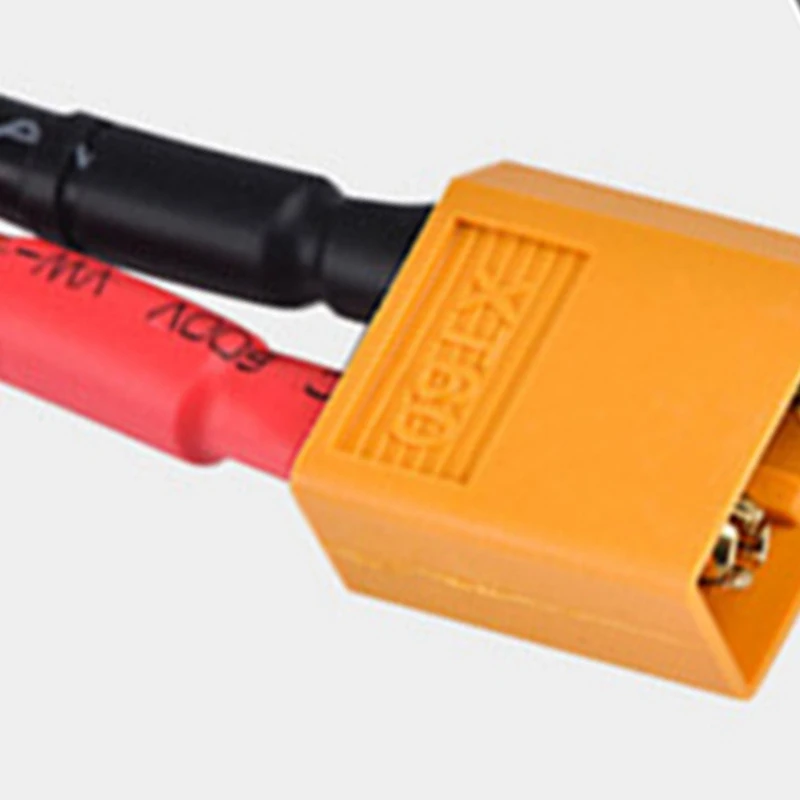

1 x Power Module( XT60 Plug)
1 x P cable
/
1 x Power Module( T Plug)
1 x P cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
