Descripción
Module parameters：

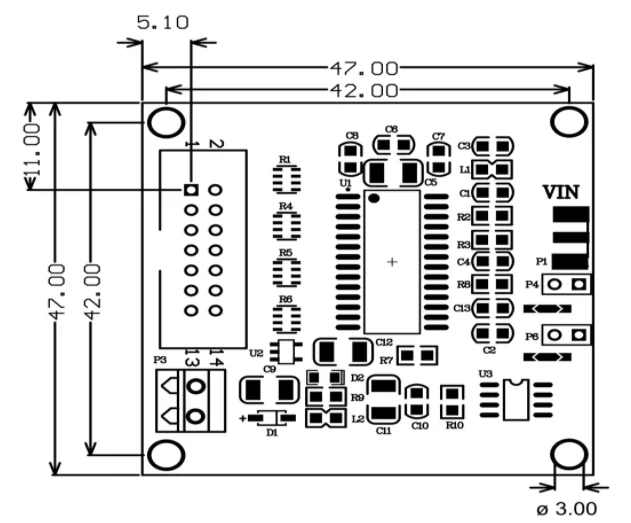

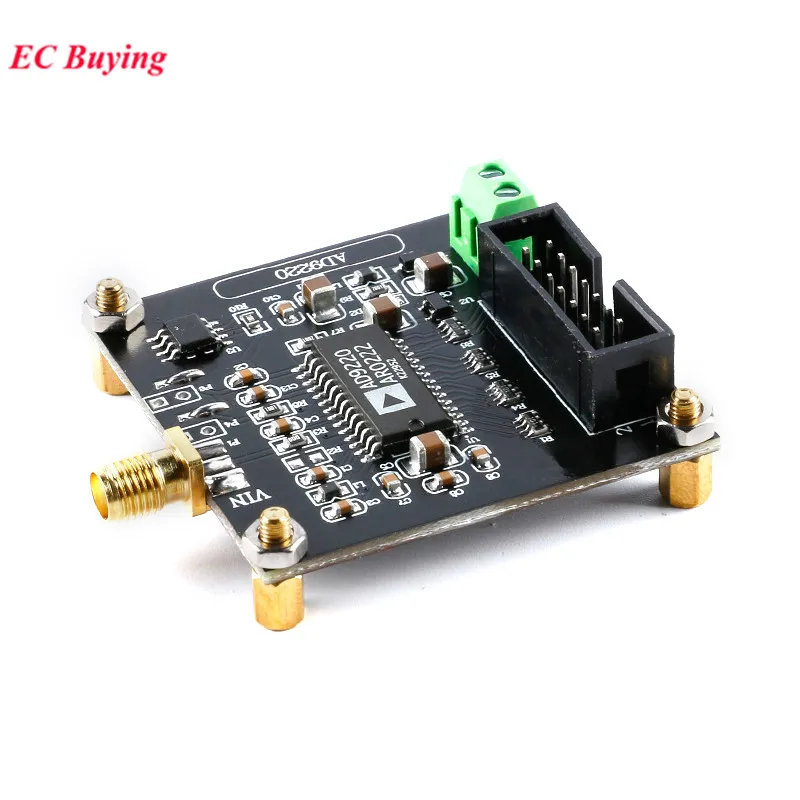

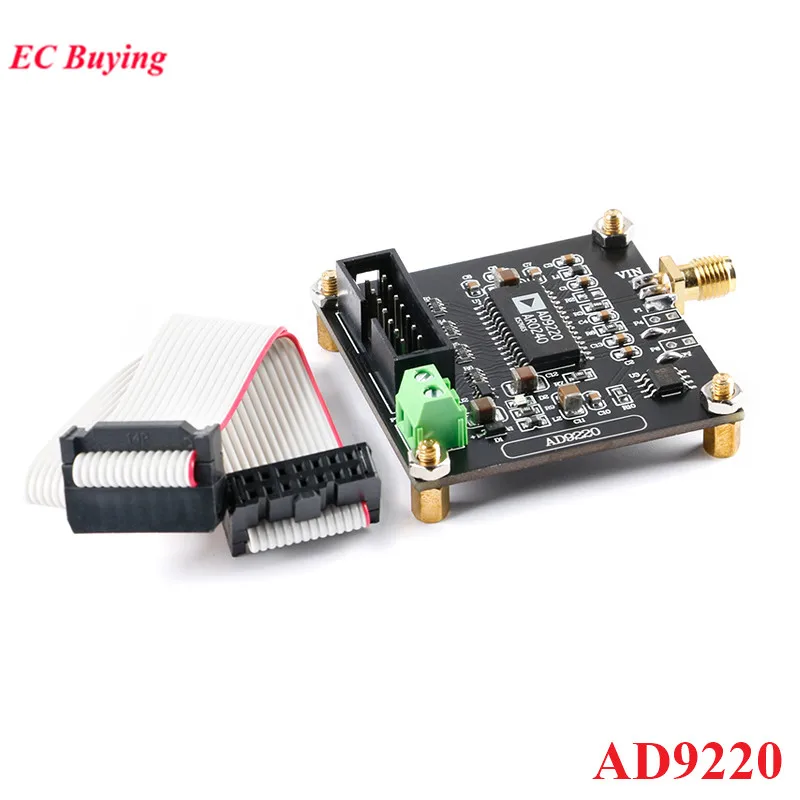

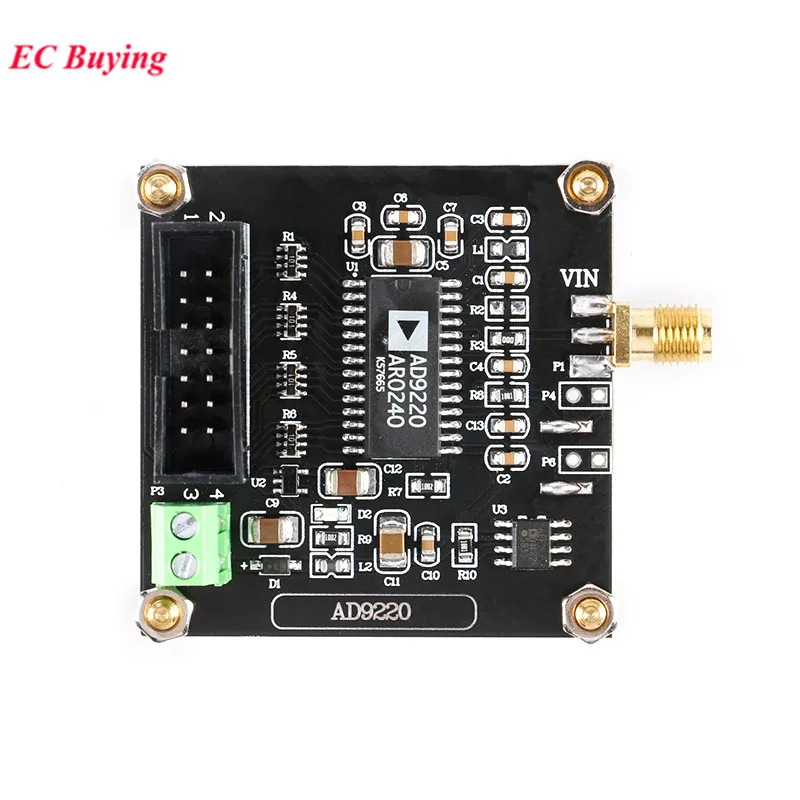

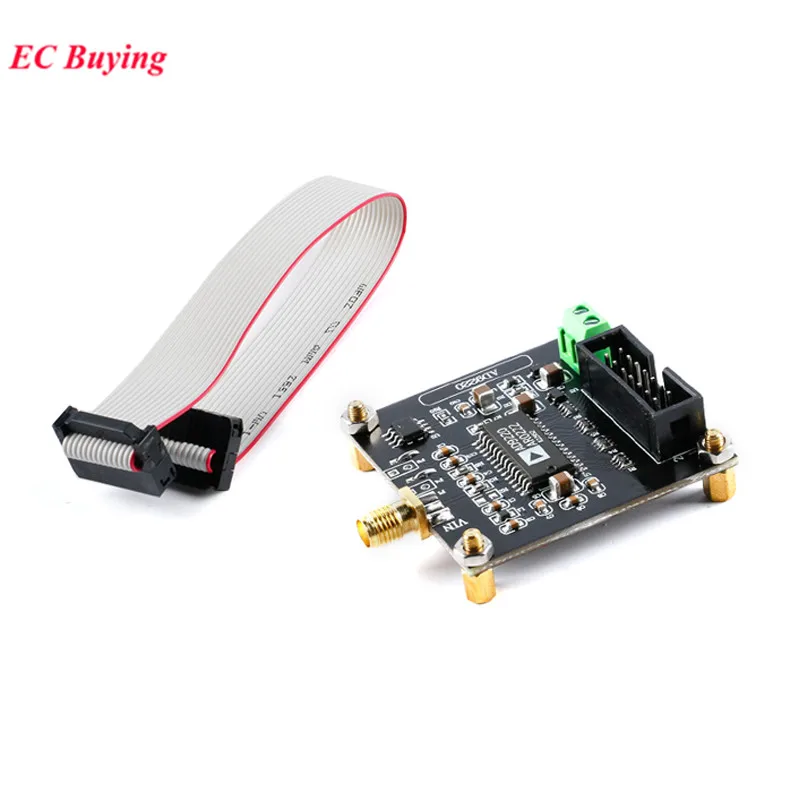

Module model: AD9220
Module type: analog-to-digital conversion module
Module power supply: DC5V
Module current: 20mA (MAX)
Module communication protocol: data parallel

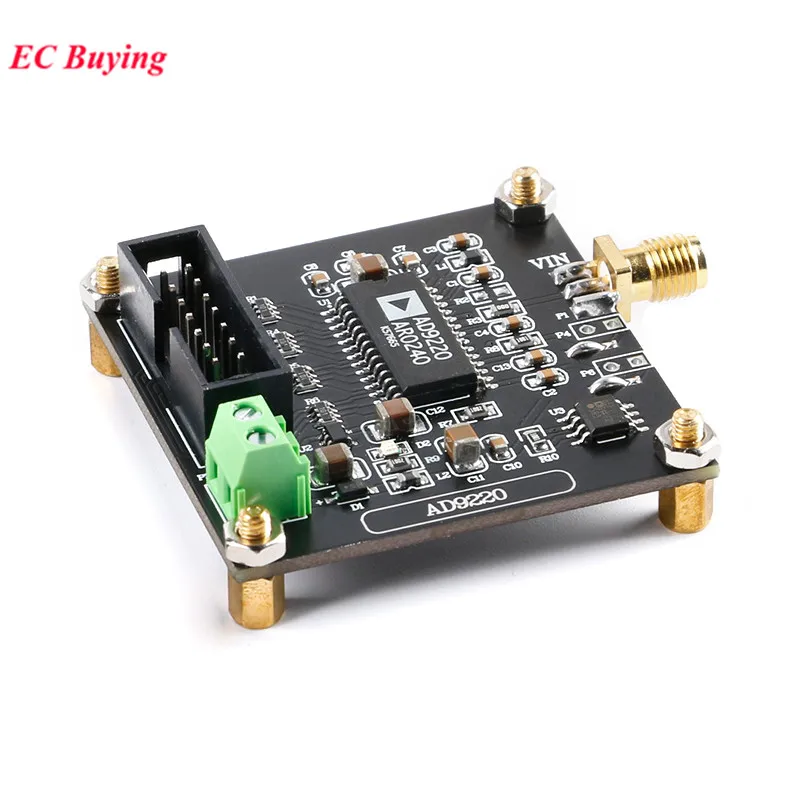

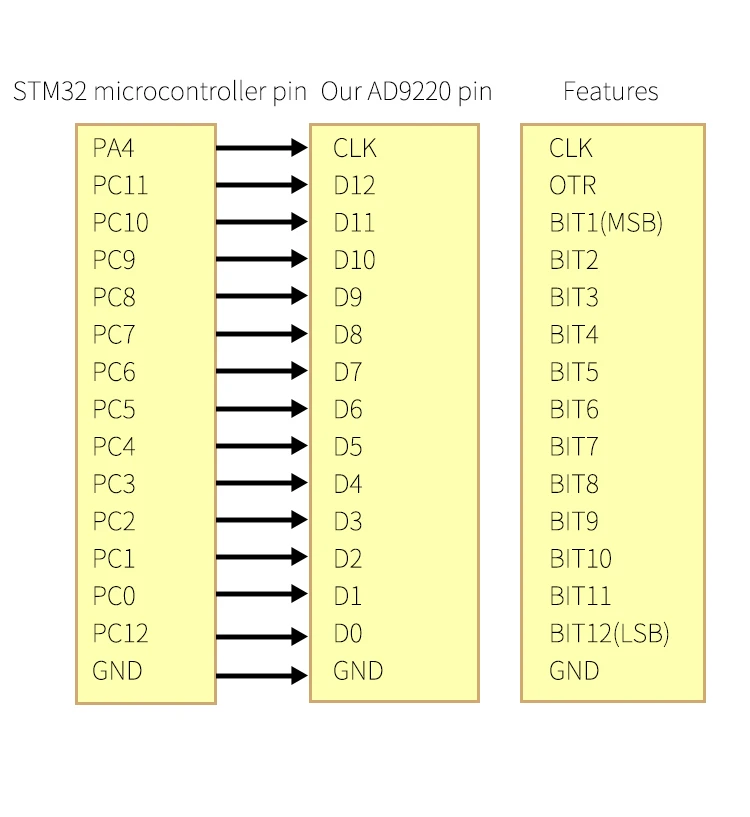

Module provides routines: STM32F103RBT6
Routine platform: STM32F103X-M3; KEIL5 version source code
Module control signal level: 3.3V
Module input voltage range: 0-5V
Input impedance: 1M ohm
ADC resolution digits: 12
Sampling rate: 10MSPS
Number of input channels: 8 channels independent
Module input interface: SMA
Reference voltage: 2.5V; external input reference for solderable SOP8 package
Sampling mode: configurable acquisition voltage range; maximum 0-5V

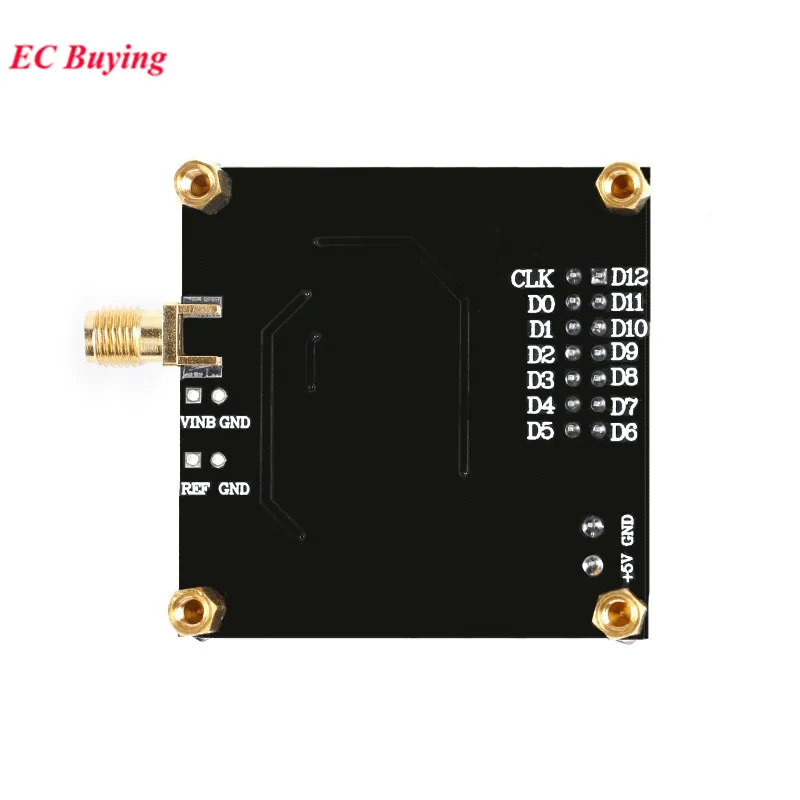

Output mode: 12-bit data parallel
Module features: multiple; true differential input port, with sample and hold circuit, built-in digital output error correction logic, high-speed conditions without loss of dynamic range.
Module applications: multiple; power line monitoring and protection, multi-phase motor control, instrumentation and control, multi-axis positioning, data acquisition and other systems
Module description:
AD9220 is a new generation of high-performance, 12-bit analog-to-digital converter, powered by a single power supply. It has true 12-bit linearity and temperature drift performance, and 11.5-bit or better AC performance. The AD9220 uses a high-speed, low-cost single CMOS process and a novel architecture. The resolution and speed both reach the level of the existing hybrid single-chip solution, but the power consumption and cost are much lower. Built-in on-chip high-performance, low-noise sample-and-hold amplifier, select external reference voltage to meet the application's DC accuracy and temperature drift requirements. The device uses a multi-stage differential pipeline architecture; built-in digital output error correction logic; can provide 12-bit accuracy at the rated data rate, and ensure no missing codes in the entire operating temperature range. It is suitable for IF down-conversion communication system.
