Description:

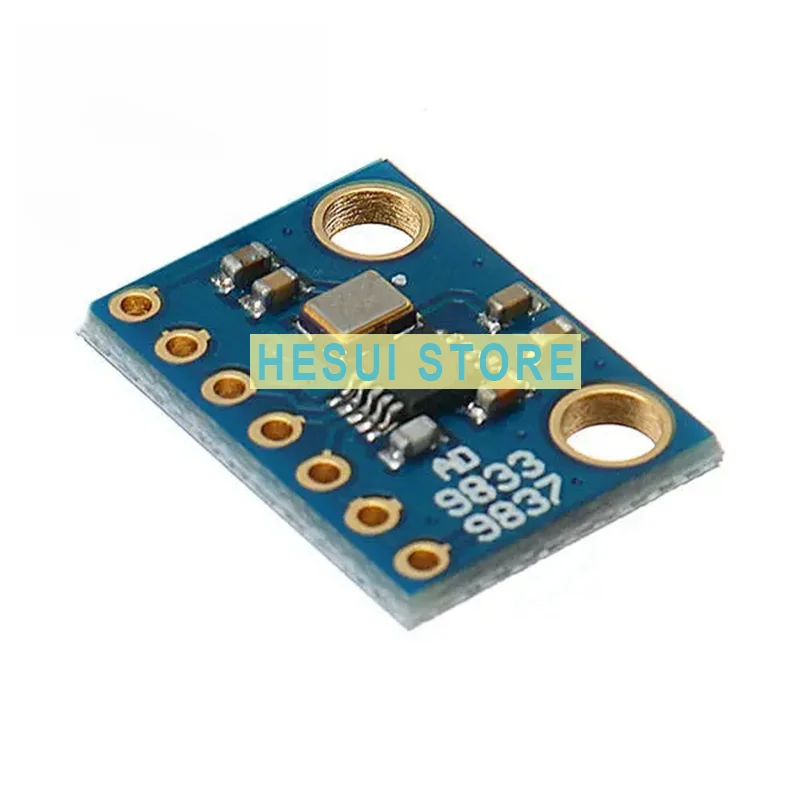

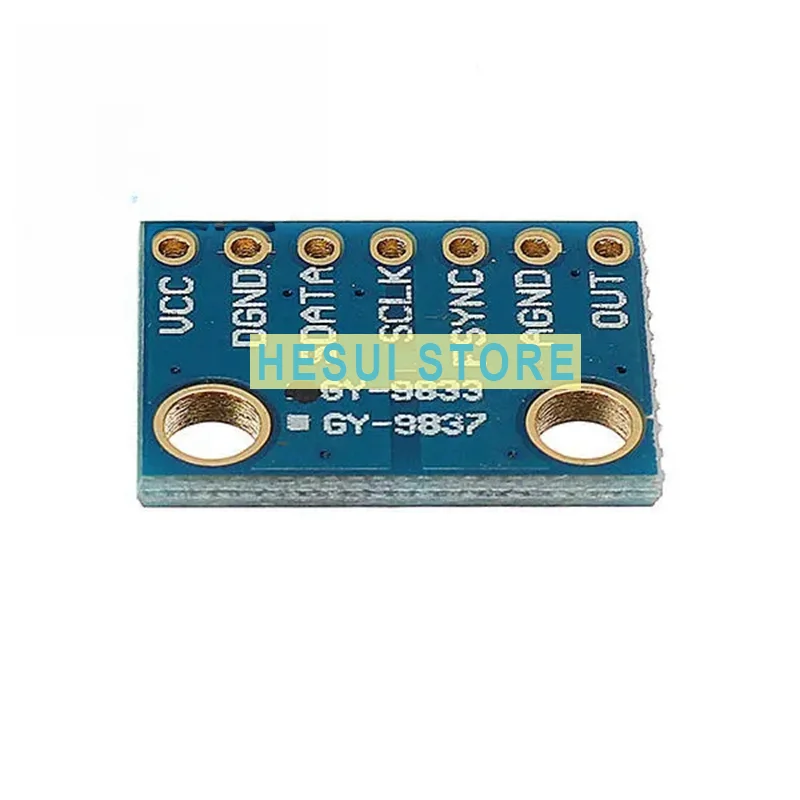

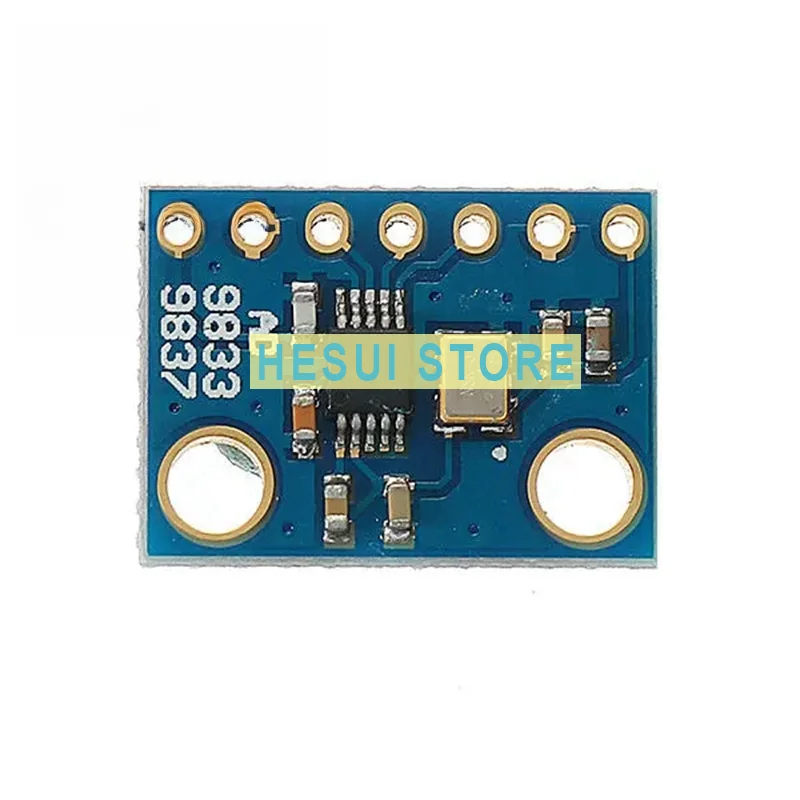

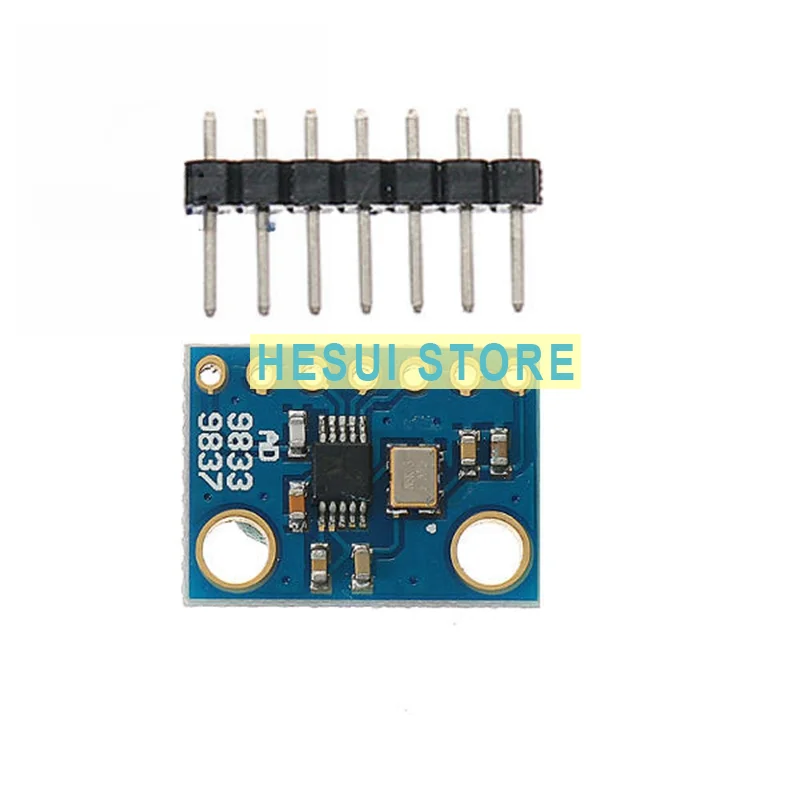

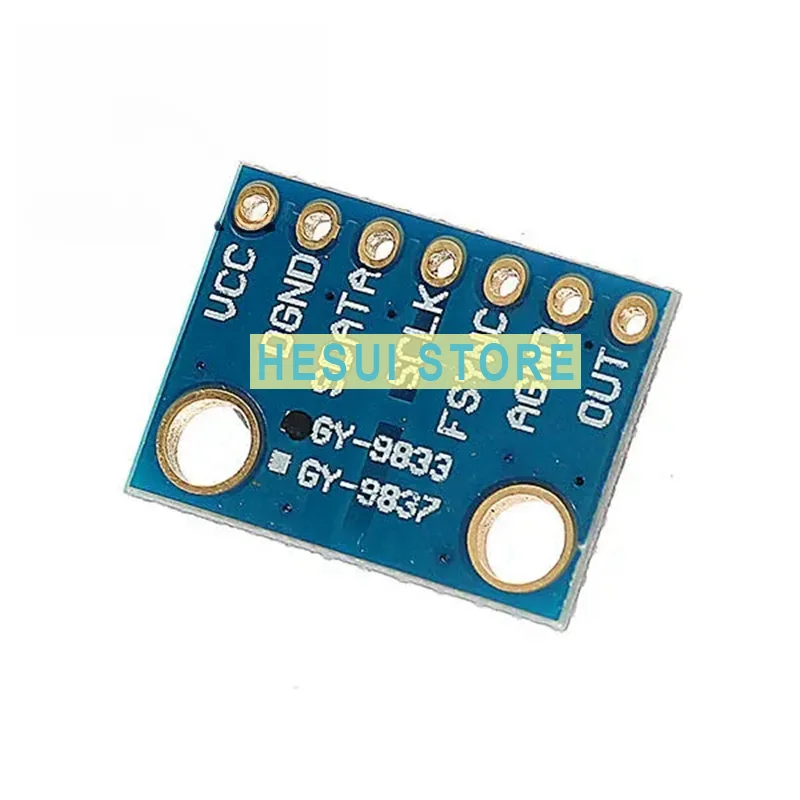

The AD9833 is a low-power, programmable waveform generator capable of producing sine, triangular and square wave outputs. Simply connect the device using the SPI cable on the Uno or any SPI-enabled microcontroller
Features and Specifications:
Digital programmable frequency and phase.
Power consumption at 3 volts is 12.65 mW.
0 MHz to 12.5 MHz output frequency range.
28-bit resolution: 0.1 Hz at 25 MHz reference clock.
Sine wave, triangle wave and square wave output.
It can operate in the range of 2.3-5.5 volts.
3-wire serial Peripheral Interface (SPI).
Temperature range: −40°C to + 105°C
Sleep function.
Frequency rate: Maximum 25Hz
Maximum output voltage: 0.65V
Minimum output voltage: 38mV
Output voltage temperature coefficient: 200°
Input high voltage: 1.7-2.8V
Input low voltage: 0.5-0.7V
Input current: 10µA
Input capacitance: 3pF
Operating temperature range −40°C to + 105°C; The typical specification is 25°C
Size: 17x12x2.7mm.
