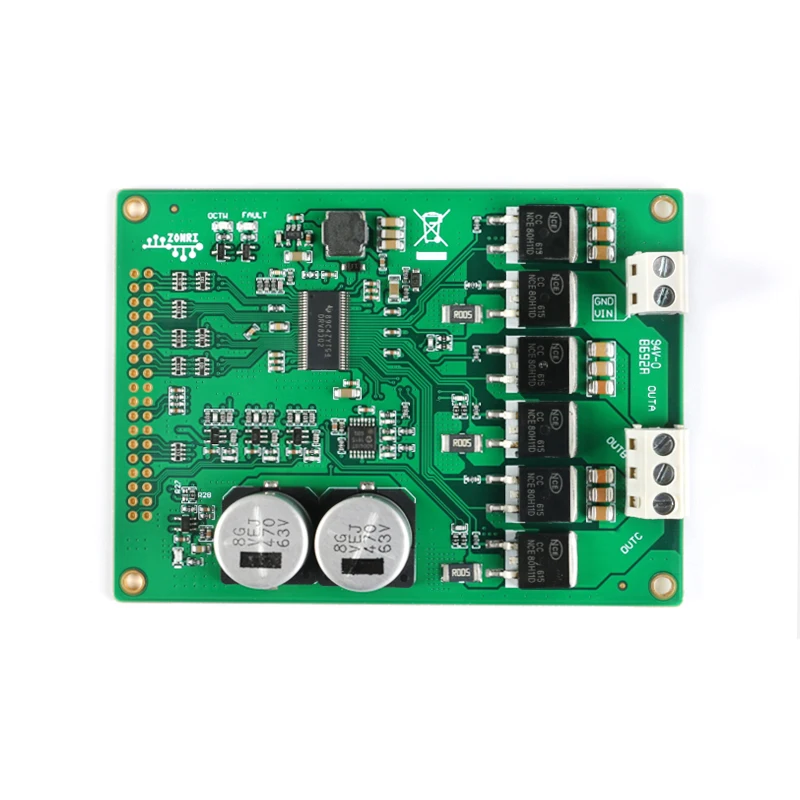

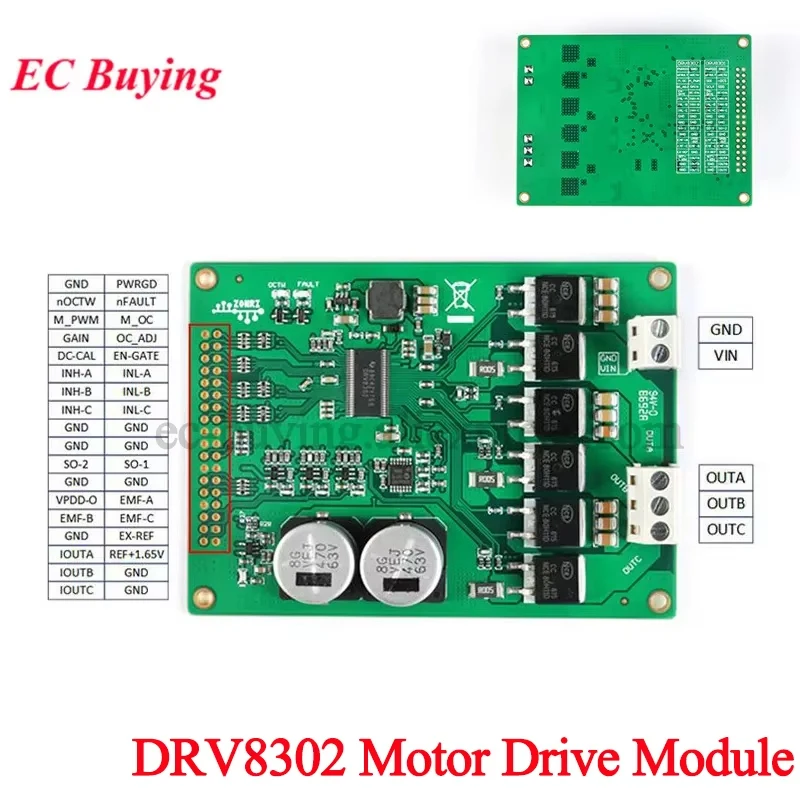

Módulo de accionamiento de Motor DRV8302, unidad PMSM sin escobillas BLDC de alta potencia, placa amplificadora de Control vectorial ST FOC DC 5,5-45V 15A

Name: Módulo de accionamiento de Motor DRV8302, unidad PMSM sin escobillas BLDC de alta potencia, placa amplificadora de Control vectorial ST FOC DC 5,5-45V
Brand: EC Buying
SKU: 387148
Price: 37.39 EUR
Availability: InStock
Rating: 5.0 (2 reviews)

Módulo de accionamiento de Motor DRV8302, unidad PMSM sin escobillas BLDC de alta potencia, placa amplificadora de Control vectorial ST FOC DC 5,5-45V 15A

2 opiniones

En Stock

37,39 €

~~49,85 €~~ -75.01%

Comprar ahora

Con la garantía de

45 unidades vendidas

Última actualización: 2026-01-04T21:33:43.625Z

Descripción

Product description:1. Rated power input range: 5.5V-45Vdc, output rated drive current 15A (no radiator installed at room temperature).2. On-board three-phase external current amplifier circuit with a gain of 12.22 and a full-amplitude current of ±27A.3. Onboard three opposite electromotive force sampling circuit and power sampling circuit, the signal attenuation ratio is 5.1/73.1.4. Optional three-phase differential current amplifier reference level for connection to 5V or other level systems.5. Reserved and equipped with the DRV8302 internal dual amplifier output.6. Three external current differential amplifiers support ST FOC library applications.7. Support BLDC non-inductive brushless motor drive application development.Common problem:Q: How can I develop a non-inductive BLDC driver using this module?A: The DRV8302 motor drive module has three opposite electromotive force BEMF outputs, which can be used for sampling and changing.Phase signal.Q: Do you support the ST FOC library?A: The DRV8302 driver board is designed with three external currents in addition to the two chip internal current amplifiers.The amplifier circuit supports the ST FOC library three-resistor current sampling mode.
