En Stock
0,49 €
Con la garantía de
Color
8 unidades vendidas
Última actualización: 2026-01-04T21:38:21.261Z
Descripción

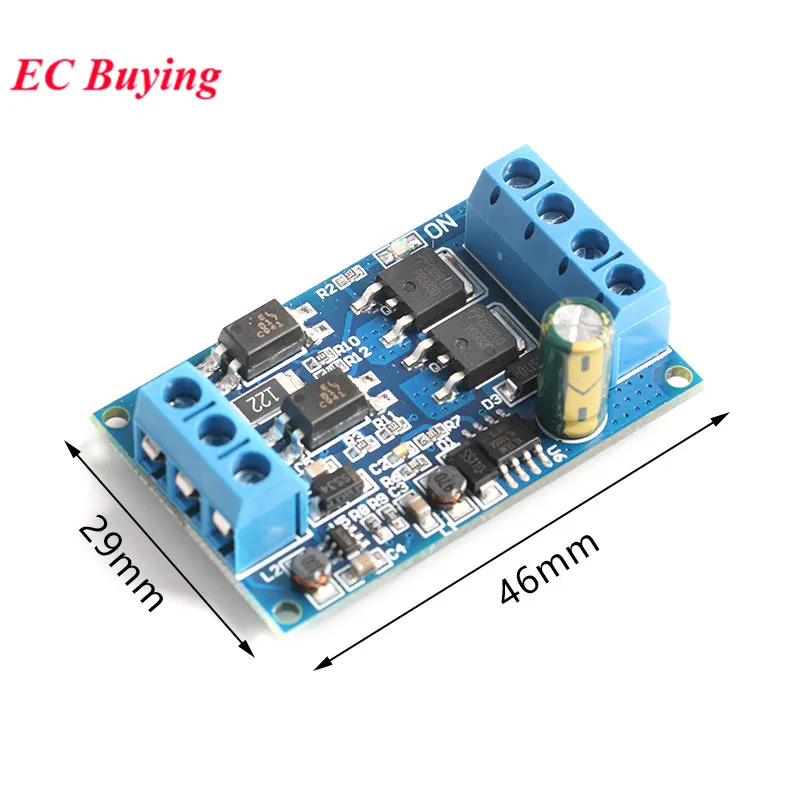

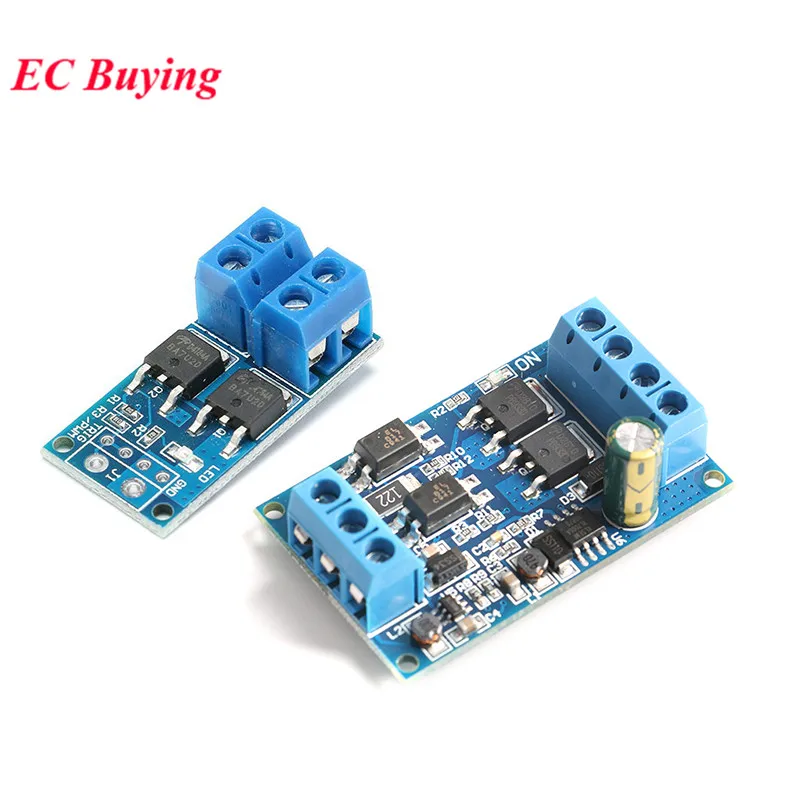

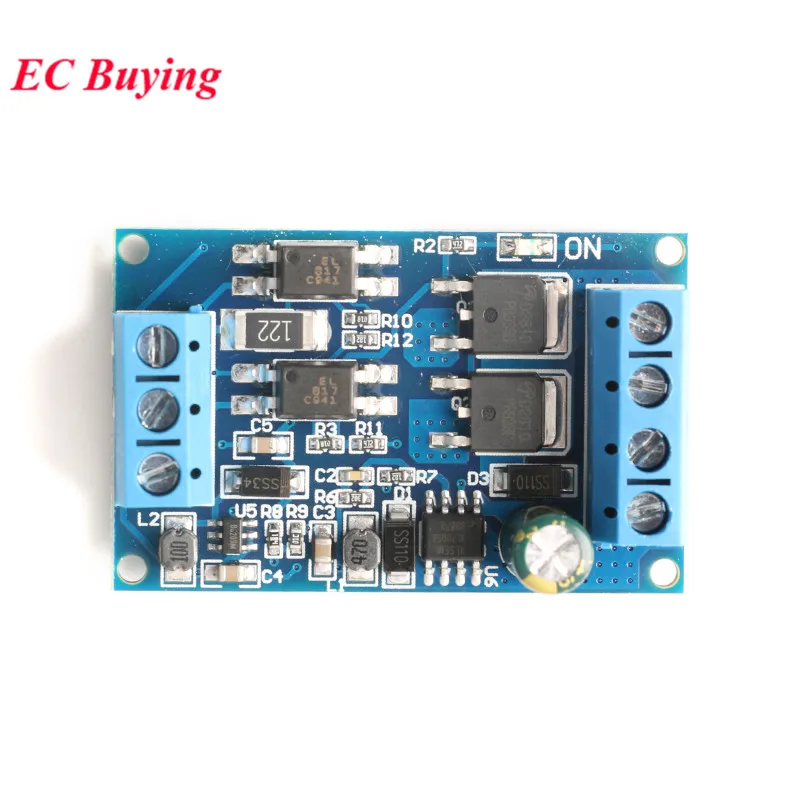

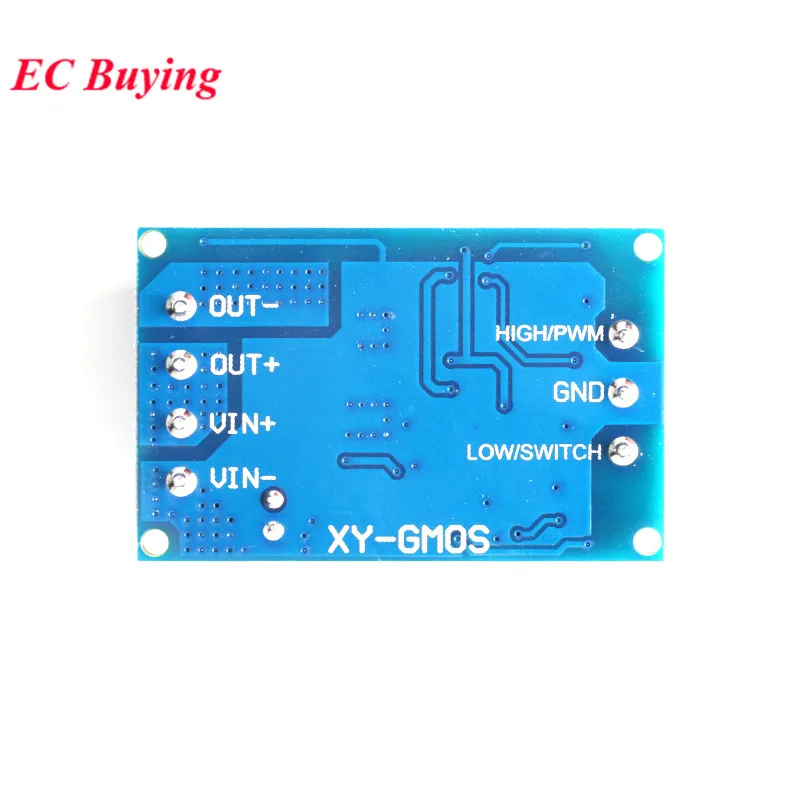

The module supports high-level triggering, low-level triggering, switching control and PWM control. The module adopts imported dual MOS parallel active output, which has lower internal resistance, higher current and strong power. 10A and 600W at room temperature meet It is used by most devices and supports a wide operating voltage (DC4-60V), which can easily control high-power devices.Parameter:1. Working voltage: DC 4V-60V2. Trigger signal source: high level trigger (DC3.0V-24V)Low level trigger (DC 0.0V~0.6V)On-off control, can be connected to single chip IO port, PLC interface, DC power supply, etc. can be connected to PWM signal, signal frequency 0-2.5KHZ support.3. Output capacity: DC DC 4V-60V, continuous current 10A at normal temperature, power 600W! Under auxiliary cooling conditions, the current can reach 15A.4. Service life: unlimited switching5. Working temperature: -40—85°C6. Size: 4.6*2.9*1.5cmApplication:The output can control high-power devices. Motors, light bulbs, LED strips, DC motors, miniature water pumps, solenoid valves, etc.. You can input PWM to control the motor speed and the brightness of the lamp.Precautions:1. At the same time, there can only be one signal to control this module, and you cannot use two or more signals to control this module at the same time;2. High-level trigger voltage range: DC3.0V~24V, that is, when the signal is 3.0V~24V, the MOS tube is turned on. Below 0.6V. That is, 0V~0.6V. The MOS tube is turned off, and the signal voltage must not be at 0.6V Between ~3.0V, so that the MOS is not fully turned on, burned MOS with high power;3. Low-level trigger voltage range: DC0V~0.6V, that is, the MOS tube is turned on when the signal voltage is 0V~0.6V, higher than 3.0V, the MOS tube is turned off, and the signal voltage must not be between 0.6V~3.0V, In that case, the MOS is not fully turned on, and the MOS is burned with high power.
Module Highlights:

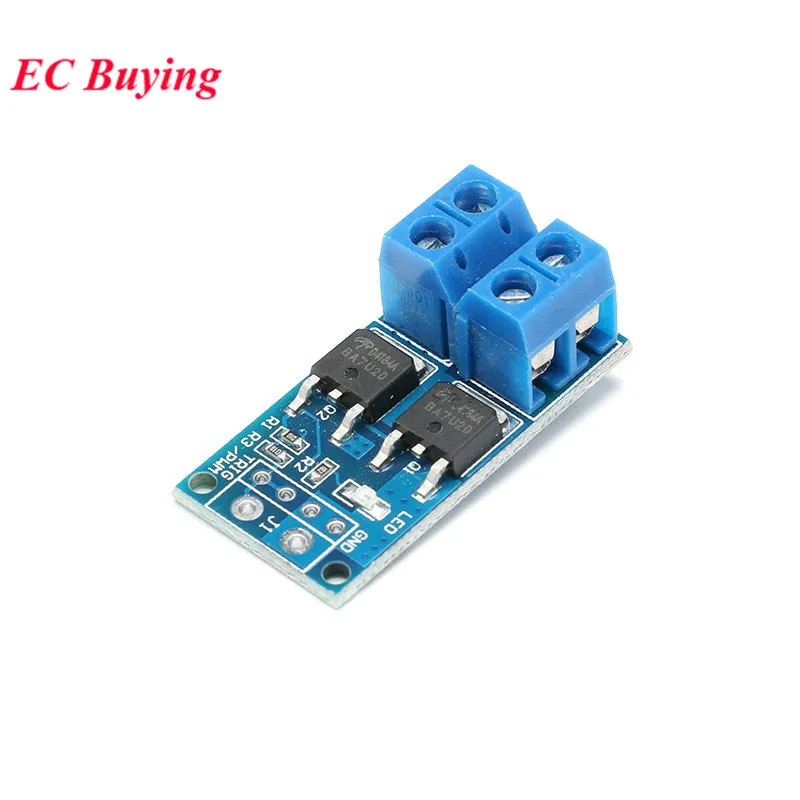

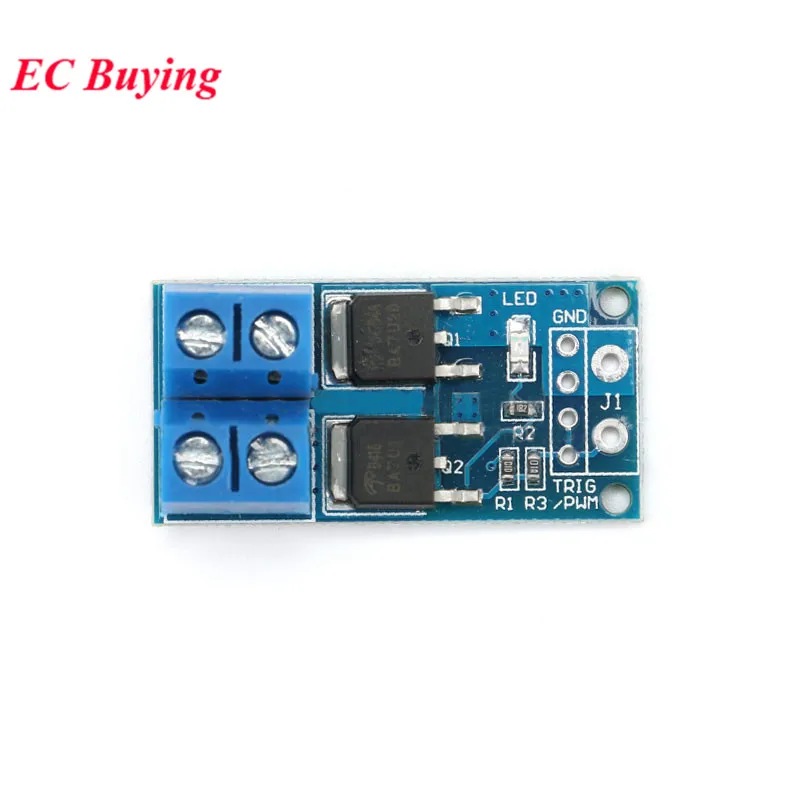

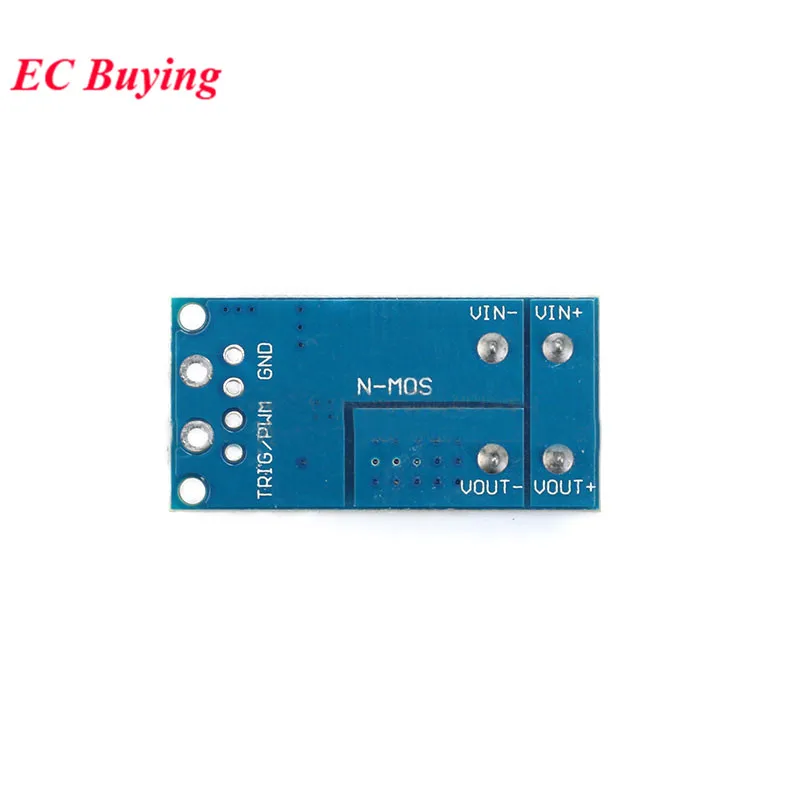

1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
2. Wide voltage, the perfect support for PWM
3. Easily control high power devices
1: Operating Voltage: DC 5V - 36V;
4: Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc. you can enter
PWM, motor speed control, lamp brightness.
5: Availability: unlimited switch, Operating temperature: -40-85
