product description

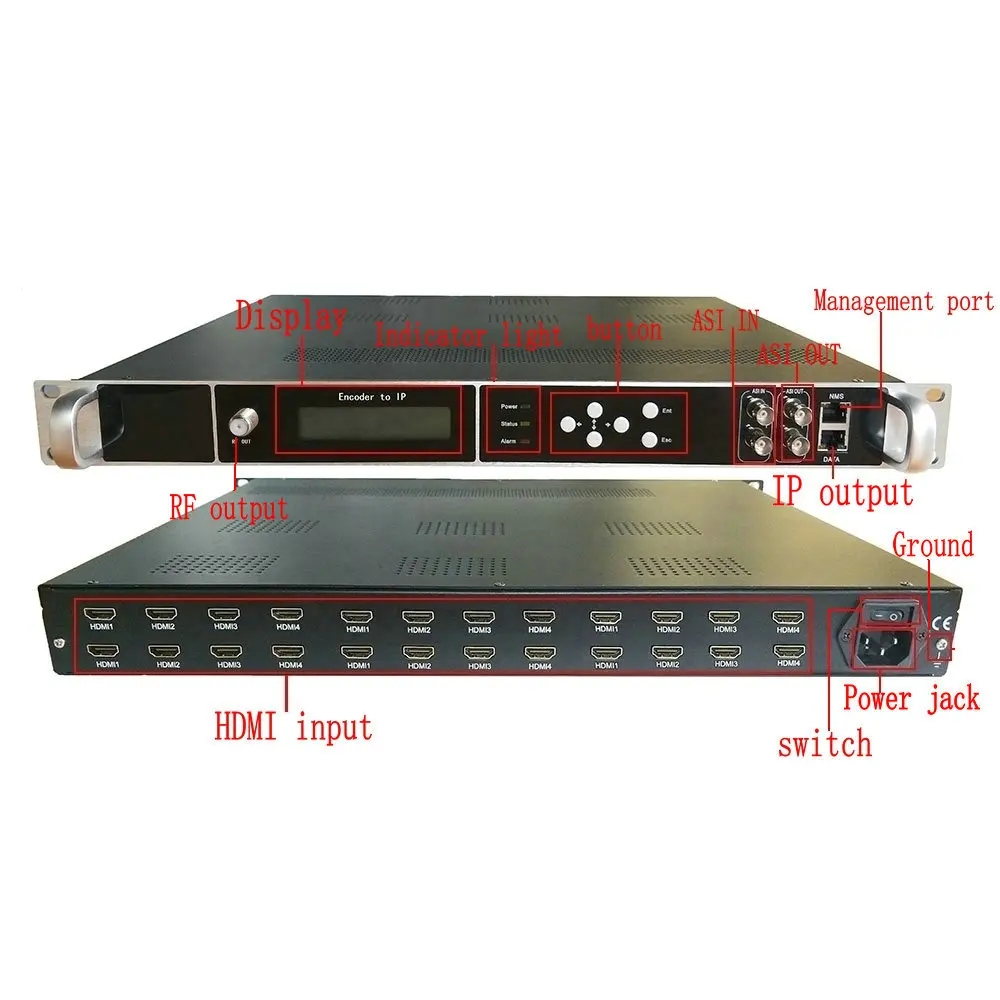

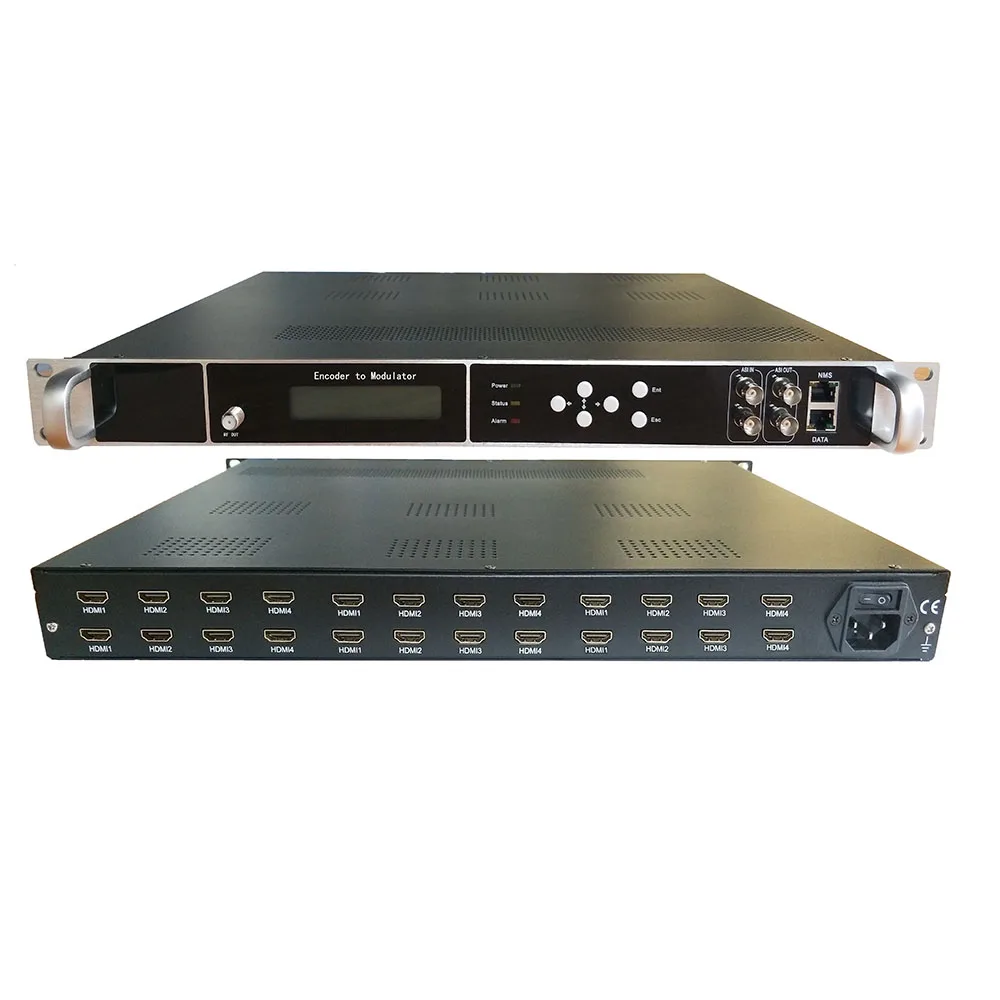

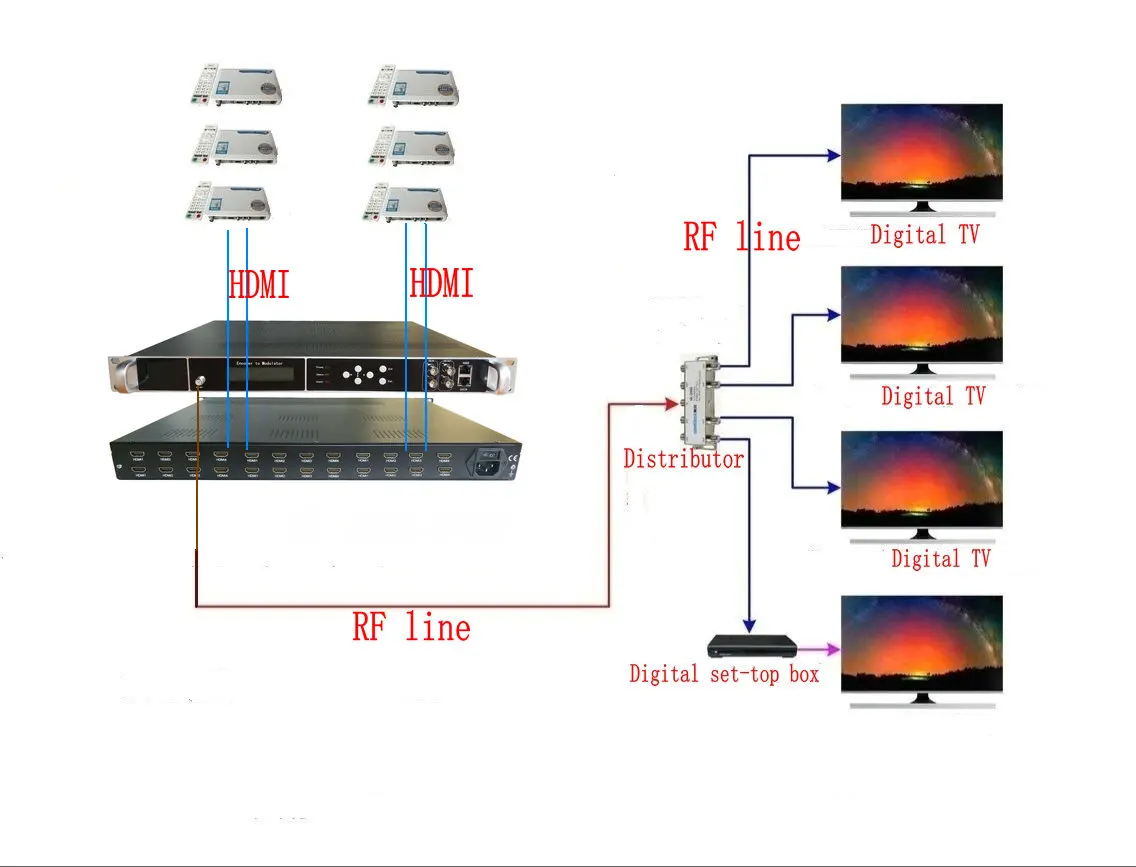

The EX2404X series editing and adjusting machine is a newly developed high cost performance device with input HDMI and modulation. The device supports 24 HDMI inputs, 1 Gigabit IP input / output; supports 4 single carrier (ATSC, ISDBT, DTMBT, DVB-C / -T) output and 4 MPTS output and SPTS output. With high integration, high performance and low cost, a single device integrates a set of front-end system functions, which is very suitable for digital TV transmission systems such as hotels, clubs, hospitals, and baths.
Main features
Support 24 HDMI inputsSupport HDCP
Support 1 Gigabit IP input / output, SPTS / MPTS output, UDP / RTP and protocol (multicast), RTSP unicast output optional.
Support different carrier modulation (ATSC, ISDBT, DTMBT, DVB-C / -T) output selection
Support 2 ASI inputs
Support 2 ASI independent outputs

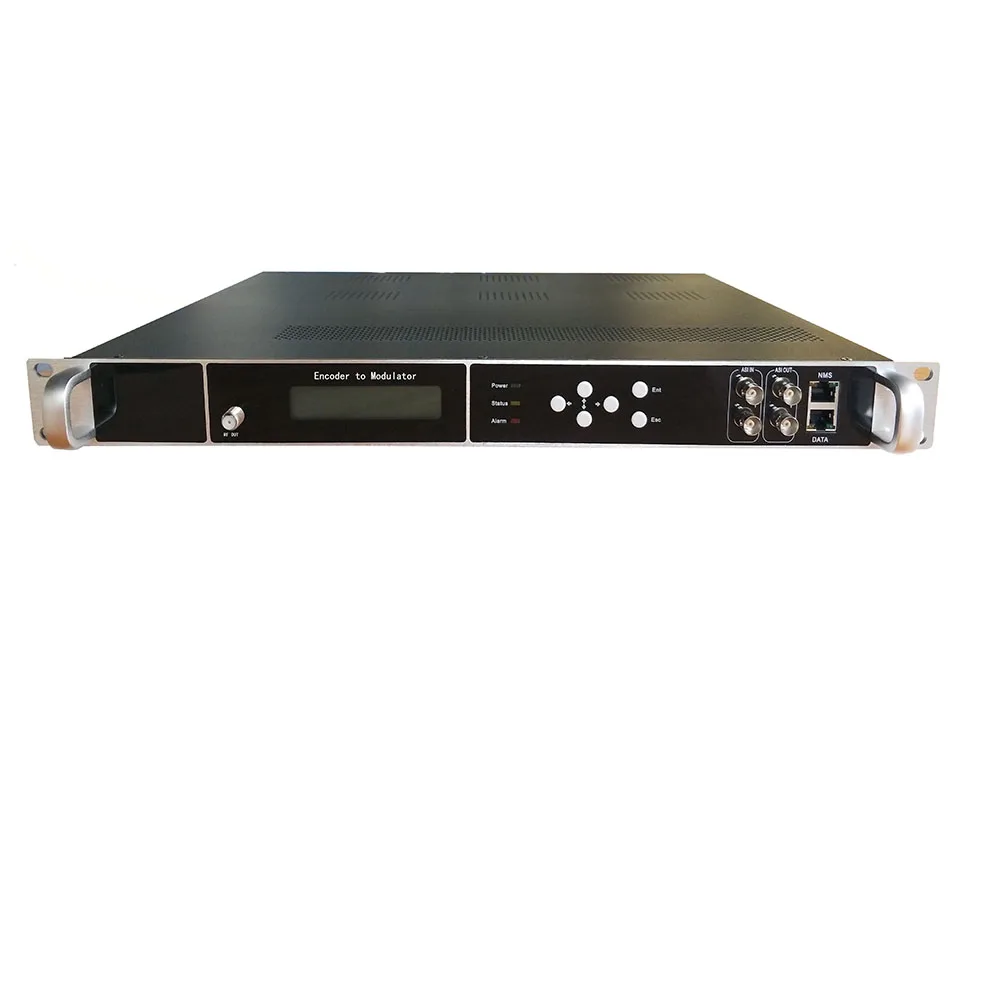

Support LCD and key functions
Support network management (Web)
Support online upgrade
3 Technical indicators

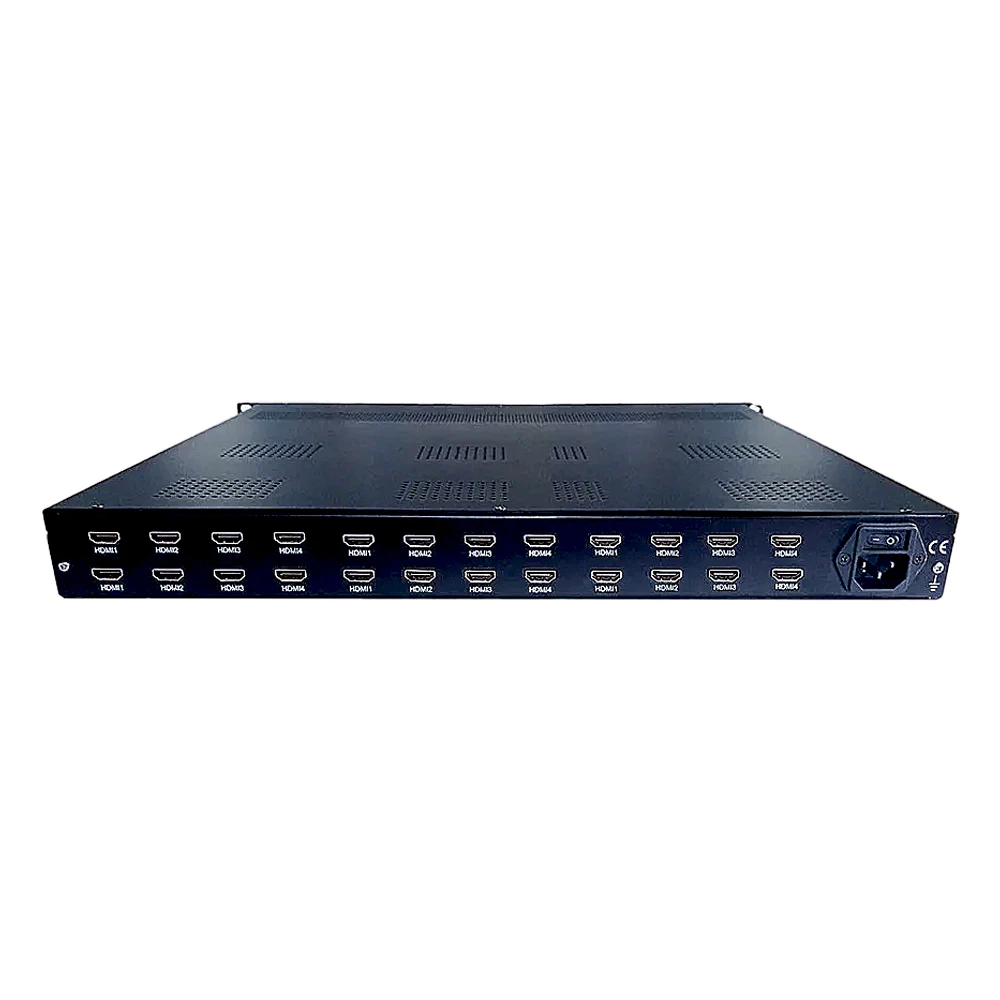

Input HDMI (24 HDMI)
2 ASI inputs
Output: RF output: 8 frequency points
2 ASI outputs
IP output, SPTS output and MPTS
Video encoding encoding format MPEG-4 AVC / H.264
Input interface HDMI
Resolution Input: 1920 × 1080 60P/50P/30P / 1920 × 1080i / 1280 × 720P / 720x576i /
720x480i @ 50 / 59.94Hz
Output: 1920 × 1080_50P/60P/30P, 1920 × 1080_30P, 1280 × 720_30P,
720x576_25P, 720x480_25P
Audio encoding Bit rate 1Mbps ~ 13Mbps (per channel)
Rate mode CBR, VBR
Encoding format MPEG1 Layer2
Sampling rate: 48KHz
Bit rate 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kb
ps, 384kbps
Output RF output 8 frequency points (DVB-C / DVB-T / ATSC / ISDBT / DMBT)IP output (, MPTS output), UDP, RTP protocolDVB-T modulation channel 4/8/16 DVB-TStandard EN300744FFT 2KBandwidth 6M, 7M, 8MConstellation QPSK, 16QAM, 64QAMGuard interval 1/4, 1/8, 1/16, 1/32Forward error correction 1/2, 2/3, 3/4, 5/6, 7/8MER 42 dBFrequency range 50960MHz, 1KHz stepOutput level -28 ~ -3 dBm, 0.1db step sizeDVB-C modulation channel 4/8/16 DVB-CStandard EN300 429 / ITU-T J.83A / BMER40dbFrequency range 50960MHz, 1KHz stepOutput level -26 ~ -1dBm, 0.1dBm stepSymbol rate 5.0Msps ~ 7.0Msps, 1ksps step sizeJ.83A J.83BModulation constellation 16/32/64/128 / 256QAM 64/256 QAMBandwidth 8M 6MATSC standard ATSC A/53Bandwidth 6MConstellation 8VSBRF output 4/8/16 channels ATSC, RF frequency 50~960MHz, 1kHz step RF output level -24dBm~0dBm MER40dbpastureISDBTStandard ARIB STD-B31FFT mode 2KBandwidth 6M, 7M, 8MConstellation DQPSK, QPSK, 16QAM, 64QAMRF output 4/8/16 channel ISDBT, RF frequency 50~900MHz, 1kHz step RF output level -24dBm~0dBm MER40dbGuard interval 1/32, 1/16, 1/8, 1/4System network management (Web) supports network upgradeChinese/English operation interfaceGeneral size (length×width×height) 482mm×410mm×44mmWeight 5kgTemperature range: 045 (working); -2080 (storage)Power requirements AC100 ~ 240V, 50 / 60HzPower consumption 90Wnull
