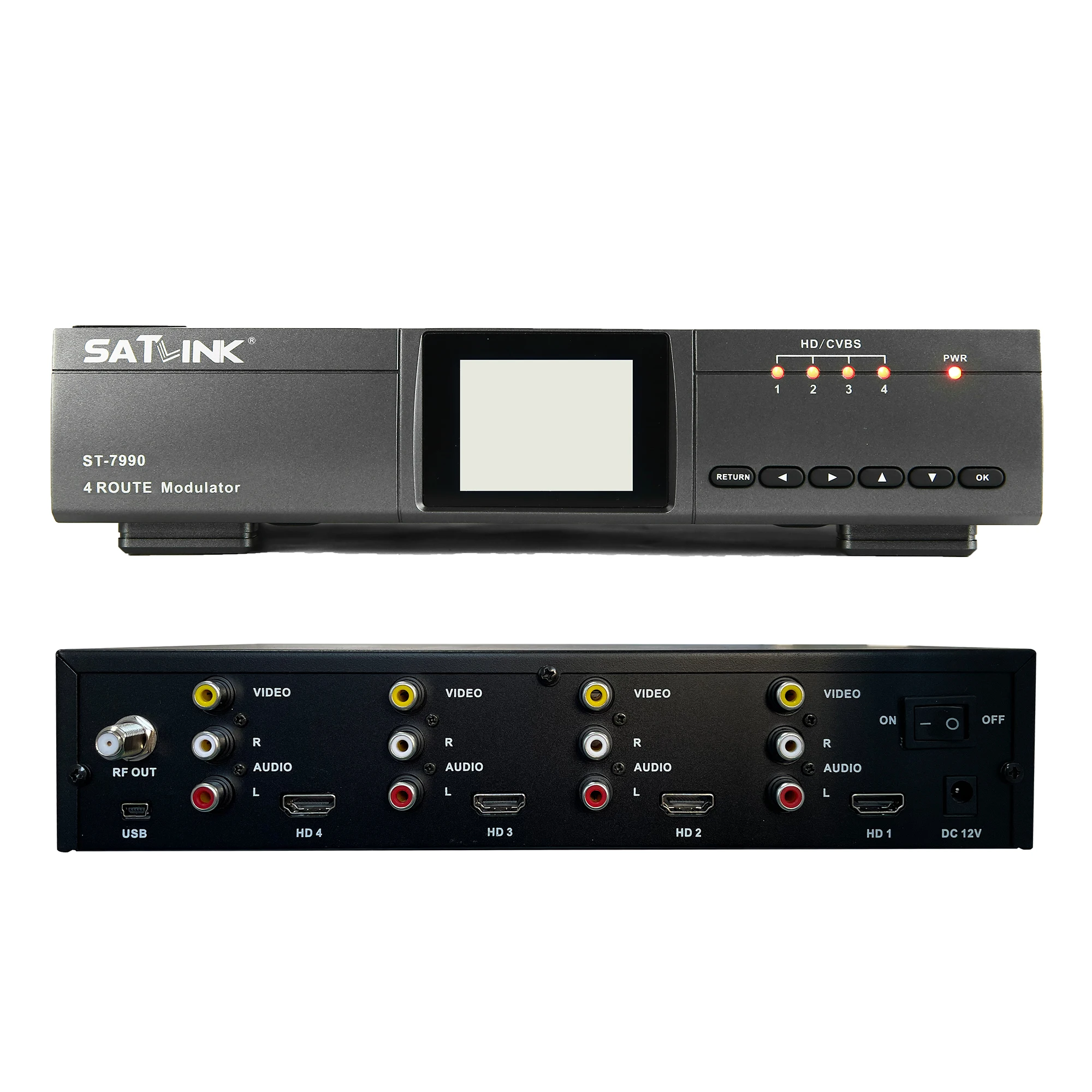

ST-7990 is a composite video input standard definition DVB-T
/DVB-C/ISDB-T 4 route modulator which provides COFDM RF

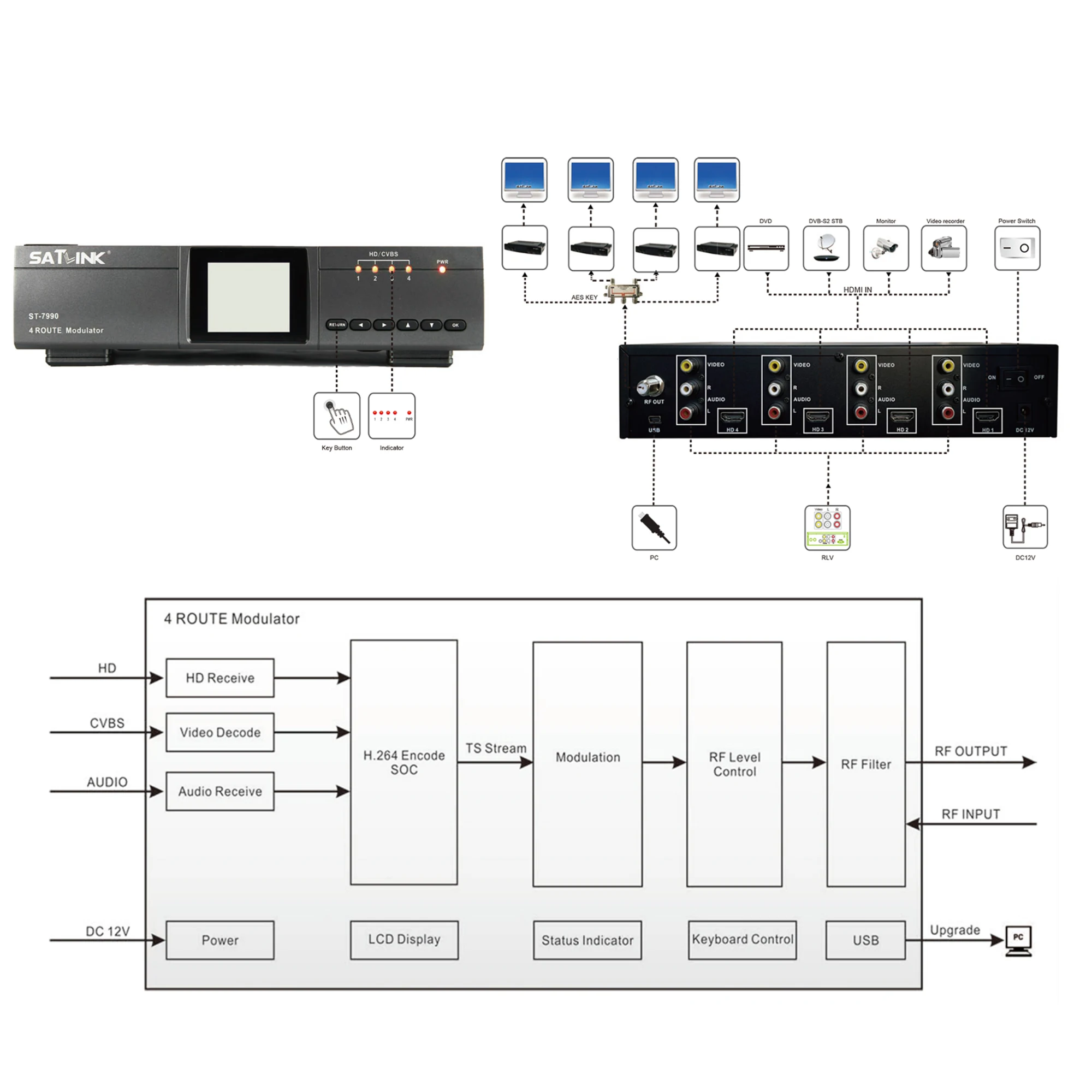

signal in range of 50-860MHz.It consists of A/D, Coding, Modulation, Frequency conversion which provides bandwidth of 6/7/8MHz to select.It is designed to achieve CVBS and HDMI input, and it can also
supports standard H.264 encoding
FEATURES
•High level of integration, high-performance, Full-featured,
integrated design

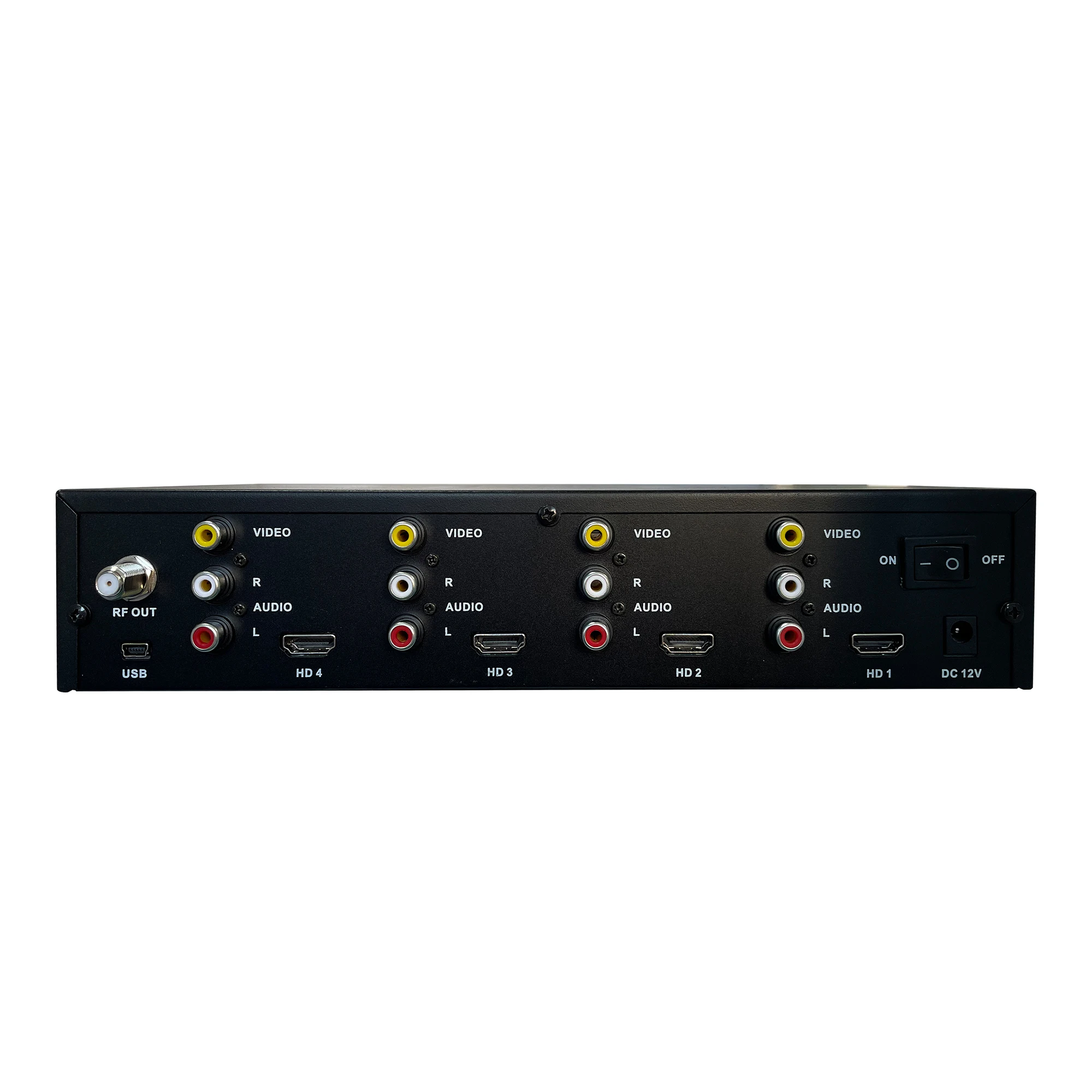

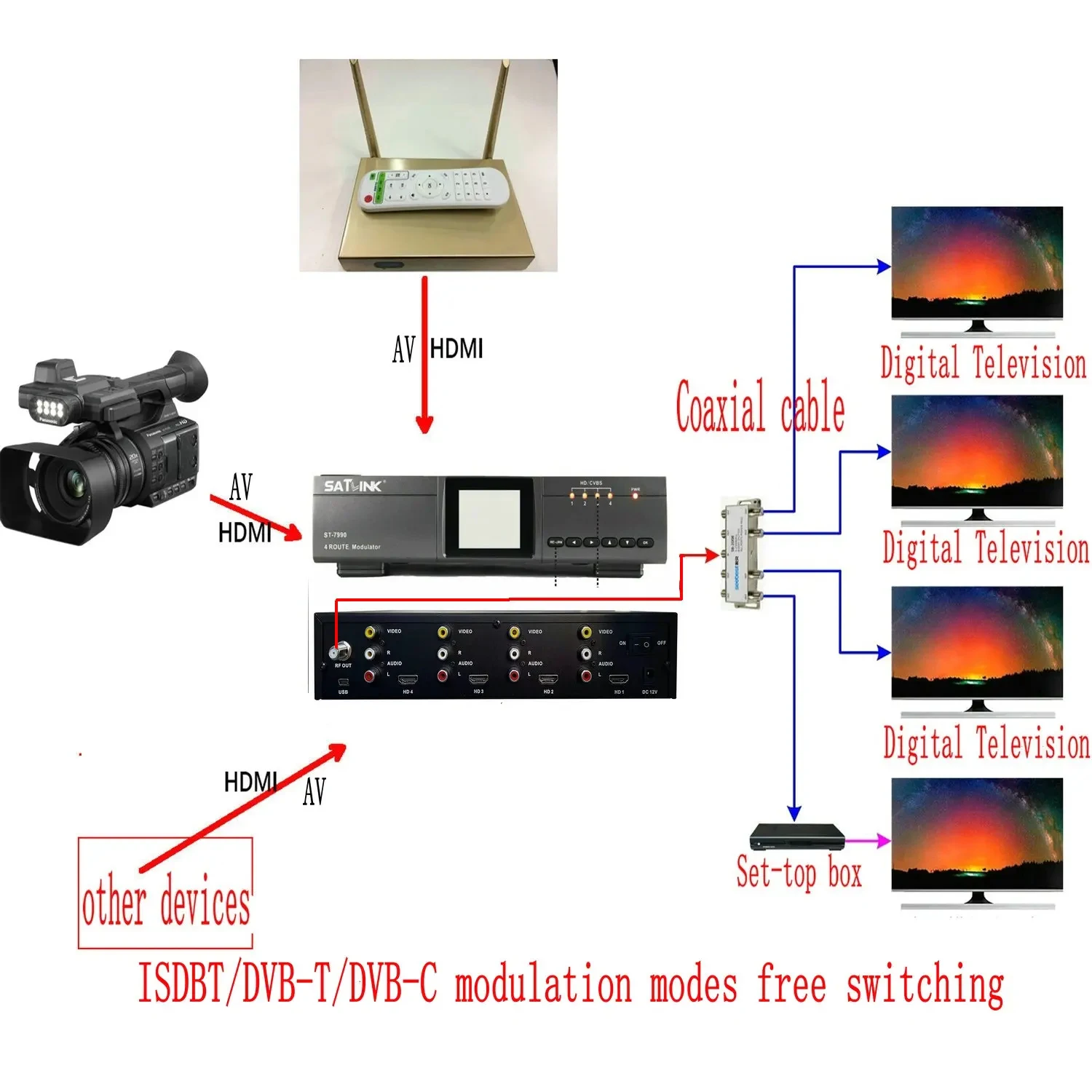

• 4 route input modulator that converts AV/HD source to a
DVB-T/DVB-C/ISDB-T channel
•Standard COFDM modulation and H.264 encoding
• Multiple video format compatibility including 576i(PAL) /
480i(NTSC) / 720p / 1080p
• Frequency range: 50~860MHz
•Continuously adjustable RF attenuation range from 0dB to
30dB, step 1dB
• 2.4-inch color LCD display
•Small size and light weight
• User friendly setup and control
•Compact and wall mountable

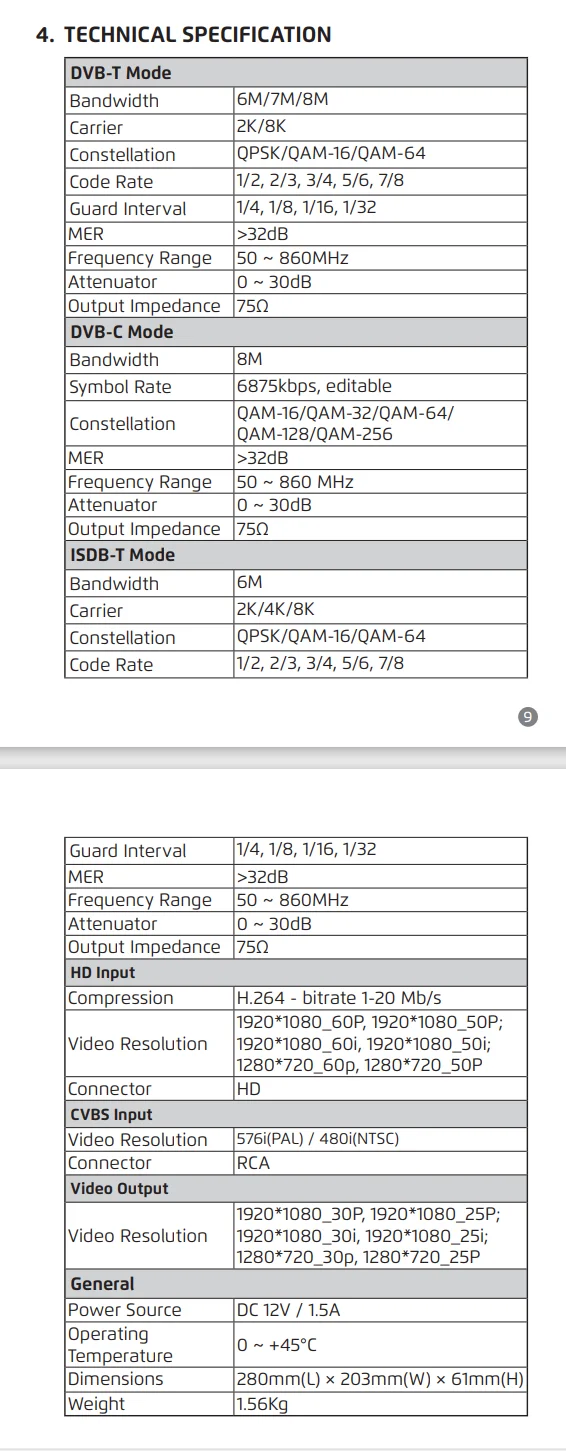

Specification parameters
DVB-T Mode
Bandwidth 6M/7M/8M
Carrier 2K/8K
Constellation QPSK/QAM-16/QAM-64
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
MER 32dB
Frequency Range 50 ~ 860MHz
Attenuator 0 ~ 30dB
Output Impedance 75Ω
DVB-C Mode
Bandwidth 8M
Symbol Rate 6875kbps, editable
Constellation QAM-16/QAM-32/QAM-64/
QAM-128/QAM-256
MER 32dB
Frequency Range 50 ~ 860 MHz
Attenuator 0 ~ 30dB
Output Impedance 75Ω
ISDB-T Mode
Bandwidth 6M
Carrier 2K/4K/8K
Constellation QPSK/QAM-16/QAM-64
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
10
Guard Interval 1/4, 1/8, 1/16, 1/32
MER 32dB
Frequency Range 50 ~ 860MHz
Attenuator 0 ~ 30dB
Output Impedance 75Ω
HD Input
Compression H.264 - bitrate 1-20 Mb/s
Video Resolution
1920*1080_60P, 1920*1080_50P;
1920*1080_60i, 1920*1080_50i;
1280*720_60p, 1280*720_50P
Connector HD
CVBS Input
Video Resolution 576i(PAL) / 480i(NTSC)
Connector RCA
Video Output
Video Resolution
1920*1080_30P, 1920*1080_25P;
1920*1080_30i, 1920*1080_25i;
1280*720_30p, 1280*720_25P
General
Power Source DC 12V / 1.5A
Operating
Temperature 0 ~ +45°C
Dimensions 280mm(L) × 203mm(W) × 61mm(H）
Weight 1.56Kg
