Features
1. 12-channel video and audio channel input, one-channel radio frequency 12-channel frequency separation output.
2. Use high frequency modulation with low out-of-band interference.
3. The sound and image adopt MCU phase lock technology, and the frequency stability and accuracy are high.
4. The functional circuit of the whole machine adopts sheet technology, and the reliability of the whole machine is high.

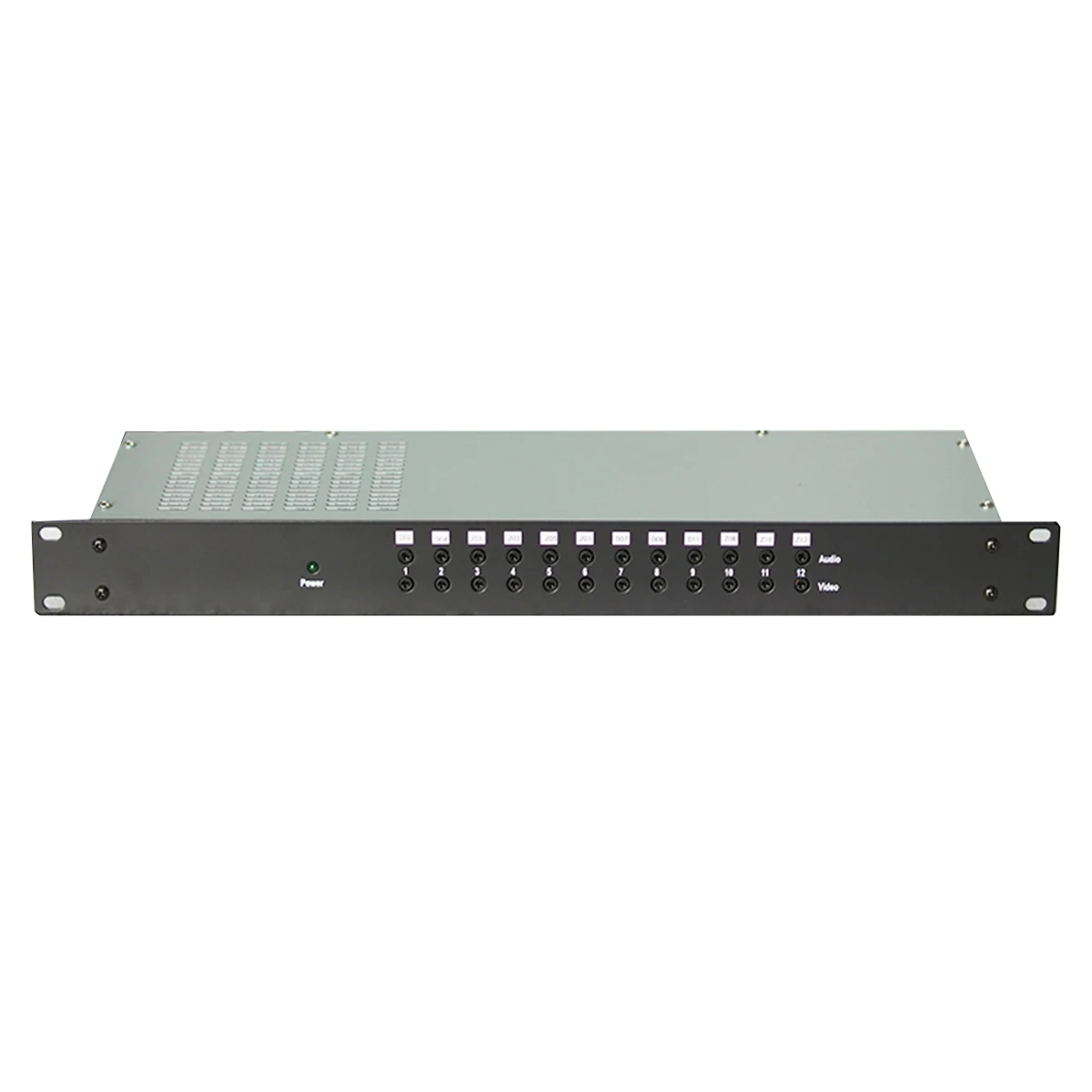

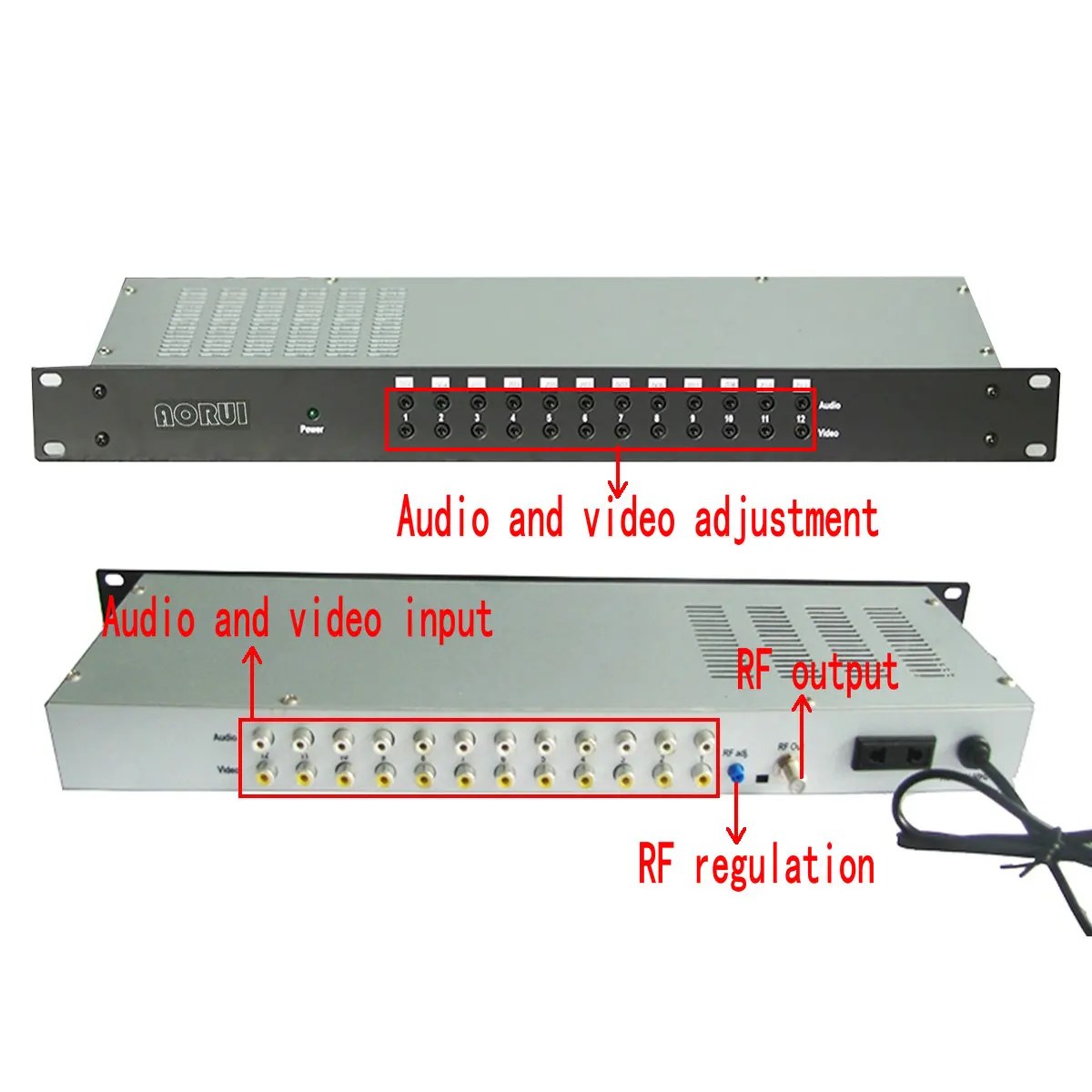

6. Convenient operation, volume and video modulation can be adjusted on the front panel.
Technical Parameters
Frequency 47 862MHz
Output Level
90dB V
Output Level Adj. Range 0 -20dB Adjustable
A/V Ratio -10dB -30dB (Adjustable)
Output Impedance 75
Spurious Output
60dB
Frequency Accuracy
±5KHz
Output Return Loss
12dB VHF
10dB UHF
Video Input Level 1.0Vp-p 87.5% Modulation
Input Impedance 75
Differential Gain
5% 87.5% Modulation
Differential Phase
5° 87.5% Modulation
Group Delay
45 ns
Visual Flatness ±1dB
Depth Adjust 0 90%
Video S/N
55dB
Audio Input Level 1Vp-p ±50KHz
Audio Input Impedance 600
Audio S/N
57dB
Audio Pre- emphasis 50 s
Rack 19 Inch standard
