Descripción
1. Dual core architecture: equipped with dual core processors, providing high-performance processing capabilities.
2. Large capacity storage: Built in 520KB SRAM and 4MB Flash, ensuring fast access and storage of programs and data.
3. True plug and play: With PCB USB-A male port design, no additional wires are required for convenient connection.
4. Low power mode: Supports sleep and hibernation modes, which helps extend battery life and save energy.
5. Rich peripheral interfaces: including SPI, I2C, UART, etc., suitable for various application scenarios.
Product Introduction:

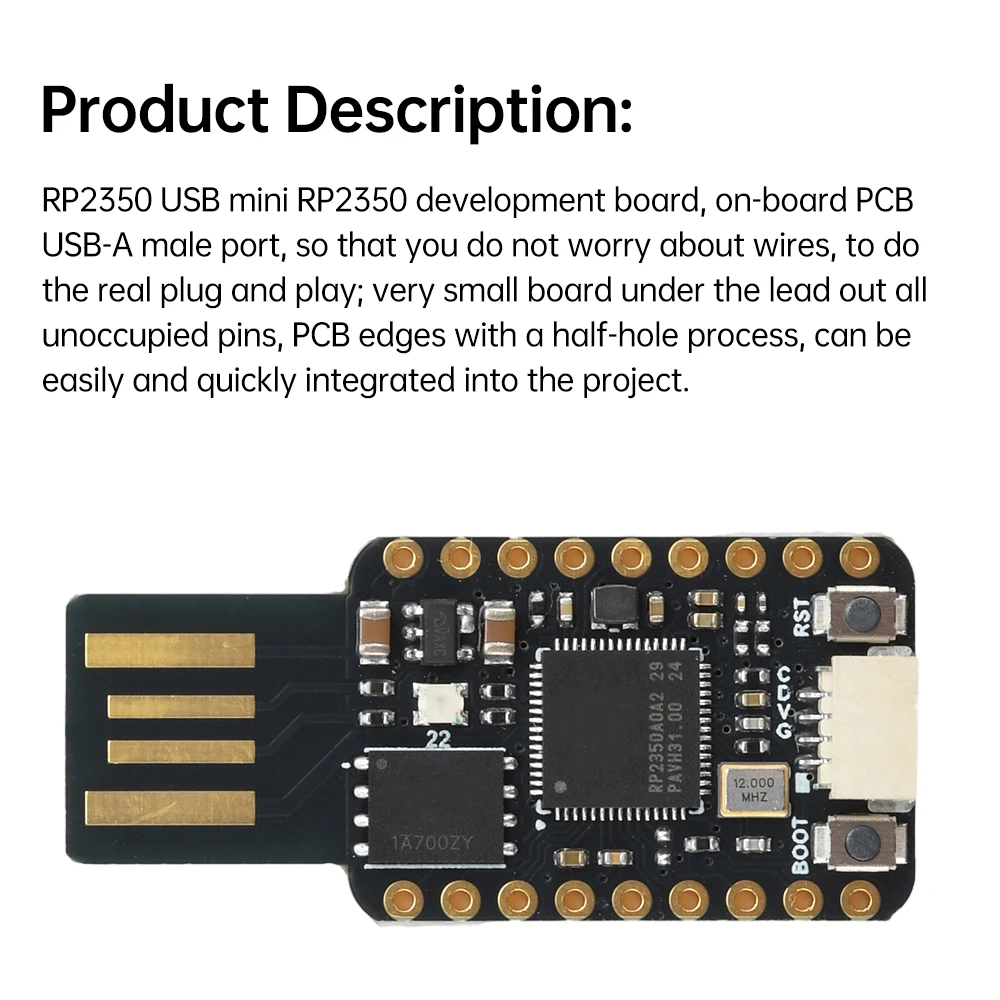

RP2350 USB Mini RP2350 Development Board, with onboard PCB USB-A male port, allowing you to worry about wires wirelessly and achieve true plug and play functionality; Under the extremely small board type, all unoccupied pins are led out, and the PCB edge adopts half hole technology, which can be easily and quickly integrated into the project.
Parameter：
Adopting RP2350A microcontroller chip
Unique dual core, dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard3 RISC-V processor, both running at a frequency of up to 150MHz flexible clock
Built in 520KB SRAM and 4MB on-chip Flash
Onboard PCB USB-A male port, allowing you to worry about wires wirelessly and achieve true plug and play functionality
USB 1.1 Host and Device Support
Support low-power sleep and sleep mode
Can be recognized as a large capacity storage device through USB for drag and drop download of programs

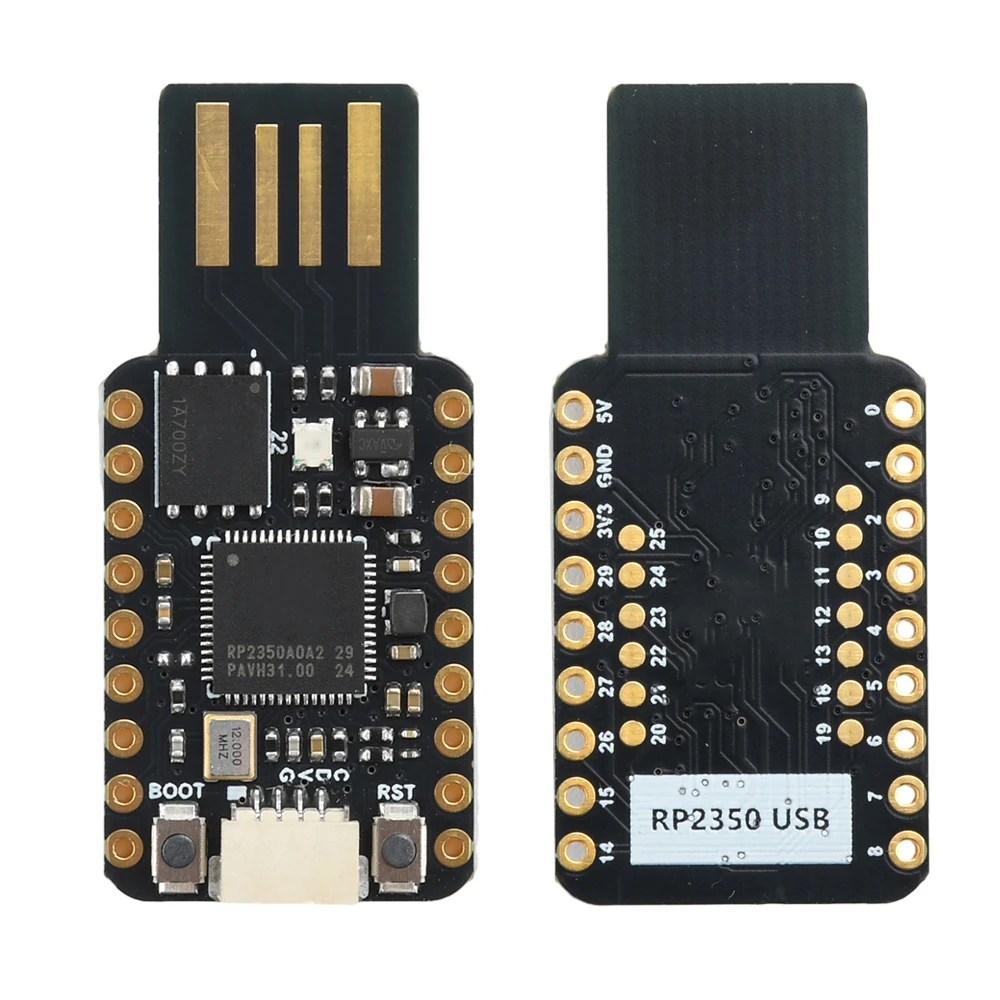

29 GPIO pins of RP2350A can be led out (20 can be led out through pin headers, the rest can only be soldered out)
Multiple hardware peripherals 2 SPI 2 I2C 2 UART 4 12 bit ADC 16 controllable PWM channels
Accurate on-chip clock and timer
Temperature sensor
On-chip accelerated floating-point library
12 programmable I/O (PIO) state machines for custom peripheral support

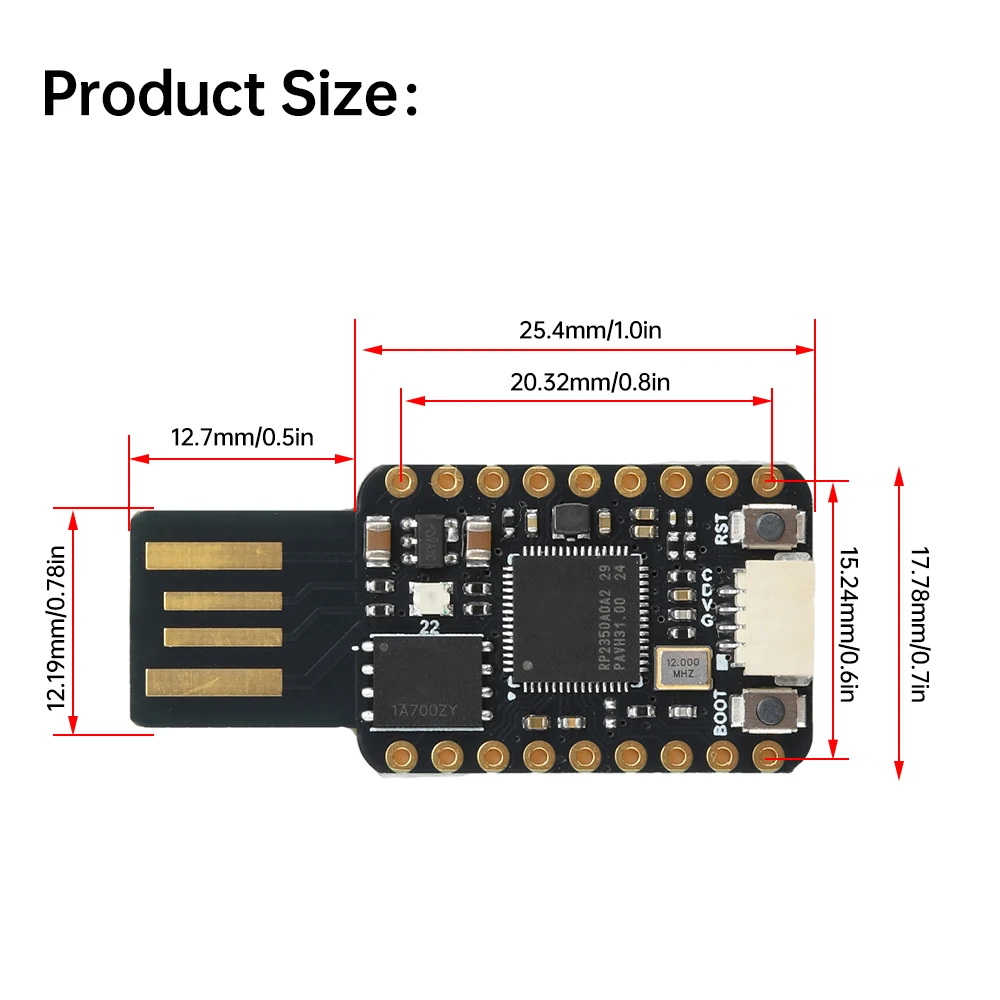

Size 38mm * 17.8mm

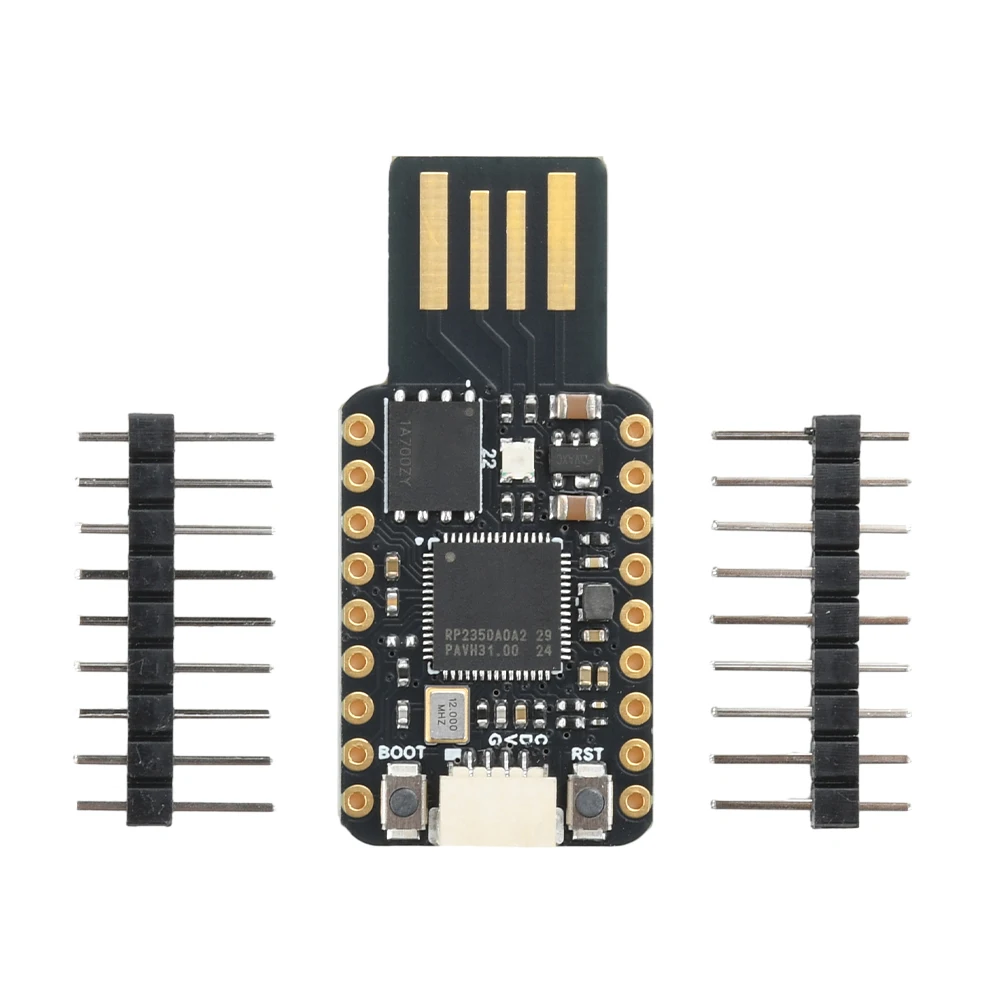

Package Include:
1X development board
2X needle arrangement
