Mini placa de desarrollo BW16 RTL8720DN: WiFi de doble banda y Bluetooth 5,0 BLE para Arduino y electrónica de bricolaje

Graphic details

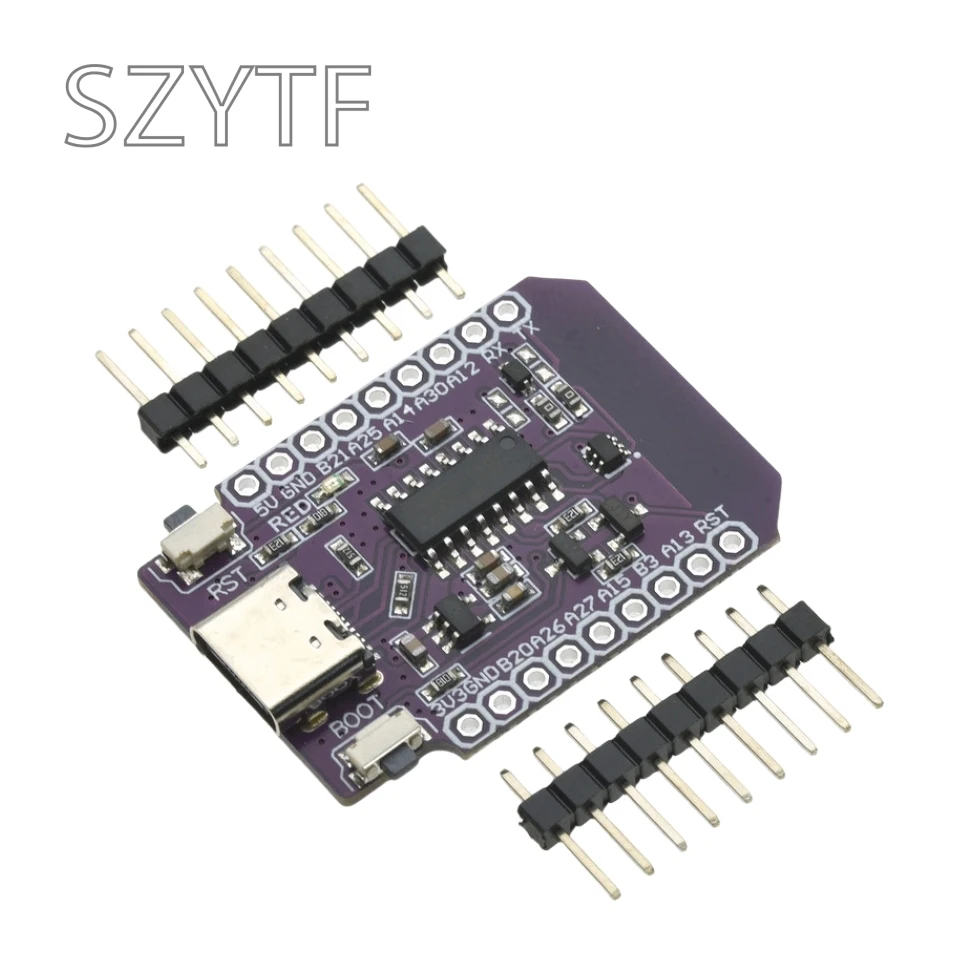

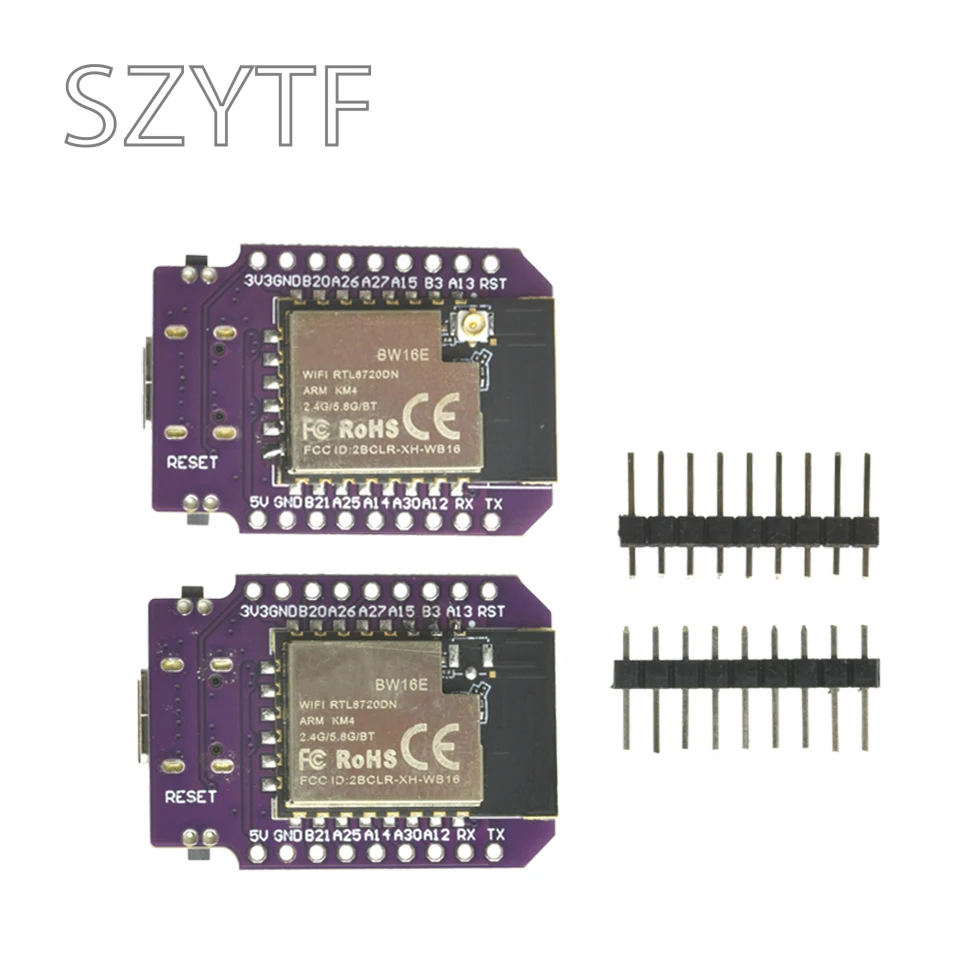

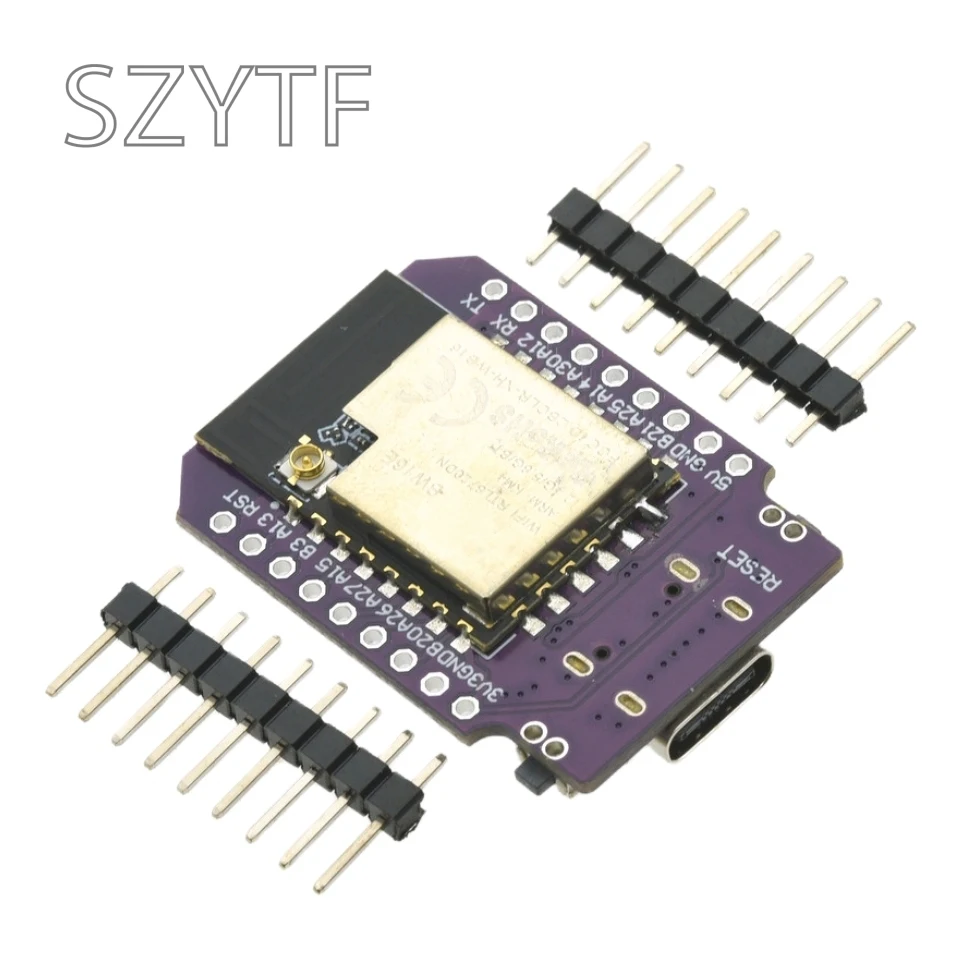

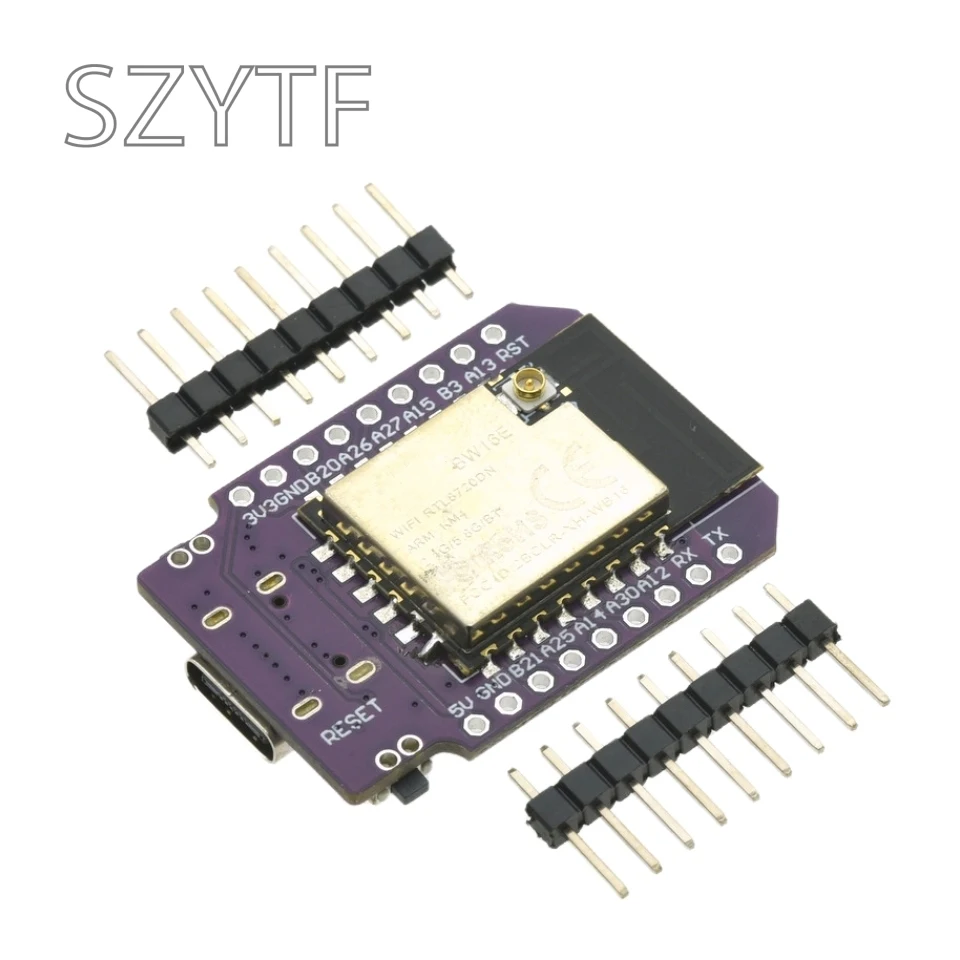

The MINI BW16 development board is a core development board designed for the BW16 module. This development board continues the classic design of the NodeMCU development board, leading out the commonly used 1/O to the pin headers on both sides. The board is equipped with the RTL8720 module, and developers can also connect peripherals according to their own needs. BW16 is a dual-band Wi-Fi+ Bluetooth SoC module developed based on the RTL8720DN chip. It supports dual-band (2.4GHz or 5GHz)WLAN and low-power Bluetooth 5.0; And it integrates ARM V8(compatible with Cortex-M4F) high-performance MCU, ARM V8M(compatible with Cortex-MO) low-power MCU, WLAN(802.11a/b/g/n), MAC, Bluetooth baseband and RF baseband, and also provides a set of configurable GPIO ports. Used for the control of different peripheral devices.
